ABB 1SDA063550R1 Shunt Closing Release for Emax

ABB 1SDA063550R1 Shunt Closing Release for Emax: Control System Coordination and Upstream–Downstream Synchronization

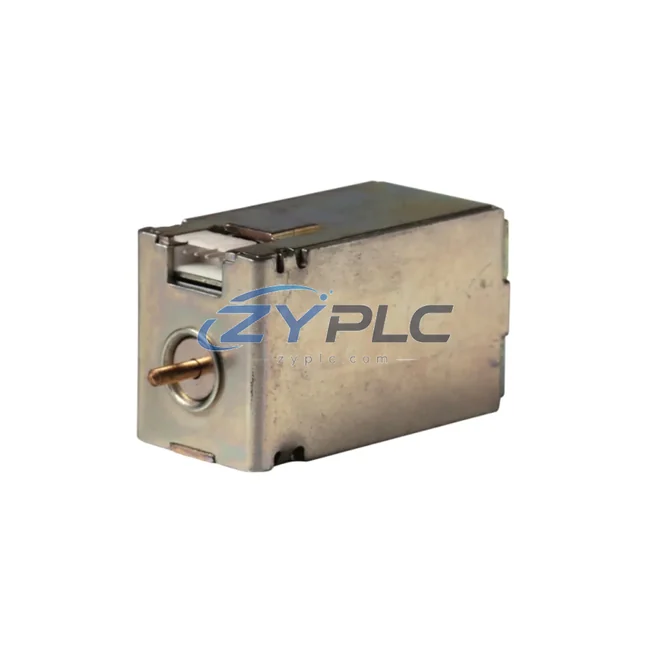

The ABB 1SDA063550R1 (SCU-S1) Shunt Closing Release is a precision-engineered accessory designed for integration within the ABB Emax series air circuit breaker platform. In modern industrial power distribution and automation architectures, the closing release is not a standalone component — it is a critical actuation node that bridges the control layer with the power switching layer, enabling remote and automated breaker closure commands to be executed with deterministic reliability. Understanding the role of the 1SDA063550R1 within a complete layered control system is essential for engineers designing redundant, scalable, and maintainable electrical infrastructure.

Within a typical multi-tier automation architecture, the 1SDA063550R1 SCU-S1 receives a low-voltage control signal — typically 24 VDC or 110–240 VAC depending on the variant — from a supervisory control layer such as a PLC output module, a protection relay, or a SCADA-driven interlock circuit. This signal triggers the electromagnetic actuator within the release mechanism, which then mechanically engages the breaker’s closing latch. The result is a controlled, repeatable closure event that can be logged, sequenced, and interlocked with other system events without manual operator intervention at the switchgear panel.

In power distribution systems where the Emax series breakers serve as main incomers, bus couplers, or feeder breakers, the 1SDA063550R1 plays a direct role in automatic transfer switching (ATS) sequences, generator synchronization routines, and load restoration workflows. When paired with the ABB 1SDA063550R0 shunt opening release (SHT) and the ABB 1SDA063550R2 undervoltage release (UVR), the complete accessory set enables fully automated open-close-trip sequences under PLC or protection relay supervision — a configuration commonly required in data centers, petrochemical substations, water treatment facilities, and mining power distribution boards.

Product Specification Table

System Compatibility Notes

The 1SDA063550R1 SCU-S1 achieves its full value when deployed as part of a coordinated Emax-based switchgear architecture. At the control layer, a Siemens S7-1500 or ABB AC500 PLC issues digital output commands through isolated relay output modules, which drive the closing release coil. The PLC logic typically incorporates permissive interlocks — verifying breaker ready status, bus voltage presence, and synchronization conditions — before issuing the close command. This ensures that the 1SDA063550R1 only actuates under safe, pre-validated system states.

At the protection and monitoring layer, ABB REF615 or REF630 feeder protection relays provide overcurrent, earth fault, and differential protection. These relays communicate via IEC 61850 GOOSE messaging or hardwired binary outputs to the PLC, which in turn controls the 1SDA063550R1 closing sequence. In bus coupler applications, the closing release works in tandem with the ABB 1SDA063550R0 shunt opening release to execute automatic bus transfer without operator involvement.

The ABB Ekip Touch or Ekip G Trip Unit, installed within the Emax breaker body, provides real-time current measurement, protection curve management, and event logging. The Ekip COM Modbus or Ekip COM Profibus communication module extends these diagnostics to the SCADA layer, allowing operators to monitor breaker status, trip cause, and closing event history remotely. This digital feedback loop confirms that the 1SDA063550R1 closing command was successfully executed and logged — a requirement in IEC 61511 functional safety applications.

At the power supply layer, a redundant 24 VDC UPS-backed control power supply — such as the ABB CP-E 24/5.0 or equivalent — ensures that the closing release coil receives stable, uninterrupted control voltage even during main power disturbances. This is particularly important in ATS applications where the closing release must operate precisely at the moment of supply restoration. The control power circuit is typically protected by a dedicated MCB from the ABB S200 series, ensuring selective coordination between the control circuit and the main power distribution.

Terminal blocks from the ABB ENTRELEC or Phoenix Contact CLIPLINE series provide the wiring interface between the PLC output module, the control power supply, and the 1SDA063550R1 coil terminals. Proper terminal labeling and cable segregation between control and power circuits are essential for long-term maintainability and compliance with IEC 60204-1 machine electrical safety standards.

Industrial Application Notes

Manufacturing and Packaging Lines: In automated production facilities, the 1SDA063550R1 enables PLC-controlled power restoration sequences after planned shutdowns or fault clearance events. The closing release allows the main incomer or section breaker to be re-energized automatically as part of a production restart sequence, reducing downtime and eliminating the need for manual switchgear operation in potentially hazardous environments.

Power Generation and Utility Substations: In generator paralleling and grid interconnection applications, the SCU-S1 closing release is used in synchronization schemes where the breaker must close at the precise moment of voltage and phase angle match. The release responds to the synchronizer relay output within milliseconds, enabling smooth generator connection to the busbar without transient overcurrents.

Petrochemical and Refinery Plants: In hazardous area power distribution, the 1SDA063550R1 supports remote breaker operation from a safe control room, eliminating the need for personnel to enter high-voltage switchgear rooms for routine switching operations. This directly supports IEC 61511 and IEC 62061 functional safety requirements for process industry electrical systems.

Water and Wastewater Treatment: In pump station and treatment plant MCC (Motor Control Center) architectures, the closing release enables automated pump group sequencing, where multiple Emax breakers are closed in a defined order to manage inrush current and hydraulic transients. The PLC-controlled closing sequence, executed via the 1SDA063550R1, ensures that each pump motor is energized only when system conditions are within acceptable limits.

Mining and Metallurgy: In underground and surface mining power distribution, where switchgear may be located in remote or restricted-access areas, the SCU-S1 closing release enables remote re-energization of feeder circuits after fault clearance, supporting continuous production with minimal manual intervention.

Product Compatibility FAQ

Q1: Is the ABB 1SDA063550R1 SCU-S1 compatible with all Emax series frame sizes, and can it be retrofitted into existing installations?
The 1SDA063550R1 SCU-S1 is designed for the ABB Emax series (E1, E2, E3, E4, E6) and installs into the dedicated accessory slot within the breaker body. Retrofitting into existing Emax installations is supported provided the accessory slot is unoccupied and the control voltage matches the release coil rating. Always verify the breaker’s accessory configuration chart (available in the Emax installation manual) before ordering to confirm slot availability and voltage compatibility.

Q2: How does the 1SDA063550R1 integrate with PLC-based control architectures, and what interlock logic is recommended for safe automated closing?
The SCU-S1 closing release is driven by a hardwired digital output from the PLC, typically through an interposing relay to provide electrical isolation between the PLC output card and the coil circuit. Recommended interlock conditions before issuing a close command include: breaker in ready-to-close position (confirmed via auxiliary contact feedback), bus voltage within acceptable range, synchronization check passed (for generator applications), and no active protection trip signals. These interlocks should be implemented in the PLC safety logic and, where applicable, in the protection relay’s binary output logic to ensure system integration between the control and protection layers.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance of the 1SDA063550R1 in critical infrastructure applications?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions as specified in IEC 60947-2. For critical infrastructure applications, it is recommended to maintain a spare 1SDA063550R1 unit in the site’s electrical spare parts inventory, as the closing release is a wear-sensitive electromechanical component subject to coil fatigue over extended operational cycles. Our technical team provides pre-sales compatibility verification, installation guidance, and post-sales support to ensure long-term system reliability. Contact us for volume pricing, expedited delivery, and application-specific configuration advice.
