ABB 200-CICN ControlNet Communication Interface: Industrial Data Link for Smart Factory Connectivity

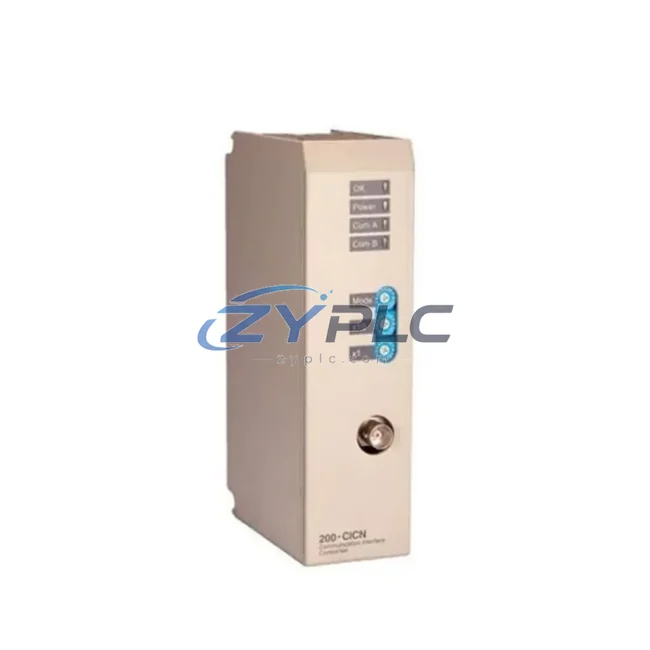

The ABB 200-CICN is a high-performance ControlNet Communication Interface Module designed for ABB’s 200 Series control platform. It serves as a critical data bridge between field-level devices and upper-level control systems, enabling deterministic, real-time communication across complex industrial network architectures. Whether deployed in automotive assembly lines, process manufacturing, water treatment facilities, or discrete production environments, the 200-CICN delivers the protocol reliability and network stability that modern smart factories demand.

As industrial sites evolve toward fully connected automation ecosystems, the role of a robust communication interface becomes central to operational efficiency. The ABB 200-CICN addresses this need by providing seamless ControlNet protocol support — a media-independent, deterministic network standard widely adopted in high-availability industrial applications. Its integration into the ABB 200 Series control architecture ensures that data flows without interruption from sensors and actuators at the field level all the way to SCADA dashboards and MES platforms at the enterprise level.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the ABB 200-CICN sits at the heart of the control network, orchestrating data exchange between multiple layers of the automation hierarchy. At the field level, distributed I/O modules — such as the ABB DPIO-01 remote I/O adapter and ABB AI810 analog input modules — collect process signals from temperature sensors, pressure transmitters, and flow meters. These signals are transmitted over the ControlNet backbone managed by the 200-CICN, ensuring deterministic delivery with guaranteed bandwidth allocation.

The 200-CICN interfaces directly with the ABB AC500 PLC series, enabling the controller to execute real-time logic based on live field data. For motion and drive control applications, the module communicates with ABB ACS880 variable frequency drives via the ControlNet network, allowing precise speed and torque commands to be issued with minimal latency. This tight integration between the PLC and drive layer is essential for coordinated multi-axis processes such as conveyor synchronization and robotic pick-and-place operations.

At the HMI layer, operators interact with the process through ABB CP600 series HMI panels, which receive real-time data from the 200-CICN network. Alarm states, process values, and trend data are displayed with sub-second refresh rates, giving operators immediate visibility into production status. For facilities running ABB Ability™ System 800xA as their SCADA/DCS platform, the 200-CICN provides the network gateway function that feeds live I/O data into the historian and process graphics, enabling plant-wide monitoring and advanced analytics.

Edge connectivity is further extended through ABB Edge Gateway devices, which aggregate ControlNet data and publish it to cloud platforms via MQTT or OPC-UA. This enables remote diagnostics, predictive maintenance alerts, and KPI dashboards accessible from any location. The 200-CICN’s support for unscheduled explicit messaging also allows configuration tools and diagnostic software to communicate with field devices without disrupting the real-time I/O scan cycle — a critical feature for live production environments where downtime is not an option.

For network infrastructure, managed industrial Ethernet switches with ControlNet-to-EtherNet/IP bridging capabilities complement the 200-CICN in hybrid network architectures, allowing legacy ControlNet segments to coexist with modern EtherNet/IP backbones. This interoperability protects existing investments while enabling phased migration toward Industry 4.0 network standards.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and enterprise systems operate in disconnected silos, preventing real-time visibility and coordinated control. The ABB 200-CICN directly addresses this problem through its role as a deterministic communication gateway within the ControlNet architecture.

In facilities where multiple generations of equipment coexist, protocol fragmentation is common. Older devices may speak proprietary serial protocols while newer systems use EtherNet/IP or PROFINET. The 200-CICN, combined with appropriate protocol converters and gateway modules within the ABB 200 Series ecosystem, enables unified data collection across heterogeneous device populations. This eliminates the need for manual data entry or custom middleware, reducing both engineering effort and the risk of data errors.

Remote monitoring and diagnostics are transformed by the 200-CICN’s network capabilities. Maintenance engineers can access device-level diagnostics, fault codes, and parameter data from the control room or remotely via SCADA, without requiring physical access to the field device. This capability is particularly valuable in hazardous environments such as chemical plants, offshore platforms, and high-voltage substations, where minimizing personnel exposure is a safety priority.

Production line transparency is another key benefit. With the 200-CICN feeding real-time data into SCADA and MES systems, production managers gain accurate OEE (Overall Equipment Effectiveness) metrics, cycle time data, and quality statistics. This data-driven visibility enables faster root cause analysis when deviations occur and supports continuous improvement initiatives aligned with lean manufacturing principles.

System scalability is built into the ControlNet architecture supported by the 200-CICN. As production capacity expands, additional nodes — whether remote I/O racks, drives, or smart sensors — can be added to the ControlNet network without redesigning the communication infrastructure. The 200-CICN’s support for up to 99 network nodes provides substantial headroom for future expansion, protecting the capital investment in the communication infrastructure.

Industrial Connectivity FAQ

Q1: What is the communication latency of the ABB 200-CICN on a ControlNet network?
The 200-CICN supports deterministic ControlNet communication with configurable Network Update Times (NUT) typically ranging from 2 ms to 100 ms, depending on network load and the number of scheduled connections. This deterministic behavior ensures that time-critical I/O data is delivered within guaranteed time windows, making it suitable for high-speed process control and motion coordination applications.

Q2: Is the ABB 200-CICN compatible with third-party ControlNet devices and SCADA systems?
Yes. The 200-CICN complies with the ANSI/IEC 61158 ControlNet standard, ensuring interoperability with any conformant ControlNet device regardless of manufacturer. It is compatible with major SCADA platforms including ABB Ability™ System 800xA, Wonderware, iFIX, and Ignition, provided the SCADA system includes a ControlNet OPC server or communication driver.

Q3: How does the 200-CICN maintain network stability in electrically noisy industrial environments?
ControlNet uses RG-6 coaxial cable with BNC connectors, providing inherent immunity to electromagnetic interference (EMI) common in industrial environments with variable frequency drives, welding equipment, and high-power motors. The 200-CICN supports dual-port media redundancy, allowing the network to continue operating on the secondary cable if the primary cable is damaged or experiences signal degradation.

Q4: What warranty and quality assurance does ZYPLC provide for the ABB 200-CICN?
Every ABB 200-CICN unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment. Prior to dispatch, each unit undergoes functional testing to verify communication initialization, I/O data exchange, and network node addressing. ZYPLC maintains ready stock of the 200-CICN to support urgent project timelines, with global shipping available. For pricing, availability, and technical consultation, contact our team directly.

—
