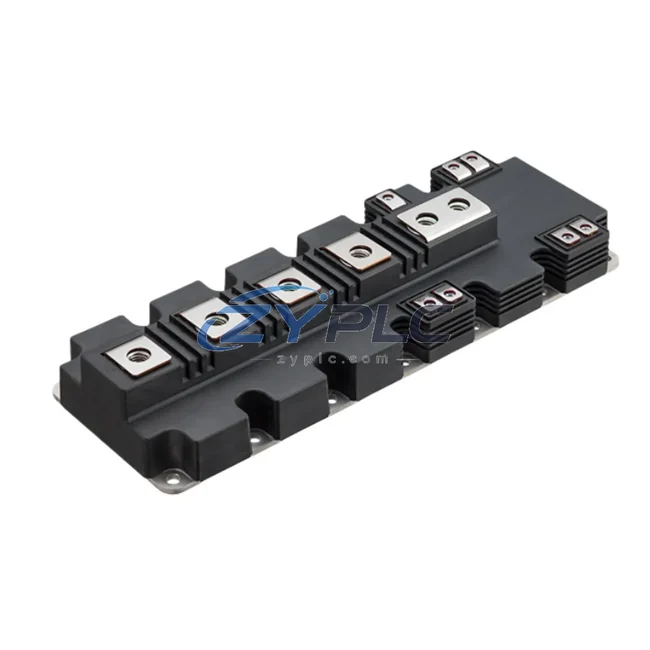

ABB 3AXD50000711888 IGBT Module for 2MBI Series

ABB 3AXD50000711888 IGBT Module for 2MBI Series: Compatibility and Replacement Notes

The ABB 3AXD50000711888, carrying the Fuji Electric 2MBI1400VXB-120P-50 IGBT module designation, is a high-power insulated gate bipolar transistor assembly engineered for seamless integration within ABB ACS880, ACS580, and ACS380 series variable frequency drive platforms. As a core switching element in the power conversion stage, this module does not operate in isolation — it is a precision-matched component within a layered automation architecture that spans the control layer, I/O layer, network layer, power layer, human-machine interface layer, and execution layer. Understanding its role within this full-stack system context is essential for engineers responsible for drive commissioning, system redundancy planning, and long-term maintenance strategy.

In modern industrial automation, the IGBT module sits at the intersection of the power layer and the execution layer. It receives switching commands from the drive’s gate driver board — itself coordinated by the drive control unit (DCU) — and converts DC bus voltage into precisely timed AC output waveforms that govern motor torque, speed, and direction. The 3AXD50000711888 is rated for high-current, high-voltage switching duty, making it suitable for heavy industrial loads including compressors, hoists, extruders, centrifuges, and large pump systems. Its integration into the 2MBI series platform ensures electrical and thermal compatibility with the surrounding drive architecture, reducing the risk of parameter mismatch that can arise when non-OEM modules are substituted.

Product Specification Table

System Compatibility Notes

The 3AXD50000711888 IGBT module achieves its full performance potential only when correctly positioned within a coordinated drive system. At the control layer, the ABB ACS880 drive control unit — running the drive application program and closed-loop speed or torque algorithms — generates PWM switching signals that are passed through the gate driver board to the IGBT module’s gate terminals. The gate driver board, such as the ABB AINT-02C or AINT-14C interface board, provides the necessary isolation, amplification, and short-circuit protection logic that safeguards the IGBT during fault conditions.

At the power layer, the DC bus capacitor bank — typically a series of ABB-specified electrolytic or film capacitors mounted on the drive’s DC bus bar — supplies the intermediate DC voltage that the IGBT module switches into the motor windings. The rectifier bridge assembly, upstream of the DC bus, converts incoming three-phase AC supply into the DC bus voltage. Proper coordination between the rectifier, DC bus capacitors, and the IGBT module is critical for maintaining low ripple voltage and preventing overvoltage transients that could damage the module’s collector-emitter junction.

At the I/O layer, the drive’s I/O extension modules — such as the ABB FIO-01 or FDIO-01 — provide digital and analog signal interfaces that feed process feedback into the drive’s control algorithms. Temperature sensors, encoder feedback modules, and current transducers all contribute real-time data that the drive uses to modulate the IGBT switching frequency and duty cycle. This closed-loop coordination ensures that the 3AXD50000711888 operates within its safe operating area (SOA) at all times, extending module service life and reducing unplanned downtime.

At the network layer, the drive communicates with the plant-level PLC — such as an ABB AC500 series controller or a Siemens S7-300/S7-400 — via fieldbus protocols including PROFIBUS-DP, PROFINET, or EtherCAT. The fieldbus adapter module, mounted in the drive’s option slot, translates PLC commands into drive parameter writes and reads, enabling remote speed reference, torque limit adjustment, and fault acknowledgment without local operator intervention. This network integration is essential for coordinated multi-drive systems where several ACS880 drives must synchronize their output to maintain process continuity.

At the human-machine interface layer, the ABB ACS-AP-I or ACS-AP-W control panel provides local parameter access, fault history review, and manual override capability. In larger installations, the drive data is aggregated into a SCADA system via OPC-UA or Modbus TCP, giving plant engineers visibility into IGBT junction temperature trends, switching frequency, and cumulative operating hours — all of which are key indicators of remaining module service life. Proactive monitoring at this layer allows maintenance teams to schedule IGBT replacement during planned shutdowns rather than responding to emergency failures.

At the execution layer, the motor — whether a standard induction motor, permanent magnet synchronous motor, or reluctance motor — receives the precisely shaped AC waveform produced by the IGBT module. The quality of this waveform directly affects motor efficiency, acoustic noise, bearing current, and thermal loading. The 3AXD50000711888, with its low switching losses and tight parameter matching to the 2MBI series platform, delivers a clean output waveform that minimizes motor stress and supports long motor service intervals.

Industrial Application Notes

Manufacturing and Packaging Lines: In high-throughput packaging and assembly lines, multiple ACS880 drives — each equipped with a 3AXD50000711888 IGBT module — control conveyor motors, servo-driven pick-and-place axes, and pneumatic compressor drives. The consistent switching characteristics of the 2MBI1400VXB-120P-50 module across all drive units ensure uniform dynamic response, simplifying PLC motion program tuning and reducing inter-axis synchronization errors.

Power Generation and Utilities: In power plant auxiliary systems — including boiler feed pumps, induced draft fans, and cooling water pumps — the IGBT module’s high current rating and robust thermal design support continuous duty operation under variable load conditions. The warranty terms confirmed during quotation provides plant operators with a defined maintenance budget horizon, supporting capital expenditure planning for critical rotating equipment.

Petrochemical and Process Industries: In refinery and chemical plant applications, the drive system must maintain precise flow control under varying process conditions. The 3AXD50000711888 supports the high switching frequency required for accurate flow regulation while maintaining low harmonic distortion on the plant power network — an important consideration for facilities with sensitive instrumentation and metering equipment.

Water and Wastewater Treatment: Municipal water treatment facilities rely on variable speed pump drives to optimize energy consumption across varying demand cycles. The IGBT module’s low on-state losses contribute directly to drive efficiency, reducing electricity costs over the system’s operational life. system integration with the plant SCADA system enables automated pump scheduling based on reservoir level and flow demand signals.

Mining and Metallurgy: In mining hoist and conveyor applications, the drive system must handle high inertia loads and frequent start-stop cycles. The 3AXD50000711888’s high current capacity and robust gate driver coordination ensure reliable torque delivery during heavy load acceleration, while the drive’s braking chopper circuit — connected across the DC bus — dissipates regenerative energy during deceleration, protecting the IGBT module from overvoltage stress.

Product Compatibility FAQ

Q1: Is the 3AXD50000711888 directly interchangeable with other IGBT modules in the ACS880 drive platform, and what verification steps are required before installation?
The 3AXD50000711888 is specified by ABB as the correct replacement module for the 2MBI1400VXB-120P-50 position within compatible ACS880 drive frames. Before installation, engineers should verify the drive frame size, DC bus voltage rating, and gate driver board revision to confirm compatibility. The module’s thermal interface surface must be cleaned and re-coated with approved thermal compound, and the gate driver board should be inspected for signs of secondary damage that may have caused the original module failure. Post-installation, a controlled power-up sequence with current limiting is recommended before returning the drive to full load service.

Q2: How does the warranty terms confirmed during quotation apply in a multi-drive system where the module is one component within a larger control architecture?
The warranty terms confirmed during quotation covers manufacturing defects and functional failure of the 3AXD50000711888 module under rated electrical and thermal conditions. In a multi-drive system, warranty claims are evaluated on the individual module level. To support a warranty claim, customers should retain installation records, drive fault logs, and thermal imaging data that demonstrate the module was operated within its specified safe operating area. Warranty service is coordinated through ZYPLC’s technical support team, and replacement modules are dispatched to minimize system downtime.

Q3: What commissioning and long-term maintenance practices are recommended to maximize the service life of the 3AXD50000711888 in a continuous industrial process?
During commissioning, the drive’s switching frequency, current limit, and thermal protection thresholds should be configured according to the motor and load characteristics. Periodic maintenance should include inspection of the module’s mounting torque, thermal interface condition, and DC bus capacitor health — as capacitor degradation increases voltage ripple stress on the IGBT junction. Drive fault logs should be reviewed quarterly for recurring overcurrent or overtemperature events that may indicate developing issues in the gate driver circuit or cooling system. Maintaining a spare 3AXD50000711888 module in inventory — supported by ZYPLC’s stocking program — ensures rapid recovery from unplanned failures without extended lead time delays.
