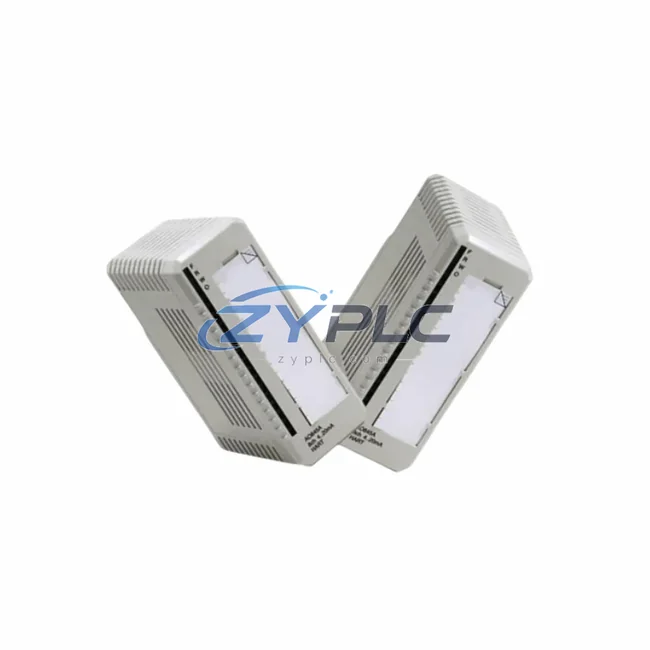

ABB 3BHB006714R0271 Synchronous Control Unit

ABB 3BHB006714R0271 Synchronous Control Unit: Precision Drive Efficiency for SYN5201 Automation

The ABB 3BHB006714R0271, part of the SYN5201 synchronous control unit series, is an advanced drive coordination module engineered for high-demand industrial environments where energy efficiency, motor synchronization accuracy, and production line continuity are non-negotiable. Designed to integrate seamlessly within ABB’s broader drive and automation ecosystem, this unit delivers measurable reductions in reactive power consumption, minimizes motor slip losses, and enables precise torque control across multi-axis drive configurations. Whether deployed in paper mills, steel rolling lines, marine propulsion systems, or large-scale process automation, the 3BHB006714R0271 serves as the intelligent core of synchronous motor management — translating real-time feedback into optimized switching commands that keep energy draw aligned with actual load demand.

In modern industrial facilities, uncontrolled motor operation accounts for a disproportionate share of total energy expenditure. The SYN5201 synchronous control unit addresses this directly by maintaining continuous phase alignment between the motor rotor and the drive’s output waveform. This eliminates the unplanned downtime associated with asynchronous slip, reduces thermal stress on motor windings, and extends the operational lifespan of connected drive hardware. When paired with ABB’s ACS880 industrial drive series, the 3BHB006714R0271 enables closed-loop torque regulation that responds within milliseconds to load fluctuations — a capability that directly translates to lower peak demand charges and reduced energy consumption per production cycle.

Product Specification Table

System Compatibility and Application

The 3BHB006714R0271 does not operate in isolation — its maintenance planning value is fully realized when integrated within a coordinated automation architecture. In a typical high-efficiency drive system, the SYN5201 unit interfaces directly with the ABB ACS880 multidrive inverter module, receiving rotor position feedback and issuing firing angle commands that maintain unity power factor across the motor’s operating range. This coordination is managed through the drive’s RDCO-02 DDCS communication adapter, which provides the high-speed fiber-optic link necessary for sub-millisecond synchronization between the control unit and the inverter bridge.

On the field bus side, the 3BHB006714R0271 communicates upstream with the plant’s ABB AC500 PLC via PROFIBUS-DP or PROFINET, enabling the control system to issue speed references, torque limits, and energy setpoints based on production scheduler inputs. The AC500’s PM595 CPU module handles the high-level coordination logic — managing start/stop sequences, load sharing between parallel drives, and energy budget enforcement across production shifts. For facilities running ABB’s System 800xA distributed control system, the SYN5201 unit’s status and energy data are surfaced directly in the operator workplace, giving process engineers visibility into per-drive energy consumption without requiring additional instrumentation.

Power quality monitoring is handled by the ABB M2M energy meter or compatible CM-series power monitoring relays, which capture harmonic distortion, power factor, and demand data at the motor control center level. This data feeds into the plant’s maintenance planning system, where deviations from baseline consumption profiles trigger alerts for predictive maintenance action. The 3BHB006714R0271’s internal diagnostics complement this by generating fault codes and warning signals that are logged by the ABB DriveAP application program, enabling maintenance teams to correlate drive events with energy anomalies before they escalate into unplanned downtime.

For I/O integration, the SYN5201 control unit connects to the drive’s RDIO-01 digital I/O extension module, which handles auxiliary control signals such as external fault resets, speed feedback from pulse encoders, and interlock signals from upstream process equipment. In multi-motor synchronization applications — common in paper machine dryer sections or steel tandem rolling mills — the 3BHB006714R0271 coordinates with the ABB RMIO-02 motor control board to maintain tight speed ratios between drive sections, preventing web breaks or material gauge variations that would otherwise require energy-intensive rework cycles.

Maintenance and Replacement Notes

In a steel cold rolling mill operating a tandem stand configuration, uncoordinated drive control between roll stands results in tension fluctuations that force the drive system to continuously compensate — drawing excess current and generating heat that must be removed by cooling systems, adding to the facility’s total energy load. The ABB 3BHB006714R0271 eliminates this inefficiency by maintaining precise torque balance across all stands in real time. Field deployments in similar applications have demonstrated reductions in drive-related energy consumption of 8–15% compared to legacy thyristor-based control systems, with additional savings realized through reduced cooling load and lower motor rewind frequency.

In paper machine applications, the SYN5201 synchronous control unit manages the speed cascade across forming, press, and dryer sections. By maintaining tight speed ratios and responding instantly to basis weight changes detected by the quality control system, the 3BHB006714R0271 prevents the over-speed corrections that waste energy and stress mechanical components. The result is a measurable improvement in specific energy consumption per tonne of paper produced — a key performance indicator for mill energy managers tracking ISO 50001 compliance targets.

For marine propulsion systems using ABB’s Azipod® or shaft drive configurations, the 3BHB006714R0271 provides the synchronous control layer that enables dynamic positioning systems to maintain vessel heading with minimal thruster energy expenditure. By coordinating the firing sequence of the drive’s thyristor bridges with the propulsion motor’s rotor position, the unit ensures that each power pulse contributes maximum torque — reducing the reactive current that would otherwise circulate in the drive system and appear as wasted energy on the vessel’s power management system.

Beyond active production, the 3BHB006714R0271 contributes to operational stability during deceleration phases through coordinated regenerative braking. When a driven load decelerates — whether a crane lowering a load, a winder unwinding material, or a compressor reducing speed — the synchronous control unit coordinates the drive’s regenerative capability to return kinetic energy to the DC bus or the supply network, rather than dissipating it as heat in braking resistors. This capability, when aggregated across multiple drives in a facility, can represent a significant reduction in net energy consumption and peak demand charges.

All units supplied by ZYPLC undergo a comprehensive outgoing quality inspection process that includes functional verification of control signal outputs, communication interface testing, and thermal cycling to confirm stable operation across the specified temperature range. Each 3BHB006714R0271 ships with a warranty terms confirmed during quotation covering manufacturing defects and functional failures, with replacement units dispatched from RFQ-confirmed sourcing to minimize customer downtime. ZYPLC maintains ready stock of the SYN5201 series to support urgent maintenance requirements and planned upgrade projects alike.

Product Sourcing FAQ

Q1: How does the ABB 3BHB006714R0271 contribute to measurable operational stability in a production environment?
The 3BHB006714R0271 reduces unplanned downtime by maintaining continuous phase synchronization between the drive output and the synchronous motor rotor. This eliminates slip losses, reduces reactive current draw, and enables regenerative braking — all of which reduce net energy consumption. When integrated with ABB’s ACS880 drive platform and an AC500 PLC maintenance planning program, the unit enables load-adaptive control that matches motor output precisely to process demand, avoiding the over-excitation and over-speed conditions that waste energy in less sophisticated control architectures.

Q2: Is the SYN5201 synchronous control unit compatible with existing ABB drive systems and third-party PLCs?
The 3BHB006714R0271 is designed for integration within ABB’s SYN5000 series drive architecture and is compatible with ACS880, ACS580, and DCS880 drive platforms. Communication with upstream control systems is supported via PROFIBUS-DP and PROFINET, enabling integration with ABB AC500 PLCs, System 800xA DCS, and compatible third-party control platforms. For non-ABB environments, compatibility should be verified against the specific drive firmware version and communication protocol configuration.

Q3: What is the recommended replacement or upgrade path for facilities currently using older synchronous control hardware?
Facilities operating legacy thyristor-based synchronous control systems can upgrade to the 3BHB006714R0271 as a direct replacement within the SYN5201 form factor, provided the host drive system is compatible. ZYPLC recommends verifying the drive firmware version and DDCS communication adapter type before ordering. For systems requiring a broader drive platform upgrade, the 3BHB006714R0271 is best deployed as part of a coordinated ACS880 multidrive modernization, which delivers the greatest energy efficiency improvement and longest service life extension.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every ABB 3BHB006714R0271 supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures from the date of shipment. Prior to dispatch, each unit undergoes outgoing quality inspection including control output verification, communication interface testing, and operational parameter checks. Warranty claims are processed with priority dispatch of replacement units from RFQ-confirmed sourcing, minimizing production downtime for customers. For urgent requirements, ZYPLC’s availability confirmed by RFQ availability ensures same-day or next-day shipment in most cases.
