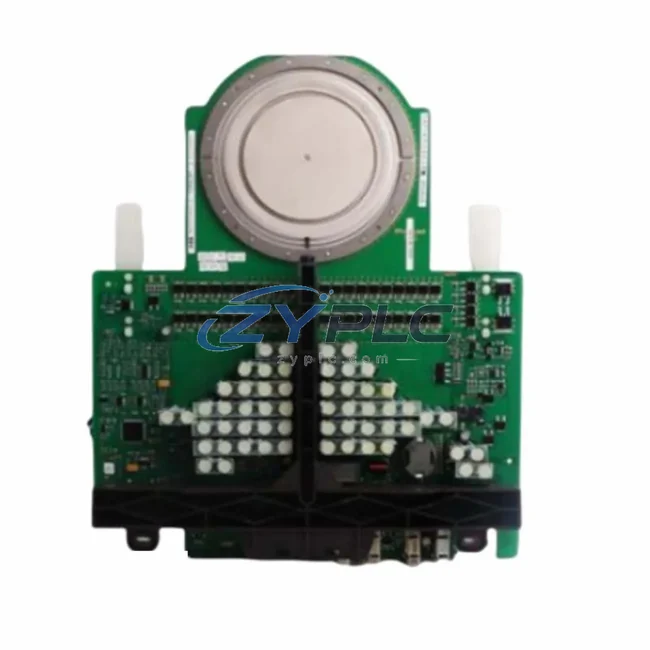

The ABB 5SHY5055L0002 (3BHB026114R0001) is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module engineered for demanding industrial power conversion applications. As a core switching element within ABB’s 5SHY series, this thyristor module delivers exceptional switching efficiency, ultra-low conduction losses, and robust thermal management — making it a critical component for factories seeking to reduce unplanned downtime, optimize motor drive performance, and extend equipment service life. Whether deployed in medium-voltage variable frequency drives (VFDs), regenerative braking systems, or grid-tied power converters, the 5SHY5055L0002 enables precise control over energy flow at every stage of the production cycle.

In modern industrial environments where energy costs and carbon footprint are under increasing scrutiny, the choice of power semiconductor directly impacts the efficiency of the entire drive chain. The ABB 5SHY5055L0002 addresses this challenge by minimizing switching losses during high-frequency commutation cycles, reducing heat dissipation requirements, and enabling tighter integration with ABB’s ACS series medium-voltage drives and PCS series power conversion systems. When paired with ABB’s DCS880 DC drive controllers or ACS880 industrial drives, the 5SHY5055L0002 contributes to measurable reductions in kWh consumption per production unit — a key metric for energy-intensive industries such as steel, cement, mining, and chemical processing.

Product Specification Table

System Compatibility and Application

The 5SHY5055L0002 does not operate in isolation — its maintenance planning value is fully realized when integrated into a well-designed automation architecture. In a typical medium-voltage drive system, the IGCT module works in concert with the ABB GPC (Gate Power Circuit) unit, which provides the precise gate drive signals necessary for low-loss turn-off commutation. The GPC unit’s ability to deliver high di/dt gate current pulses is what distinguishes IGCT technology from conventional thyristors, enabling faster switching and significantly reduced snubber energy losses.

At the drive controller level, the ABB ACS6000 medium-voltage AC drive leverages 5SHY series IGCT modules as its primary switching elements, delivering variable-speed control for large induction and synchronous motors in the 3–27 MW range. This drive platform integrates seamlessly with ABB’s AC500 PLC series for supervisory control, allowing production engineers to implement maintenance-focused speed profiles that match motor output to actual load demand — eliminating the fixed-speed unplanned downtime common in older drive installations.

For condition monitoring and power quality analysis, the ABB B23 or B24 series energy meters can be deployed at the drive input to capture real-time kWh consumption, power factor, and harmonic distortion data. This data feeds into ABB Ability™ Energy Manager or third-party SCADA platforms via Modbus RTU or PROFIBUS DP communication modules, enabling continuous energy benchmarking across production lines. When anomalies are detected — such as rising on-state voltage drop indicating IGCT aging — predictive maintenance alerts can be triggered before catastrophic failure occurs.

On the I/O and signal conditioning side, ABB CI854 PROFIBUS interface modules and ABB S800 I/O modules provide the distributed field connectivity needed to monitor drive status, thermal sensors, and auxiliary power supplies in real time. The combination of fast IGCT switching in the power stage and deterministic fieldbus communication in the control layer creates a closed-loop maintenance planning system where every watt is accounted for. Additionally, ABB’s UPS DX series uninterruptible power supplies protect the control electronics during grid disturbances, ensuring that energy data is never lost and that the drive system can execute controlled shutdowns rather than hard trips that stress the IGCT module.

For applications requiring regenerative energy recovery — such as crane hoisting, elevator drives, or rolling mill deceleration — the 5SHY5055L0002 supports four-quadrant operation when configured in an active front-end (AFE) converter topology. This allows kinetic energy from decelerating loads to be fed back into the plant grid rather than dissipated as heat in braking resistors, directly reducing net operating load per production cycle.

Maintenance and Replacement Notes

In steel rolling mill applications, medium-voltage drives equipped with ABB 5SHY series IGCT modules have demonstrated measurable reductions in specific operating load (SEC) by enabling precise torque control during acceleration and deceleration phases. Rather than running motors at fixed speed with mechanical throttling, the drive system adjusts output frequency and voltage in real time to match the rolling load profile — a strategy that can help restore stable operation when a compatible replacement is required.

In cement plant applications, the 5SHY5055L0002-based drive systems controlling kiln drives and raw mill motors benefit from the IGCT’s low switching frequency capability (typically 500 Hz–1 kHz), which reduces electromagnetic interference (EMI) and allows the use of standard motor cables without additional filtering. This simplifies installation, reduces commissioning time, and lowers the total cost of ownership over the drive system’s operational life.

Predictive maintenance is another area where the 5SHY5055L0002 contributes to operational efficiency. Because IGCT modules have a well-characterized aging curve — with on-state voltage (VT) gradually increasing as the device approaches end-of-life — continuous monitoring of VT via the drive’s diagnostic software allows maintenance teams to schedule module replacement during planned shutdowns rather than responding to unplanned failures. This approach reduces unplanned downtime, which in high-throughput production environments can cost tens of thousands of dollars per hour.

Every 5SHY5055L0002 unit supplied by ZYPLC undergoes shipment testing prior to dispatch, including forward voltage drop verification, gate trigger current measurement, and insulation resistance testing. This ensures that the module arrives at the customer’s facility in verified working condition, ready for installation without additional incoming inspection delays. Combined with a warranty terms confirmed during quotation covering manufacturing defects and premature failure, customers can integrate the 5SHY5055L0002 into their production systems with confidence.

Product Sourcing FAQ

Q1: How does the ABB 5SHY5055L0002 contribute to operational stability compared to conventional thyristors?
The 5SHY5055L0002 uses IGCT technology, which combines the low conduction losses of a GTO thyristor with the fast, reliable turn-off capability of a transistor. This results in lower switching losses per commutation cycle, reduced heat sink requirements, and higher overall converter efficiency — typically 0.5–1.5% higher efficiency compared to equivalent GTO-based converters, which translates to significant operational stability at the scale of medium-voltage industrial drives operating thousands of hours per year.

Q2: Is the 5SHY5055L0002 compatible with existing ABB ACS6000 and ACS880 drive systems?
Yes. The 5SHY5055L0002 is designed as a direct replacement module for ABB ACS6000 medium-voltage drives and compatible power conversion systems that use the 5SHY55 IGCT platform. Before installation, verify the gate power circuit (GPC) compatibility and confirm the firmware version of the drive controller supports the module’s gate drive parameters. ZYPLC’s technical team can assist with compatibility verification prior to purchase.

Q3: What is the recommended replacement procedure and how does ZYPLC support the process?
IGCT module replacement should be performed by qualified power electronics technicians following ABB’s service documentation for the specific drive platform. The procedure involves de-energizing the drive, discharging DC link capacitors, removing the gate power circuit connections, and carefully extracting the press-pack IGCT assembly. ZYPLC provides pre-tested replacement modules with verified electrical parameters, reducing the risk of installing a marginal unit. Our team can provide technical datasheets and application notes to support the replacement process.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
The warranty terms confirmed during quotation covers manufacturing defects, premature electrical failure under normal operating conditions, and parameter deviations from the published datasheet specifications. Prior to shipment, each 5SHY5055L0002 unit undergoes functional testing including gate trigger verification, on-state voltage measurement, and high-potential insulation testing. Units that do not meet specification are quarantined and not dispatched. Warranty claims are processed through ZYPLC’s after-sales support team, with replacement or refund options available depending on the nature of the defect.
