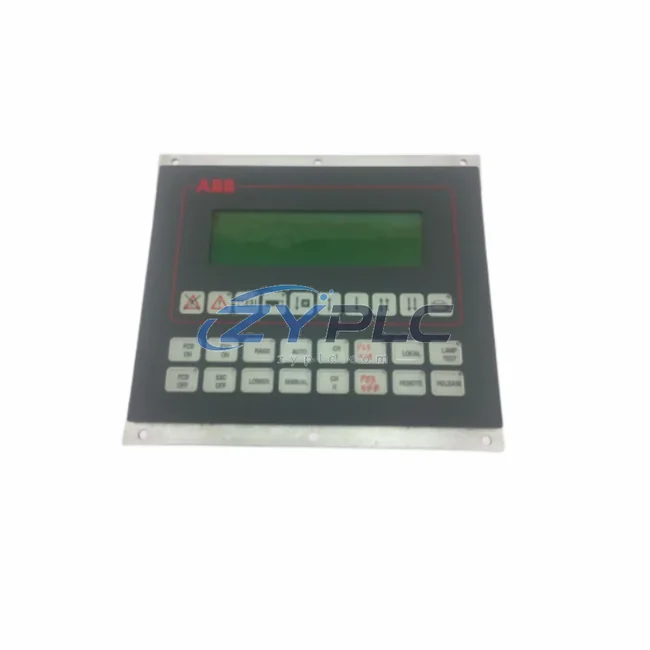

ABB AFC094AE01 HIEE200130R1 Exciter Control for HIEE

ABB AFC094AE01 HIEE200130R1 Exciter Control for HIEE

The ABB AFC094AE01 HIEE200130R1 Exciter Control Module is a precision-engineered component designed to operate at the heart of ABB’s HIEE-series excitation and generator control architecture. Rather than functioning as a standalone unit, this module is conceived as an integral node within a layered automation system — one that spans the control layer, I/O layer, power layer, communications network, and human-machine interface. Understanding its role within this broader architecture is essential for engineers responsible for system commissioning, long-term maintenance, and capacity expansion in power generation, heavy industry, and process control environments.

In modern industrial automation, excitation control is not an isolated function. The AFC094AE01 HIEE200130R1 interfaces directly with upstream control processors and downstream power conversion stages, ensuring that generator field current is regulated with the precision demanded by grid-connected or island-mode operation. Its integration into the HIEE platform means it shares a common backplane architecture, communication protocol stack, and diagnostic framework with other modules in the same control cabinet — reducing engineering overhead and simplifying fault isolation during commissioning and routine maintenance cycles.

Product Specification Table

System Compatibility Notes

The AFC094AE01 HIEE200130R1 achieves its full operational value only when considered within the context of a coordinated control system. In a typical ABB HIEE-based generator excitation architecture, this module works in concert with several complementary components across multiple system layers.

At the control layer, the module receives setpoint commands from an ABB AC800M or AC450 process controller, which manages the overall generation unit logic. The exciter control module translates these high-level commands into precise field current regulation signals, maintaining voltage stability across varying load conditions. The HIEE200130R1 reference designates a specific hardware revision that ensures compatibility with the current generation of ABB HIEE backplane assemblies, including the HIEE300024R0001 and HIEE300912R0001 power supply modules that provide regulated DC rail voltage to the control rack.

At the I/O layer, analog input modules such as the DSDP150 or DSAI130A collect real-time feedback signals — generator terminal voltage, field current magnitude, reactive power output — and feed these values into the excitation control loop managed by the AFC094AE01. This closed-loop signal flow is fundamental to maintaining grid compliance and protecting the generator from over-excitation or under-excitation faults.

For redundancy-critical installations — common in power utilities, petrochemical plants, and large-scale water treatment facilities — the AFC094AE01 can be deployed in a dual-channel or hot-standby configuration alongside a redundant exciter control module. The HIEE platform’s built-in bumpless transfer logic ensures that a switchover from the primary to the standby module occurs without disrupting the generator’s field current, preserving grid stability during the transition.

At the communications layer, the excitation system integrates with plant-wide SCADA and DCS networks via ABB’s proprietary INSUM or ModuleBus protocols, or through standard Modbus RTU/TCP gateways. This connectivity allows operators at the HMI layer — typically running ABB’s Operate IT or a third-party SCADA platform — to monitor excitation status, adjust AVR (Automatic Voltage Regulator) parameters, and acknowledge alarms without requiring physical access to the control cabinet.

The power layer supporting the AFC094AE01 typically includes dedicated UPS modules and surge protection devices mounted within the same HIEE control cabinet. Ensuring clean, regulated power to the exciter control module is a prerequisite for stable long-term operation, particularly in environments subject to grid disturbances or frequent load switching. Proper grounding of the HIEE rack chassis, in accordance with ABB’s installation guidelines, further reduces susceptibility to conducted EMI from adjacent drive systems or transformer switching events.

From a maintenance and lifecycle perspective, the AFC094AE01 HIEE200130R1 is designed for modular replacement. Engineers can extract and reinsert the module without disturbing adjacent I/O or communication modules in the HIEE rack, minimizing downtime during scheduled maintenance windows. ZYPLC maintains tested before shipment where applicable of this module and related HIEE-series components, supporting rapid dispatch for both planned replacements and emergency breakdown scenarios — all covered under a warranty terms confirmed during quotation.

Industrial Application Notes

The AFC094AE01 HIEE200130R1 finds application across a broad spectrum of industrial sectors where generator excitation control is a critical system function.

In power generation and utility applications, this module is deployed in synchronous generator excitation systems at thermal, hydro, and gas turbine power stations. It maintains terminal voltage within statutory limits, supports reactive power dispatch in accordance with grid operator requirements, and provides the fast-response field forcing capability needed during grid fault recovery events.

In petrochemical and refinery environments, where continuous process operation is paramount, the AFC094AE01 supports captive power generation units that supply critical process loads. Its compatibility with the broader ABB HIEE control architecture allows seamless integration with the plant’s distributed control system, enabling coordinated load shedding and generator protection functions from a unified control platform.

In mining and metallurgical facilities, large synchronous motors driving crushers, mills, and hoists are often controlled via excitation systems architecturally similar to generator excitation. The AFC094AE01’s robust design and ABB HIEE platform compatibility make it suitable for these high-demand motor excitation applications, where reliability and ease of spare parts sourcing are critical operational considerations.

In water treatment and municipal infrastructure, pumping stations equipped with synchronous drives benefit from the precise voltage regulation provided by HIEE-series excitation modules. The ability to integrate excitation control data into plant SCADA systems via standard communication protocols simplifies operator oversight and supports predictive maintenance programs.

In packaging and manufacturing production lines that incorporate on-site generation or UPS-backed power systems, the AFC094AE01 contributes to power quality management — ensuring that sensitive process equipment receives stable voltage even during utility supply disturbances.

Product Compatibility FAQ

Q1: Is the AFC094AE01 HIEE200130R1 compatible with all HIEE-series rack systems, and what should engineers verify before installation?
The AFC094AE01 HIEE200130R1 is designed for use within ABB’s HIEE-series control rack architecture. Before installation, engineers should verify that the target rack’s backplane revision is compatible with the HIEE200130R1 hardware revision, confirm that the rack’s power supply modules (such as the HIEE300024R0001) provide the correct DC rail voltages, and review the system’s software configuration to ensure the excitation control parameters are correctly mapped to the new module. ZYPLC’s technical team can assist with compatibility verification prior to dispatch.

Q2: Can this module be used in a redundant excitation architecture, and what additional components are required?
Yes. The AFC094AE01 HIEE200130R1 supports deployment in redundant excitation configurations when paired with the appropriate ABB HIEE redundancy switching hardware and a second exciter control module of the same type. The HIEE platform’s bumpless transfer logic manages the switchover sequence automatically upon detection of a primary module fault. Engineers should also ensure that the redundant power supply rails and communication paths are independently routed to avoid common-cause failures. ZYPLC can supply matched pairs of AFC094AE01 modules for redundant installations.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance for this module?
ZYPLC’s warranty terms confirmed during quotation covers the AFC094AE01 HIEE200130R1 against manufacturing defects and functional failures under normal operating conditions. Each unit is tested and inspected prior to dispatch. For long-term maintenance support, ZYPLC maintains ongoing stock of AFC094AE01 and related HIEE-series modules, enabling rapid replacement supply for both scheduled maintenance and unplanned breakdown events. Customers requiring extended warranty coverage or consignment stock arrangements are encouraged to contact ZYPLC directly to discuss tailored supply agreements.
