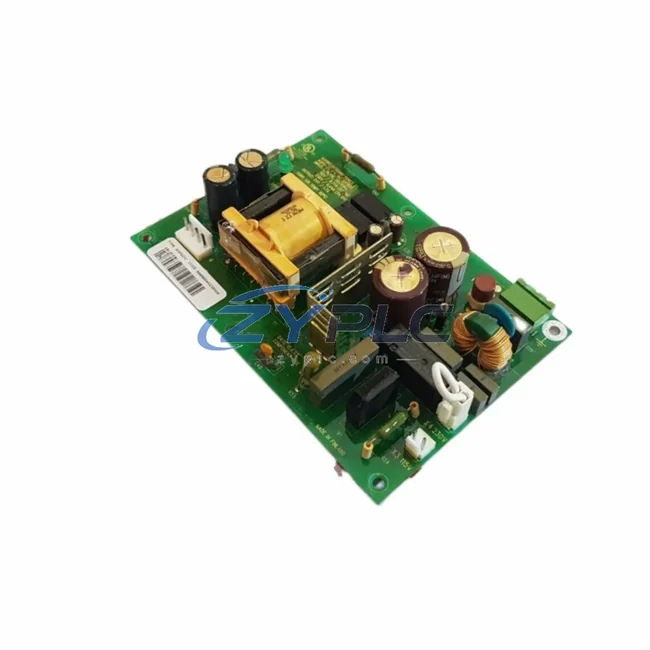

ABB AGPS-21C 64668064 Gate Firing for AGPS Series

ABB AGPS-21C 64668064 Gate Firing Board: Coordination and Drive-Layer Integration

The ABB AGPS-21C 64668064 Gate Firing Board is a precision thyristor firing interface designed for deployment within the ABB DCS 500 and DCS 600 DC drive platforms. In a fully layered industrial automation architecture, the gate firing board occupies a critical position at the power conversion layer — translating digital control commands from the drive’s processor board into precisely timed gate pulses that regulate thyristor conduction and, by extension, motor torque, speed, and current. Understanding this board’s role requires viewing it not as a standalone component, but as an integrated node within a coordinated control system that spans from the supervisory PLC layer down to the motor shaft.

In modern industrial automation, the control hierarchy typically flows from a supervisory SCADA or DCS platform through a programmable logic controller — such as an ABB AC500 series PLC or a Siemens S7-300/400 — down through fieldbus networks like PROFIBUS-DP or Modbus RTU, and into the drive controller. The AGPS-21C sits at the lowest hardware layer of this chain, where microsecond-level timing accuracy determines whether the drive delivers smooth, stable torque or introduces harmonic distortion and current ripple into the motor circuit. Its integration with the SDCS-CON-4 control board and the SDCS-POW-4 power supply board within the DCS 500/600 chassis ensures that firing angle calculations performed at the processor level are faithfully executed at the thyristor bridge.

Product Specification Table

System Compatibility Notes

The AGPS-21C does not operate in isolation. Its performance is inseparable from the broader drive architecture in which it is installed. Within a DCS 500 or DCS 600 drive cabinet, the board interfaces directly with the SDCS-CON-4 control board, which handles speed and current regulation algorithms, and the SDCS-POW-4 power supply board, which provides the regulated low-voltage rails required for board-level logic. The firing board receives synchronization signals derived from the AC supply and translates the firing angle reference — computed in real time by the SDCS-CON-4 — into gate pulses delivered to the thyristor bridge assembly.

At the I/O layer, the drive system may incorporate SDCS-IOB-3 or SDCS-IOB-21 I/O extension boards, which handle analog tachometer feedback, digital status signals, and external reference inputs. These boards feed real-time process data back to the control board, closing the speed and current regulation loops that determine the firing angle commands ultimately executed by the AGPS-21C. In applications requiring fieldbus connectivity, the RDCO-02 or RDCO-04 DDCS communication option boards enable the DCS 500/600 drive to exchange setpoints and status data with an upstream ABB AC500 PLC or a third-party PROFIBUS master, ensuring that the gate firing layer remains synchronized with plant-level production schedules and process interlocks.

For multi-drive systems — common in steel rolling mills, paper machines, and large pump stations — the SDCS-COM-8 communication board provides peer-to-peer drive coordination over the ABB DDCS fiber-optic network, allowing master-follower torque sharing configurations where the AGPS-21C in each drive unit must fire in precise coordination with its counterparts. At the human-machine interface layer, an ABB CP600 or CP400 series HMI panel provides operators with real-time visibility into drive status, firing angle, current feedback, and fault diagnostics — all of which depend on the gate firing board executing commands without timing deviation. In redundant architectures, a standby AGPS-21C 64668064 board held in local inventory eliminates the risk of extended downtime during an unplanned board failure, a practice strongly recommended for continuous-process industries.

Industrial Application Notes

The AGPS-21C Gate Firing Board finds application across a wide range of heavy industrial sectors where DC drive technology remains the preferred solution for high-torque, variable-speed motor control.

In steel and metals processing, DCS 500/600 drives equipped with AGPS-21C boards control rolling mill main drives, coiler drives, and edger drives, where precise torque control at low speeds is essential for product quality and equipment protection. The gate firing board’s ability to deliver stable, low-ripple thyristor control directly supports surface finish quality and dimensional accuracy in hot and cold rolling applications.

In petrochemical and refinery environments, large DC motors driving compressors, extruders, and agitators rely on the DCS 600 platform for speed regulation across wide load ranges. The AGPS-21C’s role in maintaining firing angle accuracy under varying supply voltage conditions ensures that process throughput remains consistent even during grid disturbances — a critical requirement in continuous chemical processes where speed deviation can trigger safety shutdowns.

In mining and mineral processing, hoist drives, conveyor drives, and crusher drives built around the DCS 500 platform depend on the gate firing board for reliable four-quadrant operation, enabling controlled regenerative braking that returns energy to the supply network and reduces mechanical brake wear. The warranty terms confirmed during quotation provided with each AGPS-21C 64668064 unit supports the long maintenance intervals typical of remote mining installations, where spare parts logistics are a significant operational consideration.

In water and wastewater treatment, pump drives using the DCS 500 platform benefit from the AGPS-21C’s stable firing performance across the full speed range, supporting energy-efficient variable-flow operation that reduces pump wear and energy consumption compared to throttle-controlled fixed-speed alternatives.

In paper and pulp manufacturing, section drives on paper machines require extremely tight speed synchronization across multiple drive axes. The AGPS-21C’s precise firing angle control, coordinated through the SDCS-CON-4 and DDCS fiber-optic network, supports the sub-0.1% speed accuracy required to maintain web tension and prevent sheet breaks across the machine width.

Product Compatibility FAQ

Q1: Is the AGPS-21C 64668064 compatible with both DCS 500 and DCS 600 drive platforms, and are there hardware revision considerations?
The AGPS-21C with part number 64668064 is designed for use within the ABB DCS 500 and DCS 600 DC drive families, which share a common AGPS-series gate firing board architecture. When replacing an existing board, it is important to verify the drive’s hardware revision level and the firmware version of the SDCS-CON-4 control board, as certain later firmware releases introduced compatibility requirements for specific AGPS board revisions. Our technical team can assist with cross-referencing your drive’s serial number and existing board markings to confirm direct interchangeability before dispatch.

Q2: What installation and commissioning steps are required when replacing the AGPS-21C in a live production environment?
Replacement of the AGPS-21C should be performed with the drive fully de-energized and isolated, following the drive’s lockout/tagout procedure. After physical installation, the drive should be powered up in a controlled sequence: first verifying SDCS-POW-4 supply rail voltages, then confirming SDCS-CON-4 communication with the new firing board via the drive’s diagnostic display or ABB DriveWindow commissioning software. A no-load firing angle sweep test is recommended before reconnecting the motor load, allowing verification of gate pulse symmetry and synchronization accuracy. Full commissioning documentation is available upon request.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning for critical drive systems?
Each AGPS-21C 64668064 unit supplied by ZYPLC carries a warranty terms confirmed during quotation covering functional defects arising under normal operating conditions, including gate pulse generation failures, synchronization circuit faults, and board-level component failures not attributable to installation error, overvoltage events, or environmental contamination beyond the board’s rated operating range. For maintenance planners managing critical drive assets, the warranty terms confirmed during quotation provides a defined support window that aligns with annual maintenance budget cycles. We recommend pairing each installed board with a certified spare held in local inventory to eliminate mean-time-to-repair exposure in the event of an in-service failure.
