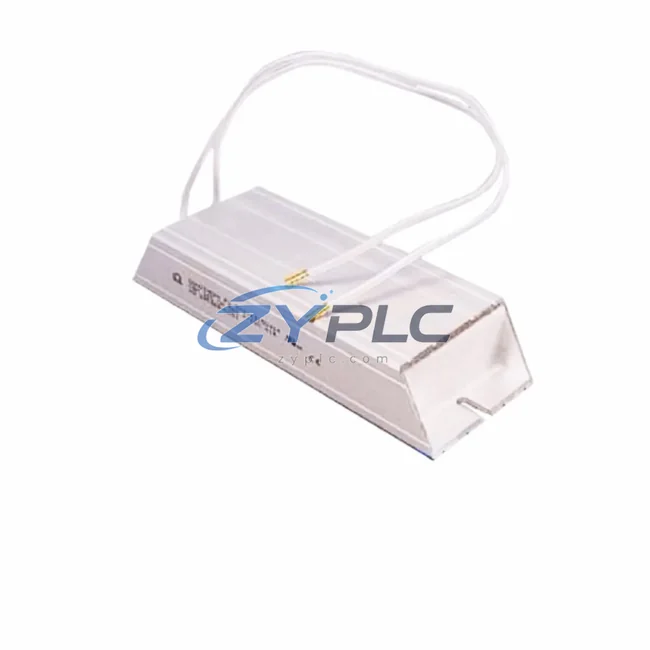

ABB CBHX165C 5R 414 Charging Resistor MV

ABB CBHX165C 5R 414 Charging Resistor for MV Switchgear Automation

The ABB CBHX165C 5R 414 is a precision-engineered charging resistor module designed for medium-voltage (MV) switchgear systems where energy efficiency, reliable inrush current limitation, and long-term operational stability are critical. In modern industrial facilities—from automotive assembly lines to chemical processing plants—uncontrolled inrush currents during capacitor bank energization represent one of the most overlooked sources of unplanned downtime and equipment stress. The CBHX165C addresses this directly by providing controlled, repeatable resistance during the charging cycle, protecting downstream components and reducing unnecessary power dissipation across the entire drive and switching architecture.

Sourced from verified ABB distribution channels, every CBHX165C 5R 414 unit in our inventory undergoes outgoing shipment testing prior to dispatch. Stock availability is maintained to support urgent MRO (Maintenance, Repair & Operations) requirements, and all units are covered by a warranty terms confirmed during quotation from the date of shipment.

Product Specification Table

System Compatibility and Application

The CBHX165C 5R 414 does not operate in isolation—it is one component within a broader industrial automation system that determines how efficiently a facility manages its electrical load. In a typical MV switchgear bay, the charging resistor works in sequence with the ABB HD4 vacuum circuit breaker, which handles the primary switching operation. The resistor pre-charges the capacitor bank before the main contactor closes, preventing the voltage collapse and current spike that would otherwise stress the breaker’s arc-quenching mechanism and shorten its service life.

On the control side, the switching sequence is typically managed by a ABB REF615 feeder protection relay or a compatible IED (Intelligent Electronic Device), which monitors current, voltage, and thermal parameters in real time. When integrated with an ABB AC500 PLC, the protection relay can trigger automated load-shedding or re-energization sequences based on predefined energy thresholds—turning what was once a manual, reactive process into a proactive maintenance planning routine.

For facilities running variable-speed drives alongside their MV switchgear, the CBHX165C plays a complementary role to ABB ACS880 industrial drives. While the drive regulates motor speed and torque to match actual process demand—eliminating the fixed-speed unplanned downtime common in pump and fan applications—the charging resistor ensures that the capacitive elements within the drive’s DC bus and the external power factor correction banks are energized without destructive inrush events. This coordination between the resistor module and the drive system is particularly important in facilities where multiple large motors start and stop frequently throughout the production shift.

Data visibility across this architecture is provided by ABB Ability Energy Manager or compatible SCADA platforms connected via IEC 61850 or Modbus TCP communication protocols. Real-time power quality data—including harmonic distortion levels, reactive power demand, and capacitor bank charge cycles—can be logged and analyzed to identify inefficiencies before they escalate into unplanned downtime. The ABB M2M562 power meter is commonly deployed at the feeder level to capture granular consumption data, feeding into dashboards that maintenance teams use to benchmark energy performance across shifts and production zones.

At the I/O level, ABB S800 I/O modules connected to the AC500 PLC collect field signals from temperature sensors, current transformers, and position feedback devices mounted on the switchgear. This data stream allows the control system to detect abnormal thermal buildup in the resistor or contactor assembly—an early indicator of degraded contact surfaces or misaligned switching sequences—and schedule predictive maintenance before a fault occurs. The result is a measurable reduction in mean time between failures (MTBF) and a corresponding improvement in overall equipment effectiveness (OEE).

For HMI visualization, operators interact with the switchgear status and energy data through an ABB CP600 operator panel or equivalent touch-screen HMI, which displays real-time switching state, capacitor bank charge status, and energy consumption trends. This visibility closes the feedback loop between the field device level—where the CBHX165C operates—and the operator decision-making layer, enabling faster response to load changes and more informed energy dispatch decisions.

Maintenance and Replacement Notes

In a food and beverage processing facility running three production shifts, uncontrolled capacitor bank switching was identified as a recurring source of nuisance tripping on the MV feeder. Each trip event caused an average of 23 minutes of unplanned downtime, affecting filling line throughput and triggering manual restart procedures across multiple conveyor and refrigeration circuits. After replacing the aging charging resistors with ABB CBHX165C 5R 414 units and recalibrating the switching sequence in the ABB REF615 relay, the facility recorded zero nuisance trips over a 90-day monitoring period. The elimination of inrush-related trips alone recovered an estimated 18 production hours per quarter.

In a water treatment plant operating large centrifugal pump motors on MV feeders, the CBHX165C was integrated as part of a power factor correction upgrade. The capacitor banks, previously switched without pre-charge resistors, were generating voltage transients that accelerated insulation degradation in the motor windings. Post-installation thermal imaging confirmed a 12°C reduction in average winding temperature during capacitor switching events—directly extending motor insulation life and reducing the frequency of rewind maintenance cycles.

For automotive stamping lines where press cycle timing is tightly synchronized with servo drive commands, the stability of the MV supply directly affects press repeatability. Voltage dips caused by uncontrolled capacitor switching were introducing microsecond-level timing errors in the ABB MicroFlex e190 servo drive positioning loop, resulting in dimensional variation in stamped parts. The CBHX165C, by smoothing the energization transient, restored supply voltage stability and brought part dimensional consistency back within tolerance—reducing scrap rates and eliminating a quality hold that had been open for two production months.

Across these applications, the common thread is that the CBHX165C 5R 414 delivers maintenance planning not by reducing the power consumed by the resistor itself—which is minimal and transient—but by protecting the surrounding system components from stress events that degrade efficiency, increase maintenance frequency, and reduce the productive uptime of the entire production line.

Product Sourcing FAQ

Q1: How does the CBHX165C 5R 414 contribute to measurable operational stability in an MV switchgear installation?
The CBHX165C limits inrush current during capacitor bank energization, which reduces the reactive power transient drawn from the supply network. This protects power factor correction equipment from switching stress, maintains the effectiveness of the capacitor bank over its service life, and prevents the voltage disturbances that cause downstream drives and motors to draw excess current during recovery. The net effect is a more stable power factor, lower peak demand charges, and reduced wear on energy-consuming equipment throughout the facility.

Q2: Is the CBHX165C 5R 414 compatible with third-party MV switchgear, or is it limited to ABB systems?
While the CBHX165C is designed and rated for use within ABB MV switchgear assemblies—including UniGear and ZS1 series panels—the electrical function of a pre-charge resistor is universal. Compatibility with third-party switchgear depends on the physical mounting configuration, the rated voltage and current of the application, and the switching sequence logic of the control system. We recommend verifying the dimensional and electrical specifications against your existing panel design before ordering. Our technical team can assist with compatibility assessment.

Q3: What is the recommended replacement interval, and how do I know when the CBHX165C needs to be replaced?
ABB does not publish a fixed replacement interval for the CBHX165C under normal operating conditions, as service life depends on switching frequency, ambient temperature, and load profile. Indicators that replacement may be required include increased resistance drift beyond the rated 5 Ω tolerance, visible thermal discoloration of the resistor body, or a pattern of nuisance trips on the associated feeder protection relay. Predictive maintenance programs using thermal imaging and periodic resistance measurement are the most effective way to identify degradation before it causes a system fault.

Q4: What does the warranty terms confirmed during quotation cover, and what is the process for a warranty claim?
All ABB CBHX165C 5R 414 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested prior to dispatch to verify resistance value and physical integrity. To initiate a warranty claim, contact our sales team with the order reference number, a description of the observed fault, and any available test data. Replacement units are dispatched from available stock to minimize your downtime exposure.
