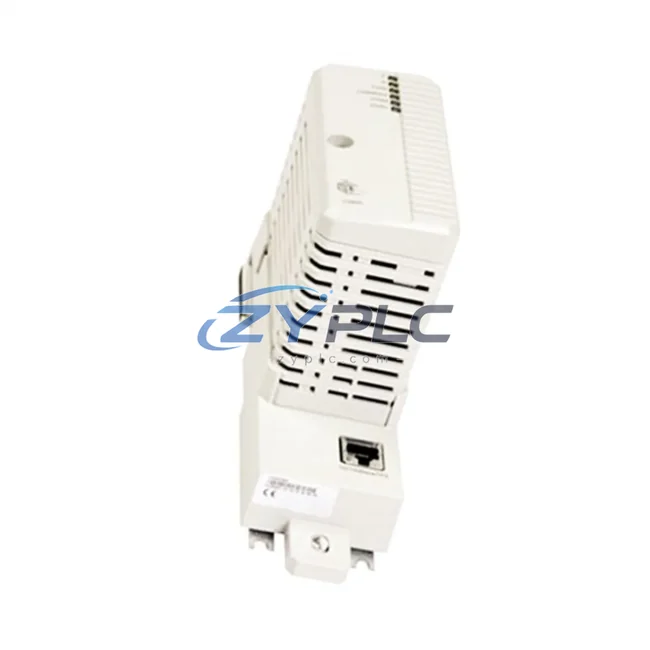

ABB CI860K01 3BSE032444R1 PROFIBUS DP Gateway for AC 800F

ABB CI860K01 3BSE032444R1 PROFIBUS DP Gateway for AC 800F

The ABB CI860K01 (3BSE032444R1) is a dedicated PROFIBUS DP master communication module engineered for seamless integration within the ABB AC 800F Distributed Control System architecture. Designed to serve as the critical fieldbus bridge between the AC 800F controller platform and field-level instrumentation, this module enables deterministic, high-speed data exchange across complex process automation environments. Rather than functioning as a standalone component, the CI860K01 is conceived as a system-level asset — one that defines the communication backbone of an entire control layer, ensuring signal integrity, protocol consistency, and long-term operational reliability across every tier of the automation hierarchy. Backed by a warranty terms confirmed during quotation and full system integration support, the CI860K01 is the preferred choice for engineers building or maintaining AC 800F-based control systems worldwide.

In modern industrial control architectures, the communication layer is as critical as the processing layer. The CI860K01 occupies a pivotal position in the AC 800F system topology, acting as the conduit between the controller’s internal data bus and the PROFIBUS DP field network. This positioning allows the module to coordinate real-time I/O polling, diagnostic reporting, and parameter exchange with connected field devices — including transmitters, valve positioners, motor starters, and remote I/O stations — without introducing latency or protocol translation overhead that could compromise system determinism.

From a system architecture perspective, the CI860K01 integrates directly into the AC 800F controller rack alongside the PM803F or PM865 process modules, sharing the internal S800 I/O bus infrastructure. Its PROFIBUS DP master capability allows it to manage up to 125 slave devices per segment, supporting both cyclic data exchange and acyclic parameter access (DPV1). This makes it equally suited for high-density I/O applications in petrochemical plants and for precision process loops in pharmaceutical manufacturing, where device-level diagnostics and parameter transparency are mandatory for regulatory compliance.

Product Specification Table

System Compatibility Notes

The CI860K01 does not operate in isolation — its value is fully realized only when considered within the broader AC 800F system architecture. At the controller level, the PM803F or PM865 process module serves as the computational core, executing control strategies and managing I/O data tables. The CI860K01 connects to this controller via the internal rack bus, presenting the PROFIBUS DP network as a transparent extension of the controller’s I/O space. This tight coupling eliminates the need for external gateways or protocol converters, reducing both hardware complexity and potential failure points in the control cabinet.

On the power layer, the AC 800F system relies on dedicated power supply units such as the SD802F or SD803F to deliver stable, filtered DC power to the controller rack and all installed modules, including the CI860K01. Redundant power configurations — using dual SD802F units with automatic switchover — are strongly recommended in continuous process applications where unplanned shutdowns carry significant operational or safety consequences.

At the I/O layer, the CI860K01 communicates with remote S800 I/O stations deployed across the plant floor. These stations, built around TB820V2 or TB840A termination units paired with AI810, AO810V2, DI810, or DO810 I/O modules, provide the physical signal conditioning and terminal connectivity for field instruments. The PROFIBUS DP link managed by the CI860K01 carries cyclic process data from these remote stations back to the PM803F controller at scan rates configurable down to single-digit milliseconds, ensuring that the control loop closure remains within the timing requirements of the process.

For human-machine interface integration, the AC 800F system typically connects to ABB’s System 800xA operations environment via the OPC DA/UA server layer hosted on the connectivity server. Operator workstations display real-time process data sourced ultimately from the PROFIBUS DP field devices managed by the CI860K01. Engineering workstations use Control Builder F to configure the CI860K01’s PROFIBUS master parameters, define GSD-based slave device profiles, and map I/O data to controller function block variables.

Network redundancy at the PROFIBUS layer can be achieved by deploying a second CI860K01 in a redundant master configuration, where both modules monitor the bus simultaneously and the standby module assumes mastership within milliseconds of a primary module fault. This architecture, combined with redundant PM865 controller pairs and redundant SD802F power supplies, delivers the multi-layer fault tolerance demanded by safety-critical applications in nuclear auxiliary systems, offshore platform control, and high-availability chemical reactors.

Industrial Application Notes

The CI860K01 finds application across a broad spectrum of process industries where PROFIBUS DP remains the established fieldbus standard and the AC 800F platform is the deployed control infrastructure.

In oil and gas processing facilities, the module manages communication with PROFIBUS-enabled smart valve positioners, pressure transmitters, and flow computers distributed across hazardous area junction boxes. Its ability to handle DPV1 acyclic services allows maintenance engineers to read device diagnostics and perform online parameter adjustments without interrupting the cyclic process data exchange — a capability that directly reduces planned maintenance downtime and supports long-term maintenance efficiency.

In power generation and substation automation, the CI860K01 integrates with motor control centers and variable frequency drives that expose PROFIBUS DP interfaces, enabling the AC 800F controller to supervise motor start/stop sequences, speed references, and fault status registers within a unified control strategy. This eliminates the need for separate hardwired interlocking panels and simplifies the overall control cabinet layout.

In water and wastewater treatment plants, the module coordinates with remote pump stations and chemical dosing systems over extended PROFIBUS DP cable runs, using RS-485 repeaters to maintain signal integrity across distances exceeding the standard 1,200-meter segment limit. The CI860K01’s robust error detection and automatic bus recovery mechanisms ensure that transient cable faults do not propagate into process upsets.

In mining and minerals processing, where vibration, dust, and temperature extremes challenge conventional control hardware, the CI860K01’s industrial-grade design and panel-mount IP20 enclosure — installed within sealed control cabinets — provides reliable fieldbus communication for conveyor drives, crusher controls, and flotation cell instrumentation across multi-kilometer plant layouts.

In pharmaceutical and fine chemical manufacturing, the module supports the stringent data integrity requirements of 21 CFR Part 11 and GAMP 5 validation frameworks by providing consistent, auditable communication records between the AC 800F controller and PROFIBUS-enabled analytical instruments, bioreactor controllers, and clean-in-place systems. Inventory supply continuity is maintained through ZYPLC’s dedicated stock program, ensuring replacement modules are available without extended lead times.

Product Compatibility FAQ

Q1: Is the CI860K01 (3BSE032444R1) compatible with both PM803F and PM865 process modules in the AC 800F rack?
Yes. The CI860K01 is designed for the AC 800F controller rack and is compatible with both the PM803F and PM865 process modules. It communicates with the controller via the internal S800 I/O bus on the rack backplane, and its PROFIBUS DP master configuration is managed through ABB Control Builder F software. When upgrading from PM803F to PM865 for enhanced processing capacity or redundancy, the CI860K01 module and its PROFIBUS configuration can be retained without hardware changes, protecting your existing fieldbus infrastructure investment.

Q2: Can the CI860K01 support a redundant PROFIBUS DP master architecture, and what additional hardware is required?
Redundant PROFIBUS DP master operation is achievable by installing a second CI860K01 in the same or a redundant AC 800F controller rack. Both modules are configured in Control Builder F with one designated as the active master and the second as the standby. In the event of a primary module failure, the standby assumes bus mastership with minimal disruption to cyclic data exchange. For full system redundancy, this should be combined with redundant PM865 controller pairs and dual SD802F power supply units. ZYPLC can supply matched CI860K01 pairs with verified firmware compatibility to support redundant deployments, all backed by our warranty terms confirmed during quotation.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance and spare parts availability for the CI860K01?
ZYPLC’s warranty terms confirmed during quotation covers the CI860K01 against manufacturing defects and functional failures under normal operating conditions from the date of shipment. In the event of a warranty claim, ZYPLC provides advance replacement units to minimize system downtime, with full technical documentation and configuration support included. Beyond the warranty period, ZYPLC maintains dedicated inventory of CI860K01 and related AC 800F components — including PM803F, PM865, SD802F, TB820V2, and AI810 modules — to support long-term spare parts programs for plants operating on extended maintenance cycles. Our system integration service assists engineering teams with module commissioning, GSD file configuration, and system-level validation to ensure the replacement module performs identically to the original within your existing control architecture.
