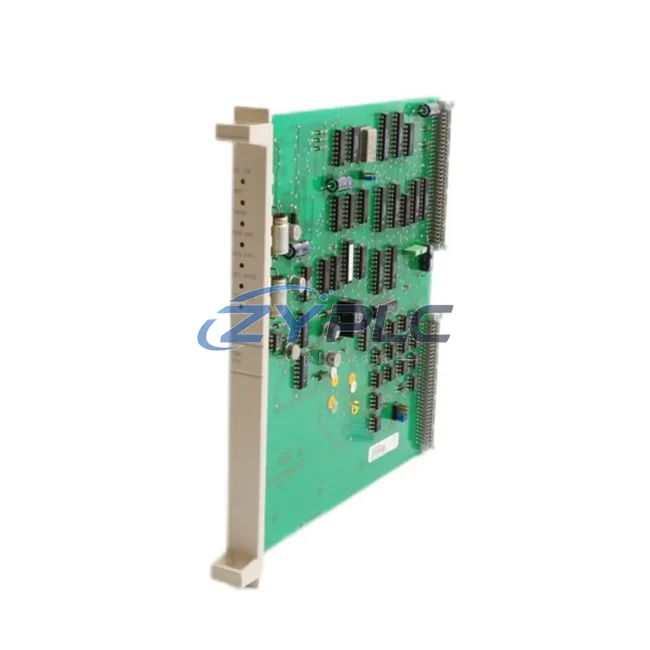

ABB DSBC173A 3BSE005883R1 Bus Extender for S100

ABB DSBC173A 3BSE005883R1 Bus Extender for S100: Compatibility and Replacement Notes

The ABB DSBC173A (part number 3BSE005883R1) is a dedicated bus extender module engineered for deployment within ABB’s S100 I/O system architecture. In modern distributed control environments — spanning manufacturing, power generation, petrochemical processing, water treatment, mining, metallurgy, and continuous process industries — the integrity of the I/O bus backbone is foundational to system reliability. The DSBC173A fulfills a critical structural role: it extends the S100 I/O bus beyond the physical limitations of a single rack assembly, enabling engineers to scale control architectures horizontally without compromising signal fidelity, scan cycle consistency, or system determinism.

Unlike standalone I/O modules that operate independently, the DSBC173A is inherently a system-level component. Its value is realized only in the context of a fully coordinated control hierarchy — one that integrates CPU processors, power supply units, analog and digital I/O modules, communication gateways, HMI stations, terminal base assemblies, and field-side actuators and sensors. Understanding the DSBC173A requires understanding the architecture it serves.

Product Specification Table

System Compatibility Notes

The DSBC173A does not operate in isolation. Its deployment is always part of a broader S100 I/O system design, and its effectiveness depends on the coherence of the surrounding architecture. In a typical ABB Advant or MOD 300 control system, the DSBC173A works in concert with a range of coordinated components across every layer of the control hierarchy.

At the control layer, the system is anchored by ABB processor modules such as the DSPC172 or DSPC110 CPU boards, which execute the control program and manage I/O scanning across all connected racks. The DSBC173A ensures that I/O modules in extended racks remain within the CPU’s addressable bus space, preserving scan cycle integrity and deterministic response times. When redundant CPU configurations are deployed — using modules such as the DSMB127 master bus unit — the bus extender must maintain transparent communication to both primary and standby processors without introducing latency or address conflicts.

At the power layer, each S100 rack — whether the primary rack or an extended rack connected via the DSBC173A — requires a dedicated power supply module such as the DSBC110 or DSBC120 rack power supply. Proper power distribution across extended racks is essential: the bus extender carries signal, not power, meaning each downstream rack must be independently powered and grounded to prevent ground loops and noise injection into the I/O bus.

At the I/O layer, the extended racks populated downstream of the DSBC173A may house a wide variety of S100-compatible I/O modules, including analog input modules such as the DSAI130, digital output modules such as the DSDO115, and thermocouple input modules such as the DSTC190. The bus extender preserves the module addressing scheme established by the CPU, ensuring that field signals from sensors, transmitters, and actuators are correctly mapped to the control program’s I/O table regardless of physical rack location.

At the network and communication layer, the S100 I/O system interfaces with higher-level SCADA, DCS, or MES platforms through communication gateways and fieldbus adapters. Modules such as the DSCL110 communication link module or Profibus/MODBUS gateway cards may be installed in the primary rack, while the DSBC173A ensures that the extended I/O racks remain fully integrated into the system’s data acquisition and control loop without requiring separate communication infrastructure.

At the HMI layer, operator workstations and panel-mounted HMI terminals receive real-time process data sourced from I/O modules across all racks — including those connected via the DSBC173A. The seamless bus extension provided by this module means that process engineers and operators see a unified, consistent view of the plant, with no distinction between signals originating in the primary rack and those from extended racks.

At the field and execution layer, the DSBC173A indirectly supports the reliable operation of field devices — control valves, variable frequency drives, motor starters, solenoids, and instrumentation — by ensuring that the I/O modules controlling these devices maintain uninterrupted communication with the CPU. In high-availability applications, this bus continuity is a prerequisite for safe and reliable process control.

Industrial Application Notes

Manufacturing and Discrete Production Lines: In automotive assembly, electronics manufacturing, and packaging lines, the DSBC173A enables control engineers to distribute I/O racks across large machine footprints without running individual signal cables back to a central rack. Extended racks can be positioned close to field devices, reducing wiring costs and improving signal quality, while the bus extender maintains seamless integration with the central CPU.

Power Generation and Electrical Utilities: In thermal power plants, hydroelectric stations, and substation automation systems, the S100 I/O architecture with DSBC173A bus extension supports the monitoring and control of generators, transformers, switchgear, and protection relays. The ability to extend the I/O bus across multiple racks is essential in large switchgear rooms where I/O points are physically distributed across significant distances.

Petrochemical and Refinery Applications: In continuous process plants, the DSBC173A supports the expansion of I/O capacity to accommodate the large number of analog measurement points — flow, pressure, temperature, level — required for process optimization and safety interlock systems. Extended racks can be installed in field junction boxes or local control panels, with the bus extender maintaining communication integrity back to the main control room.

Water and Wastewater Treatment: Municipal water treatment facilities and industrial effluent systems rely on distributed I/O architectures to monitor pump stations, chemical dosing systems, filtration stages, and discharge monitoring points. The DSBC173A allows a single CPU to manage I/O across multiple physical locations within the treatment plant, reducing system complexity and maintenance overhead.

Mining and Metallurgical Processing: In ore processing, smelting, and materials handling applications, control systems must accommodate harsh environments and geographically dispersed equipment. The DSBC173A supports the extension of I/O racks into remote areas of the plant while maintaining reliable communication with the central control system, supporting both process control and safety shutdown functions.

Product Compatibility FAQ

Q1: How many racks can be connected using the DSBC173A, and what are the maximum bus extension distances?
The DSBC173A is designed for use within ABB’s S100 I/O system architecture, where bus extension configurations are defined by the system’s backplane bus specifications. Typically, S100 systems support extension to multiple racks using paired DSBC173A modules at each end of the extension cable. Maximum cable lengths and the total number of extendable racks depend on the specific system configuration and cable type used. Engineers should consult the ABB S100 I/O system hardware manual and verify compatibility with the installed CPU module (e.g., DSPC172 or DSPC110) to determine the maximum supported configuration for their application. Our technical team can assist with architecture validation prior to procurement.

Q2: Is the DSBC173A compatible with both legacy ABB Advant systems and current ABB control platforms, and can it be integrated without system reconfiguration?
The DSBC173A is specifically designed for ABB S100 I/O systems as deployed in Advant, MOD 300, and Master Series control architectures. It supports system integration within existing S100 configurations, meaning it can be installed into an existing rack system without requiring changes to the CPU’s I/O configuration, address mapping, or application software — provided the extended rack’s I/O modules are correctly addressed and the bus extension cable is properly installed. For migration projects involving newer ABB platforms such as System 800xA, compatibility should be verified at the system architecture level, as S100 I/O may be supported through legacy I/O interface modules rather than direct bus extension.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for installation, commissioning, and long-term maintenance?
All DSBC173A 3BSE005883R1 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against functional defects arising under normal operating conditions. Each unit undergoes functional testing prior to dispatch to verify bus communication integrity and physical condition. For installation and commissioning support, our engineering team can provide guidance on rack slot assignment, bus extension cable selection, power supply sizing for extended racks, and CPU address configuration. For long-term maintenance planning, we supports RFQ sourcing for DSBC173A and related S100 I/O components — including power supplies, I/O modules, and communication cards — to support ongoing spare parts requirements and minimize system downtime. Contact us at plc.sales@zyplc.com or +86 19859288691 for technical consultation and availability confirmation.
