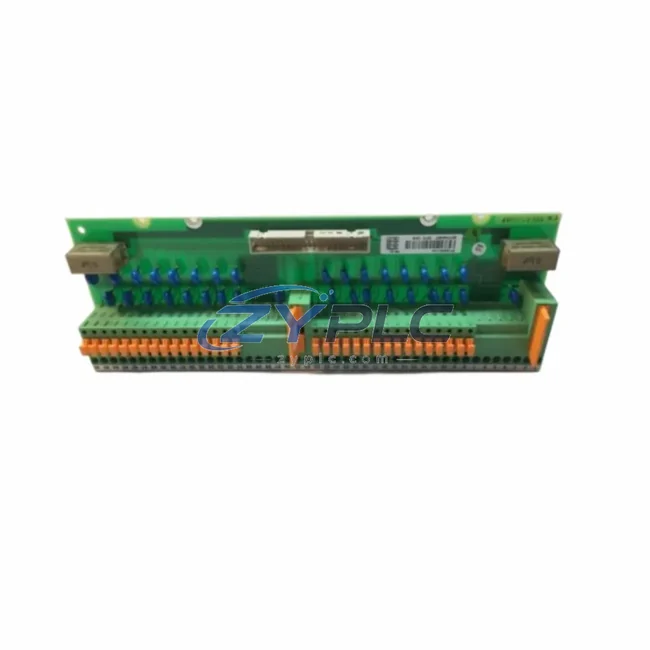

ABB DSTD150A 57160001-UH Connection Unit for TD900

ABB DSTD150A 57160001-UH Connection Unit for TD900

The ABB DSTD150A 57160001-UH is a precision-engineered DCS Connection Unit designed to serve as a critical interface node within the ABB TD900 distributed control system architecture. Rather than functioning as a standalone component, this module is conceived as a structural element of a layered automation hierarchy — bridging the control layer, I/O layer, and field device layer with consistent signal integrity and deterministic communication behavior. In modern industrial facilities where system uptime, signal fidelity, and modular expandability are non-negotiable, the DSTD150A 57160001-UH delivers the system integration capability that engineers demand when designing or extending TD900-based control platforms.

Within a complete TD900 system architecture, the DSTD150A 57160001-UH occupies the connection and termination layer — the point at which field wiring from sensors, actuators, and transmitters converges before being routed to the processor and I/O subsystems. This role is architecturally significant: a poorly specified or incompatible connection unit introduces signal noise, grounding inconsistencies, and maintenance complexity that propagates across the entire control loop. The DSTD150A 57160001-UH eliminates these risks by providing a fully compatible, system-validated termination interface that aligns with ABB’s TD900 backplane and module ecosystem.

System architects integrating this unit into new or existing TD900 installations benefit from its compatibility with the broader ABB Advant and Master series control infrastructure. When paired with processor modules such as the DSPC110 or DSPC172, and I/O modules including the DSDI110A digital input module and DSDO110A digital output module, the DSTD150A 57160001-UH enables a coherent signal chain from field device to control logic. Analog signal conditioning modules such as the DSAI130A and DSAO120A further extend the system’s capability to handle 4–20 mA process loops with high resolution and low drift — all routed through the structured termination framework that the DSTD150A 57160001-UH provides.

At the network and communication layer, the TD900 architecture supports integration with PROFIBUS DP and Modbus RTU protocols via dedicated gateway modules such as the DSSB110 and DSCS140. The DSTD150A 57160001-UH’s role in maintaining clean, interference-free field wiring termination directly supports the reliability of these communication pathways. In redundant control configurations — where dual-processor or dual-network topologies are employed — the connection unit’s consistent termination behavior ensures that switchover events between primary and redundant controllers do not introduce transient signal errors at the field level.

For power distribution within the control cabinet, the TD900 system relies on regulated 24 VDC power supply modules such as the DSPD110 to deliver stable voltage to all active modules. The DSTD150A 57160001-UH, as a passive termination and connection component, imposes minimal power demand while contributing to the overall cabinet’s wiring organization and EMC compliance. Proper grounding and shielding at the connection unit level — as specified in ABB’s TD900 engineering guidelines — reduces radiated emissions and improves immunity to conducted interference, which is particularly important in high-noise environments such as motor control centers, variable frequency drive (VFD) panels, and high-voltage switchgear rooms.

From a maintenance and lifecycle management perspective, the DSTD150A 57160001-UH supports the long-term serviceability of TD900 installations. Its modular design allows field technicians to disconnect and reconnect field wiring without disturbing adjacent modules or interrupting unrelated control loops — a critical capability in continuous process industries where partial shutdowns carry significant production cost. Spare parts availability, combined with ZYPLC’s warranty terms confirmed during quotation on this unit, ensures that maintenance teams can plan corrective and preventive maintenance activities with confidence in both component quality and supply continuity.

Product Specification Table

System Compatibility Notes

A well-engineered TD900 control system is not assembled from isolated components — it is designed as an integrated architecture where each module fulfills a defined role within a coordinated signal and power hierarchy. The DSTD150A 57160001-UH anchors the termination layer of this hierarchy, providing the structured wiring interface through which field signals enter the control system.

At the processor level, the DSPC110 and DSPC172 CPU modules execute the control logic and manage I/O scanning cycles. These processors communicate with I/O modules mounted on the TD900 backplane, with the DSTD150A 57160001-UH serving as the field-side termination point for the signals that these processors ultimately read and write. Digital inputs from proximity sensors, limit switches, and pushbuttons are terminated through the connection unit before being routed to the DSDI110A digital input module. Similarly, digital output commands destined for solenoid valves, motor starters, and indicator lamps pass through the DSDO110A digital output module and are wired to field devices via the DSTD150A 57160001-UH termination interface.

Analog process variables — including temperature, pressure, flow, and level signals — are handled by the DSAI130A analog input module and the DSAO120A analog output module. The DSTD150A 57160001-UH provides the cable termination and shielding connection points that maintain signal quality for these 4–20 mA loops, preventing ground loops and reducing common-mode noise that would otherwise degrade measurement accuracy. For communication-intensive applications, the DSSB110 serial communication module and DSCS140 communication supervisor module extend the TD900 system’s connectivity to field devices and supervisory systems via standardized industrial protocols. Cabinet power integrity is maintained by the DSPD110 power distribution module, which supplies regulated 24 VDC to all active modules in the rack.

In redundant system configurations, a secondary processor and duplicated I/O infrastructure operate in parallel with the primary control path. The DSTD150A 57160001-UH’s passive termination design ensures that field wiring remains stable and undisturbed during processor switchover events, preserving process continuity and eliminating the risk of spurious output changes during redundancy transitions.

Industrial Application Notes

The ABB DSTD150A 57160001-UH is deployed across a wide range of industrial sectors where the TD900 DCS platform has established a long operational history. In power generation and transmission facilities, the connection unit supports turbine control, boiler management, and substation automation applications where signal integrity and system availability are paramount. The module’s compatibility with ABB’s Advant Master architecture makes it a natural fit for legacy power plant control systems undergoing modernization or spare parts replenishment programs.

In oil, gas, and petrochemical processing plants, the DSTD150A 57160001-UH is used in continuous process control applications including distillation column management, compressor control, and pipeline monitoring. The structured termination it provides supports the high channel density and precise signal conditioning required in these environments. Water and wastewater treatment facilities rely on TD900-based control systems for pump sequencing, chemical dosing, and filtration process management — applications where the connection unit’s reliable field wiring interface contributes directly to process consistency and regulatory compliance.

Mining and metallurgical operations deploy TD900 systems in ore processing, conveyor control, and smelting process automation. The DSTD150A 57160001-UH’s robust construction and compatibility with ABB’s proven control platform make it suitable for the demanding electrical environments found in these facilities. In packaging and discrete manufacturing lines, the module supports high-speed I/O applications where deterministic signal response and clean wiring termination are essential for maintaining production throughput and product quality.

Product Compatibility FAQ

Q1: Is the DSTD150A 57160001-UH compatible with all TD900 series backplanes and I/O modules?
The DSTD150A 57160001-UH is designed for use within the ABB TD900 / Advant Master control system architecture and is compatible with the standard TD900 backplane and associated I/O modules including the DSDI110A, DSDO110A, DSAI130A, and DSAO120A series. For specific rack configurations or mixed-generation installations, we recommend verifying the module’s revision level against your system’s hardware compatibility matrix. Our technical team can assist with compatibility confirmation prior to order placement.

Q2: Can this connection unit be installed or replaced without shutting down the entire control system?
In most TD900 installations, the DSTD150A 57160001-UH can be disconnected from the field wiring side without affecting adjacent modules or unrelated control loops, provided that the associated I/O channels are placed in a safe state prior to disconnection. Full hot-swap capability depends on the specific system configuration and the safety requirements of the controlled process. For critical process applications, we recommend following ABB’s TD900 maintenance procedures and coordinating replacement activities with your process safety team.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance planning?
ZYPLC’s warranty terms confirmed during quotation covers the DSTD150A 57160001-UH against manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team, who can assist with failure diagnosis, replacement coordination, and documentation for maintenance records. For long-term maintenance planning, ZYPLC supports RFQ sourcing for TD900-compatible modules and connection units to support both scheduled preventive maintenance and unplanned corrective maintenance requirements. Contact our team to discuss volume pricing, lead times, and long-term supply agreements.
