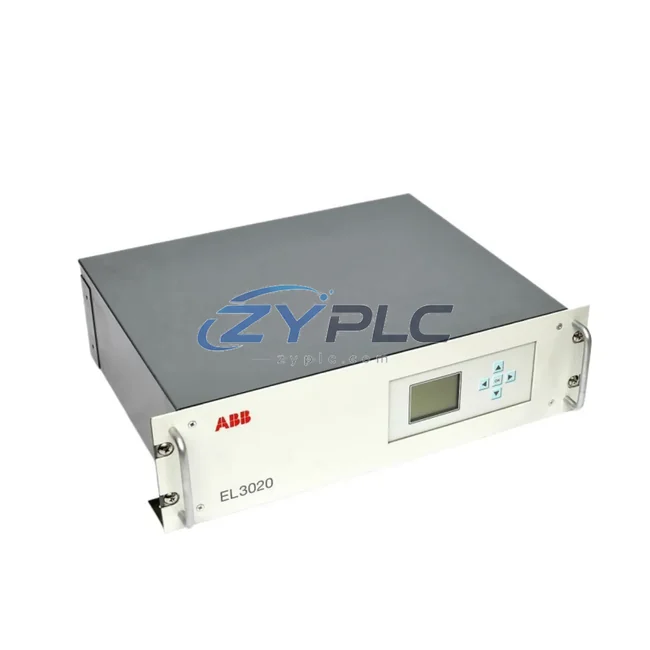

ABB EL3020 Continuous Gas Analyzer for EasyLine

ABB EL3020 Continuous Gas Analyzer: Compatibility and Replacement Notes

The ABB EL3020 EasyLine continuous gas analyzer is engineered not merely as a standalone measurement instrument, but as a fully integrated node within a layered industrial control system architecture. In process industries where gas composition directly governs combustion efficiency, emission compliance, and safety interlocks, the EL3020 must function seamlessly across the control layer, I/O layer, network layer, power layer, human-machine interface layer, and execution layer. Understanding its role within this multi-tier architecture is essential for system engineers, automation integrators, and procurement specialists who demand long-term reliability, scalable expansion, and defensible maintenance strategies.

The EL3020 is designed for continuous, real-time measurement of gases including O₂, CO, CO₂, SO₂, NO, and NO₂ using non-dispersive infrared (NDIR) and paramagnetic detection technologies. Its measurement accuracy, response time, and signal stability make it a preferred choice for applications in power generation, petrochemical refining, steel and metallurgy, cement production, waste incineration, and water treatment facilities. When deployed within a complete ABB EasyLine system architecture, the EL3020 contributes to system consistency, redundancy capability, and long-term maintenance efficiency in ways that isolated instrument selection cannot achieve.

Product Specification Table

System Compatibility Notes

The ABB EL3020 achieves its highest value when positioned within a coordinated control system architecture rather than as an isolated field instrument. In a typical process control installation, the EL3020 occupies the measurement and signal source layer, feeding real-time gas concentration data upward through the I/O layer into the control execution layer.

At the control layer, the EL3020’s 4–20 mA analog outputs interface directly with ABB AC500 series PLCs or ABB Symphony Plus DCS controllers. The AC500’s AI523 analog input modules receive the EL3020’s measurement signals with high-resolution conversion, enabling the control program to execute combustion trim loops, emission limit alarms, and process shutdown interlocks based on live gas data. Where PROFIBUS DP communication is configured, the EL3020 connects to the AC500’s CM572-DP communication module, reducing wiring complexity and enabling diagnostic transparency at the controller level.

At the I/O layer, the EL3020 integrates with ABB S900 remote I/O modules deployed in hazardous or remote locations. The S900 system’s intrinsically safe analog input cards can accept the EL3020’s 4–20 mA signals and transmit them over PROFIBUS DP to the central control room, maintaining signal integrity across long cable runs in petrochemical or power plant environments. This architecture eliminates the need for dedicated signal repeaters and simplifies loop documentation.

At the network layer, the EL3020’s PROFIBUS DP or Modbus TCP interface connects to ABB’s CI854 PROFIBUS gateway or third-party Modbus-to-Ethernet converters, enabling the analyzer data to be published to plant-wide SCADA systems such as ABB System 800xA. Within the 800xA environment, the EL3020’s measurement tags appear as standard process variables, fully integrated into historian trending, alarm management, and regulatory reporting workflows. This system integration capability ensures that gas analysis data is not siloed within a standalone analyzer display but is embedded within the plant’s unified operational picture.

At the power layer, the EL3020 requires a stable 100–240 V AC supply. In critical applications, it is recommended to power the analyzer from a dedicated UPS circuit — such as an ABB PowerValue 11 RT G2 UPS — to ensure continuous measurement during grid disturbances. Power distribution within the analyzer cabinet should be managed through ABB S200 series miniature circuit breakers, providing overcurrent protection and enabling safe isolation during maintenance without interrupting adjacent instrument circuits.

At the human-machine interface layer, the EL3020’s measurement data is visualized on ABB CP600 series HMI panels or integrated into ABB System 800xA operator workstations. Operators can monitor real-time gas concentrations, trend historical data, acknowledge analyzer alarms, and initiate remote calibration sequences — all from a unified HMI environment. This eliminates the need for technicians to physically access the analyzer cabinet for routine status checks, reducing operational risk in hazardous areas.

At the execution layer, the EL3020’s alarm relay outputs connect to ABB OTEC or third-party safety relay modules, enabling hardwired interlock actions — such as burner shutdown or emergency ventilation activation — that operate independently of the digital communication network. This dual-path architecture (digital communication for normal operation, hardwired relay for safety interlock) ensures that critical process protection remains active even during network communication faults.

For redundancy-critical applications, two EL3020 units can be deployed in a hot-standby or cross-validation configuration, with the switchover logic managed by the AC500 PLC program. The ABB EL3020’s consistent hardware platform across the EasyLine EL3000 series — including the EL3060 rack-mount variant and the EL3040 portable configuration — ensures that spare parts, detector modules, and calibration gas connections are interchangeable, significantly reducing spare parts inventory complexity and mean time to repair (MTTR).

Industrial Application Notes

Power Generation: In coal-fired and gas-fired power plants, the EL3020 monitors flue gas O₂ and CO concentrations at the economizer outlet, providing real-time feedback to the combustion management system. The analyzer’s 4–20 mA output connects to the DCS combustion trim controller, enabling automatic air-to-fuel ratio adjustment that improves boiler thermal efficiency by 1–3% while maintaining NOx and CO emissions within permitted limits. The EL3020’s PROFIBUS DP interface integrates directly with the plant’s ABB Symphony Plus DCS, ensuring that analyzer data appears in the plant historian for regulatory reporting and performance benchmarking.

Petrochemical and Refining: In catalytic reforming and hydrotreating units, the EL3020 monitors hydrogen purity and trace oxygen content in recycle gas streams. Its fast response time and high measurement stability are critical for protecting precious metal catalysts from oxygen poisoning. The analyzer’s relay outputs provide hardwired interlock signals to the emergency shutdown system (ESD), ensuring that catalyst protection actions occur within the required response time regardless of DCS communication status.

Steel and Metallurgy: In electric arc furnace (EAF) and basic oxygen furnace (BOF) operations, the EL3020 monitors off-gas CO and CO₂ concentrations to optimize oxygen lance control and energy recovery. The analyzer’s robust sample conditioning system handles high-dust, high-moisture flue gas streams, and its automatic calibration capability ensures measurement accuracy is maintained without manual intervention during continuous production campaigns.

Water and Wastewater Treatment: In anaerobic digestion facilities, the EL3020 monitors biogas composition (CH₄, CO₂, O₂, H₂S) to optimize gas engine fuel quality and detect unsafe oxygen ingress. The analyzer’s Modbus TCP interface connects to the facility’s SCADA system, enabling remote monitoring and alarm notification for unmanned or semi-manned installations.

Cement and Mineral Processing: In rotary kiln operations, the EL3020 monitors kiln inlet and outlet gas compositions to optimize combustion and minimize CO emissions. Its high-temperature sample probe compatibility and robust sample conditioning system make it suitable for the harsh sampling conditions typical of cement plant environments.

Product Compatibility FAQ

Q1: Is the ABB EL3020 compatible with non-ABB DCS and PLC platforms, and what interface options are available for system integration?

Yes. The EL3020 provides universal 4–20 mA analog outputs that are compatible with any DCS, PLC, or SCADA system capable of accepting standard analog inputs. For digital communication, the EL3020 supports PROFIBUS DP and optional Modbus RTU/TCP interfaces, enabling system integration with Siemens SIMATIC, Honeywell Experion, Emerson DeltaV, Yokogawa CENTUM, and other major control platforms. RS-232/RS-485 serial interfaces are also available for legacy system integration. All interface configurations are factory-set and should be specified at the time of order to ensure correct firmware and hardware configuration.

Q2: What are the installation and commissioning requirements for the EL3020 in a new control system architecture, and how long does initial calibration take?

The EL3020 requires a stable sample gas supply within the specified flow rate and pressure range, a conditioned sample gas (moisture removed, particulates filtered to <2 μm), a stable AC power supply (preferably UPS-backed), and signal wiring to the DCS/PLC I/O system. Initial commissioning includes zero and span calibration using certified reference gases, PROFIBUS or Modbus address configuration, and alarm relay setpoint programming. Typical commissioning time for a single-component analyzer is 4–8 hours; multi-component configurations may require 1–2 days. The EL3020’s automatic calibration function, once configured, performs scheduled zero/span checks without operator intervention, maintaining measurement traceability throughout the warranty terms confirmed during quotation period and beyond.

Q3: What does the warranty terms confirmed during quotation cover, and what long-term maintenance support is available after the warranty period?

The warranty terms confirmed during quotation covers the EL3020 analyzer unit, including the detector assembly, signal conditioning electronics, display module, and relay output boards, against manufacturing defects and component failures under normal operating conditions. Warranty service includes repair or replacement of defective components, with technical support available via ZYPLC’s engineering team. After the warranty period, ZYPLC supports RFQ sourcing for EL3020 spare parts — including replacement detector modules, sample pump assemblies, solenoid valve kits, and calibration gas regulators — to support long-term maintenance programs. Preventive maintenance contracts and on-site calibration services are available on request. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 for post-warranty support options.
