ABB GKWE857800R1223 Industrial Network Interface for 87TS50E-E Systems

ABB GKWE857800R1223 Industrial Network Interface for 87TS50E-E Systems: Bridging the Industrial Data Link

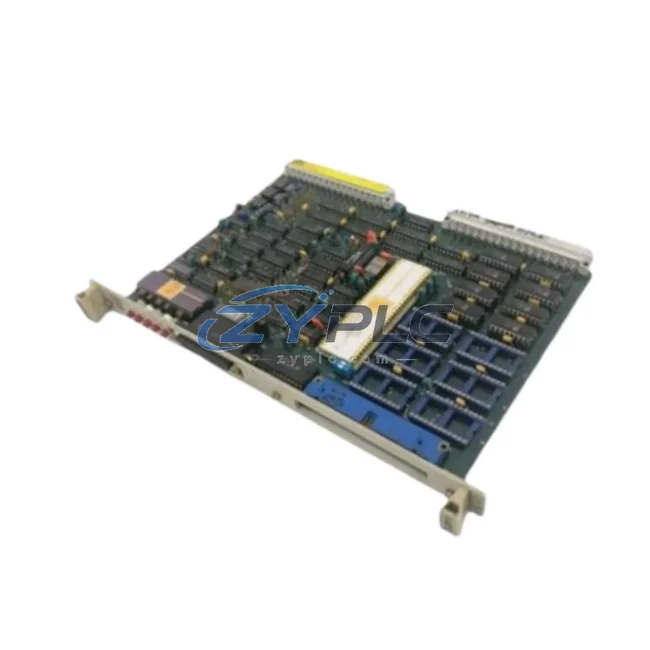

The ABB GKWE857800R1223 87TS50E-E Coupling Module is a high-performance industrial network interface engineered to serve as the critical data bridge between field-level devices and upper-layer control and monitoring systems. In modern smart factory environments, seamless data flow across heterogeneous networks is no longer optional — it is the foundation of operational efficiency, predictive maintenance, and real-time decision-making. The GKWE857800R1223 is purpose-built to fulfill this role, enabling reliable protocol conversion, stable network transmission, and transparent system integration across the full automation stack.

Designed within ABB’s proven 87TS50E-E series architecture, this coupling module supports the demanding requirements of industrial communication networks where uptime, data integrity, and interoperability are paramount. Whether deployed in discrete manufacturing, process automation, energy management, or infrastructure control, the GKWE857800R1223 delivers consistent performance across diverse industrial topologies.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the ABB GKWE857800R1223 sits at the intersection of multiple data streams, acting as the protocol translator and network coupling point that makes cross-system communication possible. The data journey begins at the field level, where sensors, actuators, and transmitters generate raw process signals. These signals are collected by remote I/O modules — such as ABB’s S800 I/O series — and passed upward through the fieldbus network.

At the controller layer, ABB AC500 PLCs or equivalent programmable logic controllers process this data and issue control commands back to the field. The GKWE857800R1223 ensures that the communication between the PLC backplane and the fieldbus segment remains synchronized and error-free, even under high-cycle polling conditions. When the network topology includes PROFIBUS DP segments alongside PROFINET Ethernet backbones, the coupling module performs the necessary protocol bridging without introducing latency spikes that could compromise control loop performance.

Moving up the automation pyramid, ABB Ability™ SCADA systems and third-party HMI platforms — including those running on ABB CP600 operator panels — rely on the GKWE857800R1223 to deliver consistent, timestamped data from the field. This data feeds real-time dashboards, alarm management systems, and historian databases, enabling operators to monitor production KPIs and respond to process deviations within seconds.

In drive networks, ABB ACS880 variable frequency drives and similar motor control units communicate their speed, torque, and fault status through the fieldbus segment managed by the coupling module. This integration allows SCADA and MES systems to correlate drive performance data with production output, supporting maintenance planning and predictive maintenance workflows.

For remote diagnostic applications, the GKWE857800R1223 supports transparent data tunneling to edge gateway platforms, enabling cloud-based analytics and remote access without compromising the integrity of the real-time control network. ABB Edge Computing solutions and compatible IIoT gateways can subscribe to process data streams routed through the coupling module, creating a seamless path from sensor to cloud.

In installations where IEC 61850 substation automation is required — common in energy distribution and utility control applications — the GKWE857800R1223 provides the coupling interface between legacy PROFIBUS field devices and modern IEC 61850 GOOSE messaging networks, ensuring backward compatibility while enabling digital substation transformation.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A plant floor may simultaneously operate PROFIBUS DP legacy devices installed a decade ago alongside new PROFINET-based controllers and Ethernet-connected HMI stations. Without a capable coupling module, these systems operate as isolated data islands — each generating valuable process information that cannot be shared, correlated, or acted upon in real time.

The ABB GKWE857800R1223 directly addresses this data isolation problem. By providing transparent protocol conversion between PROFIBUS and PROFINET — and supporting Modbus RTU/TCP for legacy serial devices — the module eliminates the communication barriers that prevent unified plant visibility. Operators gain a single, coherent view of the entire production process through their SCADA or DCS platform, regardless of the underlying fieldbus protocols in use.

Remote monitoring and diagnostics are equally transformed. With the GKWE857800R1223 in place, maintenance engineers can access device-level diagnostics, fault codes, and communication statistics from the control room or remotely via secure VPN connections — without physically visiting the field device. This capability dramatically reduces mean time to repair (MTTR) and supports condition-based maintenance strategies that minimize unplanned downtime.

Production line transparency is another key benefit. By ensuring that every field device — from a simple pressure transmitter to a complex variable frequency drive — can report its status to the upper-layer SCADA system, the GKWE857800R1223 enables real-time OEE (Overall Equipment Effectiveness) tracking, batch traceability, and quality management integration. Plant managers gain the data visibility needed to identify bottlenecks, optimize throughput, and respond proactively to emerging issues.

System scalability is built into the design philosophy of the 87TS50E-E series. As production capacity expands or new automation islands are added, additional coupling modules can be integrated into the existing network architecture without requiring a redesign of the communication backbone. This modular approach protects the capital investment in existing infrastructure while enabling continuous improvement of the smart factory ecosystem.

Every ABB GKWE857800R1223 unit shipped by ZYPLC undergoes functional communication testing prior to dispatch, verifying protocol handshake, data throughput, and network stability under simulated load conditions. This pre-shipment validation process ensures that the module arrives ready for immediate integration, reducing commissioning time and minimizing the risk of field failures.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB GKWE857800R1223 support, and is it compatible with mixed-protocol networks?
The GKWE857800R1223 supports PROFIBUS DP/PA, PROFINET, Modbus RTU/TCP, and EtherNet/IP, making it compatible with mixed-protocol industrial networks. It is designed to bridge legacy fieldbus segments with modern Ethernet-based control architectures, enabling unified data flow across heterogeneous automation environments without requiring replacement of existing field devices.

Q2: What is the communication latency of the GKWE857800R1223 in real-time control applications?
The module is engineered for deterministic, low-latency data exchange suitable for real-time PLC control loops and SCADA polling cycles. Typical cycle times align with PROFIBUS DP standard timing parameters, and the Ethernet interface supports PROFINET IRT (Isochronous Real-Time) where applicable, ensuring that time-critical control data is delivered within the required response windows.

Q3: How does the module support network stability in harsh industrial environments?
The ABB GKWE857800R1223 is built to industrial-grade specifications, with an operating temperature range of -20°C to +60°C and robust EMC shielding to withstand electrical noise common in factory environments. The 87TS50E-E series architecture incorporates redundancy support and network diagnostics that allow the system to detect and report communication faults before they escalate into production stoppages.

Q4: What warranty and after-sales support does ZYPLC provide for the GKWE857800R1223?
ZYPLC provides a warranty terms confirmed during quotation on all ABB GKWE857800R1223 units. Each module is functionally tested before shipment to verify communication integrity and protocol compatibility. In the event of a confirmed hardware defect within the warranty period, ZYPLC offers full replacement support. Our technical team is available to assist with integration questions, network configuration guidance, and compatibility verification for your specific automation architecture.
