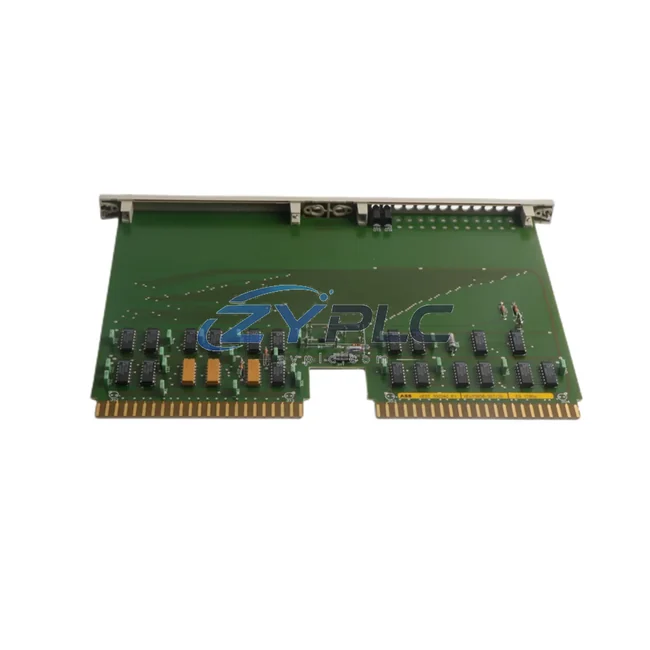

ABB HEDT300340R1 ED1780A Bus Amplifier for HEDT Series

ABB HEDT300340R1 ED1780A Bus Amplifier for HEDT Series

The ABB HEDT300340R1 ED1780A is a precision-engineered DCS Bus Amplifier Module designed to serve as a critical signal conditioning and bus extension component within the ABB HEDT Series distributed control architecture. Rather than functioning as a standalone device, this module is purpose-built to operate within a layered automation hierarchy — bridging the control layer, I/O layer, and communication backbone of large-scale industrial systems. Its role in maintaining signal integrity across extended bus topologies makes it indispensable in high-availability process environments where communication stability and system consistency are non-negotiable.

In a complete HEDT Series control system, the HEDT300340R1 ED1780A works in close coordination with upstream CPU modules such as the ABB HEDT300100R1 and HEDT300200R1 processor units, which handle real-time control logic and deterministic scan cycles. The bus amplifier ensures that I/O signals from remote marshalling panels and field junction boxes are reliably transmitted back to the controller without degradation — a function that becomes especially critical in large plant footprints where cable runs exceed standard bus drive limits. By amplifying and regenerating bus signals, this module extends the effective reach of the HEDT Series backplane architecture without introducing latency or data corruption.

At the I/O layer, the HEDT300340R1 ED1780A interfaces seamlessly with ABB HEDT Series analog and digital I/O modules, including standard 4–20 mA input cards and discrete output modules mounted on HEDT-compatible I/O racks. The amplifier module maintains signal fidelity across these racks, ensuring that process variables — whether from pressure transmitters, flow meters, or temperature sensors — are accurately represented at the controller level. This is particularly important in applications where measurement accuracy directly affects process safety and product quality.

From a network and communication perspective, the HEDT300340R1 ED1780A supports the proprietary HEDT Series bus protocol, ensuring full system integration with the broader ABB control platform. It is compatible with HEDT Series communication gateway modules that bridge field-level data to supervisory SCADA systems via Modbus TCP, PROFIBUS DP, or FOUNDATION Fieldbus. This multi-protocol compatibility allows the bus amplifier to serve as a transparent infrastructure component within heterogeneous automation environments, supporting both legacy and modern communication stacks without requiring protocol conversion at the amplifier level.

Power supply integrity is another dimension where the HEDT300340R1 ED1780A contributes to overall system resilience. The module is designed to operate within the HEDT Series redundant power supply framework, accepting regulated DC bus power from ABB HEDT Series power supply units. In redundant power configurations — where dual power supply modules feed the I/O rack simultaneously — the bus amplifier maintains continuous operation even during a single power supply failure, supporting the high-availability requirements of critical process industries.

For human-machine interface integration, the HEDT300340R1 ED1780A enables reliable data flow from field devices to ABB operator workstations and panel-mounted HMI terminals. Operators monitoring process variables through ABB System 800xA or compatible SCADA platforms receive accurate, real-time data because the bus amplifier ensures that no signal degradation occurs between the field I/O and the control processor. This transparency at the HMI layer reduces operator response time and supports informed decision-making during process upsets.

At the execution layer, the HEDT300340R1 ED1780A supports command delivery to final control elements including control valves, variable frequency drives, and motor control centers. By maintaining bus integrity between the controller and output modules, the amplifier ensures that actuator commands are executed with the precision and timing required by the control algorithm — a requirement that is especially stringent in closed-loop regulatory control applications such as flow control, pressure regulation, and temperature management.

Product Specification Table

System Compatibility Notes

The HEDT300340R1 ED1780A achieves its full value when deployed as part of a coordinated HEDT Series control system. In a typical architecture, the ABB HEDT300100R1 CPU module serves as the primary controller, executing the control program and managing I/O scan cycles. The HEDT300340R1 ED1780A extends the I/O bus from this CPU to remote I/O racks, where ABB HEDT Series digital input modules (DI), digital output modules (DO), analog input modules (AI), and analog output modules (AO) are installed. Terminal modules and marshalling backplanes within the HEDT Series ecosystem connect field wiring to these I/O cards, with the bus amplifier ensuring that all signals traverse the extended bus without loss.

For redundancy-critical applications, the HEDT300340R1 ED1780A is paired with ABB HEDT Series redundant controller modules and redundant I/O bus configurations. In these setups, a secondary bus amplifier may be installed in parallel, with automatic switchover logic managed by the HEDT Series controller firmware. This architecture eliminates single points of failure at the bus level, supporting continuous operation during module replacement or bus fault conditions. HEDT Series communication gateway modules further extend system reach by connecting the local bus to plant-wide Ethernet networks, enabling integration with ABB System 800xA DCS platforms and third-party SCADA systems.

Power distribution within the control cabinet is managed by ABB HEDT Series power supply modules, which provide regulated DC voltage to the bus amplifier and all connected I/O modules. Relay output modules within the HEDT Series handle discrete command signals to field devices, while the bus amplifier ensures that these commands are delivered with the timing precision required by the control algorithm. The overall architecture — from CPU to bus amplifier to I/O modules to field devices — forms a coherent, maintainable control system that supports long-term operational reliability.

Industrial Application Notes

The ABB HEDT300340R1 ED1780A is deployed across a wide range of industrial sectors where distributed control architecture and bus signal integrity are essential. In power generation and transmission facilities, the module supports bus extension between main control rooms and remote I/O panels located in switchgear rooms or turbine halls, where cable distances routinely exceed standard bus drive specifications. The amplifier’s ability to regenerate bus signals without introducing communication errors is critical in these environments, where control system availability directly affects grid stability.

In petrochemical and refinery applications, the HEDT300340R1 ED1780A is used in safety-instrumented system (SIS) adjacent architectures, where the DCS bus must maintain deterministic communication under high electrical noise conditions. The module’s robust signal conditioning capability ensures that analog measurements from pressure, temperature, and flow transmitters are accurately conveyed to the controller, supporting precise regulatory control of distillation columns, heat exchangers, and reactor systems. In water treatment and municipal utility applications, the bus amplifier enables centralized control of geographically distributed pump stations and treatment processes from a single HEDT Series DCS platform.

Mining and metallurgical operations benefit from the HEDT300340R1 ED1780A’s ability to extend control bus reach across large plant footprints, connecting crusher control panels, conveyor drive systems, and flotation cell instrumentation to a central HEDT Series controller. In packaging and discrete manufacturing lines, the module supports high-speed I/O scanning across multiple production zones, ensuring that the controller receives real-time feedback from all process stations without communication latency. Across all these applications, the warranty terms confirmed during quotation and verified system integration with the HEDT Series architecture provide engineering teams with the confidence to specify this module in new installations and replacement projects alike.

Product Compatibility FAQ

Q1: Is the HEDT300340R1 ED1780A compatible with all HEDT Series I/O racks and backplanes?
The HEDT300340R1 ED1780A is designed for full system integration within the ABB HEDT Series architecture, supporting standard HEDT Series I/O racks and backplanes. It is recommended to verify the specific rack revision and firmware version of your HEDT Series controller against ABB’s compatibility matrix before installation. Our technical team can assist with compatibility verification as part of the pre-sales process, and all units are covered by a warranty terms confirmed during quotation against manufacturing defects.

Q2: Can this bus amplifier be installed in a redundant bus configuration, and what is the switchover behavior?
Yes, the HEDT300340R1 ED1780A supports redundant bus architectures when paired with a secondary bus amplifier module and a HEDT Series redundant controller configuration. Switchover behavior is managed by the HEDT Series controller firmware, which monitors bus health and initiates automatic failover upon detection of a bus fault. Switchover time is typically within one controller scan cycle, ensuring minimal disruption to process control. Redundant configurations are strongly recommended for critical process applications in power, petrochemical, and water treatment industries.

Q3: What long-term maintenance considerations apply to the HEDT300340R1 ED1780A, and how does the warranty terms confirmed during quotation support lifecycle management?
The HEDT300340R1 ED1780A is a solid-state module with no user-serviceable components, making it a low-maintenance component in the HEDT Series architecture. Recommended maintenance activities include periodic inspection of bus connector integrity, verification of power supply voltage levels, and firmware compatibility checks during DCS platform upgrades. The warranty terms confirmed during quotation covers all manufacturing defects and provides a direct replacement pathway in the event of module failure, supporting lifecycle management strategies that minimize unplanned downtime. Spare module inventory is recommended for critical applications to ensure rapid replacement capability.
