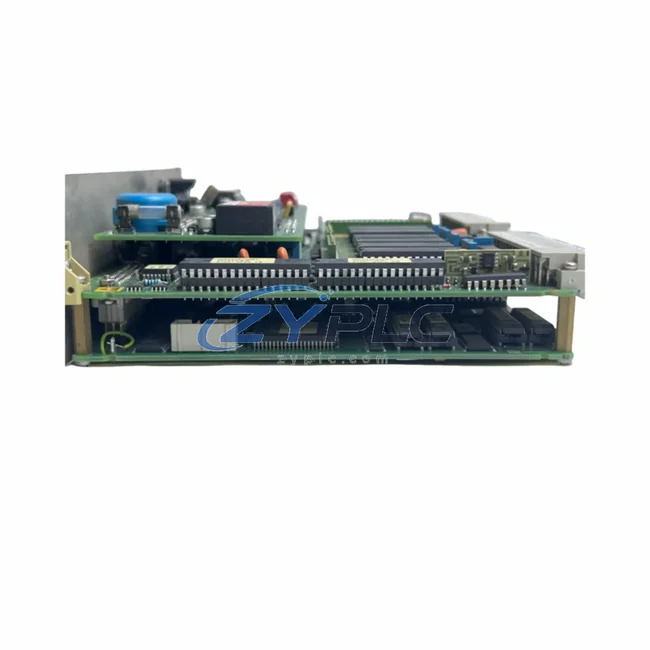

ABB HIEE300867R0001 Industrial Network Interface for PPB022 Systems

ABB HIEE300867R0001 PPB022: Industrial Data Link for Smart Factory Connectivity

In modern industrial environments, seamless data flow between field devices and supervisory systems is the backbone of operational efficiency. The ABB HIEE300867R0001 PPB022 Communication Gateway is engineered to serve as a critical node in this data chain — bridging the gap between legacy field instrumentation and contemporary industrial Ethernet architectures. Whether deployed in power generation, process automation, or discrete manufacturing, the PPB022 delivers reliable protocol conversion, deterministic network transmission, and real-time diagnostics that smart factories demand.

The HIEE300867R0001 PPB022 is purpose-built for ABB’s industrial control ecosystem, designed to integrate seamlessly with ABB AC500 series PLCs, ABB Symphony Plus DCS platforms, and ABB Ability™ SCADA systems. Its robust communication architecture supports multi-protocol environments, enabling plant engineers to unify data from disparate field devices — including Modbus RTU sensors, PROFIBUS DP remote I/O modules, and HART-enabled transmitters — into a single, coherent industrial Ethernet backbone.

Compatibility & Integration Notes

Connected Automation Data Flow

The ABB HIEE300867R0001 PPB022 sits at the intersection of field-level signal acquisition and plant-wide data management. In a typical smart factory deployment, the data journey begins at the sensor layer — where ABB 266 series pressure transmitters and ABB ACS880 variable frequency drives generate continuous process signals. These signals are collected via PROFIBUS DP segments, where the PPB022 acts as a master or slave gateway, aggregating cyclic process data from up to 125 field nodes per segment.

As data moves upward through the automation pyramid, the PPB022 performs protocol conversion, translating PROFIBUS DP frames into Modbus TCP/IP packets compatible with ABB AC500 PLC controllers. The AC500 CPU modules then execute control logic and forward structured data to ABB Panel Builder 600 HMI terminals for operator visualization. Simultaneously, the gateway feeds real-time values into ABB Ability™ Symphony Plus historian nodes, enabling long-term trend analysis and KPI dashboards accessible from the control room.

For remote I/O expansion, the PPB022 interfaces with ABB S800 I/O modules distributed across the production floor, collecting digital and analog signals from proximity sensors, flow meters, and temperature probes. These distributed nodes communicate back through the PROFIBUS backbone, with the PPB022 ensuring data integrity and cycle-time consistency even under high-load network conditions.

At the edge layer, the PPB022 connects to ABB Edge Computing devices and third-party industrial IoT gateways, forwarding pre-processed data to cloud-based SCADA platforms via OPC-UA tunneling or MQTT bridging. This architecture supports predictive maintenance workflows, where vibration data from ABB PSTX soft starters and motor protection relays is streamed continuously to analytics engines for anomaly detection and early fault warning.

For drive network integration, the PPB022 communicates with ABB ACS580 and ACS880 drives over PROFIBUS DP, reading speed references, torque feedback, and fault registers in real time. This data is then surfaced in the SCADA layer, enabling operators to monitor drive health, adjust setpoints remotely, and trigger alarm responses without physical intervention on the drive panel.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of multiple communication protocols across different generations of equipment. A plant may operate legacy Modbus RTU devices alongside modern PROFIBUS DP networks and Industrial Ethernet segments — creating data silos that prevent unified monitoring and control. The ABB HIEE300867R0001 PPB022 directly addresses this fragmentation by serving as a multi-protocol bridge, translating between these communication standards without requiring hardware replacement of existing field devices.

Remote monitoring is another critical pain point in large-scale industrial facilities. Without a reliable gateway at the network boundary, SCADA systems cannot access real-time data from remote substations, pump stations, or distributed production cells. The PPB022 resolves this by maintaining stable, low-latency connections between field devices and supervisory systems, ensuring that operators receive accurate process data regardless of physical distance or network topology complexity.

Production line transparency — the ability to see every machine’s status, output rate, and fault condition in real time — is a prerequisite for lean manufacturing and OEE optimization. By connecting PLCs, drives, remote I/O, and sensors into a unified data network, the PPB022 enables plant managers to build comprehensive dashboards that reflect actual production conditions, not delayed or sampled snapshots.

System scalability is equally important as factories evolve. The PPB022’s modular communication architecture allows engineers to add new PROFIBUS DP nodes, expand Modbus TCP/IP segments, or integrate additional HMI stations without redesigning the network backbone. This future-proof design protects capital investment and reduces commissioning time for plant expansions.

Every ABB HIEE300867R0001 PPB022 unit shipped by ZYPLC undergoes full functional testing prior to dispatch, verifying protocol communication, interface integrity, and power stability. A warranty terms confirmed during quotation covers all units, providing procurement teams and maintenance engineers with confidence in long-term reliability and after-sales support.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB HIEE300867R0001 PPB022 support?
The PPB022 supports PROFIBUS DP (V0/V1), Modbus RTU, Modbus TCP/IP, and Industrial Ethernet protocols. It is designed for multi-protocol environments where legacy field devices must communicate with modern PLC, DCS, SCADA, and HMI systems within the same network architecture.

Q2: How does the PPB022 ensure network stability in high-load industrial environments?
The HIEE300867R0001 PPB022 uses deterministic communication cycles and hardware-level error detection to maintain network stability under high-load conditions. Its PROFIBUS DP master/slave architecture supports up to 125 nodes per segment with consistent cycle times, minimizing communication latency and preventing data loss during peak production periods.

Q3: Can the PPB022 be integrated into existing ABB AC500 PLC and Symphony Plus DCS systems?
Yes. The PPB022 is fully compatible with ABB AC500 PLC platforms and ABB Symphony Plus DCS architectures. It supports standard PROFIBUS DP configuration tools and can be parameterized using ABB Automation Builder or STEP 7-compatible GSD files, enabling straightforward integration into existing control system projects without major engineering rework.

Q4: What warranty and testing standards apply to the HIEE300867R0001 PPB022?
All ABB HIEE300867R0001 PPB022 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing, including protocol communication verification, interface continuity checks, and power supply stability testing, ensuring that every gateway arrives ready for immediate installation and commissioning.
