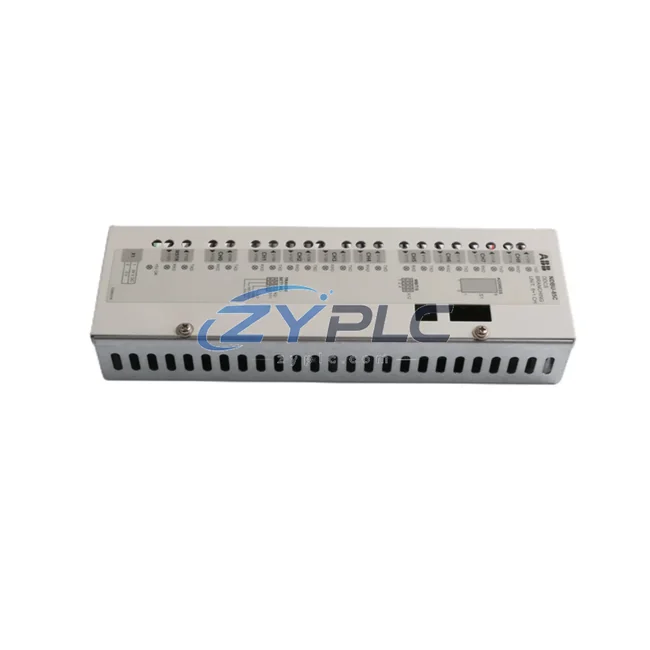

ABB NDBU-85C Field Communication Kit for NDBU

ABB NDBU-85C Field Communication Kit for NDBU: Compatibility and Replacement Notes

In modern industrial automation, no component operates in isolation. The ABB NDBU-85C Field Communication Kit is engineered as a system-compatible solution designed to integrate seamlessly within the layered architecture of ABB’s NDBU-series distributed control platforms. Rather than functioning as a standalone accessory, the NDBU-85C serves as a critical communication bridge that connects field-level I/O signals to the supervisory control layer, ensuring data integrity, signal continuity, and architectural consistency across the entire control hierarchy.

The NDBU-85C is purpose-built for deployment within ABB’s NDBU distributed I/O system, where it facilitates node-level communication between field devices and the central processing unit. Its role within the control architecture spans multiple system layers — from the physical signal acquisition layer through the fieldbus communication layer and up to the CPU coordination layer — making it an indispensable element in any well-engineered NDBU-based control cabinet.

When integrated alongside components such as the ABB NDBU-95C branch unit and the ABB NINT-72C inverter control interface, the NDBU-85C enables a fully coordinated drive control network. The system architecture typically positions the NDBU-85C as the communication node that relays real-time status data from field-mounted drives — such as ABB ACS880 or ACS580 series variable frequency drives — back to the master controller, ensuring that the supervisory PLC or DCS receives accurate, low-latency feedback for closed-loop process control.

From a power layer perspective, the NDBU-85C is designed to operate within the standard 24 VDC auxiliary power distribution architecture common to ABB control cabinets. It is compatible with ABB’s NPOW-41C power supply modules, which provide the regulated DC bus required for stable fieldbus communication. This compatibility ensures that the NDBU-85C can be incorporated into existing power distribution schemes without requiring additional power conditioning hardware, simplifying both initial commissioning and long-term maintenance.

At the network layer, the NDBU-85C supports ABB’s proprietary DDCS (Distributed Drives Communication System) fiber optic protocol, which provides high-speed, noise-immune communication between drive nodes and the master controller. This fiber optic architecture is particularly advantageous in electrically noisy industrial environments — such as steel mills, mining operations, and petrochemical processing plants — where copper-based communication links are susceptible to electromagnetic interference. The NDBU-85C’s fiber optic ports allow it to be daisy-chained with other NDBU branch units, creating a scalable, ring-topology communication network that supports both redundancy and fault isolation.

For system architects designing redundant control architectures, the NDBU-85C plays a key role in maintaining communication continuity during single-point failures. When paired with a redundant master controller configuration — such as dual ABB AC800M controllers operating in hot-standby mode — the NDBU-85C ensures that drive-level communication is maintained without interruption during controller switchover events. This redundancy capability is critical in continuous process industries such as oil and gas, water treatment, and power generation, where unplanned downtime carries significant operational and safety consequences.

The NDBU-85C also supports modular system expansion. As production capacity grows or process requirements evolve, additional NDBU branch units and I/O modules — including ABB NAIO-01 analog I/O extension modules and ABB NDIO-01 digital I/O modules — can be added to the existing communication ring without requiring architectural redesign. This scalability ensures that the initial investment in the NDBU-85C communication infrastructure continues to deliver value as the system evolves over its operational lifecycle.

From a human-machine interface perspective, the NDBU-85C’s integration with ABB’s drive control network enables real-time drive status visualization on HMI platforms such as the ABB CP600 series operator panels or third-party SCADA systems connected via OPC-UA or Modbus TCP gateways. Operators can monitor drive speed references, actual output frequencies, fault codes, and operating load data directly from the control room, enabling proactive maintenance and rapid fault diagnosis without requiring physical access to the drive cabinet.

Installation and commissioning of the NDBU-85C follows ABB’s standard DIN-rail mounting procedure, with fiber optic connections made via standard FSMA or HFBR-type connectors depending on the system configuration. Node addressing is configured via rotary switches on the module face, eliminating the need for software-based address assignment during initial setup. This hardware-based addressing approach reduces commissioning time and minimizes the risk of address conflicts in large multi-node installations.

All NDBU-85C units supplied by ZYPLC are covered by a comprehensive warranty terms confirmed during quotation, ensuring that any manufacturing defects or premature failures are addressed promptly without additional cost to the end user. Our technical support team is available to assist with system integration questions, compatibility verification, and commissioning guidance throughout the warranty period and beyond.

Product Specification Table

System Compatibility Notes

The NDBU-85C achieves its full architectural value when deployed as part of a coordinated ABB drive control system. In a typical multi-drive installation, the NDBU-85C serves as the communication node for a group of ABB ACS880 or ACS580 variable frequency drives, relaying speed references, torque commands, and status feedback between the drives and the master controller via the DDCS fiber optic ring.

At the controller level, the ABB AC800M or ABB AC500 PLC series serves as the master node, issuing process setpoints and receiving real-time feedback from all connected NDBU branch units. The NDBU-85C interfaces directly with the ABB NINT-72C inverter control board installed within each drive, providing the physical communication link between the drive’s internal control electronics and the external DDCS ring.

Power distribution to the NDBU-85C and associated communication hardware is managed by the ABB NPOW-41C 24 VDC power supply module, which provides regulated, filtered DC power to the communication ring. In redundant power configurations, dual NPOW-41C modules are deployed with automatic switchover to ensure uninterrupted communication during power supply failures.

For I/O expansion, the NDBU-85C communication ring can be extended with ABB NAIO-01 analog I/O modules for process variable measurement and ABB NDIO-01 digital I/O modules for discrete signal handling. Terminal block assemblies — such as ABB’s ENTRELEC SNK series — provide the physical wiring interface between field instruments and the I/O modules, ensuring reliable signal termination in high-vibration industrial environments.

At the HMI layer, operator visualization is provided by ABB CP600 series touch panels or integrated SCADA workstations, which receive drive status data via the master controller’s Ethernet/IP or Modbus TCP communication interface. This end-to-end data flow — from field drive through NDBU-85C, DDCS ring, master controller, and HMI — ensures that operators have complete, real-time visibility of drive system performance without requiring manual inspection of individual drive panels.

Industrial Application Notes

The ABB NDBU-85C is deployed across a wide range of industrial sectors where multi-drive coordination and reliable fieldbus communication are essential to process integrity.

In manufacturing and packaging production lines, the NDBU-85C enables synchronized speed control of multiple conveyor drives, ensuring consistent product flow and minimizing inter-stage accumulation. Its low-latency DDCS communication ensures that speed reference updates from the master PLC are applied simultaneously across all connected drives, maintaining line synchronization even during dynamic load changes.

In power generation and utilities, the NDBU-85C supports the control of large pump and fan drives in cooling water systems, combustion air systems, and auxiliary power distribution networks. Its redundancy support ensures that drive communication is maintained during planned maintenance activities, allowing individual drives to be serviced without interrupting the overall system operation.

In petrochemical and oil and gas processing, the NDBU-85C’s fiber optic communication architecture provides inherent immunity to the high levels of electromagnetic interference generated by large motor drives and high-voltage switching equipment. This makes it particularly well-suited for deployment in hazardous area control rooms where signal integrity is critical to process safety.

In water and wastewater treatment, the NDBU-85C enables centralized monitoring and control of pump station drives from a single SCADA interface, reducing the need for local operator intervention and enabling remote fault diagnosis. Its warranty terms confirmed during quotation and long-term spare parts availability from ZYPLC ensure that water utility operators can maintain system reliability over extended operational periods.

In mining and minerals processing, the NDBU-85C supports the control of high-power conveyor, crusher, and mill drives in environments characterized by heavy dust, vibration, and electrical noise. Its robust fiber optic communication and DIN-rail mounting make it suitable for deployment in mine site electrical rooms and mobile processing plant control cabinets.

Product Compatibility FAQ

Q1: Is the ABB NDBU-85C compatible with both ACS880 and ACS580 series drives?
Yes. The NDBU-85C is compatible with all ABB drive platforms that support the DDCS fiber optic communication protocol, including the ACS880, ACS580, ACS550, and DCS880 series. Compatibility is established through the NINT-72C or equivalent inverter control board installed within the drive. When integrating the NDBU-85C into an existing drive system, verify that the installed inverter control board supports DDCS channel CH0 or CH1 as required by your system architecture. ZYPLC’s technical team can assist with compatibility verification prior to order placement.

Q2: How many NDBU-85C units can be connected in a single DDCS ring, and what are the redundancy options?
A single DDCS fiber optic ring supports up to 12 NDBU branch units, each addressed via hardware rotary switch. For redundant architectures, the ring topology provides automatic fault isolation — if a single fiber link fails, the ring reconfigures to maintain communication with all remaining nodes. For controller-level redundancy, the NDBU-85C is compatible with dual AC800M or AC500 master controller configurations operating in hot-standby mode, ensuring zero-interruption switchover during controller failures. ZYPLC recommends documenting node addresses and ring topology during commissioning to facilitate rapid fault diagnosis during maintenance.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability?
The warranty terms confirmed during quotation provided by ZYPLC covers all manufacturing defects and premature component failures under normal operating conditions. Warranty claims are processed within 5 business days of fault confirmation, with replacement units dispatched from ZYPLC’s global inventory. Beyond the warranty period, ZYPLC maintains a dedicated stock of NDBU-85C units and associated ABB NDBU-series components to support long-term spare parts requirements. Our technical support team provides commissioning assistance, fault diagnosis guidance, and system integration consulting throughout the product lifecycle. Contact us at plc.sales@zyplc.com or +86 19859288691 for spare parts inquiries and technical support.
