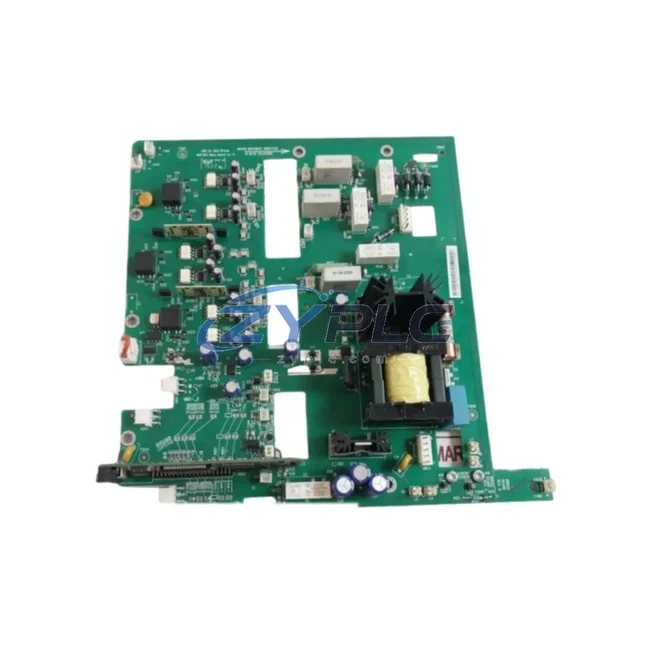

ABB RINT5611 Industrial Network Interface for RDCO Series Systems

ABB RINT5611 Industrial Network Interface for RDCO Series Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices and supervisory systems is the backbone of operational efficiency. The ABB RINT5611 (also referenced as RINT-6621C, part number 64690698) is a dedicated fieldbus communication gateway engineered for ABB RDCO Series drive platforms. It enables real-time protocol conversion, deterministic network transmission, and deep integration with SCADA, HMI, and upper-level control systems — making it an essential node in any industrial connectivity architecture.

From signal acquisition at the sensor level to data aggregation at the SCADA layer, the RINT5611 handles the critical translation layer that allows legacy and modern devices to coexist on a unified industrial network. Whether deployed in a new greenfield smart factory or retrofitted into an existing brownfield automation line, this module delivers the communication reliability that industrial operations demand.

Compatibility & Integration Notes

Connected Automation Data Flow

The RINT5611 sits at the heart of a layered industrial communication architecture. At the field level, sensors and actuators — including ABB pressure transmitters, temperature sensors, and proximity switches — feed process data into ABB ACS880 variable frequency drives. The RINT5611 module, installed in the RDCO option slot of the ACS880, captures this drive-level data and translates it into PROFIBUS DP frames for upstream transmission.

On the network backbone, the PROFIBUS DP signal travels through managed industrial switches — such as the ABB EL1000 series or compatible Hirschmann MICE switches — ensuring deterministic, low-latency delivery to the PLC layer. Siemens S7-300 or S7-400 PLCs, acting as PROFIBUS masters, receive real-time speed references, torque feedback, fault codes, and energy consumption data from the RINT5611 without any manual polling overhead.

For multi-drive installations, the RINT5611 enables a single PROFIBUS segment to address multiple ACS800 or ACS580 drives simultaneously. Each drive node is assigned a unique PROFIBUS station address, and the RDCO-03 option board on companion drives ensures synchronized data exchange across the entire drive network. This topology is particularly effective in conveyor systems, pump stations, and multi-axis motion control applications.

At the supervisory level, SCADA platforms — including ABB System 800xA, Wonderware InTouch, or Ignition SCADA — receive structured process data via the PROFIBUS gateway path. HMI panels such as the ABB CP600 series or Siemens TP700 Comfort display real-time drive status, alarm states, and energy metrics sourced directly from the RINT5611 data stream. The RPBA-01 PROFIBUS adapter and RETA-02 Ethernet adapter serve as complementary communication options within the same ABB drive ecosystem, allowing engineers to design hybrid network topologies where PROFIBUS and Ethernet coexist on the same control platform.

For remote diagnostics and edge computing applications, the RINT5611 data stream can be aggregated by an edge gateway — such as the ABB Ability Edge or a compatible Moxa MGate gateway — which forwards drive telemetry to cloud-based analytics platforms. This enables predictive maintenance algorithms to monitor motor load trends, bearing vibration signatures, and thermal profiles without requiring physical access to the drive cabinet.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is protocol fragmentation. A typical manufacturing site may operate ABB drives on PROFIBUS, Modbus RTU sensors on RS-485, and Ethernet/IP PLCs on a separate LAN segment — creating data silos that prevent holistic production visibility. The RINT5611 directly addresses this by providing a standardized PROFIBUS DP interface that integrates ABB RDCO Series drives into the plant-wide communication fabric.

With the RINT5611 in place, production line transparency improves dramatically. Drive parameters — including output frequency, motor current, DC bus voltage, and active fault codes — are continuously available to the SCADA system, enabling operators to detect anomalies before they escalate into unplanned downtime. Remote monitoring via the PROFIBUS network eliminates the need for technicians to physically inspect drive cabinets during routine checks, reducing maintenance labor costs and improving safety compliance.

System scalability is another key advantage. As production capacity expands, additional ABB ACS880 or ACS580 drives equipped with RINT5611 modules can be added to the existing PROFIBUS segment without redesigning the network architecture. The GSD (General Station Description) file provided with the RINT5611 ensures plug-and-play compatibility with any PROFIBUS master, including Siemens, Schneider Electric, and Rockwell Automation PLCs.

All units are pre-tested prior to shipment, with full functional verification of PROFIBUS communication, parameter read/write operations, and fault response behavior. Stock is maintained for shipment arranged after confirmation, and each module is covered by a warranty terms confirmed during quotation from the date of delivery, ensuring confidence in every deployment.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS DP transmission speed supported by the RINT5611?
The RINT5611 supports PROFIBUS DP transmission rates up to 12 Mbps, with automatic baud rate detection. In practice, most industrial installations operate at 1.5 Mbps or 6 Mbps to balance speed and cable length constraints.

Q2: Is the RINT5611 compatible with both ABB ACS800 and ACS880 drive platforms?
Yes. The RINT5611 is designed for the RDCO option slot, which is present on ABB ACS800, ACS880, ACS580, and DCS800 series drives. Compatibility should be verified against the specific drive firmware version and RDCO slot configuration prior to installation.

Q3: Can the RINT5611 coexist with other communication modules such as the RETA-02 Ethernet adapter on the same drive?
The RDCO option architecture on ABB drives typically supports one active fieldbus module per option slot. If simultaneous PROFIBUS and Ethernet connectivity is required, a gateway device or a drive platform with multiple option slots should be considered.

Q4: What warranty and testing standards apply to this module?
Each RINT5611 unit undergoes pre-shipment functional testing covering PROFIBUS communication initialization, cyclic data exchange, and fault diagnostic response. A warranty terms confirmed during quotation is provided from the date of delivery, covering manufacturing defects and communication failures under normal operating conditions.
