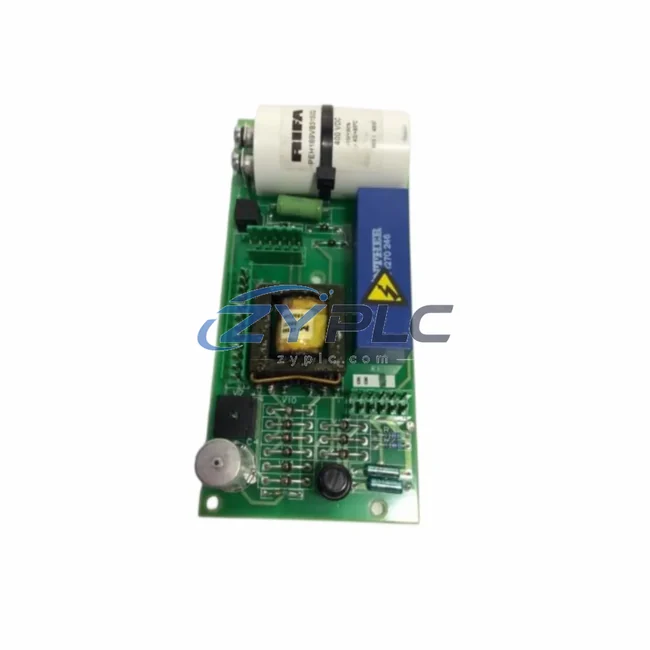

ABB SAFT166APC Power Connection Board

ABB SAFT166APC Power Connection Board: Efficiency Control & Production Line Optimization

The ABB SAFT166APC is a precision-engineered power connection board designed for the ABB SAFT 160 series AC drive platform. In modern industrial environments where equipment uptime and replacement lead time directly affect production continuity, the SAFT166APC plays a critical role in maintaining stable, low-loss power distribution between the drive’s internal power stages. By ensuring clean, low-impedance power routing within the drive assembly, this board directly contributes to reduced switching losses, improved thermal management, and more consistent motor control — all of which translate into measurable operational stability on the production floor.

Whether deployed in continuous process lines, high-cycle packaging machinery, or precision CNC systems, the SAFT166APC supports the drive’s ability to deliver accurate voltage and current to the motor, minimizing reactive power waste and reducing the risk of unplanned shutdowns caused by internal power path degradation.

Product Specification Table

System Compatibility and Application

The SAFT166APC does not operate in isolation — it is a foundational component within a broader industrial automation system. In a typical ABB SAFT 160-based drive system, the power connection board interfaces directly with the SAFT 162 rectifier board and the SAFT 163 inverter board, forming the core DC bus power chain. Any degradation in the SAFT166APC’s connection integrity introduces voltage ripple and harmonic distortion that propagates downstream, forcing the SAFT 165 control board to compensate with higher switching frequency — increasing both energy consumption and thermal stress.

In condition monitoring applications, the SAFT166APC works alongside power measurement modules such as the ABB CM-UFD.M22 power quality monitor and current transducers integrated into the drive cabinet. These instruments feed real-time power data to the ABB AC500 PLC or ABB Freelance DCS, enabling closed-loop maintenance planning strategies. When the PLC detects inefficiency in the drive’s power stage — often indicated by rising DC bus voltage deviation — it can trigger a maintenance alert before a fault occurs, reducing unplanned downtime.

On the HMI side, operators monitoring the line through an ABB CP600 HMI panel can visualize drive efficiency trends in real time. The SAFT166APC’s stable power path ensures that the drive’s internal diagnostics — communicated via PROFIBUS DP or Modbus RTU to the control system — accurately reflect actual operating conditions rather than noise-corrupted readings. This is particularly important in multi-drive systems where a single degraded power board can skew energy benchmarks across the entire line.

For servo-driven axes operating in parallel with the SAFT 160 drive, such as those controlled by the ABB MicroFlex e190 servo drive, maintaining a clean shared DC bus — supported by a properly functioning SAFT166APC — prevents cross-interference between the variable-frequency drive and the servo amplifier. This is critical in applications like robotic welding cells or high-speed pick-and-place systems where both drive types share the same power infrastructure.

I/O expansion modules such as the ABB TU516 terminal unit and associated AI810 analog input modules connected to the AC500 PLC collect temperature, current, and vibration data from the motor and drive enclosure. This data, combined with the stable power delivery ensured by the SAFT166APC, enables predictive maintenance algorithms to calculate remaining useful life for drive components — shifting maintenance from reactive to scheduled, and reducing both parts cost and production interruption.

Maintenance and Replacement Notes

In real-world production environments, the condition of internal drive components like the SAFT166APC has a direct and often underestimated impact on energy consumption and line efficiency. A degraded power connection board introduces micro-interruptions in the DC bus supply, causing the drive’s IGBT modules to operate outside their optimal switching window. This results in increased switching losses — sometimes 3–8% above baseline — which accumulate significantly in 24/7 continuous operations such as water treatment pumping stations, compressor rooms, or conveyor-intensive logistics centers.

Replacing a worn SAFT166APC with a tested, OEM-specification unit restores the drive’s ability to maintain precise voltage-to-frequency ratios across the full speed range. This directly improves motor efficiency, particularly at partial load — the operating condition where most industrial motors spend the majority of their runtime. In variable-torque applications such as fans and pumps, even a 2–3% improvement in drive efficiency at 60–70% load translates into thousands of kilowatt-hours saved annually per drive unit.

From a production line rhythm (takt time) perspective, a stable SAFT166APC eliminates the micro-faults and nuisance trips that disrupt line synchronization. In automotive assembly or electronics manufacturing, where cycle times are measured in seconds, a single unplanned drive fault can cascade into line-wide stoppages affecting dozens of downstream stations. Proactive replacement of aging power connection boards — supported by inventory availability and export shipping options available from ZYPLC — is a low-cost intervention with high operational leverage.

Maintenance teams benefit from reduced mean time to repair (MTTR) when a verified SAFT166APC replacement is available on-site. ZYPLC maintains ready stock of SAFT 160 series components, ships with full pre-shipment functional testing, and backs every unit with a warranty terms confirmed during quotation — giving maintenance engineers the confidence to plan board replacements during scheduled maintenance windows rather than emergency shutdowns.

Product Sourcing FAQ

Q1: How does replacing the SAFT166APC improve drive energy efficiency?
A worn or damaged power connection board introduces resistive losses and voltage instability in the drive’s DC bus. Replacing it with a tested SAFT166APC restores low-impedance power routing, allowing the drive’s IGBT stage to operate at optimal switching efficiency and reducing overall power consumption by eliminating compensatory overcurrent conditions.

Q2: Is the SAFT166APC compatible with all SAFT 160 series drive variants?
The SAFT166APC is designed for the ABB SAFT 160 drive platform and is compatible with SAFT 162, SAFT 163, and SAFT 165 assemblies within the same series. For cross-series compatibility or integration with newer ABB ACS drive platforms, please contact our technical team at plc.sales@zyplc.com to confirm fit before ordering.

Q3: What is the recommended replacement interval, and how is it determined?
Replacement is typically condition-based rather than time-based. Indicators include rising DC bus ripple, increased drive fault frequency, abnormal thermal readings from the drive enclosure, or degraded motor speed regulation. Predictive maintenance systems connected via the AC500 PLC can flag these conditions automatically, enabling planned replacement before failure occurs.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process?
Every SAFT166APC shipped by ZYPLC undergoes pre-shipment functional testing to verify power path integrity, connection resistance, and compatibility with SAFT 160 series drive assemblies. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with test documentation. For warranty claims or technical support, contact +86 19859288691 or plc.sales@zyplc.com.
