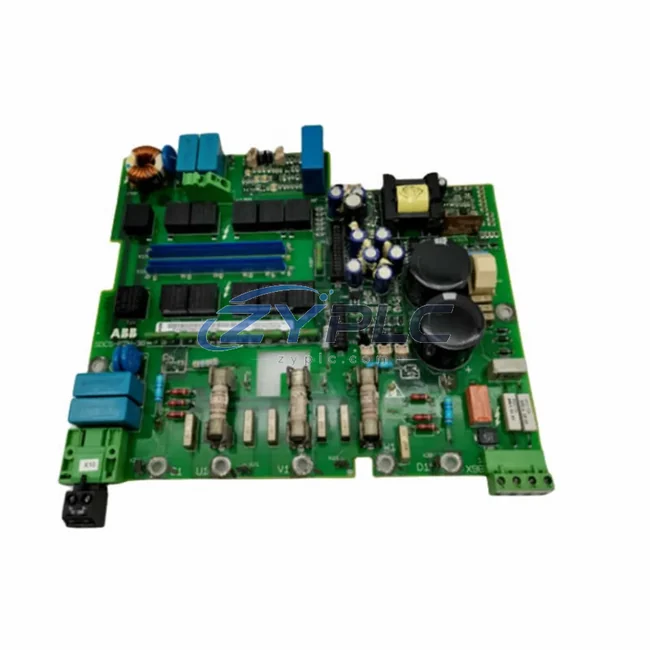

ABB SDCS-PIN-3B 3ADT315200R1001 Pulse Interface Board

ABB SDCS-PIN-3B 3ADT315200R1001 Pulse Interface Board for DCS500 Automation

The ABB SDCS-PIN-3B (Part No. 3ADT315200R1001) is a high-precision pulse interface board engineered for the ABB DCS500 and DCS600 series DC drive platforms. Designed to maximize energy efficiency in demanding industrial environments, this board plays a critical role in translating encoder feedback signals into actionable motor control data — enabling tighter speed regulation, reduced unplanned downtime, and improved production line throughput. Whether deployed in paper mills, metal processing lines, crane systems, or extruder drives, the SDCS-PIN-3B delivers the signal integrity and response speed that modern maintenance-focused automation demands.

Product Specification Table

System Compatibility and Application

In a fully optimized DCS500-based drive system, the SDCS-PIN-3B serves as the sensory nerve of the speed control loop. It receives incremental encoder pulses from the motor shaft and feeds real-time velocity data to the SDCS-CON-2 or SDCS-CON-3 control board — the computational core that executes ABB’s field-proven closed-loop DC motor control algorithms. Without accurate pulse feedback, the control board cannot maintain the precise speed reference required for energy-efficient operation, leading to unnecessary torque fluctuations and elevated current draw.

On the power side, the SDCS-POW-1 and SDCS-POW-4 power supply boards provide the regulated DC voltages that sustain the entire control electronics stack, including the SDCS-PIN-3B itself. Stable power delivery is essential: voltage ripple or dropout events can corrupt encoder pulse counts, causing the drive to misread motor speed and compensate with excess energy input. Pairing the SDCS-PIN-3B with a well-maintained SDCS-POW-4 eliminates this risk.

For applications requiring fieldbus integration, the SDCS-COM-8 (PROFIBUS-DP) or SDCS-COM-5 (DeviceNet) communication adapter boards allow the DCS500 drive to exchange speed setpoints and actual values with a supervisory PLC — such as an ABB AC500 or Siemens S7-300 — over a deterministic industrial network. This closed-loop architecture between the PLC, the drive, and the SDCS-PIN-3B encoder interface enables coordinated multi-axis speed synchronization, which is a key lever for reducing operating load in synchronized conveyor and winding line applications.

On the HMI and monitoring layer, operators can use an ABB Panel PC CP600 or a compatible operator panel to visualize real-time motor speed, load current, and operating load trends derived from the encoder feedback processed by the SDCS-PIN-3B. Integrating a power quality analyzer or an ABB B23 energy meter at the drive input further enables site-level energy auditing — correlating encoder-reported motor speed with actual kWh consumption to identify inefficiency windows during production shifts.

For I/O expansion and process interlocking, the SDCS-IOB-3 I/O extension board works alongside the SDCS-PIN-3B to handle digital and analog signals from field sensors, limit switches, and temperature monitors. This integration supports predictive maintenance routines: when encoder feedback from the SDCS-PIN-3B shows irregular speed ripple patterns, the control system can trigger an alarm via the IOB-3 outputs before a mechanical fault escalates into an unplanned shutdown.

Maintenance and Replacement Notes

In a steel rolling mill operating a DCS500 drive on a main roll table motor, replacing a degraded pulse interface board with a new SDCS-PIN-3B can immediately restore closed-loop speed accuracy. Without reliable encoder feedback, the drive defaults to open-loop voltage control — a mode that typically results in 8–15% higher operating load due to the inability to trim motor flux in response to actual load conditions. Restoring the closed-loop path via the SDCS-PIN-3B brings the drive back into its optimal efficiency operating region.

In paper machine applications, where line speed synchronization between the wire section, press section, and dryer section is critical, the SDCS-PIN-3B ensures that each section drive receives accurate speed feedback. Mismatched section speeds — even by fractions of a percent — cause web tension imbalances that force operators to run motors at higher torque margins than necessary, wasting energy and accelerating mechanical wear on rolls and bearings.

For crane and hoist applications, the SDCS-PIN-3B enables regenerative braking feedback: as the hoist lowers a load, the encoder signal confirms the direction and speed of motor rotation, allowing the DCS500 drive to switch into regenerative mode and return braking energy to the DC bus or the supply network. This energy recovery capability can reduce net operating load in high-cycle crane operations by 20–30% compared to resistive braking systems.

From a maintenance cost perspective, the SDCS-PIN-3B’s role in predictive maintenance is equally significant. Consistent, high-resolution speed feedback allows the drive’s internal diagnostics to detect bearing wear (via speed ripple analysis), coupling misalignment (via torque oscillation patterns), and encoder degradation (via pulse count errors) — all before these conditions cause motor failure or production stoppage. Keeping a tested, availability confirmed by RFQ SDCS-PIN-3B as a critical spare reduces mean time to repair (MTTR) from days to hours.

Every unit shipped from our warehouse undergoes a full functional test under simulated drive conditions, verifying pulse input reception, signal conditioning accuracy, and board-level power integrity. This pre-shipment testing protocol, combined with our warranty terms confirmed during quotation, ensures that the replacement board performs identically to the original ABB factory specification from the moment it is installed.

Product Sourcing FAQ

Q1: How does the SDCS-PIN-3B contribute to operational stability in a DCS500 drive system?
The SDCS-PIN-3B provides the closed-loop speed feedback that allows the DCS500 drive to regulate motor flux and torque precisely. Accurate speed feedback eliminates the need for the drive to apply excess voltage or current as a safety margin, directly reducing operating load during steady-state operation and dynamic speed changes.

Q2: Is the SDCS-PIN-3B compatible with both DCS500 and DCS600 series drives?
Yes. The SDCS-PIN-3B (3ADT315200R1001) is designed for use across the ABB DCS500 and DCS600 DC drive families. It interfaces with the SDCS-CON-2 and SDCS-CON-3 control boards and is compatible with both HTL and TTL incremental encoders commonly used in these drive systems.

Q3: What is the recommended replacement procedure and how long does installation take?
Replacement involves powering down the drive, discharging the DC bus, removing the existing pulse interface board, and seating the new SDCS-PIN-3B into the designated slot on the control board assembly. Parameter re-entry is typically not required as encoder configuration is stored on the SDCS-CON board. Most experienced drive technicians complete the swap in under 30 minutes, minimizing production downtime.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
All SDCS-PIN-3B units are tested under live drive simulation conditions prior to shipment, verifying encoder signal reception, pulse conditioning, and board power integrity. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with fast replacement dispatch to minimize impact on your production schedule.
