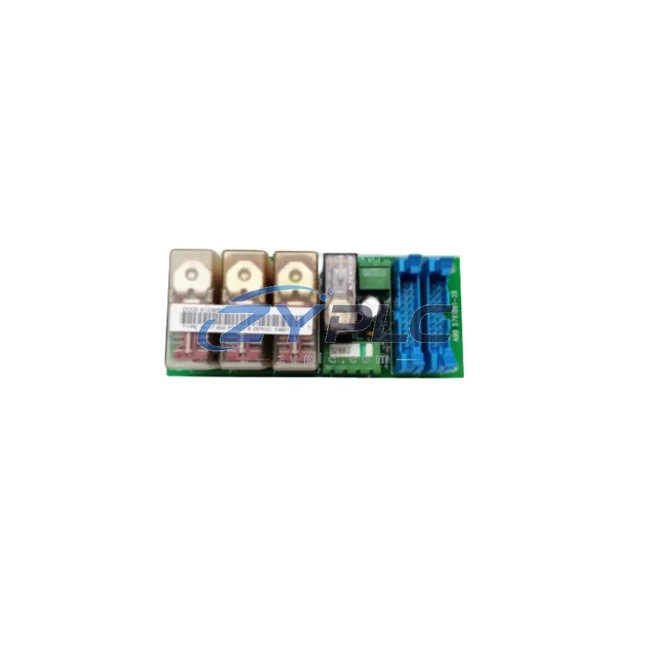

ABB SNAT604IFS Fiber Optic Interface for ACS600

ABB SNAT604IFS Fiber Optic Interface for ACS600

The ABB SNAT604IFS is a fiber optic interface module engineered for seamless integration within the ACS600 AC drive platform, one of ABB’s most widely deployed variable frequency drive series in industrial automation. Rather than functioning as a standalone component, the SNAT604IFS occupies a critical position in the layered control architecture — bridging the communication gap between the drive’s internal control board and the higher-level automation network. Its role spans the signal layer, the communication layer, and the physical installation layer, making it an indispensable element in any system where noise immunity, transmission distance, and data integrity are non-negotiable requirements.

In a complete ACS600-based control system, the SNAT604IFS typically interfaces with the NAMC-11 or NAMC-03 control boards mounted within the drive chassis. These control boards manage the core inverter logic, speed reference processing, and fault diagnostics. The SNAT604IFS extends their communication reach via fiber optic cabling, eliminating the electromagnetic interference that copper-based fieldbus connections are susceptible to in high-voltage switchgear rooms, motor control centers (MCCs), and variable-load industrial environments such as steel mills, paper machines, and offshore platforms.

Product Specification Table

System Compatibility Notes

The SNAT604IFS does not operate in isolation. Its value is fully realized when considered within the broader ACS600 system architecture. At the control layer, the NAMC-11 main control board governs the drive’s closed-loop speed and torque regulation. The SNAT604IFS connects this board to the plant-level automation network, typically a Distributed Control System (DCS) or a Programmable Logic Controller (PLC) platform such as ABB’s AC500 series or a Siemens S7-400 in mixed-vendor installations.

At the I/O layer, the AINT-02 or AINT-14 interface boards within the ACS600 handle analog and digital signal conditioning — speed references, torque limits, fault relay outputs — while the SNAT604IFS ensures that these signals are transmitted to the supervisory layer without degradation over long cable runs. In large process plants, fiber runs of 50–200 meters between the MCC room and the control room are common, and copper-based RS-485 or Profibus connections would be vulnerable to ground loops and induced noise at these distances.

At the network layer, the SNAT604IFS supports ABB’s DDCS (Distributed Drive Control System) protocol, which enables ring or star topology configurations. This is particularly relevant in multi-drive systems where an NDBU-95 branching unit distributes the DDCS optical ring to multiple ACS600 drives simultaneously. A single master controller — such as an ABB AC80C application controller or an external PLC — can supervise up to 12 drives on a single DDCS ring, with the SNAT604IFS serving as the optical entry point on each drive node.

At the power layer, the SNAT604IFS draws its operating power from the ACS600’s internal control voltage supply, typically +24 VDC regulated from the APOW-01 or APOW-02 power supply board. This eliminates the need for external power wiring to the module and simplifies cabinet layout. In redundant power configurations, where dual APOW boards are installed for critical process drives, the SNAT604IFS benefits from the same supply redundancy without additional engineering effort.

At the HMI and diagnostics layer, the SNAT604IFS enables real-time parameter monitoring and fault logging through ABB’s DriveWindow or DriveMonitor software tools connected via the DDCS network. Maintenance engineers can read drive parameters, adjust speed references, and acknowledge faults from a centralized workstation without physical access to the drive cabinet — a significant advantage in hazardous or hard-to-reach installations such as subsea pump drives, tunnel ventilation systems, or elevated crane drives.

Industrial Application Notes

The SNAT604IFS finds application across a broad range of process industries where the ACS600 platform is the drive of choice. In pulp and paper manufacturing, ACS600 drives control refiners, headbox pumps, and winder sections, where the SNAT604IFS enables coordinated speed synchronization across multiple drive axes via the DDCS ring. In water and wastewater treatment, the module supports remote monitoring of pump drives installed in wet wells and pump stations, where long fiber runs and moisture-resistant enclosures are standard requirements.

In the metals and mining sector, ACS600 drives power conveyor systems, ball mills, and hoisting equipment. The SNAT604IFS’s immunity to electromagnetic interference from high-current bus bars and variable-frequency switching noise makes it the preferred communication interface in these environments. In power generation and energy infrastructure, the module supports drives used in cooling water pumps, induced draft fans, and boiler feed pumps, where continuous operation and rapid fault response are critical to plant availability.

For system integrators and OEM panel builders, the SNAT604IFS simplifies cabinet design by reducing the number of shielded copper cables required between the drive and the control system, lowering both material costs and installation labor. Its plug-in form factor allows for rapid replacement during scheduled maintenance windows, minimizing drive downtime and supporting the warranty terms confirmed during quotation coverage period with straightforward module swap procedures.

Product Compatibility FAQ

Q1: Is the SNAT604IFS compatible with all ACS600 variants, including the ACS607 and ACS604?
The SNAT604IFS is designed for the ACS600 product family, which includes the ACS601, ACS604, ACS607, and ACS611 variants. Compatibility depends on the specific control board installed in the drive (NAMC-11, NAMC-03, or NAMC-51). It is recommended to verify the control board type and available module slots before ordering. Our technical team can assist with compatibility confirmation based on your drive’s serial number and software version.

Q2: Can the SNAT604IFS be used in a redundant communication architecture?
Yes. In DDCS ring topologies using the NDBU-95 branching unit, the network is inherently fault-tolerant — a single fiber break does not interrupt communication to other nodes on the ring. For applications requiring full communication redundancy, dual SNAT604IFS modules can be installed in drives that support dual DDCS channel configurations, providing independent optical paths to the master controller. This architecture is commonly used in critical process drives in the oil and gas and power generation sectors.

Q3: What does the warranty terms confirmed during quotation cover, and how is it supported for international customers?
The warranty terms confirmed during quotation covers manufacturing defects, component failure under normal operating conditions, and functional non-conformance to ABB’s published specifications for the SNAT604IFS. Warranty claims are processed from the date of dispatch. For international customers, warranty support is coordinated through our global logistics network, with replacement modules dispatched within agreed lead times. system integration support — including installation guidance, parameter configuration assistance, and system compatibility verification — is available throughout the warranty period at no additional charge.

—
