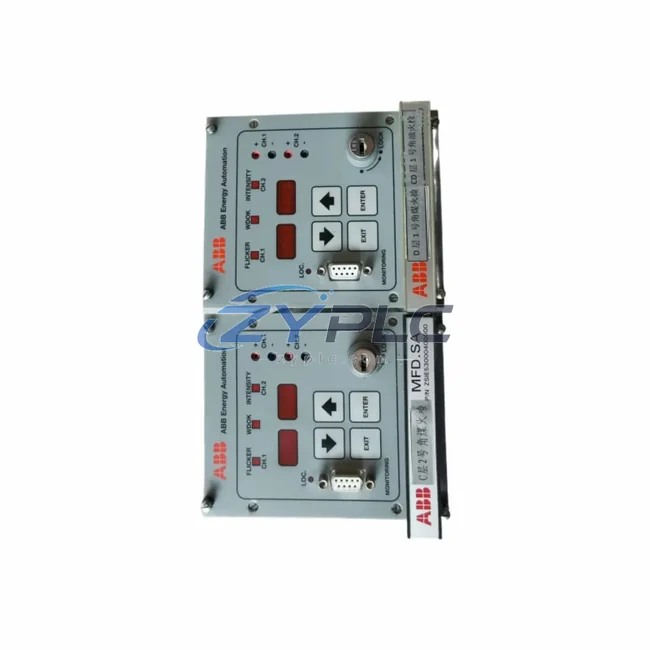

ABB UVISOR MFD.SA ZSIE53000400000 Flame Detection for UVISOR

ABB UVISOR MFD.SA ZSIE53000400000 Flame Detection for UVISOR

The ABB UVISOR MFD.SA ZSIE53000400000 is a precision flame detection module engineered for seamless integration within layered industrial combustion control architectures. Rather than functioning as a standalone sensor, this module occupies a critical position within the broader burner management and process safety hierarchy — interfacing directly with supervisory control layers, safety PLCs, I/O subsystems, and human-machine interface platforms to deliver consistent, reliable flame signal processing across demanding industrial environments.

In modern combustion control systems, the integrity of the flame detection layer determines the operational safety of the entire process. The UVISOR MFD.SA ZSIE53000400000 is designed to fulfill this role with precision, providing stable UV/IR flame signal acquisition and conditioning that feeds directly into the control system’s safety logic. Its architecture-ready design ensures that system engineers can deploy this module within new installations or retrofit it into existing ABB UVISOR-based combustion management platforms without compromising signal continuity or system response time.

Product Specification Table

System Compatibility Notes

The UVISOR MFD.SA ZSIE53000400000 does not operate in isolation. Its value is fully realized when considered within the context of a complete combustion control architecture. At the supervisory level, an ABB AC500 Safety PLC or equivalent safety-rated controller receives the flame presence signal and executes the burner management logic — initiating purge sequences, controlling ignition timing, and triggering safety shutdowns when flame loss is detected. The ZSIE53000400000 serves as the sensing front-end that feeds this logic with reliable, conditioned flame data.

Within the same control cabinet, the ABB UVISOR MFD relay output module works in tandem with the ZSIE53000400000 to translate flame signal states into discrete relay contacts that interface with the burner’s fuel valve actuators and ignition transformers. Upstream, the ABB CM589 PROFIBUS communication module or an ABB CI854 PROFINET adapter may be employed to relay system status to the plant-wide DCS or SCADA platform, enabling operators to monitor combustion health from a centralized ABB System 800xA or ABB Freelance control station.

On the I/O layer, ABB S800 I/O modules handle analog and digital process signals — including air/fuel ratio feedback, combustion air pressure, and flue gas temperature — that complement the flame detection data provided by the ZSIE53000400000. The combined signal set allows the safety PLC to execute precise combustion optimization routines while maintaining full compliance with EN 746-2 and IEC 61511 functional safety standards.

For power distribution within the control panel, ABB CP-E series DIN rail power supplies provide stable 24 VDC to the UVISOR detection circuitry and associated relay modules. Redundant power architectures using ABB UPS modules ensure that flame monitoring continuity is maintained even during mains supply interruptions — a critical requirement in continuous process industries such as petrochemical refining and glass manufacturing.

At the human-machine interface layer, ABB CP600 or CP635 HMI panels display real-time burner status, flame signal strength, and fault diagnostics, allowing maintenance engineers to assess system health without interrupting production. Integration with the ABB Ability™ platform further extends remote monitoring and predictive maintenance capabilities across multi-burner installations.

Industrial Application Notes

Power Generation & Boiler Plants: In utility boiler applications, the UVISOR MFD.SA ZSIE53000400000 provides continuous flame supervision across multiple burner registers. Its fast response time and high signal stability ensure that the burner management system can execute safe light-off and shutdown sequences in compliance with NFPA 85 and EN 12952 standards. The module’s compatibility with ABB’s broader combustion control ecosystem simplifies commissioning and reduces integration risk in both new-build and retrofit projects.

Petrochemical & Refinery Process Heaters: Process heaters in refinery environments demand uninterrupted flame monitoring across multiple firing zones. The ZSIE53000400000 supports multi-burner architectures where individual flame signals are aggregated at the safety PLC level, enabling zone-by-zone combustion management. Its robust design withstands the high-temperature, vibration-intensive environments typical of fired heater applications.

Ceramic, Glass & Metallurgical Furnaces: High-temperature industrial furnaces operating in ceramics, glass melting, and metal heat treatment require flame detection modules capable of sustained performance in extreme radiant heat environments. The UVISOR MFD.SA series is engineered for these conditions, providing reliable UV-based flame discrimination even in high-luminosity furnace atmospheres where IR-only detectors may produce false signals.

Food Processing & Packaging Lines: Thermal processing equipment in food manufacturing — including tunnel ovens, dryers, and direct-fired heat exchangers — relies on precise burner management to maintain product quality and energy efficiency. The ZSIE53000400000 integrates cleanly into these systems, supporting hygienic design requirements and enabling rapid fault diagnosis to minimize production downtime.

Water Treatment & Municipal Infrastructure: Sludge incinerators and biogas combustion systems in water treatment facilities benefit from the UVISOR MFD.SA’s ability to detect low-luminosity flames characteristic of biogas combustion. The module’s sensitivity and selectivity ensure reliable flame supervision in these variable-fuel applications.

Product Compatibility FAQ

Q1: Is the UVISOR MFD.SA ZSIE53000400000 compatible with third-party burner management systems, or is it limited to ABB UVISOR platforms?
The ZSIE53000400000 is optimized for use within the ABB UVISOR MFD.SA combustion management architecture, where it interfaces directly with ABB’s relay output modules and burner management controllers. While the module’s hardwired signal outputs can technically interface with third-party BMS platforms that accept standard relay or analog flame signal inputs, full functional compatibility — including diagnostic data exchange and system-level fault management — is best achieved within the native ABB UVISOR ecosystem. For cross-platform integration, consult ABB’s application engineering team or contact ZYPLC for system compatibility assessment.

Q2: What installation and commissioning considerations apply when integrating the ZSIE53000400000 into an existing combustion control system?
Installation of the UVISOR MFD.SA ZSIE53000400000 requires careful attention to detector positioning relative to the burner flame envelope, cable routing to minimize electromagnetic interference from ignition transformers, and correct configuration of the flame amplifier sensitivity settings to match the specific burner type and fuel composition. Commissioning should include a full flame signal verification procedure — confirming correct response to flame-on and flame-off conditions — before the system is placed into service. ZYPLC recommends engaging a qualified combustion control engineer for initial commissioning, particularly in safety-critical applications governed by IEC 61511 or EN 746-2.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance of the ZSIE53000400000?
ZYPLC’s warranty terms confirmed during quotation covers the UVISOR MFD.SA ZSIE53000400000 against manufacturing defects and premature component failure under normal operating conditions. The warranty period begins from the date of shipment and includes replacement or repair of confirmed defective units. For long-term maintenance, ZYPLC supports RFQ sourcing for UVISOR MFD.SA series modules to support planned replacement cycles — typically recommended every 3–5 years in continuous-duty combustion applications. Our technical team is available to assist with spare parts planning, cross-reference verification, and system upgrade consultation. Contact us at plc.sales@zyplc.com or +86 19859288691 for maintenance support.
