ABB YPG110E YT204001-FD Industrial Network Interface for YPG Systems

ABB YPG110E YT204001-FD Industrial Network Interface for YPG Systems: Enabling Real-Time Data Links Across Smart Factory Floors

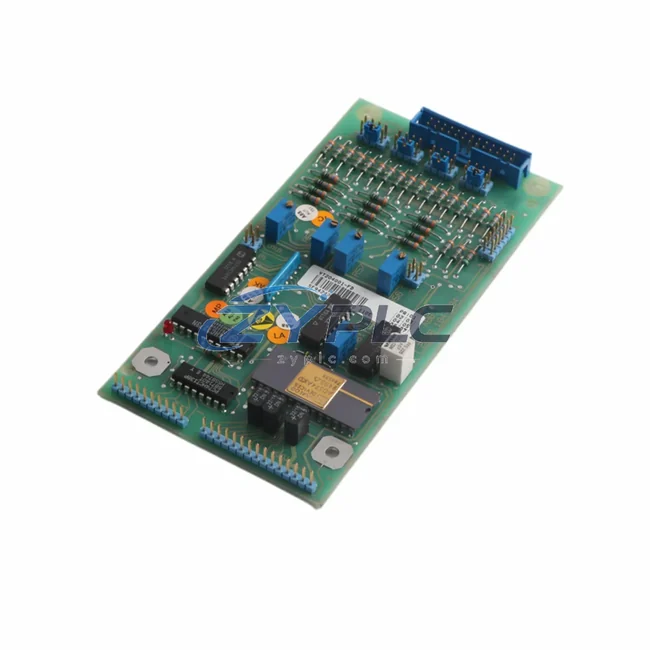

The ABB YPG110E YT204001-FD is a high-performance industrial PC board engineered for the ABB YPG series drive platform, purpose-built to serve as the communication backbone between field-level devices and upper-layer control and monitoring systems. In modern smart manufacturing environments, where data continuity from sensor to cloud is non-negotiable, this board delivers the protocol handling, signal integrity, and network stability that industrial automation demands.

Designed to operate within ABB’s YPG series variable frequency drives, the YPG110E YT204001-FD functions as the critical interface layer that bridges the drive’s internal logic with external fieldbus networks, SCADA platforms, and distributed control architectures. Whether your facility runs on PROFIBUS DP, Modbus RTU, DeviceNet, or CANopen, this board provides the protocol translation and data routing capability to keep your production line fully connected and transparent.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory, the ABB YPG110E YT204001-FD sits at the intersection of motion control and network intelligence. The data flow begins at the sensor layer — where temperature transmitters, pressure transducers, and encoder feedback devices generate continuous process signals. These signals are fed into the ABB YPG series drive, where the YPG110E YT204001-FD board captures, processes, and packages them into structured fieldbus messages for upstream transmission.

At the PLC layer, controllers such as the ABB AC500 series PLC or Siemens S7-300/S7-400 receive real-time drive status, speed references, torque feedback, and fault codes via PROFIBUS DP or Modbus RTU — all routed through the YPG110E communication board. This eliminates the need for analog signal wiring between the drive and the controller, reducing noise susceptibility and improving data accuracy across long cable runs on the factory floor.

Moving up the network hierarchy, the data passes through managed industrial Ethernet switches — such as the ABB EKS series or Hirschmann MACH series — which segment the fieldbus traffic and route it to the SCADA layer. Here, platforms like ABB System 800xA, Wonderware InTouch, or Ignition SCADA consume the drive data for real-time visualization, trend logging, and alarm management. Operators at HMI terminals — including ABB CP600 series panels — can monitor motor speed, current draw, and drive health without leaving the control room.

For remote I/O expansion, the YPG110E YT204001-FD integrates seamlessly with ABB S800 I/O modules and compatible distributed I/O racks, allowing the drive’s operational data to be aggregated alongside other field device signals in a unified network segment. This is particularly valuable in multi-drive applications — such as conveyor systems, pump stations, or compressor banks — where a single SCADA view must reflect the status of dozens of networked drives simultaneously.

At the edge, industrial IoT gateways such as the ABB Edge Controller or third-party devices running OPC-UA can subscribe to the drive data stream, enabling cloud-based analytics, predictive maintenance algorithms, and digital twin synchronization. The YPG110E YT204001-FD’s stable fieldbus communication ensures that data latency remains within the millisecond range required for closed-loop control and real-time alarming — even in electrically noisy industrial environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and mixed-generation industrial facilities is data isolation — where drives, PLCs, sensors, and HMI systems operate on incompatible protocols, creating information silos that prevent plant-wide visibility and coordinated control. The ABB YPG110E YT204001-FD directly addresses this problem by providing a standardized, fieldbus-compliant communication interface that speaks the language of both the drive and the network.

In facilities where older Modbus RTU networks coexist with newer PROFIBUS DP segments, the YPG110E board acts as the protocol bridge that allows the YPG series drive to participate in both environments without hardware replacement. This is critical for phased modernization projects, where replacing entire drive systems is cost-prohibitive but improving data transparency is an immediate operational priority.

Remote monitoring and diagnostics are equally transformed. With the YPG110E YT204001-FD in place, maintenance engineers can access drive fault logs, runtime hours, thermal status, and output frequency data from any SCADA workstation or remote HMI — without physical access to the drive cabinet. This capability reduces mean time to repair (MTTR), supports predictive maintenance scheduling, and minimizes unplanned downtime across the production line.

For production line transparency, the board enables real-time KPI dashboards that reflect actual drive performance — not estimated or sampled data. Line managers can track OEE metrics, identify bottlenecks caused by drive underperformance, and correlate energy consumption with production output. System expansion is equally straightforward: additional YPG series drives equipped with YPG110E YT204001-FD boards can be added to the existing fieldbus network without reconfiguring the master PLC or SCADA system, preserving the integrity of the existing network architecture.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication initialization, protocol handshake, and data integrity under load. Stock is maintained for shipment arranged after confirmation, and all units are covered by a warranty terms confirmed during quotation from the date of delivery.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB YPG110E YT204001-FD support, and is it compatible with my existing PLC network?
The YPG110E YT204001-FD is designed for fieldbus communication within the ABB YPG series drive platform, with compatibility spanning PROFIBUS DP, Modbus RTU, DeviceNet, and CANopen architectures. It is compatible with major PLC platforms including ABB AC500, Siemens S7 series, and Schneider Modicon, provided the master controller supports the corresponding fieldbus protocol. For specific network topology questions, contact our technical team before ordering.

Q2: What is the typical communication latency, and is it suitable for real-time closed-loop control applications?
The YPG110E YT204001-FD supports cyclic data exchange with latency characteristics consistent with standard PROFIBUS DP and Modbus RTU specifications — typically in the 1–10 ms range depending on network load and baud rate configuration. This is sufficient for most variable speed drive control applications, including conveyor synchronization, pump pressure regulation, and fan speed control. For ultra-high-speed servo applications requiring sub-millisecond response, a dedicated motion network interface would be more appropriate.

Q3: How does ZYPLC ensure the quality and authenticity of the ABB YPG110E YT204001-FD before shipment?
Every ABB YPG110E YT204001-FD unit sourced and supplied by ZYPLC undergoes a pre-shipment inspection process that includes visual verification, part number confirmation, and functional communication testing where applicable. Units are stored in ESD-safe conditions and shipped with appropriate protective packaging. All units are backed by a warranty terms confirmed during quotation covering manufacturing defects and communication failures under normal operating conditions.

Q4: Can additional YPG series drives with this communication board be added to an existing SCADA or fieldbus network without disrupting current operations?
Yes. The YPG110E YT204001-FD is designed for plug-and-play integration within existing YPG series drive installations. Adding a new drive node to a PROFIBUS DP or Modbus RTU network requires only GSD file import (for PROFIBUS) or register mapping configuration (for Modbus) at the master PLC or SCADA level — no rewiring of existing nodes is required. Network expansion can typically be completed during a scheduled maintenance window without production interruption.
