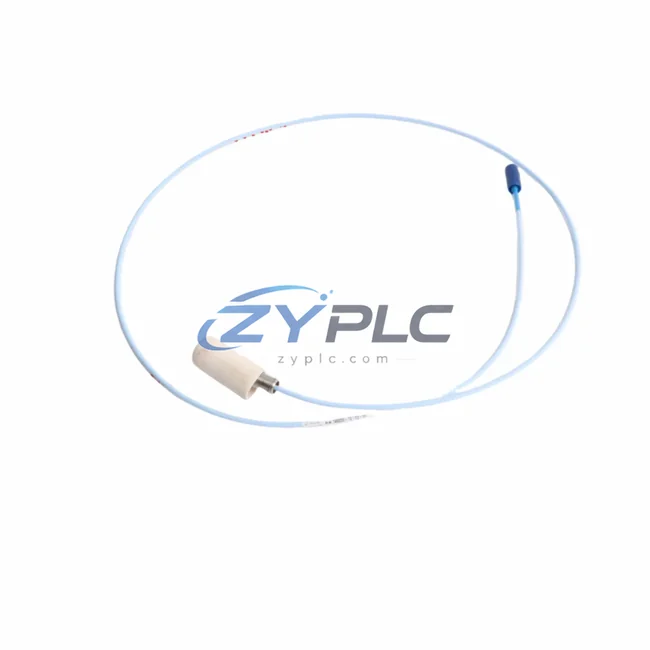

Bently Nevada 146055-10-02-00: Industrial Data Link for 3300 Series Vibration Monitoring Networks

The Bently Nevada 146055-10-02-00 is a precision-engineered Proximitor Cable designed for the 3300 Series vibration monitoring platform — one of the most widely deployed condition monitoring systems in rotating machinery protection. In modern smart factory environments, this cable serves as a critical physical-layer link in the industrial data chain, connecting eddy-current proximity probes to Proximitor sensors and ultimately feeding real-time vibration, position, and speed data into plant-wide SCADA and DCS architectures.

As industrial sites move toward full connectivity — integrating field-level sensors with PLC controllers, remote I/O modules, HMI panels, and upper-level monitoring systems — the integrity of every signal path becomes non-negotiable. The 146055-10-02-00 ensures low-noise, shielded signal transmission from the probe tip through to the Bently Nevada 3300/16 XY Proximitor Monitor and 3300/55 Dual Voting Trip modules, preserving the analog fidelity that downstream digital conversion and protocol translation depend on.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated condition monitoring architecture, the 146055-10-02-00 Proximitor Cable initiates the data journey at the machine level. The eddy-current probe — typically a Bently Nevada 330101 or 330130 Series proximity probe — detects shaft displacement and feeds a raw analog signal through this extension cable to the Bently Nevada 3300/16 Proximitor Sensor. The Proximitor converts the probe’s oscillator output into a calibrated DC voltage proportional to the gap distance, representing real-time vibration amplitude and shaft position.

This conditioned analog signal then enters the Bently Nevada 3500 Series Machinery Protection System rack — specifically modules such as the 3500/42M Proximitor/Seismic Monitor — where it is digitized, compared against alarm setpoints, and made available for communication to higher-level systems. The 3500 rack communicates upstream via Modbus TCP/IP or OPC DA/UA to plant SCADA platforms such as GE iFIX, Wonderware System Platform, or Emerson DeltaV, enabling operators to visualize shaft orbits, trend vibration data, and receive alarm notifications in real time.

For sites running distributed control architectures, the analog output from the Proximitor Monitor can be wired directly into a Rockwell Automation 1756 ControlLogix or Siemens S7-300/400 PLC analog input module, where the PLC ladder logic processes the vibration signal alongside process variables from temperature transmitters, flow meters, and pressure sensors. Remote I/O solutions — such as the Bently Nevada 3500/92 Communication Gateway — further extend connectivity, allowing the 3300 Series data to be aggregated with other field device data and transmitted over Ethernet/IP or PROFIBUS DP networks to the control room.

At the HMI layer, operators interact with vibration trends and alarm states through panels connected to the SCADA backbone. Edge gateway devices — such as those running Kepware KEPServerEX with the Bently Nevada driver — bridge the proprietary 3500 protocol to standard industrial Ethernet, enabling seamless integration with MES and ERP platforms for predictive maintenance scheduling and asset lifecycle management.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial plants is data isolation — where vibration monitoring systems, PLC control networks, and SCADA platforms operate in silos, preventing a unified view of machine health and process performance. The Bently Nevada 146055-10-02-00 Proximitor Cable, as the foundational signal link in the 3300 Series ecosystem, plays a direct role in eliminating this isolation.

When plants standardize on the 3300/3500 Series platform and use correctly specified extension cables like the 146055-10-02-00, they ensure that signal integrity is maintained from probe to monitor — a prerequisite for accurate protocol conversion. A degraded or mismatched cable introduces noise and offset errors that corrupt the analog signal before it ever reaches the digitization stage, making downstream Modbus or OPC-UA data unreliable and undermining the entire condition monitoring investment.

By maintaining a verified, OEM-specification cable in the signal chain, maintenance teams can confidently integrate vibration data into plant-wide dashboards, enabling production line transparency, remote diagnostics from the control room or mobile devices, and proactive alarm management. This supports the broader smart factory goal of moving from reactive maintenance to predictive and prescriptive strategies — reducing unplanned downtime, extending equipment life, and improving overall equipment effectiveness (OEE).

System expansion is equally straightforward: additional 3300 Series channels can be added to the monitoring rack, each requiring a properly specified Proximitor Cable to maintain signal chain consistency. The modular architecture of the 3500 rack and the standardized cable interface mean that new measurement points can be commissioned without redesigning the network topology.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3300 Series support when integrated with SCADA systems?
The 3300 Series Proximitor Monitors output a calibrated analog DC voltage signal. When connected to the Bently Nevada 3500 Series rack via the appropriate signal conditioning modules, the system supports Modbus RTU, Modbus TCP/IP, OPC DA, and OPC UA communication to SCADA and DCS platforms. Direct 4–20 mA analog outputs are also available for PLC analog input modules.

Q2: How does cable quality affect communication latency and data accuracy in vibration monitoring?
The 146055-10-02-00 is a shielded coaxial extension cable engineered to OEM specifications. Using non-OEM or incorrectly rated cables introduces capacitance mismatches and EMI susceptibility, which can cause signal attenuation, increased noise floor, and measurement offsets. These errors propagate through the analog-to-digital conversion stage and appear as false alarms or missed trip events in the SCADA system — effectively increasing functional latency in the protection response chain.

Q3: Is the 146055-10-02-00 compatible with both new installations and system expansions on existing 3300 Series networks?
Yes. The 146055-10-02-00 is designed for use in both new 3300 Series installations and as a replacement or extension cable in existing monitoring networks. Its standardized connector interface and OEM-specified electrical characteristics ensure compatibility with all 3300 Series Proximitor Sensors and 3500 Series monitor modules without requiring recalibration of the measurement chain.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the Bently Nevada 146055-10-02-00?
ZYPLC provides a warranty terms confirmed during quotation on the Bently Nevada 146055-10-02-00 Proximitor Cable. Each unit undergoes pre-shipment inspection to verify connector integrity, cable shielding continuity, and dimensional compliance with OEM specifications. Availability is confirmed via RFQ for fast global dispatch, supporting urgent maintenance and shutdown requirements.
