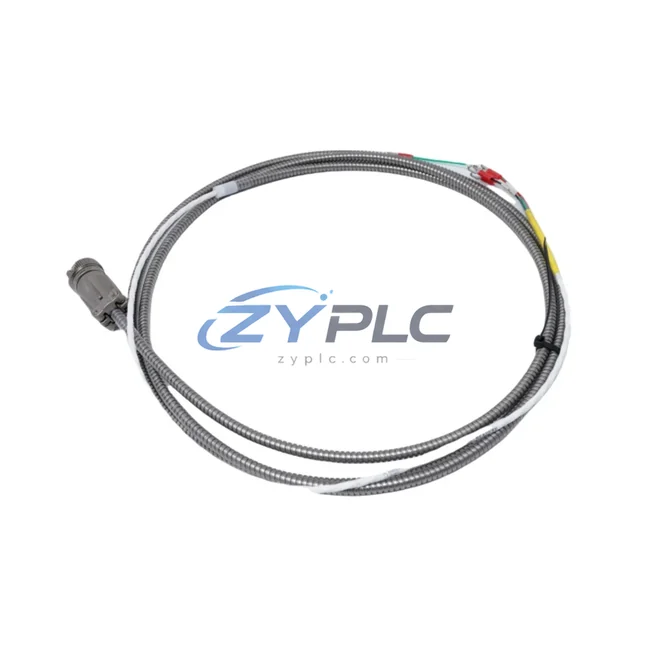

Bently Nevada 16710-13 Vibration Monitoring Cable for 16700 Series Systems

Bently Nevada 16710-13: Industrial Data Link for 16700 Series Condition Monitoring Systems

In modern smart factory environments, the integrity of every signal path between rotating machinery and the control room is mission-critical. The Bently Nevada 16710-13 vibration connection cable is engineered as a precision industrial network interface within the 16700 Series condition monitoring architecture — bridging field-level vibration transducers directly to monitor modules, enabling uninterrupted, high-fidelity data transmission across the entire predictive maintenance chain.

Deployed in power generation, oil & gas, petrochemical, and heavy manufacturing facilities, the 16710-13 serves as the physical communication backbone between proximity probes, accelerometers, and the Bently Nevada 3500 Series rack-based monitoring system. Its shielded construction and precision-matched impedance ensure that raw vibration signals — whether sourced from radial shaft displacement sensors or axial thrust probes — arrive at the monitor input with zero signal degradation, preserving the sub-micron measurement accuracy that industrial turbomachinery protection demands.

Compatibility & Integration Notes

Connected Automation Data Flow

The 16710-13 sits at the origin of a sophisticated industrial data chain. Vibration signals generated by Bently Nevada 330180 proximity probes or 330400 accelerometers are routed through the 16710-13 cable into the Bently Nevada 16700 Series monitor module. From there, conditioned analog outputs feed into the Bently Nevada 3500/42M proximitor I/O module, which digitizes and formats the data for transmission across the plant network.

Within the 3500 rack, the 3500/20 Rack Interface Module (RIM) acts as the communication gateway, converting processed vibration data into Modbus TCP or OPC-UA packets that flow upstream to Emerson DeltaV DCS or third-party SCADA platforms such as Wonderware InTouch or Ignition SCADA. Operators monitoring the Bently Nevada System 1 Condition Monitoring Software receive real-time shaft orbit plots, trend data, and alarm states — all originating from the precision signal path established by the 16710-13 cable.

For facilities integrating edge analytics, the digitized vibration data can be forwarded via Bently Nevada ADRE 408 DSPi data acquisition units to cloud-based predictive maintenance platforms, enabling AI-driven fault detection for bearing wear, rotor imbalance, and misalignment. Remote I/O modules and Ethernet/IP-to-Modbus gateways further extend connectivity to plant-wide MES and ERP systems, completing the digital thread from rotating asset to enterprise dashboard. The 16710-13 is the foundational link that makes this entire data flow possible — without signal integrity at the cable level, every downstream analytics layer is compromised.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — vibration monitoring systems that operate as standalone islands, disconnected from the broader plant control network. The Bently Nevada 16710-13, when deployed within a properly configured 16700 Series or 3500 Series architecture, directly addresses this problem.

By providing a reliable, low-noise signal path from field transducers to monitor modules, the 16710-13 enables the 3500 Series rack to serve as a true protocol gateway — translating raw analog vibration data into digital formats compatible with Modbus RTU, Modbus TCP, OPC-DA, and OPC-UA. This eliminates the protocol fragmentation that typically prevents vibration data from reaching SCADA and HMI layers.

For production lines where transparency is a priority, the 16710-13 supports continuous, real-time data streaming to operator HMI panels and SCADA dashboards, replacing periodic manual inspections with live condition visibility. Alarm thresholds configured in System 1 software trigger immediate notifications to control room operators and remote maintenance teams, enabling rapid response before equipment failure occurs.

System expansion is equally straightforward: additional 16710-13 cables and monitor modules can be added to the 3500 rack without disrupting existing measurement points, allowing facilities to scale their condition monitoring coverage incrementally as production assets grow. Every unit supplied by ZYPLC undergoes pre-shipment functional testing to verify connector integrity, shield continuity, and signal transmission performance — ensuring that the cable performs to specification from the moment it is installed.

Industrial Connectivity FAQ

Q1: Is the Bently Nevada 16710-13 compatible with both the 16700 Series and 3500 Series monitoring systems?
The 16710-13 is designed primarily for the 16700 Series architecture, but its connector and signal specifications are compatible with integration into broader Bently Nevada 3500 Series installations when used with appropriate interface modules. Always verify connector type and cable length requirements against your specific rack configuration before installation.

Q2: What communication protocols does the 16700 Series system support when connected to SCADA or DCS platforms?
When the 16710-13 feeds signal data into the 3500 Series rack via the 3500/20 Rack Interface Module, the system supports Modbus RTU, Modbus TCP, and OPC-UA communication protocols, enabling direct integration with Emerson DeltaV, Honeywell Experion, Siemens PCS 7, and third-party SCADA platforms including Ignition and Wonderware.

Q3: How does ZYPLC ensure the 16710-13 is functional before shipment?
Every Bently Nevada 16710-13 unit supplied by ZYPLC undergoes a pre-shipment inspection covering connector integrity, shield continuity, and cable resistance verification. Units are sourced from authorized supply channels and are covered by a warranty terms confirmed during quotation from the date of delivery, with technical support available throughout the warranty period.

Q4: Can the 16710-13 support system expansion without network downtime?
Yes. The modular architecture of the 16700 Series allows additional measurement channels to be added by installing new 16710-13 cables and corresponding monitor modules into available rack slots. This hot-expansion capability means that new measurement points can be commissioned without interrupting data acquisition on existing channels, minimizing production downtime during system upgrades.
