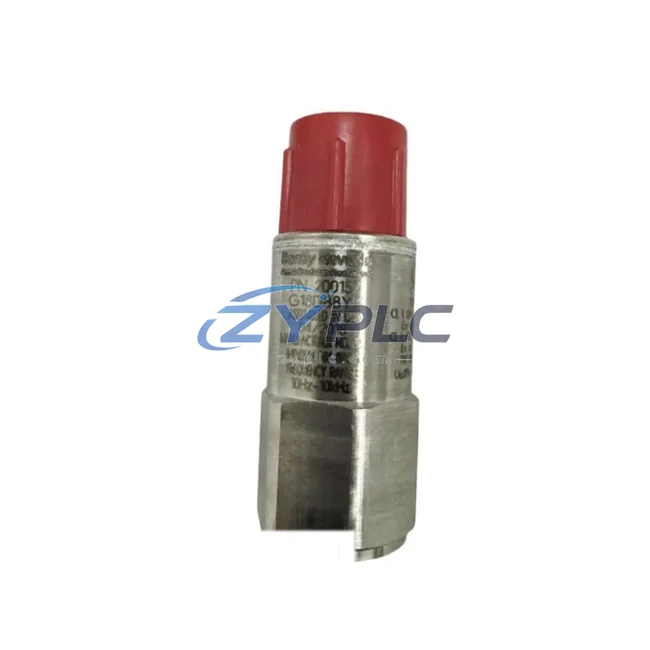

Bently Nevada 200150-13-05 Vibration Monitor for TrendMaster

Bently Nevada 200150-13-05 Vibration Monitor for TrendMaster

The Bently Nevada 200150-13-05 is a precision vibration monitoring module engineered for seamless integration within the TrendMaster 2000 and TrendMaster Pro distributed condition monitoring architectures. Rather than functioning as a standalone sensor, this module occupies a critical node in a layered automation hierarchy — bridging the gap between field-level machinery signals and the supervisory control and data acquisition (SCADA) layer. In rotating machinery protection and predictive maintenance environments spanning power generation, petrochemical processing, water treatment, and heavy manufacturing, the 200150-13-05 delivers the signal fidelity and system coherence required for continuous, uninterrupted plant operation.

Within a complete TrendMaster system architecture, the 200150-13-05 interfaces directly with the TrendMaster 2000 Field Monitor — the distributed I/O backbone that aggregates vibration, temperature, and process data from multiple measurement points across a machine train. The module’s analog output signal is conditioned and transmitted to the TrendMaster Pro System Monitor, which performs real-time spectral analysis, alarm management, and trend logging. This signal chain ensures that every vibration event — from early-stage imbalance to advanced bearing defect frequencies — is captured with the temporal resolution and amplitude accuracy demanded by ISO 13373 and API 670 machinery protection standards.

System architects integrating the 200150-13-05 into a broader plant automation framework will find it fully compatible with the Bently Nevada 3500 Series Machinery Protection System, enabling hybrid architectures where continuous online protection and periodic condition monitoring coexist on a shared communication backbone. The module’s output can be routed through the 3500/92 Communication Gateway to DCS platforms such as the Emerson DeltaV or Honeywell Experion PKS, or to PLC-based control systems via standard 4–20 mA analog interfaces. This cross-platform compatibility is essential in brownfield installations where legacy protection systems must coexist with modern distributed control infrastructure.

From a power architecture perspective, the 200150-13-05 operates within the low-voltage DC supply rails distributed by the TrendMaster 2000 Power Supply module, which provides regulated, noise-isolated power to all field monitors in the network. Proper power distribution design — including redundant power feeds and surge protection — is a prerequisite for achieving the measurement stability that the 200150-13-05 is rated to deliver. Engineers specifying this module should also account for cable routing discipline, ensuring that signal cables are segregated from high-voltage power conductors to prevent electromagnetic interference that could corrupt vibration waveform data.

At the network layer, the TrendMaster architecture employs a proprietary serial communication protocol over twisted-pair cabling, with the TrendMaster 2000 System Monitor acting as the network master. The 200150-13-05 participates as a passive measurement node, with its data polled cyclically by the system monitor at configurable scan rates. For plants requiring integration with enterprise asset management (EAM) platforms such as SAP PM or IBM Maximo, the TrendMaster OPC Server provides a standardized data bridge, enabling condition monitoring data from the 200150-13-05 to populate work order triggers and maintenance scheduling workflows automatically.

In redundant architecture designs — common in critical rotating equipment such as steam turbines, gas compressors, and boiler feed pumps — the 200150-13-05 is typically deployed in conjunction with the Bently Nevada 3300 XL Proximity Transducer System for shaft displacement monitoring, creating a complementary measurement strategy that covers both absolute vibration (via accelerometer) and relative shaft motion (via eddy-current proximity probe). This dual-parameter approach satisfies the redundancy requirements of API 670 and ensures that no single sensor failure results in a protection gap. The combination of the 200150-13-05 with the 3500/40M Proximitor I/O Module and the 3500/22M Transient Data Interface provides a complete machinery health dataset for both protection and diagnostics.

For human-machine interface integration, the vibration data acquired by the 200150-13-05 is visualized through the System 1 Condition Monitoring Software platform, which provides waveform display, spectrum analysis, orbit plots, and trend history. Maintenance engineers can configure alarm setpoints, review historical vibration trends, and generate compliance reports directly from the System 1 interface, reducing the time required for routine machinery health assessments. The software’s integration with the TrendMaster network eliminates the need for manual data collection rounds, improving both data consistency and personnel safety in hazardous plant environments.

Long-term maintainability is a core design consideration for any system incorporating the 200150-13-05. Bently Nevada’s modular architecture philosophy ensures that individual field monitors can be replaced without disrupting the broader monitoring network, minimizing planned maintenance downtime. ZYPLC maintains verified inventory of the 200150-13-05 and associated TrendMaster system components, supporting both emergency replacement and planned lifecycle refresh programs. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, with pre-shipment functional verification to confirm measurement accuracy and communication integrity before dispatch.

Product Specification Table

System Compatibility Notes

The 200150-13-05 achieves its full diagnostic value only when deployed within a coherent system architecture. In a typical TrendMaster-based machinery monitoring installation, the module operates alongside the TrendMaster 2000 Field Monitor (the distributed I/O hub), the TrendMaster Pro System Monitor (the network master and data processor), and the TrendMaster 2000 Power Supply (the regulated DC distribution unit). For machinery protection integration, the architecture extends to the Bently Nevada 3500/40M Proximitor I/O Module for shaft displacement inputs and the 3500/22M Transient Data Interface for startup and shutdown waveform capture.

Communication gateway functions are handled by the 3500/92 Communication Gateway, which bridges the TrendMaster network to plant DCS and SCADA systems. At the field level, the 200150-13-05 is frequently paired with the Bently Nevada 3300 XL Proximity Transducer System for complementary shaft displacement measurement, and with the Bently Nevada 330180 Velomitor Sensor for velocity-based vibration measurement on machines where acceleration-based monitoring alone is insufficient. HMI and analytics functions are delivered through the System 1 Condition Monitoring Software, which aggregates data from all TrendMaster nodes into a unified machinery health dashboard. For installations requiring terminal block flexibility, Bently Nevada I/O terminal modules compatible with the 3500 rack system provide the field wiring interface between sensor cables and the monitoring backplane.

Industrial Application Notes

The 200150-13-05 is deployed across a wide range of process industries where rotating machinery reliability is directly linked to production continuity and safety compliance. In power generation facilities — including gas turbine plants, steam turbine generators, and combined-cycle units — the module provides continuous vibration surveillance on turbine shafts, bearing housings, and generator end-bells, feeding alarm data to the plant DCS for automatic load shedding or trip initiation when vibration thresholds are exceeded.

In petrochemical and refinery environments, the 200150-13-05 is installed on centrifugal compressors, reciprocating pumps, and agitator drives operating in hazardous area classifications. Its integration with the TrendMaster architecture enables remote monitoring from a safe control room location, eliminating the need for personnel to enter hazardous zones for routine vibration checks. Water and wastewater treatment plants use the module on large centrifugal pumps and blower units, where early detection of bearing wear or impeller imbalance prevents unplanned outages that would disrupt treatment capacity.

In mining and minerals processing applications, the 200150-13-05 monitors crushers, ball mills, conveyor drive motors, and slurry pumps — equipment categories where vibration-induced failures carry significant safety and production cost implications. Metallurgical and steel plant installations deploy the module on rolling mill drives and continuous casting equipment, where the harsh electromagnetic environment demands the signal conditioning quality that the TrendMaster architecture provides. Across all these applications, the 200150-13-05 contributes to a predictive maintenance strategy that reduces unplanned downtime, extends equipment service life, and supports regulatory compliance documentation.

Product Compatibility FAQ

Q1: Is the 200150-13-05 compatible with both TrendMaster 2000 and TrendMaster Pro systems, and can it be used in a mixed architecture?
Yes. The 200150-13-05 is designed for use within the TrendMaster product family and is compatible with both the TrendMaster 2000 Field Monitor and the TrendMaster Pro System Monitor. In mixed architectures where both system generations are present on the same plant network, the module can be assigned to either system monitor depending on the network topology and scan rate requirements. Engineers should verify firmware revision compatibility between the field monitor and system monitor before commissioning to ensure consistent data polling behavior.

Q2: What are the installation and commissioning requirements for integrating the 200150-13-05 into an existing 3500 Series machinery protection rack?
The 200150-13-05 is a TrendMaster-series field device and does not install directly into a 3500 Series rack slot. Integration between the TrendMaster network and the 3500 Series protection system is achieved at the communication layer via the 3500/92 Communication Gateway, which allows vibration trend data from the 200150-13-05 to be shared with the 3500 system’s data management functions. For direct rack-based vibration monitoring, the 3500/40M or 3500/42M I/O modules are the appropriate rack-mounted alternatives. During commissioning, cable shielding continuity, sensor mounting torque, and network address configuration should be verified per Bently Nevada installation guidelines.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance of the 200150-13-05?
All 200150-13-05 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment, covering manufacturing defects and functional performance against published specifications. Each unit undergoes pre-shipment functional verification to confirm measurement accuracy and communication integrity. For long-term maintenance, ZYPLC maintains ongoing inventory of the 200150-13-05 and associated TrendMaster system components, supporting both emergency replacement and planned lifecycle refresh. Technical support for system configuration, network integration, and commissioning guidance is available through ZYPLC’s engineering team. Contact: +86 19859288691 | plc.sales@zyplc.com.
