Bently Nevada 200150-22-05 Accelerometer for TrendMaster 2000 Systems

Bently Nevada 200150-22-05: Industrial Data Link and Smart Factory Connectivity for TrendMaster 2000 Systems

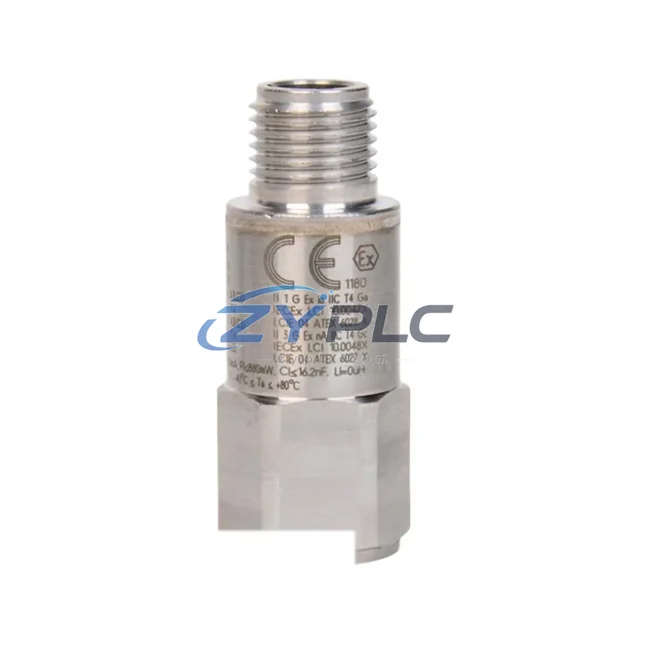

The Bently Nevada 200150-22-05 General Purpose Accelerometer is a precision vibration sensing component engineered for seamless integration within the TrendMaster 2000 and TrendMaster 2000 Pro continuous monitoring platforms. Far beyond a standalone sensor, this accelerometer functions as a critical data origination node within a layered industrial network — converting mechanical vibration signatures from rotating equipment into high-fidelity analog signals that feed directly into the TrendMaster 2000 Dynamic Measurement Module (DMM), enabling real-time condition monitoring across the full automation data chain.

In modern smart factory environments, the value of a vibration sensor is inseparable from the data infrastructure it connects to. The 200150-22-05 is designed to operate within a continuous signal acquisition loop: raw vibration data is captured at the machine surface, transmitted through shielded cabling to the TrendMaster 2000 I/O module, processed by the system’s onboard signal conditioning circuitry, and then forwarded via the TrendMaster 2000 Communication Interface Module to plant-level SCADA systems such as Bently Nevada System 1 Software. This end-to-end data flow ensures that vibration anomalies — bearing wear, rotor imbalance, misalignment, or resonance — are detected, timestamped, and escalated through alarm management protocols without manual intervention.

The accelerometer’s role in the data chain extends to protocol-level integration. The TrendMaster 2000 platform supports Modbus RTU and Modbus TCP communication, allowing the 200150-22-05’s processed vibration data to be consumed by third-party DCS controllers, Emerson DeltaV distributed control systems, and Honeywell Experion PKS platforms. In facilities where OPC-DA or OPC-UA middleware is deployed, the System 1 Software gateway bridges the TrendMaster 2000 network to historian databases and enterprise MES layers, enabling full production transparency from the sensor level to the boardroom dashboard.

For multi-machine monitoring architectures, the 200150-22-05 is typically deployed alongside the Bently Nevada 3500/42M Proximitor I/O Module and the 3500/22M Transient Data Interface, creating a hybrid monitoring network that covers both proximity-based shaft displacement and acceleration-based casing vibration. This dual-sensor architecture is particularly effective in high-speed turbomachinery applications — gas compressors, steam turbines, centrifugal pumps — where both rotor dynamics and structural resonance must be tracked simultaneously. The TrendMaster 2000 rack accommodates multiple accelerometer channels, and the 200150-22-05’s standardized IEPE (Integrated Electronics Piezo-Electric) output ensures compatibility with the system’s signal conditioning inputs without additional interface hardware.

Remote diagnostics capability is a defining feature of the TrendMaster 2000 ecosystem. When the 200150-22-05 detects a vibration threshold breach, the alert propagates through the TrendMaster 2000 Communication Interface Module to the plant’s Ethernet backbone, triggering alarm notifications in the System 1 Software dashboard and, where configured, forwarding alerts to remote monitoring centers via the Bently Nevada 3500 Gateway Module. This remote visibility eliminates the need for on-site inspection during initial alarm assessment, reducing maintenance response time and minimizing unplanned downtime in critical process industries including petrochemical refining, power generation, water treatment, and mining operations.

Installation of the 200150-22-05 follows standard ICP/IEPE mounting practices. The sensor is available with stud-mount, adhesive-mount, or magnetic-mount configurations depending on the machine surface and measurement frequency range required. Its stainless steel housing provides IP67 ingress protection, making it suitable for outdoor installations and wash-down environments. The sensor’s operating temperature range of -50°C to +120°C covers the majority of industrial rotating equipment applications, and its low-profile design allows installation in confined machine housings where larger sensors cannot be accommodated.

From a supply chain and maintenance planning perspective, the 200150-22-05 is a high-demand replacement component for TrendMaster 2000 installations that have been in service for five or more years. ZYPLC maintains verified inventory of this accelerometer with full pre-shipment functional testing, ensuring that replacement units arrive ready for immediate installation without additional calibration overhead. All units are covered by a warranty terms confirmed during quotation, and our technical team provides application support for channel configuration, sensitivity verification, and integration with existing TrendMaster 2000 rack assemblies.

Compatibility & Integration Notes

Connected Automation Data Flow

The 200150-22-05 accelerometer sits at the signal origination layer of a multi-tier industrial monitoring network. Vibration data captured by this sensor is routed to the TrendMaster 2000 Dynamic Measurement Module (DMM), which performs analog-to-digital conversion and applies configurable alarm setpoints. The DMM communicates with the TrendMaster 2000 Communication Interface Module, which bridges the rack-level data bus to the plant Ethernet network using Modbus TCP. From there, the Bently Nevada System 1 Software server aggregates vibration trends, waveform snapshots, and alarm histories from multiple TrendMaster 2000 racks deployed across the facility.

In parallel monitoring architectures, the 200150-22-05 is often deployed alongside the Bently Nevada 3500/42M Proximitor I/O Module for shaft displacement monitoring and the Bently Nevada 3500/22M Transient Data Interface for startup and coast-down analysis. The combined dataset from proximity probes and accelerometers provides a complete picture of rotor and structural dynamics. Where DCS integration is required, the System 1 Software OPC server connects to Emerson DeltaV or Honeywell Experion PKS controllers, enabling vibration alarm states to be displayed on the plant DCS console alongside process variables such as temperature, pressure, and flow.

For facilities deploying edge computing infrastructure, the TrendMaster 2000 gateway can forward time-series vibration data to industrial edge gateways running IIoT middleware, enabling cloud-based analytics and predictive maintenance algorithms to process the 200150-22-05’s output alongside data from other asset classes. The Bently Nevada 3500 Gateway Module further extends connectivity to legacy serial networks, ensuring that older SCADA systems using Modbus RTU can receive vibration data without protocol conversion hardware. HMI panels connected to the plant Ethernet — including Siemens SIMATIC HMI or Rockwell FactoryTalk View stations — can display real-time vibration trends sourced from the TrendMaster 2000 network, giving operators immediate visibility into machine health without leaving the control room.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial condition monitoring is data isolation — vibration sensors that generate valuable machine health data but cannot share it with the broader automation network. The 200150-22-05, when integrated within the TrendMaster 2000 platform, directly addresses this problem. Its IEPE output is natively compatible with the TrendMaster 2000 signal conditioning inputs, eliminating the need for external signal converters that introduce latency and potential signal degradation.

Protocol fragmentation is another common barrier to plant-wide monitoring transparency. Older facilities may operate a mix of Modbus RTU, HART, and proprietary serial protocols across different equipment generations. The TrendMaster 2000 Communication Interface Module resolves this by acting as a protocol gateway, translating the accelerometer’s analog signal into Modbus TCP packets that any modern SCADA or DCS system can consume. This enables the 200150-22-05 to participate in a unified data network alongside PLCs, remote I/O modules, and process transmitters — without requiring a dedicated monitoring network separate from the plant automation backbone.

Remote monitoring capability eliminates the geographic barrier to machine health visibility. In multi-site operations — offshore platforms, distributed power generation assets, remote pumping stations — the TrendMaster 2000 network transmits the 200150-22-05’s vibration data over standard Ethernet infrastructure to centralized monitoring centers. Alarm thresholds configured in System 1 Software trigger automatic notifications when vibration levels exceed safe operating limits, enabling maintenance teams to schedule interventions before failures occur. This shift from reactive to predictive maintenance directly reduces unplanned downtime and extends equipment service life, delivering measurable ROI in high-value rotating machinery applications.

Production line transparency is further enhanced by the TrendMaster 2000’s data logging capability. Historical vibration trends from the 200150-22-05 are stored in the System 1 Software database, enabling engineers to perform root cause analysis after abnormal events, track long-term degradation patterns, and validate the effectiveness of maintenance interventions. This closed-loop data flow — from sensor to historian to maintenance decision — is the foundation of a mature predictive maintenance program in any smart factory environment.

Industrial Connectivity FAQ

Q1: Does the 200150-22-05 support direct Modbus or Ethernet communication?
The 200150-22-05 is an analog IEPE accelerometer and does not have onboard digital communication capability. Its signal is processed by the TrendMaster 2000 Dynamic Measurement Module, which performs analog-to-digital conversion. Network communication — including Modbus TCP and OPC-UA — is handled by the TrendMaster 2000 Communication Interface Module at the rack level. This architecture ensures that the sensor’s raw vibration data is accurately digitized before entering the plant network, preserving signal integrity across the full data chain.

Q2: Is the 200150-22-05 compatible with TrendMaster 2000 Pro and other Bently Nevada monitoring platforms?
Yes. The 200150-22-05 is compatible with both the TrendMaster 2000 and TrendMaster 2000 Pro platforms. Its standard IEPE output also makes it compatible with other Bently Nevada monitoring systems that accept ICP/IEPE sensor inputs, including select channels on the 3500 Series Machinery Protection System when used with appropriate I/O modules. For cross-platform compatibility verification, ZYPLC’s technical team can confirm channel compatibility based on your specific rack configuration before shipment.

Q3: What pre-shipment testing is performed, and what does the warranty terms confirmed during quotation cover?
Every 200150-22-05 unit shipped by ZYPLC undergoes functional verification including sensitivity check, frequency response validation, and connector integrity inspection prior to dispatch. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from improper installation, mechanical impact, or operation outside the specified environmental limits. Warranty claims are processed directly through ZYPLC, and replacement units are dispatched from verified inventory to minimize downtime for our customers.

Q4: Can the 200150-22-05 be integrated into an existing SCADA or DCS system without replacing the TrendMaster 2000 rack?
Yes. If a TrendMaster 2000 rack with a Communication Interface Module is already installed, replacing a failed or end-of-life accelerometer with the 200150-22-05 requires no changes to the network configuration. The new sensor connects to the existing channel input, and the TrendMaster 2000 system continues to transmit vibration data to the SCADA or DCS via the established Modbus TCP or OPC connection. Channel sensitivity settings may need to be verified in System 1 Software after replacement to ensure alarm thresholds remain correctly calibrated.
