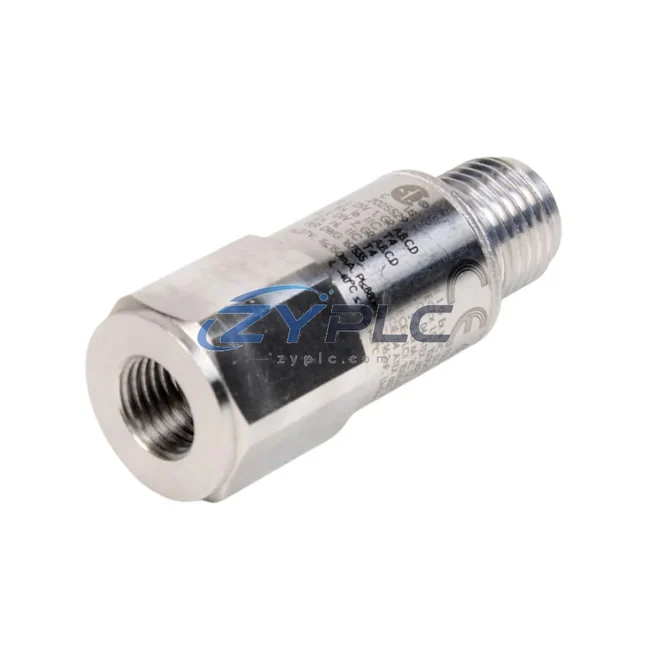

Bently Nevada 200157-03-CN Accelerometer for TrendMaster Pro

Bently Nevada 200157-03-CN Accelerometer for TrendMaster Pro Automation

The Bently Nevada 200157-03-CN is a high-precision accelerometer module engineered for the TrendMaster Pro continuous monitoring system. Designed for demanding industrial environments, this sensor delivers real-time vibration data that enables plant engineers to optimize equipment utilization, reduce unnecessary energy consumption, and extend the operational life of rotating machinery. By capturing accurate vibration signatures at the source, the 200157-03-CN transforms raw mechanical data into actionable intelligence — allowing control systems to respond dynamically to changing load conditions and prevent energy-wasting fault states before they escalate.

In modern industrial facilities where energy costs represent a significant share of operating expenditure, the ability to detect early-stage mechanical degradation is directly linked to energy efficiency. A bearing running in misalignment or a rotor operating with unbalance draws measurably more current from its drive system. The 200157-03-CN identifies these conditions continuously, enabling the connected TrendMaster Pro 3500 rack to flag anomalies and trigger corrective action — whether through operator alerts, PLC interlocks, or automated drive adjustments — before inefficiency becomes failure.

Product Specification Table

System Compatibility and Application

The 200157-03-CN does not operate in isolation — it is a precision input node within a broader industrial automation system. In a typical high-efficiency plant configuration, vibration data from the 200157-03-CN feeds directly into the Bently Nevada TrendMaster Pro I/O module (3300/16-14-01-00-00-00), which aggregates multi-channel sensor inputs and communicates with the plant’s distributed control system via Modbus TCP or OPC-UA protocol gateways.

At the drive layer, variable frequency drives such as the Rockwell PowerFlex 755 or Siemens SINAMICS G120 receive speed and load commands from the PLC — commands that are increasingly informed by the vibration trend data the 200157-03-CN provides. When the sensor detects rising vibration amplitude on a pump motor, the control logic can instruct the VFD to reduce speed, lowering energy draw while the maintenance team investigates. This closed-loop interaction between vibration sensing and drive control is one of the most effective mechanisms for reducing unplanned downtime in rotating equipment applications.

At the controller level, a Rockwell Automation ControlLogix L83E or Siemens S7-1500 CPU 1515-2 PN processes the conditioned vibration signals alongside process variables from Yokogawa EJA110E differential pressure transmitters and Endress+Hauser Promag 53 flow meters. This multi-variable data fusion allows the PLC to calculate real-time equipment efficiency indices — comparing actual energy consumption against theoretical optimum operating points.

For operator visibility, the vibration trends and energy KPIs are displayed on Siemens SIMATIC HMI TP1500 Comfort panels or integrated into Bently Nevada System 1 software dashboards, giving production engineers a unified view of mechanical health and energy performance. Power quality at the MCC level is monitored by Schneider Electric PowerLogic ION7650 power meters, which correlate motor current signatures with the vibration data to identify energy anomalies that neither system could detect alone.

Communication between these layers relies on ProfiNet and EtherNet/IP industrial networks, with the TrendMaster Pro system acting as a dedicated condition monitoring node that publishes data to the plant historian — enabling long-term energy trend analysis and predictive maintenance scheduling.

Maintenance and Replacement Notes

In a petrochemical compressor train, a single undetected bearing defect can cause the compressor to operate 8–12% outside its efficiency curve for weeks before catastrophic failure. During that period, the drive system compensates for the mechanical inefficiency by drawing additional current — energy that is paid for but produces no useful work. The Bently Nevada 200157-03-CN, mounted on the compressor bearing housing, detects the characteristic frequency signature of the developing defect within its early stages, allowing the plant to schedule a planned shutdown rather than suffer an unplanned trip.

On a paper mill production line, where line speed consistency directly determines product quality and energy efficiency, the 200157-03-CN monitors the vibration of press roll bearings and dryer section drives. Elevated vibration on a dryer roll bearing correlates with increased steam consumption as the roll struggles to maintain nip pressure — a direct energy penalty. By trending this data through the TrendMaster Pro system and integrating it with the mill’s DCS, operators can optimize roll replacement intervals to minimize both unplanned downtime and production disruption.

In water treatment facilities, where pump stations run continuously and energy represents the dominant operating cost, the 200157-03-CN enables condition-based maintenance of vertical turbine pumps and centrifugal blowers. Rather than replacing bearings on a fixed calendar schedule — which often means replacing components that still have useful life remaining — maintenance teams use vibration trend data to replace only what needs replacing, when it needs replacing. This approach reduces both maintenance labor costs and the energy penalty associated with running degraded equipment.

Every unit shipped from our inventory undergoes functional verification and output signal testing prior to dispatch. Stock availability is maintained to support urgent replacement requirements, and all units are covered by a warranty terms confirmed during quotation from the date of shipment.

Product Sourcing FAQ

Q1: How does the 200157-03-CN contribute to measurable operational stability?
By detecting mechanical faults — imbalance, misalignment, bearing wear, looseness — at an early stage, the sensor prevents equipment from operating in degraded states that consume excess energy. A motor driving a pump with a worn bearing may draw 5–10% more current than the same motor driving a healthy pump. Early detection and correction eliminates this waste.

Q2: Is the 200157-03-CN compatible with third-party DCS and SCADA systems?
Yes. The 200157-03-CN outputs a standard 4–20 mA signal compatible with any DCS analog input card. When used with the TrendMaster Pro system, data can be exported via OPC-DA/UA to third-party SCADA platforms including Wonderware, iFIX, and Ignition, enabling integration with existing plant maintenance planning systems.

Q3: Can this accelerometer replace older Bently Nevada sensor models on existing TrendMaster Pro installations?
The 200157-03-CN is designed as a direct replacement for compatible TrendMaster Pro accelerometer positions. Connector type, cable routing, and signal conditioning parameters should be verified against the existing installation drawing before replacement. Our technical team can assist with compatibility confirmation prior to order.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
All units are tested for output signal accuracy, frequency response, and housing integrity before dispatch. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or repaired at no charge. Proof of purchase and failure description are required to initiate a warranty claim.
