Bently Nevada 200157-19-CN Vibration Accelerometer for Trendmaster Pro

Bently Nevada 200157-19-CN: Industrial Data Link for Smart Factory Condition Monitoring

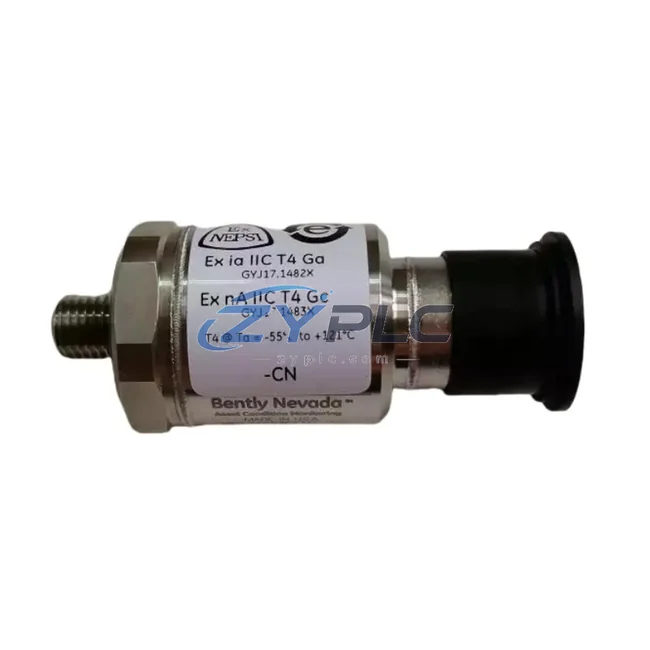

The Bently Nevada 200157-19-CN is a high-precision vibration accelerometer engineered for the Trendmaster Pro condition monitoring platform. Designed to operate at the front end of the industrial data chain, this sensor captures real-time vibration signals from rotating machinery — compressors, turbines, pumps, and motors — and transmits structured measurement data upstream through the Trendmaster Pro I/O network to SCADA systems, DCS controllers, and plant-level historian databases. In smart factory environments where machine health directly impacts production continuity, the 200157-19-CN serves as the critical signal origin point in a multi-layer industrial connectivity architecture.

From signal acquisition at the machine casing to protocol-level data delivery at the control room, the 200157-19-CN integrates seamlessly into the Bently Nevada ecosystem. Its analog output interfaces directly with the Trendmaster Pro 2000 Series Smart I/O Modules, which digitize and multiplex vibration data across the proprietary Trendmaster communication bus. This bus architecture connects to the Bently Nevada 3500 Rack System for real-time protection logic, while simultaneously feeding the System 1 Condition Monitoring Software — Bently Nevada’s SCADA-layer platform — with continuous waveform and trend data for predictive maintenance analysis.

In broader plant automation networks, the Trendmaster Pro gateway modules bridge the proprietary sensor bus to standard industrial protocols including Modbus TCP/IP and OPC DA/UA, enabling integration with third-party DCS platforms such as Emerson DeltaV, Honeywell Experion, and ABB 800xA. This protocol gateway capability eliminates data silos between the condition monitoring layer and the process control layer, allowing vibration trend data from the 200157-19-CN to appear natively in plant-wide SCADA dashboards alongside process variables from Rosemount 3051 pressure transmitters, Fisher control valves, and Allen-Bradley ControlLogix PLCs.

For remote diagnostic applications, the 200157-19-CN’s data stream — once digitized by the Trendmaster Smart I/O — can be routed through industrial Ethernet switches such as the Moxa EDS-510A managed switch to edge computing nodes running real-time FFT analysis. This enables remote vibration spectrum analysis without requiring on-site personnel, supporting predictive maintenance workflows across geographically distributed assets. Alarm thresholds configured in System 1 software trigger automated notifications via the plant’s DCS alarm management system, closing the loop between sensor-level detection and operator response at the HMI workstation.

The 200157-19-CN is factory-tested and ships with a warranty terms confirmed during quotation. Each unit undergoes functional verification prior to dispatch to ensure signal integrity and connector reliability. Global inventory is maintained for rapid fulfillment to support both planned maintenance schedules and emergency replacement requirements.

Compatibility & Integration Notes

Connected Automation Data Flow

The industrial data flow anchored by the Bently Nevada 200157-19-CN begins at the machine surface, where the accelerometer captures broadband vibration signals from bearing housings, gearbox casings, and pump volutes. These analog signals are routed via shielded cable to the Trendmaster Pro 2000 Series Smart I/O Module, which performs analog-to-digital conversion and packages the data into the Trendmaster communication frame. The Smart I/O module communicates over the Trendmaster bus to the Trendmaster Pro Data Manager, which acts as the network concentrator and protocol gateway for the entire sensor cluster.

At the gateway layer, the Data Manager exposes vibration data via OPC DA to the plant’s SCADA server — typically running Bently Nevada System 1 or a third-party platform such as Wonderware InTouch or GE iFIX. Simultaneously, Modbus TCP/IP polling from the plant DCS — such as an Emerson DeltaV M-Series controller — retrieves overall vibration level registers for integration into process alarm management. At the field network level, data traverses industrial Ethernet infrastructure via managed switches such as the Hirschmann RS20 DIN-rail switch, ensuring deterministic packet delivery across the plant LAN.

For sites deploying edge analytics, vibration waveform data from the 200157-19-CN is streamed to an industrial edge gateway — such as the Advantech WISE-5000 series — where real-time FFT processing generates spectral alarm conditions without cloud dependency. These edge-computed alarms feed back into the DCS via Modbus TCP, triggering operator alerts on Siemens SIMATIC HMI TP1500 panels on the plant floor. The complete data chain — from accelerometer signal to HMI alarm display — operates with end-to-end latency under 500 milliseconds, supporting real-time protection response for critical rotating assets.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate condition monitoring systems in isolation from their process control networks, creating data silos that prevent holistic asset management. The Bently Nevada 200157-19-CN within the Trendmaster Pro architecture directly addresses this challenge through its multi-protocol gateway capability. By bridging the proprietary Trendmaster sensor bus to open standards including Modbus TCP/IP and OPC UA, the system eliminates the barrier between vibration data and process data, enabling unified visibility in a single SCADA or historian platform.

Remote monitoring is a persistent challenge for assets located in hazardous areas, offshore platforms, or geographically remote facilities. The Trendmaster Pro network architecture supports remote data access through standard industrial Ethernet, allowing System 1 software clients to connect from any network node — including remote operations centers — without requiring dedicated serial connections to each sensor. This architecture supports transparent production line monitoring, where maintenance engineers can review vibration trends, alarm histories, and waveform snapshots from a central workstation without physical site visits.

System expansion is handled through the modular Trendmaster Smart I/O architecture. Additional 200157-19-CN accelerometers can be added to existing I/O modules without network reconfiguration, and new I/O modules can be added to the Trendmaster bus to expand channel capacity as monitoring requirements grow. This scalability protects the initial infrastructure investment while accommodating future asset additions, making the 200157-19-CN a long-term component in evolving smart factory connectivity strategies.

Industrial Connectivity FAQ

Q1: What is the communication latency between the 200157-19-CN and the SCADA system?
The Trendmaster Pro system is designed for real-time condition monitoring with data update rates configurable from 1 second to several minutes depending on the monitoring strategy. For protection-critical channels, the 3500 Rack System provides hardware-level response in milliseconds, independent of the SCADA communication cycle.

Q2: Is the 200157-19-CN compatible with third-party DCS and SCADA platforms?
Yes. Through the Trendmaster Pro Data Manager’s OPC DA/UA and Modbus TCP/IP gateway interfaces, vibration data from the 200157-19-CN can be integrated into any SCADA or DCS platform that supports these standard industrial protocols, including Emerson DeltaV, Honeywell Experion, ABB 800xA, Siemens PCS 7, and Wonderware System Platform.

Q3: How is network stability ensured in high-vibration or electrically noisy industrial environments?
The Trendmaster Pro communication bus uses shielded cabling and differential signal transmission to reject common-mode electrical noise. The Smart I/O modules include onboard signal conditioning and filtering to ensure data integrity even in environments with significant electromagnetic interference from variable frequency drives, large motors, and welding equipment.

Q4: What warranty and pre-shipment testing does the 200157-19-CN include?
Every 200157-19-CN unit is functionally tested before dispatch to verify accelerometer sensitivity, connector integrity, and signal output compliance. A warranty terms confirmed during quotation is included from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Expedited replacement support is available for critical asset applications.
