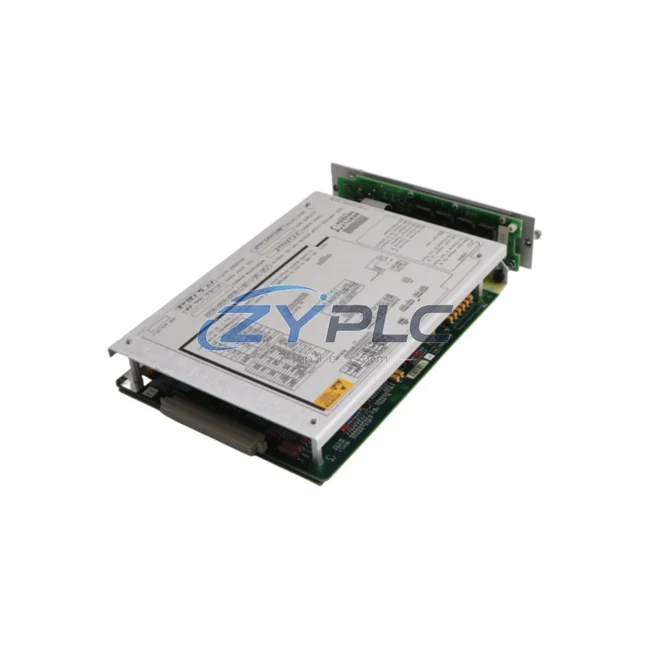

The Bently Nevada 3300/16 is a dual-channel vibration monitor module engineered for continuous, high-precision condition monitoring in turbomachinery and rotating equipment environments. As part of the proven Bently Nevada 3300 Series machinery protection system, the 3300/16 plays a critical role in reducing unplanned downtime, eliminating unplanned downtime risk, and enabling data-driven maintenance decisions across complex industrial production lines.

In modern manufacturing and process industries, unplanned downtime is rarely caused by a single point of failure — it accumulates through vibration-induced mechanical stress, inefficient motor loading, and reactive maintenance cycles. The 3300/16 addresses these root causes by delivering real-time vibration amplitude and phase data directly to the plant control layer, enabling operators to act before energy losses compound into equipment damage or production stoppages.

Product Specification Table

System Compatibility and Application

The 3300/16 does not operate in isolation — its true maintenance planning value emerges when integrated into a layered industrial automation architecture. At the sensing layer, Bently Nevada 3300/05 Proximitor sensors and 3300/50 Proximitor I/O modules feed raw shaft displacement signals into the 3300/16 for processing. These signals are conditioned and compared against user-defined alert and danger thresholds, triggering relay outputs that interface directly with plant safety systems or PLC-based interlock logic.

At the control layer, the 3300/16 integrates with Rockwell Automation ControlLogix PLCs or Siemens S7-300/S7-400 series controllers via analog signal wiring or Modbus gateway bridges. This allows vibration severity data to influence motor speed references sent to ABB ACS880 variable frequency drives or Siemens SINAMICS G120 drives, dynamically adjusting motor output to match actual mechanical load — a direct mechanism for reducing operating load during low-demand production windows.

For power quality and energy metering, the 3300/16 alarm outputs can trigger data logging events in Schneider Electric PowerLogic PM8000 power meters, correlating vibration events with real-time kWh consumption spikes. This cross-referencing capability allows energy managers to identify which mechanical faults are driving the highest energy penalties on the production floor.

At the HMI and SCADA layer, vibration trend data from the 3300/16 is visualized through Bently Nevada System 1 software, providing operators with spectrum analysis, trend plots, and alarm history. This data feeds predictive maintenance workflows, reducing the frequency of unnecessary scheduled shutdowns that consume significant restart energy and disrupt production rhythm.

I/O expansion modules such as the Bently Nevada 3500/22M Transient Data Interface extend the system’s data capture capability during machine startup and coastdown — the two phases where operating load and mechanical stress are highest. Capturing this transient data allows engineers to fine-tune acceleration ramps on connected VFDs, reducing inrush current and thermal stress on motor windings.

Maintenance and Replacement Notes

In a typical petrochemical or power generation facility, a single undetected bearing fault on a high-speed compressor can increase motor current draw by 8–15% over weeks before catastrophic failure. The Bently Nevada 3300/16 continuously monitors shaft relative vibration and provides early warning at the alert threshold — typically set at 75% of the danger level — giving maintenance teams a window of days or weeks to schedule corrective action during planned low-production periods rather than emergency shutdowns.

From a production line rhythm perspective, the 3300/16 enables condition-based maintenance scheduling rather than fixed-interval shutdowns. A plant running three compressor trains can use 3300/16 data to stagger maintenance windows, ensuring at least two trains remain operational at all times. This directly reduces the energy cost of cold-starts, which can consume 3–5× the steady-state power draw during the first 15–30 minutes of operation.

Predictive maintenance driven by the 3300/16 also reduces lubricant consumption — over-lubrication is a common unplanned downtime source, as excess grease increases bearing drag and motor load. By correlating vibration amplitude trends with lubrication intervals, maintenance teams can extend lubrication cycles by Actual operating results depend on the installed system, load profile, and commissioning parameters.

Every unit shipped undergoes full functional testing including channel accuracy verification, relay output confirmation, and analog output calibration before dispatch. Combined with a warranty terms confirmed during quotation, the 3300/16 is a low-risk, high-return investment for any facility seeking to reduce unplanned downtime and unplanned downtime simultaneously. Availability confirmed by RFQ inventory ensures rapid deployment to minimize production gaps during replacement cycles.

Product Sourcing FAQ

Q1: How does the Bently Nevada 3300/16 contribute to measurable operational stability on the production floor?
The 3300/16 enables condition-based maintenance by providing continuous vibration data that identifies mechanical degradation before it causes elevated motor current draw or forced shutdowns. By catching faults early, facilities avoid the high energy cost of emergency restarts and reduce average motor loading through timely corrective action.

Q2: Is the 3300/16 compatible with existing DCS and PLC control systems?
Yes. The 3300/16 provides standard 4–20 mA analog outputs and relay contact outputs that interface with virtually all major DCS and PLC platforms, including Siemens, Rockwell Automation, Honeywell, and ABB systems. Modbus RTU communication is available via compatible gateway modules for digital integration.

Q3: Can the 3300/16 replace an older Bently Nevada vibration monitor in an existing 3300 rack?
The 3300/16 is designed as a direct replacement module within the Bently Nevada 3300 Series rack architecture. It maintains backward compatibility with existing Proximitor sensor wiring and rack power supplies, allowing hot-swap replacement with minimal reconfiguration. Always verify rack slot assignments and I/O wiring before installation.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 3300/16 unit undergoes pre-shipment functional testing covering channel accuracy, relay output response, analog signal calibration, and power consumption verification. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with test records available upon request.
