Bently Nevada 3300/20 Dual Thrust Monitor | 3300 Series

Bently Nevada 3300/20 Dual Thrust Monitor: Industrial Data Link for Smart Factory Connectivity

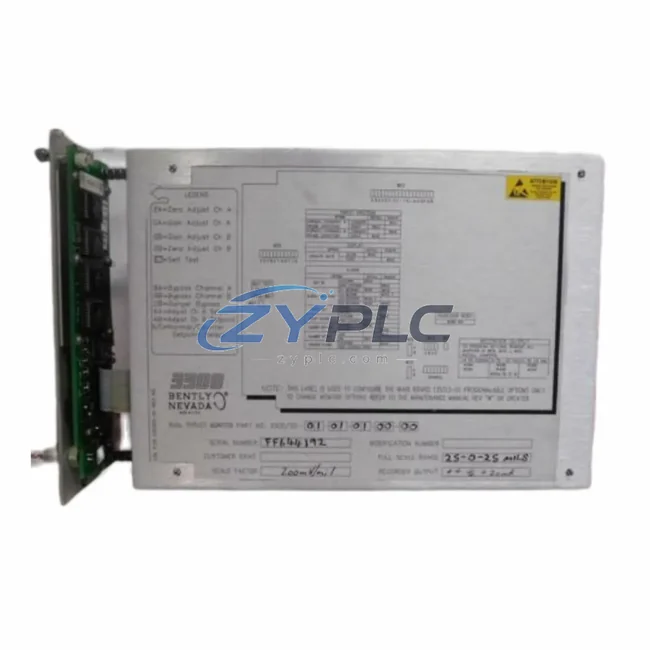

The Bently Nevada 3300/20 Dual Thrust Monitor is a precision industrial measurement module engineered for continuous axial position monitoring in rotating machinery protection systems. As a core component of the Bently Nevada 3300 Series modular monitoring platform, the 3300/20 delivers real-time thrust displacement data across the full industrial automation chain — from field-level sensors and proximity probes through PLC controllers, SCADA supervisory systems, and enterprise-level asset management platforms. In smart factory environments where machine health directly impacts production continuity, the 3300/20 serves as a critical node in the industrial data network, enabling seamless signal acquisition, protocol-compatible data transmission, and remote diagnostic visibility.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory architecture, the Bently Nevada 3300/20 sits at the heart of the machinery protection data chain. Eddy-current proximity probes — such as those from the Bently Nevada 3300 XL 8mm Proximity Transducer System — continuously sense shaft axial displacement and feed raw signals into the 3300/20 monitor module mounted within the 3300 Series rack enclosure. The module conditions these signals, applies configurable Alert and Danger setpoints, and simultaneously outputs 4–20 mA analog signals to the plant’s distributed control system (DCS) or Rockwell Automation ControlLogix PLC for real-time process integration.

For facilities running Siemens S7-300 or S7-400 PLCs, the 3300/20’s analog outputs connect through dedicated analog input modules, allowing the PLC to incorporate thrust position data into broader machine interlock logic. Where Modbus TCP or Ethernet/IP connectivity is required, an industrial protocol gateway — such as the Moxa MGate MB3180 or a ProSoft Technology MVI56E-MNET — bridges the 3300/20’s serial or analog outputs into the plant Ethernet backbone, making thrust data available to OSIsoft PI System or GE iFIX SCADA for historian logging and trend analysis.

At the HMI layer, operators viewing a Wonderware InTouch or Ignition SCADA display receive live thrust position readings, alarm states, and historical trend data sourced directly from the 3300/20. Remote I/O nodes — including Bently Nevada 3500 Series rack systems deployed at satellite machinery trains — can be networked alongside the 3300/20 to provide a unified machinery health dashboard across the entire production floor. Edge gateways aggregate data from multiple 3300/20 modules and transmit consolidated machine health packets to cloud-based asset management platforms, completing the digital thread from rotating shaft to enterprise ERP.

Solving Data Isolation in Industrial Sites

Many industrial facilities operating legacy rotating machinery face a persistent challenge: critical thrust and vibration data remains trapped within standalone monitoring racks, invisible to the plant’s SCADA, DCS, or MES systems. The Bently Nevada 3300/20 directly addresses this data isolation problem through its multi-output architecture. Its simultaneous analog (4–20 mA) and relay outputs allow a single module to feed both safety interlock systems and process control networks without signal splitting or additional signal conditioners.

For plants with mixed-protocol environments — where legacy Modbus RTU devices coexist with modern Ethernet/IP infrastructure — the 3300/20’s outputs serve as a universal data source that protocol gateways can translate into any required network format. This eliminates the need for costly parallel monitoring installations and allows existing DCS or PLC infrastructure to absorb machinery protection data natively. Production line transparency improves immediately: operators gain real-time axial position visibility, maintenance teams receive early-warning alerts before thrust bearing failures escalate, and remote engineers can diagnose abnormal displacement trends through SCADA historian queries without requiring physical site access.

System expansion is equally straightforward. Additional 3300 Series monitor modules — including radial vibration monitors, speed monitors, and temperature monitors — can be added to the same rack backplane, sharing a common power supply and communication infrastructure. This modular scalability means the 3300/20 investment grows with the facility’s monitoring requirements, protecting capital expenditure while delivering progressively richer machine health data to connected automation systems.

Every Bently Nevada 3300/20 unit supplied by ZYPLC undergoes pre-shipment functional verification, including output signal calibration checks and relay operation confirmation, ensuring the module performs to specification from day one of installation. Stock is maintained for rapid dispatch, and all units are covered by a warranty terms confirmed during quotation against manufacturing defects.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3300/20 support natively, and can it connect to Modbus TCP networks?
The 3300/20 provides 4–20 mA analog outputs and relay contact outputs as its native communication interfaces. Direct Modbus TCP connectivity requires an external protocol gateway (such as a Moxa MGate or ProSoft MVI series module) to convert the analog or serial signals into Modbus TCP packets suitable for Ethernet-based SCADA or DCS integration. This gateway approach is standard practice in industrial network design and adds no latency that would affect machinery protection response times.

Q2: How does the 3300/20 maintain network stability in high-vibration or electrically noisy industrial environments?
The 3300/20 is designed to operate within the demanding electrical environment of rotating machinery installations. Its rack-mount form factor within the 3300 Series enclosure provides shielded backplane communication, and its 4–20 mA current-loop outputs are inherently noise-immune over long cable runs — a critical advantage in facilities where variable frequency drives (VFDs) and high-current motor starters generate significant electromagnetic interference. Proper cable shielding and grounding practices, as specified in Bently Nevada installation guidelines, further ensure signal integrity.

Q3: Can the Bently Nevada 3300/20 be integrated into an existing Siemens or Rockwell SCADA system without replacing the current monitoring rack?
Yes. The 3300/20’s analog and relay outputs are hardware-agnostic and connect directly to any PLC analog input card or DCS I/O module, regardless of the control platform vendor. Siemens S7 series PLCs, Rockwell ControlLogix systems, and Honeywell Experion DCS platforms all accept standard 4–20 mA inputs, making the 3300/20 fully compatible with existing SCADA architectures without requiring rack replacement or firmware modifications.

Q4: What does the warranty terms confirmed during quotation cover, and how does ZYPLC handle pre-shipment testing?
The warranty terms confirmed during quotation covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. Prior to dispatch, each 3300/20 unit undergoes functional verification including output signal range confirmation, Alert and Danger relay operation testing, and visual inspection for connector and component integrity. Detailed test records are available upon request. For warranty claims or technical support, contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691.
