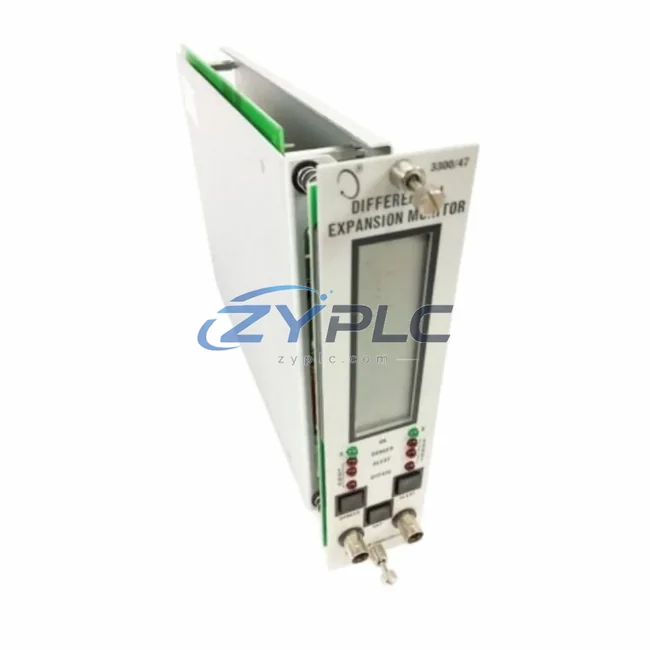

Bently Nevada 3300/47 Differential Expansion Monitor for 3300 Series

Bently Nevada 3300/47 Differential Expansion Monitor for 3300 Series

The Bently Nevada 3300/47 Differential Expansion Monitor is a precision-engineered condition monitoring module designed to operate as a fully integrated component within the Bently Nevada 3300 Series machinery protection architecture. Rather than functioning as a standalone instrument, the 3300/47 is purpose-built to occupy a defined role within a layered control and protection system — measuring rotor-to-casing differential expansion in rotating machinery such as steam turbines, gas turbines, and large compressor trains. Its value is realized not in isolation, but through its coordinated interaction with adjacent modules, communication networks, power infrastructure, and supervisory control platforms.

In a complete 3300 Series rack-based system, the 3300/47 occupies a dedicated slot within the 3300/05 or 3300/15 rack chassis, drawing regulated DC power from the 3300/10 or 3300/20 power supply modules. The monitor interfaces directly with differential expansion proximity probes and extension cables, converting raw displacement signals into conditioned 4–20 mA analog outputs and relay-driven alarm contacts. These outputs feed upstream into the control layer — typically a DCS or safety instrumented system — where the 3300/47’s measurements are integrated into turbine startup permissive logic, load-shedding sequences, and emergency shutdown (ESD) routines. This system integration capability ensures that differential expansion data is not merely recorded but actively participates in real-time control decisions across the full automation hierarchy.

The 3300/47 supports dual-channel measurement with independently configurable alert and danger setpoints, enabling engineers to define asymmetric trip thresholds for positive and negative expansion directions. This is critical in turbine applications where thermal growth during startup and cool-down follows different mechanical trajectories. The module’s signal conditioning circuitry provides high common-mode rejection, ensuring measurement integrity even in electrically noisy industrial environments typical of power generation facilities, petrochemical plants, and steel mills.

From a system architecture perspective, the 3300/47 contributes to the redundancy and fault-tolerance design of the overall protection system. When paired with the 3300/16 or 3300/46 voting modules and configured in a 2-out-of-3 (2oo3) or 1-out-of-2 (1oo2) voting architecture, the monitor participates in a redundant trip logic scheme that eliminates single-point failures in the protection chain. This architecture is particularly valued in API 670-compliant installations where continuous availability and spurious-trip avoidance are equally critical engineering objectives.

Network and communication integration is achieved through the 3300 Series system’s Keyphasor interface and the TDXnet or System 1 data acquisition platform. The 3300/47’s analog and relay outputs are wired to marshalling panels and then routed to the plant DCS — commonly a Honeywell Experion, Emerson DeltaV, or ABB 800xA system — where differential expansion trends are displayed on operator HMI screens alongside vibration, eccentricity, and axial position data from companion modules such as the 3300/25 Radial Vibration Monitor and the 3300/55 Axial Position Monitor. This multi-parameter view gives operators a complete picture of rotor dynamic behavior during all phases of machine operation.

Installation and commissioning of the 3300/47 follows Bently Nevada’s standard rack-based procedures. The module is hot-swappable within a powered rack, allowing replacement without system shutdown in non-trip-critical configurations. Calibration is performed using the 3300 Series configuration software, where engineers define transducer scale factors, gap voltage references, and setpoint values. The module’s front-panel LED indicators provide immediate visual status of power, OK, alert, and danger conditions, simplifying field diagnostics during commissioning and routine maintenance walks.

For long-term maintenance planning, the 3300/47’s modular design supports a predictive replacement strategy. Maintenance teams can track module operating hours through System 1 software, schedule periodic calibration verification, and maintain a small buffer stock of 3300/47 units to minimize mean time to repair (MTTR) during unplanned failures. This approach aligns with reliability-centered maintenance (RCM) programs common in power generation, LNG processing, and refinery operations where turbomachinery availability directly impacts production throughput.

Every 3300/47 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation, backed by pre-shipment functional testing and full documentation. Our inventory includes both new and refurbished units, all verified against Bently Nevada factory specifications. Whether you are commissioning a new turbine protection system, replacing a failed module in an existing 3300 Series rack, or building a spare parts inventory for a critical asset, ZYPLC provides reliable supply with fast international shipping and dedicated technical support.

Product Specification Table

System Compatibility Notes

The 3300/47 achieves its full protective value when deployed within a coordinated 3300 Series rack populated with complementary modules. A typical turbine protection rack alongside the 3300/47 will include the 3300/25 Radial Vibration Monitor for shaft vibration measurement, the 3300/55 Axial Position Monitor for thrust bearing displacement, and the 3300/65 Speed Monitor for overspeed detection and Keyphasor signal processing. Together, these modules provide the multi-parameter protection envelope required by API 670 for large rotating machinery.

The rack’s power infrastructure is supplied by the 3300/10 Power Supply or the redundant 3300/20 Dual Power Supply module, which provides regulated 24 VDC to all installed monitors. For installations requiring continuous availability, a redundant power supply configuration eliminates the power module as a single point of failure. The 3300/15 Rack Chassis provides the physical backplane and slot interconnects that allow all modules to share a common communication bus and power rail.

Upstream of the 3300 Series rack, the 3300/47’s relay outputs are wired to a marshalling terminal block assembly — typically using Phoenix Contact or Weidmüller DIN-rail terminal modules — before connecting to the plant safety instrumented system (SIS) or DCS I/O cards. In Emerson DeltaV SIS or Honeywell Safety Manager environments, the differential expansion trip signal from the 3300/47 is hardwired into the SIS logic solver as a discrete input, participating in the turbine ESD cause-and-effect matrix. The 4–20 mA analog output is simultaneously routed to the DCS analog input card for continuous trend monitoring and historian archiving.

For human-machine interface integration, differential expansion data from the 3300/47 is displayed on operator workstations running Bently Nevada System 1 Evolution software, where it appears alongside vibration spectra, orbit plots, and trend data from the full complement of 3300 Series monitors. Alarm annunciation is managed through the DCS HMI — commonly a Wonderware InTouch or Ignition SCADA display — providing operators with a unified view of machine health across all protection parameters.

Industrial Application Notes

The 3300/47 is deployed across a wide range of heavy industrial applications where differential thermal expansion between rotor and casing represents a critical machinery protection parameter. In power generation, the monitor is standard equipment on steam turbine-generator sets in coal-fired, gas-fired, and nuclear power plants, where differential expansion monitoring is mandatory during startup and shutdown thermal transients. Exceeding differential expansion limits during these phases can result in blade-to-casing contact and catastrophic rotor damage.

In oil and gas processing, the 3300/47 protects large centrifugal compressors and gas turbine drivers in LNG liquefaction trains, gas injection compressor stations, and pipeline booster stations. These assets operate continuously for extended periods between planned turnarounds, making reliable protection monitoring essential for production continuity. The module’s compatibility with API 670 machinery protection standards ensures compliance with international engineering specifications required by major oil and gas operators.

In petrochemical and refinery environments, the 3300/47 is installed on cracked gas compressors, ethylene plant turbines, and fluid catalytic cracking (FCC) unit expanders — all rotating machines where differential expansion monitoring is part of the machinery protection philosophy mandated by process safety management (PSM) regulations. The module’s robust signal conditioning handles the electrically noisy environments typical of these facilities without compromising measurement accuracy.

In steel and metallurgical plants, the 3300/47 protects turbine-driven blowers, rolling mill drives, and large induction furnace cooling compressors. In water and wastewater treatment facilities, it monitors large centrifugal pump turbine drivers and blower turbines. Across all these applications, the 3300/47’s role within the 3300 Series architecture ensures that differential expansion protection is fully integrated into the plant’s layered automation and safety system hierarchy.

Product Compatibility FAQ

Q1: Is the 3300/47 compatible with existing 3300 Series racks, and can it be installed without replacing the entire rack chassis?
Yes. The 3300/47 is designed as a plug-in module for the standard 3300/05 and 3300/15 rack chassis. It can be installed into any available slot in an existing 3300 Series rack without replacing the chassis, power supply, or other installed monitors. In non-trip-critical configurations, the module is hot-swappable, allowing installation or replacement while the rack remains powered. Setpoint configuration and calibration are performed via the 3300 Series configuration software after installation, with no hardware jumper changes required.

Q2: How does the 3300/47 integrate with a plant DCS or safety instrumented system, and what signal types are available for integration?
The 3300/47 provides two primary integration signal types: 4–20 mA analog outputs for continuous differential expansion measurement (routed to DCS analog input cards for trending and historian archiving) and relay contact outputs for Alert and Danger conditions (hardwired to SIS logic solvers or DCS discrete input cards for alarm annunciation and ESD trip logic). For advanced diagnostics and trend analysis, the module’s data is accessible through Bently Nevada System 1 Evolution software via the TDXnet communication interface, enabling system integration of machinery health data into the plant’s overall condition monitoring and asset management platform.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims or technical support?
The warranty terms confirmed during quotation provided by ZYPLC covers functional defects in the 3300/47 module under normal operating conditions. Every unit undergoes pre-shipment functional testing and verification against Bently Nevada factory specifications before dispatch. In the event of a warranty claim, ZYPLC provides direct technical support and coordinates module replacement or repair. For technical inquiries, commissioning support, or warranty service, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com. Replacement units are dispatched from RFQ-confirmed sourcing to minimize system downtime.
