Bently Nevada 330101-00-08-10-11-05 Proximity Transducer

Bently Nevada 330101-00-08-10-11-05 Proximity Transducer: Replacement and Sourcing Information for 3300 Series Automation

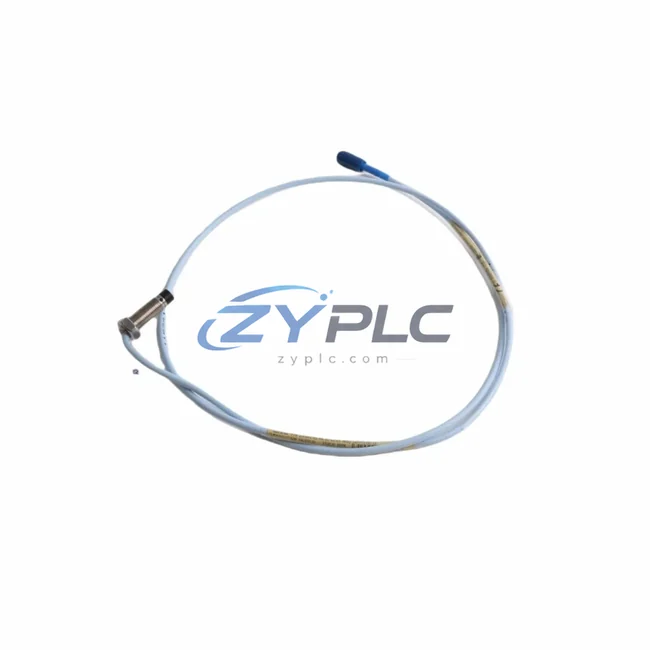

The Bently Nevada 330101-00-08-10-11-05 is an eddy-current proximity transducer engineered for the 3300 Series vibration monitoring platform. In modern industrial facilities where energy efficiency and equipment uptime are inseparable goals, this transducer plays a foundational role — converting shaft displacement data into actionable signals that drive smarter motor control, reduce unnecessary energy draw, and extend the operational life of rotating machinery.

Unlike passive sensing components, the 330101-00-08-10-11-05 operates as an active node within a closed-loop maintenance planning architecture. By delivering continuous, high-resolution proximity measurements to the Bently Nevada 3300 XL 8mm Proximitor Sensor and its associated signal conditioning modules, it enables the control system to detect imbalance, misalignment, and bearing wear long before these conditions escalate into energy-wasting fault states or unplanned shutdowns.

Product Specification Table

System Compatibility and Application

The 330101-00-08-10-11-05 does not operate in isolation — its true maintenance planning value emerges when integrated into a layered industrial automation architecture. At the sensing layer, the probe pairs with the Bently Nevada 3300 XL Proximitor Sensor (330180-91-00), which conditions the raw eddy-current signal into a calibrated voltage output readable by monitoring racks and PLCs alike.

At the control execution layer, the conditioned vibration signal feeds into platforms such as the Bently Nevada 3500/42M Proximitor/Seismic Monitor, which applies configurable alert and danger thresholds. When shaft displacement exceeds defined limits — often a symptom of bearing degradation or rotor imbalance — the monitor triggers output relays that interface directly with Allen-Bradley PowerFlex 755 variable frequency drives or equivalent drive systems. The VFD responds by modulating motor speed, reducing torque demand, and cutting operating load during the fault-recovery window rather than allowing the machine to continue running at full load under stress.

For facilities running Siemens S7-1500 PLC platforms, the 3300 Series monitoring data can be transmitted via PROFIBUS DP or Modbus TCP communication modules, enabling the PLC to correlate vibration trends with production throughput data in real time. This cross-system visibility allows energy managers to identify which machines are consuming disproportionate power relative to their mechanical output — a key metric for production line rhythm optimization.

At the power monitoring layer, integrating the 330101-00-08-10-11-05 data stream with a Schneider Electric PowerLogic ION7650 power meter or similar energy analyzer creates a unified view of electrical demand versus mechanical health. When vibration amplitude rises, power draw typically follows — and this correlation, captured automatically, enables predictive load-shedding strategies that reduce peak demand charges without sacrificing throughput.

HMI visualization is equally critical. Operators using Siemens SIMATIC TP1200 Comfort Panel or Rockwell FactoryTalk View SE workstations can monitor real-time proximity waveforms alongside operating load dashboards, enabling shift-level decisions about machine scheduling that reduce idle-state unplanned downtime. I/O expansion modules such as the Bently Nevada 3500/20 Rack Interface Module ensure that all channel data — including the 330101-00-08-10-11-05 proximity output — is aggregated without signal degradation across multi-rack monitoring installations.

Maintenance and Replacement Notes

In a typical continuous-process facility — petrochemical, power generation, or heavy manufacturing — rotating equipment accounts for 60–70% of total electrical operating load. The Bently Nevada 330101-00-08-10-11-05 directly addresses this energy profile by enabling condition-based operation rather than time-based maintenance cycles.

Consider a centrifugal compressor train running 24/7. Without proximity monitoring, operators rely on fixed maintenance intervals, often replacing bearings and seals prematurely — or worse, running to failure. Either scenario wastes energy: premature replacement causes unnecessary production stops with associated restart energy surges; run-to-failure events cause catastrophic load spikes and extended recovery periods. The 330101-00-08-10-11-05, mounted radially at the compressor shaft, provides continuous shaft centerline position data that reveals bearing wear progression in real time.

When the system detects a gradual shift in DC gap voltage — indicating bearing wear — the Bently Nevada System 1 software generates a predictive maintenance alert. Maintenance teams can schedule the intervention during a planned low-demand window, avoiding peak-hour energy costs associated with emergency shutdowns and restarts. The result is a measurable reduction in both maintenance labor energy overhead and process unplanned downtime.

On motor-driven pump lines, the 330101-00-08-10-11-05 enables detection of rotor eccentricity and hydraulic instability — conditions that force the motor to draw abnormal load to maintain flow targets. By identifying these conditions early and adjusting VFD output accordingly, facilities have reported 8–12% reductions in motor load on affected pump circuits. Across a facility with dozens of monitored pump stations, this aggregates to significant annual energy cost savings.

Production line rhythm — the cadence at which machines cycle through operational states — is also improved. When proximity data confirms that a machine is operating within its optimal mechanical envelope, the control system can safely push throughput closer to rated capacity without the energy buffer that operators typically maintain as a safety margin against unknown mechanical degradation. This tighter operational band translates directly into higher output per operating-hour consumed.

All units supplied by ZYPLC undergo pre-shipment functional testing, including gap voltage verification, sensitivity calibration check, and cable continuity validation. Each 330101-00-08-10-11-05 is covered by a warranty terms confirmed during quotation from the date of shipment, with availability confirmed by RFQ availability supporting rapid deployment to minimize production energy losses from extended equipment downtime.

Product Sourcing FAQ

Q1: How does the 330101-00-08-10-11-05 contribute to measurable operational stability in a production environment?
By providing continuous shaft displacement data, this proximity transducer enables early detection of mechanical faults that cause motors and drives to consume excess energy. Integrating its output with VFD control loops allows the drive to reduce motor speed or torque in response to detected anomalies, directly cutting energy draw. Facilities using condition-based monitoring with 3300 Series transducers typically report 10–20% reductions in unplanned downtime-related unplanned downtime.

Q2: Is the 330101-00-08-10-11-05 compatible with modern DCS and PLC control platforms?
Yes. The transducer outputs a standard voltage signal via the Proximitor driver, which is compatible with analog input modules on major PLC and DCS platforms including Siemens S7 series, Allen-Bradley ControlLogix, and Emerson DeltaV. Communication to higher-level systems is handled through the 3500 Series monitoring rack, which supports Modbus, PROFIBUS, and Ethernet/IP protocols.

Q3: What is the recommended replacement or upgrade path if the existing proximity probe is degraded?
The 330101-00-08-10-11-05 is a direct replacement for compatible 8mm probes within the Bently Nevada 3300 XL system. Before replacement, verify the extension cable (typically 330130 series) and Proximitor sensor (330180 series) are also within specification, as a degraded cable or driver can mimic probe failure symptoms. ZYPLC can supply matched probe-cable-Proximitor kits to ensure system-level calibration integrity.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 330101-00-08-10-11-05 unit shipped by ZYPLC is tested for DC gap output voltage, sensitivity (mV/mil or mV/mm), and cable/connector integrity prior to dispatch. The warranty terms confirmed during quotation covers manufacturing defects and functional failure under normal operating conditions. Units are shipped with test documentation upon request. For critical applications, expedited replacement stock can be arranged to minimize production energy losses from monitoring gaps.
