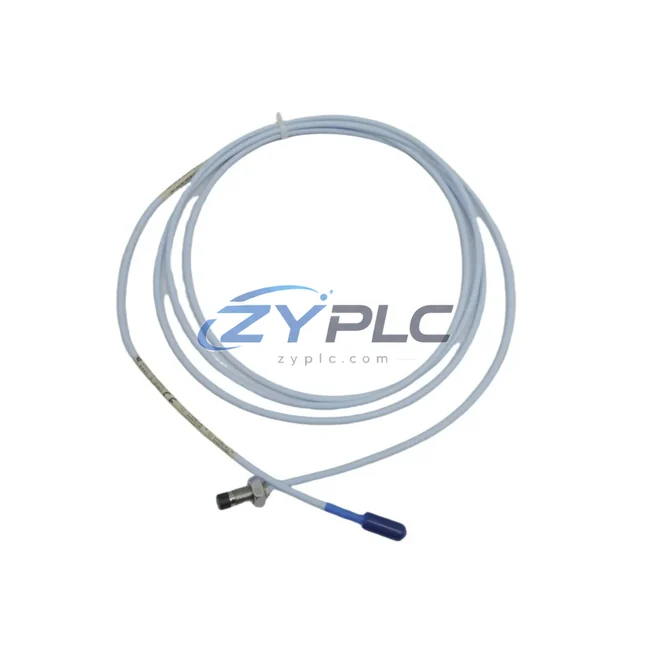

The Bently Nevada 330101-00-08-20-02-05 is a precision-engineered extension cable designed to serve as a critical signal transmission component within the Bently Nevada 3300 Series vibration and condition monitoring architecture. In modern industrial automation environments — spanning rotating machinery protection in power generation, petrochemical processing, mining, metallurgy, and water treatment — the integrity of the signal path between proximity probes and monitoring modules is not merely a wiring concern; it is a foundational element of system reliability, measurement accuracy, and long-term maintenance efficiency. This extension cable is purpose-built to fulfill that role within a layered control system framework, ensuring that every vibration signal captured at the machine train is faithfully transmitted to the monitoring and protection layer without attenuation, interference, or phase distortion.

Within the 3300 Series system architecture, the 330101-00-08-20-02-05 extension cable connects the proximity probe — typically a 3300 XL 8mm or 3300 XL 11mm eddy-current probe — to the proximitor/driver module housed in the monitoring rack. The cable’s specified length and connector configuration (armored, with defined lead lengths) are matched to the physical installation geometry of the machine train, ensuring that the total system cable length remains within the calibrated range required for accurate gap voltage and dynamic signal output. Incorrect cable length or substitution with non-system-matched cables introduces calibration offset errors that propagate through the entire protection chain, potentially causing nuisance trips or, more critically, missed fault detection events.

Product Specification Table

System Compatibility Notes

The 330101-00-08-20-02-05 extension cable does not operate in isolation — it is one element in a tightly coordinated vibration monitoring and machinery protection architecture. Understanding its role requires examining the full signal chain and the surrounding system components with which it must be precisely matched.

At the sensing layer, the cable interfaces directly with the Bently Nevada 3300 XL 8mm Proximity Probe (such as the 330103-00-08-10-02-05 or similar probe assemblies), which generates the raw eddy-current signal proportional to the gap between the probe tip and the rotating shaft. The extension cable carries this signal — a combination of DC bias voltage and AC dynamic component — to the Bently Nevada 3300 XL Proximitor Sensor (e.g., 330180-X1-05), which conditions and amplifies the signal for downstream processing. The proximitor is typically mounted in a 3300 Series rack assembly, which may include the Bently Nevada 3500/22M Transient Data Interface or the 3500/42M Proximitor, Seismic, and Velocity Monitor module, depending on the protection philosophy of the installation.

At the monitoring and protection layer, the conditioned signal feeds into the Bently Nevada 3500 Rack System — a modular, rack-based machinery protection platform that integrates vibration, position, speed, and temperature monitoring into a unified protection architecture. The 3500 rack communicates with the plant DCS or safety system via Modbus, Profibus, or Ethernet/IP communication modules (such as the 3500/92 Communication Gateway), enabling the vibration data to be integrated into the broader process control and historian infrastructure. For installations requiring redundancy, the 3500/20 Rack Interface Module supports dual-redundant power supply configurations, ensuring that a single power failure does not compromise the protection function.

At the power layer, the monitoring rack is supplied by dedicated 3500/15 Power Supply Modules, which provide isolated, regulated DC power to all monitoring cards within the rack. Proper power architecture — including redundant power feeds from separate UPS circuits — is essential for SIL-rated machinery protection applications in petrochemical and power generation environments. The extension cable’s signal integrity is directly dependent on the stability of the proximitor supply voltage, making the power layer a critical upstream dependency.

At the human-machine interface layer, operators interact with the machinery protection system through System 1 Evolution software (Bently Nevada’s condition monitoring and diagnostics platform), which aggregates vibration trend data, orbit plots, Bode diagrams, and alarm histories from the 3500 rack. The quality of the data displayed in System 1 is only as good as the signal fidelity maintained throughout the probe-cable-proximitor chain — making the correct specification of the 330101-00-08-20-02-05 extension cable a prerequisite for meaningful diagnostic output.

Industrial Application Notes

The 330101-00-08-20-02-05 extension cable finds application across a wide range of heavy industrial sectors where rotating machinery protection is a regulatory and operational imperative.

In power generation — including gas turbines, steam turbines, and large synchronous generators — the 3300 Series vibration monitoring system is deployed to detect shaft radial vibration, axial position, and differential expansion. The extension cable is routed through conduit from the machine bearing housing to the local junction box, where it connects to the proximitor before the signal is transmitted to the 3500 rack in the control room. Turbine protection systems in this sector are typically required to meet API 670 machinery protection standards, which specify minimum system response times and redundancy requirements that the 3300 Series architecture is designed to satisfy.

In petrochemical and refinery applications, the extension cable is used on critical rotating equipment including centrifugal compressors, pumps, and expanders. These environments impose demanding requirements on cable materials and connector integrity due to exposure to process gases, elevated temperatures, and aggressive chemical atmospheres. The armored construction of the 330101-00-08-20-02-05 provides mechanical protection against abrasion and accidental impact during maintenance activities, while the system-matched electrical characteristics ensure that the calibration of the overall measurement chain is not compromised by cable substitution.

In mining and metallurgical processing, large grinding mills, crushers, and conveyor drive systems rely on vibration monitoring to detect bearing wear, imbalance, and misalignment before catastrophic failure occurs. The 3300 Series system, with the 330101-00-08-20-02-05 extension cable as part of the probe assembly, provides the continuous online monitoring capability required for condition-based maintenance programs in these high-value, high-consequence asset environments.

In water and wastewater treatment, large centrifugal pumps and blowers are monitored using the 3300 Series system to support predictive maintenance programs that minimize unplanned downtime and reduce lifecycle maintenance costs. The extension cable’s role in maintaining signal integrity across the distance from the machine bearing to the monitoring panel is particularly important in these installations, where cable runs may be long and routing paths may expose the cable to moisture and mechanical stress.

Product Compatibility FAQ

Q1: Can the 330101-00-08-20-02-05 extension cable be used with any proximity probe, or is it restricted to specific 3300 Series probe assemblies?
The 330101-00-08-20-02-05 is specifically designed and calibrated for use within the Bently Nevada 3300 Series system architecture. It must be used with compatible 3300 XL 8mm proximity probes and the corresponding 3300 XL Proximitor Sensor to maintain the calibrated system sensitivity (typically 7.87 V/mm or 200 mV/mil). Substituting non-system-matched cables or probes will alter the total system cable length and electrical characteristics, introducing calibration errors that cannot be corrected through software adjustment alone. Always verify the complete probe-cable-proximitor assembly part numbers against the Bently Nevada system configuration documentation before installation.

Q2: What are the key considerations for integrating this extension cable into a redundant machinery protection architecture?
In redundant protection architectures — where dual voting logic (e.g., 2oo3 or 1oo2) is implemented across multiple vibration channels — each measurement channel requires its own dedicated probe, extension cable, and proximitor assembly. The 330101-00-08-20-02-05 must be installed as part of a complete, independent signal chain for each redundant channel. Cable routing should ensure physical separation between redundant channels to prevent common-cause failure from mechanical damage or fire. Additionally, the 3500 rack’s redundant power supply modules should be fed from independent power sources to ensure that the protection function remains available during single-point power failures. ZYPLC can supply matched sets of extension cables and probe assemblies to support redundant channel configurations.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance and spare parts availability?
All Bently Nevada components supplied by ZYPLC, including the 330101-00-08-20-02-05 extension cable, are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. ZYPLC supports RFQ sourcing for critical 3300 Series components — including extension cables, proximity probes, proximitor sensors, and rack modules — to support both planned maintenance shutdowns and emergency replacement requirements. For long-term maintenance planning, ZYPLC recommends establishing a consignment stock agreement for critical spare parts to minimize the risk of extended downtime due to component unavailability. Contact our technical sales team to discuss spare parts management programs tailored to your plant’s machinery protection architecture.
