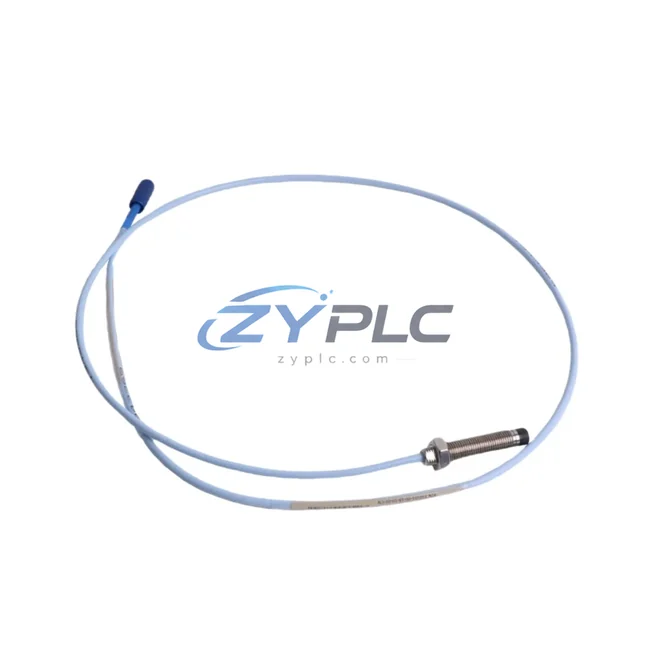

Bently Nevada 330101-00-09-10-02-05 Proximity Transducer for 3300

Bently Nevada 330101-00-09-10-02-05 Proximity Transducer for 3300 Series

In modern industrial control environments, machinery protection and condition monitoring are not standalone functions — they are deeply embedded within a layered automation architecture that spans the control layer, I/O layer, network layer, power layer, human-machine interface layer, and execution layer. The Bently Nevada 330101-00-09-10-02-05 proximity transducer is engineered to serve as a precision sensing element within this integrated framework, delivering reliable shaft displacement and vibration data that feeds directly into the broader 3300 Series monitoring system and upstream control platforms.

This eddy-current proximity transducer operates on the non-contact measurement principle, converting mechanical shaft motion into a proportional electrical signal with exceptional linearity and repeatability. Its role within the control architecture begins at the execution layer — mounted adjacent to rotating machinery such as turbines, compressors, pumps, and motors — and extends upward through the signal conditioning chain to the 3300/16 Proximitor® sensor, which provides the required oscillator-demodulator function. The conditioned output is then routed to the 3500/22M Transient Data Interface or the 3500/15 Power Supply module within the 3500 Series rack, enabling seamless integration with the plant-wide DCS or SCADA platform.

Within the I/O layer, the 330101-00-09-10-02-05 interfaces with the 3300 Series rack infrastructure through standardized coaxial cabling, maintaining signal integrity across extended cable runs typical of large rotating machinery installations. The system architecture supports both radial vibration and axial position measurement configurations, allowing engineers to deploy this transducer in X-Y proximity probe pairs for full orbital analysis or as a single-axis thrust position sensor, depending on the machinery protection strategy defined at the control layer.

At the network layer, the digitized vibration and position data collected via this transducer chain is transmitted to the plant historian and condition monitoring software through the 3500/92 Communication Gateway, supporting Modbus TCP, OPC-DA, and proprietary Bently Nevada protocols. This ensures that the 330101-00-09-10-02-05 measurement data is available not only to the local 3500 Series rack but also to the distributed control system, enabling system integration with process variables such as flow, pressure, and temperature for holistic asset health assessment.

The power layer supporting this transducer system typically includes the 3500/15 dual-channel power supply module, which provides redundant 24 VDC rails to the Proximitor® sensors and associated I/O modules. Redundant power architecture ensures that a single power supply failure does not interrupt the continuous monitoring function, a critical requirement in uninterruptible process environments such as petrochemical plants, power generation facilities, and offshore platforms.

From a human-machine interface perspective, the vibration and position trends captured by the 330101-00-09-10-02-05 are visualized on the System 1 Evolution software platform, where operators and reliability engineers can review waveform data, trend historical baselines, and configure alarm setpoints. The HMI layer also supports integration with the 3500/42M Proximitor® I/O Module, which provides the physical interface between the field-mounted transducer and the rack-based monitoring electronics, completing the signal chain from the rotating shaft to the operator workstation.

For system architects designing redundant machinery protection schemes, the 330101-00-09-10-02-05 can be deployed in dual-probe configurations alongside the 330104-00-08-10-02-05 or 330130-080-00-00 extension cable assemblies, ensuring that a single transducer failure does not result in a loss of protection coverage. The 3300 XL NSv (Non-Standard Voltage) variant of the Proximitor® sensor further extends the system’s compatibility with non-standard gap voltage requirements encountered in legacy machinery retrofits.

Long-term maintenance efficiency is a key design consideration for any industrial monitoring architecture. The 330101-00-09-10-02-05 is designed for straightforward field replacement without requiring recalibration of the entire monitoring chain, provided that the replacement transducer is matched to the same sensitivity specification (typically 7.87 mV/µm or 200 mV/mil) and the same target material. Spare parts inventory management is simplified by the transducer’s compatibility across multiple 3300 Series and 3500 Series rack configurations, reducing the number of unique part numbers required in the maintenance storeroom.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, ensuring that the transducer performs to its published specification throughout the warranty period. Our technical team provides pre-sales architecture consultation to confirm system compatibility, cable length calculations, and gap voltage verification, as well as post-sales support for installation, commissioning, and troubleshooting within the 3300 Series monitoring architecture.

Product Specification Table

System Compatibility Notes

The 330101-00-09-10-02-05 proximity transducer achieves its full monitoring potential when deployed as part of a coordinated Bently Nevada system architecture. At the sensing layer, it is paired with the 3300/16 Proximitor® sensor, which provides the oscillator-demodulator electronics required to drive the eddy-current field and convert the gap signal to a usable voltage output. The Proximitor® sensor is mounted in a junction box or directly on the machinery skid, connected to the transducer via a matched 330130-080-00-00 extension cable that maintains the system’s calibrated sensitivity across the required installation distance.

Within the 3500 Series rack, the 3500/22M Transient Data Interface captures high-speed waveform data for orbit analysis and coast-down/run-up events, while the 3500/42M Proximitor® I/O Module provides the standard 4–20 mA and relay outputs required for DCS integration and machinery trip functions. The rack is powered by the 3500/15 Power Supply in a redundant configuration, ensuring uninterrupted monitoring during power supply maintenance or failure events.

For facilities requiring thrust position monitoring in addition to radial vibration, the 330104-00-08-10-02-05 proximity transducer (8 mm tip diameter variant) is deployed on the same machinery shaft, sharing the rack infrastructure and communication gateway. The 3500/25 Enhanced Keyphasor® Module provides the once-per-revolution reference signal required for phase-referenced vibration analysis and balancing operations, completing the full rotating machinery monitoring suite within a single 3500 Series rack.

Network integration is achieved through the 3500/92 Communication Gateway, which aggregates all channel data from the rack and presents it to the plant DCS, SCADA, or historian via Modbus TCP or OPC-DA. This gateway enables the system integration of machinery protection data with process control variables, supporting advanced condition-based maintenance strategies and reducing unplanned downtime across the facility.

Industrial Application Notes

The 330101-00-09-10-02-05 proximity transducer is widely applied across industries where rotating machinery reliability is critical to process continuity. In power generation facilities, it monitors steam turbine shaft vibration and axial thrust position, providing early warning of rotor instability, bearing wear, and blade rub conditions that could lead to catastrophic failure. The transducer’s wide operating temperature range makes it suitable for high-temperature turbine environments where conventional sensors would degrade.

In petrochemical and refinery applications, the 330101-00-09-10-02-05 is deployed on centrifugal compressors, reactor agitators, and boiler feed pumps, where continuous shaft monitoring is mandated by API 670 machinery protection standards. The transducer’s non-contact measurement principle eliminates wear-related drift, ensuring that alarm and trip setpoints remain accurate throughout the machinery’s operating life without requiring periodic recalibration.

In water treatment and municipal utility plants, the transducer monitors large vertical pump shafts and blower units, where radial vibration trending provides advance notice of impeller imbalance, cavitation damage, and bearing deterioration. The integration of the 330101-00-09-10-02-05 data with the plant SCADA system enables automated maintenance scheduling based on actual machinery condition rather than fixed time intervals, reducing maintenance costs and extending equipment service life.

In mining and mineral processing environments, the transducer is applied to SAG mill pinion bearings, crusher drives, and conveyor head pulleys, where the harsh operating environment demands robust sensing elements capable of withstanding high levels of ambient vibration, dust, and moisture. The 3300 Series system architecture’s modular design allows monitoring coverage to be expanded incrementally as new machinery is added to the plant, without requiring replacement of the existing rack infrastructure.

Product Compatibility FAQ

Q1: Is the 330101-00-09-10-02-05 compatible with both the 3300 Series and 3500 Series rack systems?
Yes. The 330101-00-09-10-02-05 is a standard Bently Nevada eddy-current proximity transducer that is compatible with the full range of 3300 Series Proximitor® sensors (including the 3300/16 and 3300/20) and integrates seamlessly with the 3500 Series rack via the 3500/42M Proximitor® I/O Module. System architects should verify that the total system length (transducer + extension cable + Proximitor® sensor) matches the calibrated sensitivity specification to ensure accurate measurement across the installation.

Q2: What extension cable and Proximitor® sensor should be selected to complete the monitoring system?
The extension cable must be selected to achieve the required total system cable length, typically using the 330130-080-00-00 or equivalent Bently Nevada extension cable assembly. The Proximitor® sensor (e.g., 3300/16) must be matched to the transducer’s tip diameter and sensitivity specification. ZYPLC’s technical team can assist with system length calculations and component selection to ensure that the complete transducer-cable-Proximitor® system meets the published sensitivity and linearity specifications prior to installation.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available during the warranty period?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects and performance deviations from the published specification under normal operating conditions. During the warranty period, ZYPLC provides technical support for installation, commissioning, and troubleshooting, including gap voltage verification, sensitivity confirmation, and system integration guidance. Warranty claims are processed promptly, with replacement units dispatched to minimize machinery downtime. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for warranty inquiries and pre-sales architecture consultation.
