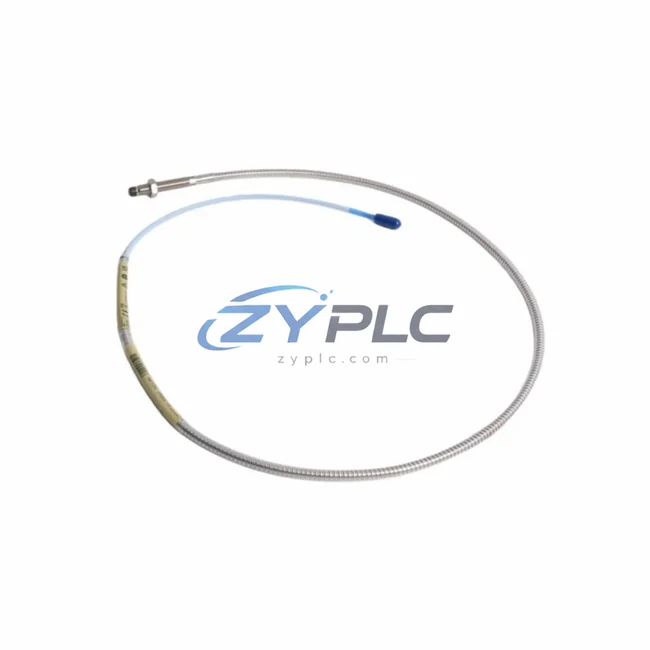

Bently Nevada 330101-00-24-10-02-00 Proximity Transducer

Bently Nevada 330101-00-24-10-02-00 Proximity Transducer: Replacement and Sourcing Information for 3300 Series Automation

The Bently Nevada 330101-00-24-10-02-00 is a high-performance eddy-current proximity transducer engineered for the 3300 Series condition monitoring platform. Designed for continuous, non-contact measurement of shaft vibration, radial displacement, and axial position in rotating machinery, this transducer plays a central role in reducing unplanned downtime risk across industrial production lines. By delivering real-time, high-resolution positional data directly to the control system, it enables operators to detect mechanical inefficiencies before they escalate into costly failures — keeping motors, compressors, turbines, and pumps running at their optimal energy-efficiency point.

In modern industrial facilities where energy costs represent a significant share of operating expenditure, the ability to monitor shaft behavior with micron-level accuracy translates directly into measurable power savings. The 330101-00-24-10-02-00 integrates seamlessly into the Bently Nevada 3300 Series ecosystem, working in conjunction with the 3300/16 proximitor sensor and 3300 XL 8mm extension cables to form a complete vibration measurement chain. This architecture ensures that every data point captured is accurate, low-noise, and immediately actionable by the plant’s distributed control system or safety instrumented system.

Product Specification Table

System Compatibility and Application

The Bently Nevada 330101-00-24-10-02-00 does not operate in isolation — it is the sensing front-end of a tightly integrated industrial automation system. In a typical high-efficiency plant configuration, this proximity transducer feeds vibration and displacement data into the Bently Nevada 3500/42M Proximitor/Seismic Monitor, which processes the raw signal and generates both analog outputs and relay trip signals. These outputs are then consumed by the plant’s Siemens S7-400 PLC or Allen-Bradley ControlLogix L75 controller, which uses the data to modulate drive parameters in real time.

On the drive side, a Siemens SINAMICS S120 variable frequency drive or ABB ACS880 industrial drive receives speed-correction commands from the PLC, adjusting motor torque and rotational speed to match the actual mechanical load — eliminating the unplanned downtime associated with fixed-speed operation. This closed-loop control strategy, anchored by the precision data from the 330101-00-24-10-02-00, can help restore stable operation when a compatible replacement is required.

For power quality monitoring upstream, the system integrates with a Schneider Electric PowerLogic ION9000 power meter, which tracks real-time kWh consumption, power factor, and harmonic distortion at the motor control center level. When the proximity transducer detects abnormal shaft orbit patterns — a classic indicator of bearing wear or rotor imbalance — the Bently Nevada System 1 software triggers an alert that simultaneously notifies the maintenance team and adjusts the VFD output to reduce mechanical stress, preventing the energy spike that typically accompanies a developing fault.

At the field I/O level, a Bently Nevada 3300/16 Proximitor Sensor conditions the transducer signal before it reaches the monitoring rack, ensuring signal integrity across long cable runs in electrically noisy environments. The 3300 XL 5mm extension cable and 3300 XL proximitor complete the measurement chain for installations where the transducer must be mounted remotely from the monitor rack. For facilities running PROFIBUS DP or FOUNDATION Fieldbus H1 communication backbones, the 3500 series monitor rack provides native protocol support, enabling seamless data exchange with the plant’s maintenance planning system without additional gateways.

HMI visualization is typically handled by a Siemens SIMATIC TP1500 Comfort Panel or equivalent, displaying real-time shaft centerline plots, vibration trend data, and operating load KPIs on the operator workstation. This end-to-end architecture — from the 330101-00-24-10-02-00 proximity transducer at the machine to the HMI dashboard in the control room — gives plant engineers the visibility they need to make data-driven decisions about load scheduling, maintenance timing, and energy procurement.

Maintenance and Replacement Notes

In petrochemical refineries, the Bently Nevada 330101-00-24-10-02-00 is routinely installed on critical centrifugal compressor trains where even a 1% improvement in mechanical efficiency translates into tens of thousands of dollars in annual operational stability. By continuously monitoring shaft radial position and detecting the onset of oil whirl or oil whip instability, the transducer enables operators to maintain the rotor within its optimal operating envelope — the narrow band where bearing losses are minimized and volumetric efficiency is maximized.

In power generation facilities, this proximity transducer is deployed on steam turbine shafts to monitor differential expansion and eccentricity during startup and shutdown cycles. Abnormal expansion rates detected by the 330101-00-24-10-02-00 allow the control system to slow the startup ramp rate, preventing thermal stress damage that would otherwise require costly emergency shutdowns and extended repair periods. Each avoided unplanned outage on a 100 MW turbine represents approximately 2,400 MWh of lost generation capacity — a direct energy and revenue impact that this transducer helps prevent.

In automotive and discrete manufacturing plants, the same proximity measurement principle is applied to high-speed spindles, transfer line gearboxes, and servo-driven press machines. When integrated with the plant’s overall equipment effectiveness (OEE) monitoring system, the vibration data from the 330101-00-24-10-02-00 contributes to a predictive maintenance model that schedules interventions during planned downtime windows rather than reactive emergency stops. This shift from reactive to predictive maintenance has been shown to reduce maintenance-related unplanned downtime by 10–15% and extend mean time between failures (MTBF) by 30–50% in rotating equipment populations.

All units supplied by ZYPLC undergo a comprehensive pre-shipment functional test protocol, verifying output sensitivity (typically -7.87 V/mm), linearity, and frequency response before dispatch. Each 330101-00-24-10-02-00 is backed by a warranty terms confirmed during quotation, with availability confirmed by RFQ availability ensuring rapid deployment to minimize production line downtime. Our inventory is sourced directly from authorized distribution channels, and every unit is traceable to its original manufacturing batch for full quality assurance compliance.

Product Sourcing FAQ

Q1: How does the 330101-00-24-10-02-00 contribute to operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft position data, this proximity transducer enables the control system to detect mechanical inefficiencies — such as bearing misalignment, rotor imbalance, and excessive vibration — before they cause energy-wasting mechanical degradation. Early detection allows operators to correct operating parameters (speed, load, lubrication) proactively, keeping the machine in its most energy-efficient operating zone and avoiding the elevated power draw associated with deteriorating mechanical condition.

Q2: Is the 330101-00-24-10-02-00 compatible with existing Bently Nevada 3300 Series monitoring racks and third-party DCS platforms?
Yes. The 330101-00-24-10-02-00 is fully compatible with the Bently Nevada 3300 Series proximitor sensors and monitoring racks, including the 3500 series rack-based monitors. Its standard -24 VDC supply and analog voltage output (typically -18 VDC full-scale) interface directly with most DCS and SIS platforms via standard I/O modules. For digital integration, the 3500 monitor rack supports Modbus RTU, PROFIBUS DP, and OPC-UA, enabling seamless connectivity with Siemens, Rockwell, Honeywell, and Emerson control systems.

Q3: What is the recommended replacement interval, and how should the transducer be tested before installation?
Bently Nevada recommends replacing proximity transducers when sensitivity drift exceeds ±5% of the nominal value or when physical damage to the cable or tip is observed. Before installation, each unit should be bench-tested using a Bently Nevada proximitor and a calibrated target material (AISI 4140 steel) to verify output sensitivity and linearity across the full measurement range. All units supplied by ZYPLC are pre-tested to these specifications and include a test certificate upon request.

Q4: What warranty and after-sales support does ZYPLC provide for the 330101-00-24-10-02-00?
ZYPLC provides a warranty terms confirmed during quotation on all Bently Nevada 330101-00-24-10-02-00 units, covering manufacturing defects and functional failures under normal operating conditions. Units are RFQ Available and available for shipment arranged after confirmation, minimizing lead times for urgent replacement needs. Our technical team is available to assist with installation guidance, system compatibility verification, and troubleshooting support throughout the warranty period.
