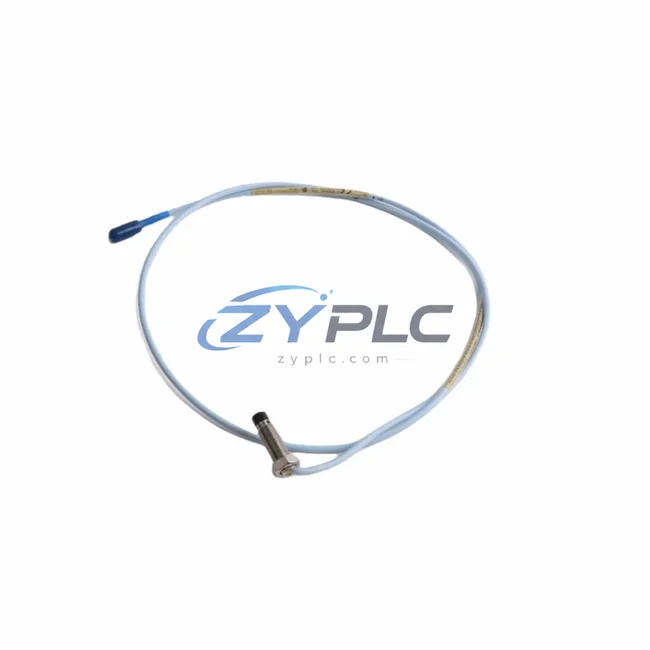

The Bently Nevada 330101-00-28-10-12-CN is a high-precision proximity transducer from the renowned 3300 Series, engineered to deliver continuous, real-time shaft displacement and vibration data across the most demanding industrial environments. As a core sensing node in rotating machinery protection systems, this transducer forms the critical first link in the industrial data chain — converting mechanical motion into precise analog signals that feed directly into plant-wide monitoring, control, and diagnostic networks.

In modern smart factory architectures, reliable signal acquisition at the field level is the foundation of every data-driven decision. The 330101-00-28-10-12-CN operates on the proven eddy-current sensing principle, generating a continuous DC voltage output proportional to the gap between the probe tip and the target shaft surface. This analog signal is transmitted to the Bently Nevada 3300 XL 8mm Proximity Transducer System monitor — such as the 3300/16 or 3300/20 series rack-mounted monitors — where it is conditioned, scaled, and made available for upstream integration.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330101-00-28-10-12-CN sits at the very origin of the industrial data flow. Once installed on a turbine, compressor, pump, or motor shaft, the probe continuously measures radial shaft displacement and transmits the raw analog signal through its matched extension cable to the Bently Nevada 3300/16 or 3300/20 vibration monitor housed in the control panel rack. These monitors process the signal and output both analog (4–20 mA) and relay contact signals, which are then wired into the plant’s DCS analog input cards or PLC analog input modules — such as those found in Rockwell Automation ControlLogix or Siemens S7-400 platforms — enabling real-time vibration data to appear on the operator’s HMI screen within milliseconds.

From the PLC or DCS, the vibration data is forwarded via industrial Ethernet (PROFINET, EtherNet/IP, or Modbus TCP) through managed industrial switches — for example, Hirschmann RS20 or Cisco IE-3000 series — to the plant SCADA server. SCADA platforms such as GE iFIX, Wonderware InTouch, or Siemens WinCC aggregate the 330101-00-28-10-12-CN’s data alongside readings from other field instruments: temperature transmitters, pressure sensors, and flow meters connected via HART or Foundation Fieldbus. This unified data stream enables operators to monitor the complete health of rotating assets from a single HMI dashboard.

For facilities deploying edge computing architectures, the analog output from the 3300 Series monitor can be digitized at the field level using an edge gateway — such as the Moxa MGate or Advantech ADAM-6000 series — converting the signal to Modbus TCP or OPC-UA for direct transmission to cloud-based asset management platforms or MES systems. Remote I/O modules, such as the Bently Nevada 3500 series rack or third-party Wago 750 remote I/O, can further extend the monitoring network to geographically distributed machinery without additional signal conditioning hardware.

In multi-machine protection architectures, the 330101-00-28-10-12-CN is typically deployed alongside complementary Bently Nevada 3300 Series components: the 330130 velocity transducer for axial shaft movement, the 330180 proximity probe for keyphasor reference, and the 3300/55 temperature monitor for bearing temperature — all feeding into the same 3300 Series rack and sharing a common communication backbone to the plant DCS. This integrated approach ensures that every vibration, position, and temperature event is captured, timestamped, and available for alarm management, trend analysis, and predictive maintenance workflows.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial plant operations is data isolation — where critical machinery health information remains trapped in standalone monitoring instruments, disconnected from the plant’s broader control and information systems. The Bently Nevada 330101-00-28-10-12-CN, when integrated within the 3300 Series monitoring architecture, directly addresses this problem by providing a standardized analog output that any DCS, PLC, or SCADA system can consume without proprietary protocol dependencies.

Plants operating mixed-vendor environments — where Emerson DeltaV DCS coexists with Allen-Bradley PLCs and Siemens HMI panels — benefit from the 3300 Series’ universal analog output standard. The 330101-00-28-10-12-CN’s signal can be simultaneously routed to multiple systems: the DCS for process control interlocks, the SCADA for operator visualization, and a dedicated condition monitoring platform for long-term trend analysis. This eliminates the need for protocol converters or gateways at the sensor level, reducing network complexity and potential points of failure.

For remote and unmanned facilities, the 330101-00-28-10-12-CN enables remote diagnostics by feeding vibration data through the plant’s communication infrastructure to centralized monitoring centers. Alarm thresholds configured in the 3300 Series monitor trigger relay outputs that can activate PLC-controlled shutdown sequences or send SMS/email alerts via SCADA alarm management modules — ensuring that abnormal vibration events are detected and acted upon even without on-site personnel. This capability is essential for oil and gas platforms, remote pumping stations, and power generation facilities where continuous human supervision is impractical.

System scalability is another key advantage. As production lines expand, additional 330101-00-28-10-12-CN probes can be added to the existing 3300 Series rack infrastructure without redesigning the communication architecture. Each new probe integrates seamlessly into the established data flow, and the SCADA system automatically incorporates the new data points into existing dashboards and alarm schemas — enabling transparent, plant-wide machinery health visibility as the facility grows.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330101-00-28-10-12-CN support for SCADA and DCS integration?
The 330101-00-28-10-12-CN outputs a standard analog DC voltage signal that is protocol-agnostic at the sensor level. Integration with SCADA and DCS systems is achieved through the 3300 Series monitor’s analog (4–20 mA) and relay outputs, which are compatible with all major industrial protocols including Modbus RTU/TCP, PROFIBUS, PROFINET, EtherNet/IP, and Foundation Fieldbus when connected through appropriate PLC or DCS analog input modules.

Q2: How does this transducer perform in terms of communication latency and real-time monitoring?
As an analog sensing device, the 330101-00-28-10-12-CN provides continuous, real-time signal output with no digital communication latency at the sensor level. The 3300 Series monitor processes the signal in real time, and the overall system latency from shaft movement to SCADA display is determined by the PLC/DCS scan cycle — typically 10–100 ms — which is well within the requirements for rotating machinery protection applications.

Q3: Is the 330101-00-28-10-12-CN compatible with existing 3300 Series racks and monitors without system redesign?
Yes. The 330101-00-28-10-12-CN is fully compatible with all standard Bently Nevada 3300 Series monitors and racks. It can be installed as a direct replacement or expansion component without modifications to the existing rack wiring, monitor configuration, or SCADA integration. The CN designation indicates a metric/Chinese market configuration, which is compatible with standard 3300 Series system architecture.
