Bently Nevada 330102-00-80-10-02-05 Proximity Transducer | 3300

Bently Nevada 330102-00-80-10-02-05: Industrial Data Link for Smart Factory Vibration Monitoring

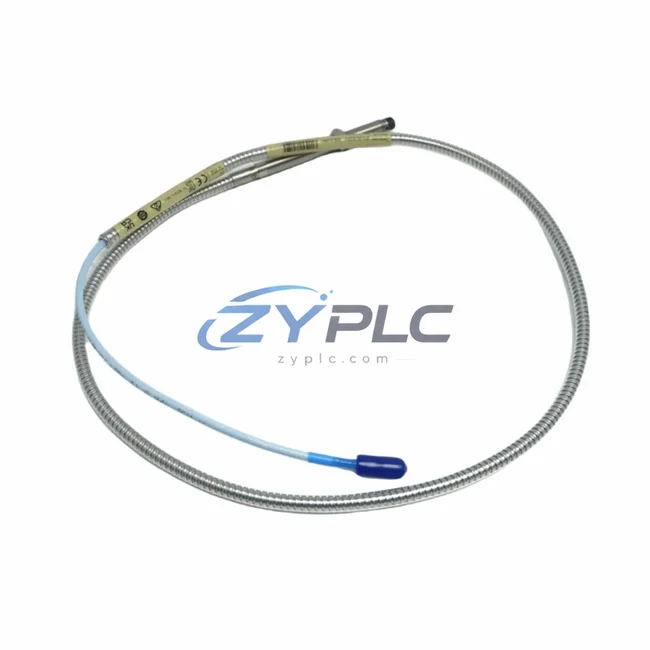

The Bently Nevada 330102-00-80-10-02-05 is a high-precision proximity transducer system from the renowned 3300 Series, engineered to deliver continuous, real-time shaft displacement and vibration data across the most demanding industrial environments. As a core sensing node in the plant-floor data chain, this transducer system bridges the gap between rotating machinery and the digital control layer — feeding critical signal data into PLC controllers, SCADA platforms, DCS systems, and HMI terminals with exceptional accuracy and reliability.

In modern smart factory architectures, the integrity of the data link begins at the point of measurement. The 330102-00-80-10-02-05 uses eddy-current sensing technology to detect radial shaft displacement without physical contact, generating a continuous analog output signal that is immune to oil, dust, and electromagnetic interference. This signal is transmitted to the Bently Nevada 3300/16 Proximitor Sensor or compatible signal conditioning modules, where it is converted into standardized voltage outputs readable by upstream control and monitoring systems.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330102-00-80-10-02-05 sits at the origin of a multi-layer industrial data flow. Once installed on a rotating shaft or journal bearing, the probe tip generates a high-frequency eddy-current field. The companion Bently Nevada 3300/16 Proximitor converts this field into a calibrated DC voltage signal, which is then routed to the Bently Nevada 3500/42M Proximitor Monitor housed within the 3500 Series monitoring rack. This rack-based system aggregates vibration, position, and speed data from multiple transducer channels simultaneously.

From the 3500 rack, processed data is transmitted via hardwired analog outputs or digital communication cards — such as the 3500/92 Communication Gateway Module — to the plant DCS or SCADA layer. In Siemens-based environments, the signal is received by a Siemens S7-400 PLC or ET 200M remote I/O station via a Profibus DP interface. In Rockwell environments, the data flows into an Allen-Bradley ControlLogix L7x controller through an analog input module or EtherNet/IP-compatible gateway.

At the HMI layer, operators view real-time shaft displacement trends, alarm thresholds, and historical waveform data through platforms such as GE iFIX SCADA or Wonderware System Platform. When vibration levels approach trip thresholds, the 3500 rack issues hardwired relay outputs to the turbine control system, while simultaneously pushing alarm events to the SCADA historian and triggering notifications in the plant’s remote monitoring dashboard. Edge gateways — such as the Moxa MGate MB3480 or similar industrial protocol converters — can further bridge the 3500 system’s Modbus RTU output to OPC-UA, enabling cloud-based predictive maintenance platforms to consume the data in real time.

For plants operating variable-frequency drives (VFDs) on motor-driven compressors or pumps, the 330102-00-80-10-02-05 provides the shaft feedback loop that complements speed and torque data from the drive controller, enabling closed-loop vibration management. Power for the transducer system is supplied through the Bently Nevada 3500/15 Power Supply module, ensuring stable, isolated DC power across the entire monitoring rack even during grid fluctuations.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial plants is data isolation — where critical machinery health data remains trapped in proprietary monitoring systems, invisible to the broader SCADA, MES, or ERP layers. The Bently Nevada 330102-00-80-10-02-05, when integrated with the 3500 Series rack and its communication gateway options, directly addresses this problem.

Legacy plants often operate with a mix of communication protocols: older machinery may output analog 4–20 mA signals, while newer PLCs expect Modbus TCP or EtherNet/IP data. The 3500/92 Communication Gateway Module resolves this by translating the 3500 rack’s internal data into Modbus RTU or TCP frames, which can then be consumed by any SCADA system with a standard Modbus driver. For plants requiring OPC-UA connectivity — the backbone of Industry 4.0 data exchange — an edge gateway such as the Kepware KEPServerEX or a Moxa industrial gateway can bridge the protocol gap without requiring hardware replacement.

Remote diagnostics is another area where this system delivers measurable value. Maintenance engineers can access real-time vibration spectra, gap voltage readings, and alarm histories remotely through the SCADA historian, eliminating the need for on-site inspections during off-hours. This capability is especially critical for unmanned substations, offshore platforms, and remote compressor stations where physical access is costly and time-consuming.

Production line transparency is achieved by feeding the 330102-00-80-10-02-05 data into the plant’s MES layer, where machinery health KPIs are tracked alongside production output metrics. When a bearing begins to show early-stage wear — indicated by a rising 1X vibration amplitude — the system can automatically generate a maintenance work order in the CMMS, ensuring predictive intervention before a costly unplanned shutdown occurs.

System expansion is straightforward: additional transducer channels can be added to the 3500 rack by installing additional monitor cards, and the communication gateway scales accordingly. This modular architecture means that a plant can start with monitoring two or three critical machines and expand to a full plant-wide condition monitoring network without replacing the core infrastructure.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330102-00-80-10-02-05 system support?
The transducer itself outputs an analog DC voltage signal. When paired with the Bently Nevada 3500 Series monitoring rack and the 3500/92 Communication Gateway Module, the system supports Modbus RTU, Modbus TCP, and can be bridged to Profibus DP, EtherNet/IP, or OPC-UA via industrial protocol gateways. This makes it compatible with virtually all major SCADA, DCS, and PLC platforms in use today.

Q2: How is network stability ensured in high-vibration or electrically noisy environments?
The eddy-current sensing technology used in the 330102-00-80-10-02-05 is inherently immune to oil contamination, dust, and moderate electromagnetic interference. The 3500 rack’s isolated power supply and shielded signal cabling further protect signal integrity. For digital communication links, industrial-grade managed switches with RSTP redundancy protocols are recommended to ensure network uptime in the event of a cable fault.

Q3: Can this system be integrated with existing SCADA or HMI platforms without replacing current infrastructure?
Yes. The 3500/92 Communication Gateway Module provides standard Modbus RTU/TCP output, which is natively supported by all major SCADA platforms including GE iFIX, Wonderware InTouch, Siemens WinCC, and Rockwell FactoryTalk View. No custom drivers or middleware are required for basic integration. For OPC-UA connectivity, a standard OPC server such as Kepware KEPServerEX can be deployed on the SCADA server.

Q4: What quality assurance and warranty coverage is provided for the 330102-00-80-10-02-05?
Every unit supplied by ZYPLC undergoes functional testing prior to dispatch, including gap voltage verification, output linearity checks, and cable continuity testing. All units are covered by a warranty terms confirmed during quotation against manufacturing defects. Availability is confirmed via RFQ for same-week global shipping via DHL or FedEx, with full documentation including calibration records provided upon request.
