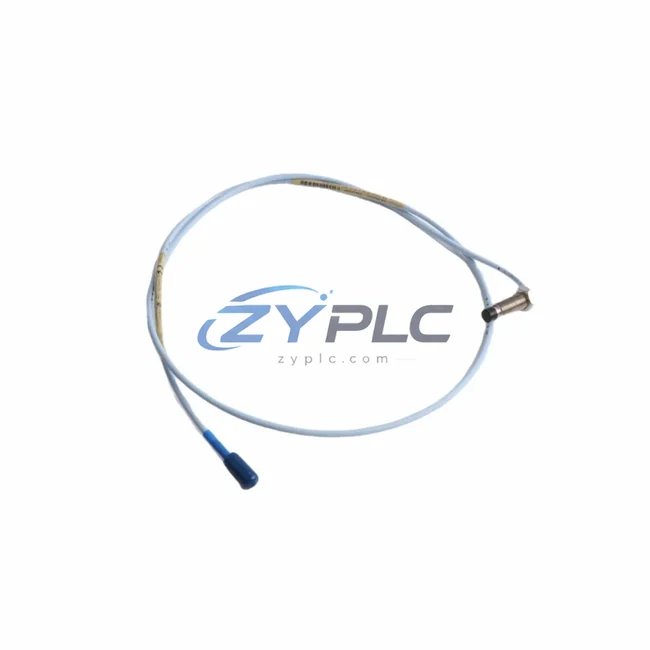

Bently Nevada 330102-02-12-10-12-CN Proximity Transducer

Bently Nevada 330102-02-12-10-12-CN: Energy-Efficient Proximity Transducer for 3300 Series Automation

The Bently Nevada 330102-02-12-10-12-CN is a high-precision eddy-current proximity transducer engineered within the renowned 3300 Series platform — one of the most trusted condition monitoring ecosystems in heavy industrial automation. Designed for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion, this transducer plays a pivotal role in reducing unplanned downtime risk across rotating machinery systems. By delivering real-time, high-fidelity displacement data directly to the control layer, the 330102-02-12-10-12-CN enables plant engineers to eliminate reactive maintenance cycles, optimize motor loading, and sustain peak equipment utilization without incurring excess power draw.

In modern manufacturing and process industries — from petrochemical refineries to power generation turbines — undetected shaft imbalance and misalignment are among the leading causes of inflated operating load. A turbine or compressor running with even minor rotor eccentricity can waste 3–8% of its rated power output in mechanical losses. The 330102-02-12-10-12-CN addresses this directly: its sub-micron resolution output allows the 3300 Series monitoring system to detect developing faults at the earliest stage, enabling corrective action before unplanned downtime compounds into equipment failure.

Product Specification Table

System Compatibility and Application

The 330102-02-12-10-12-CN does not operate in isolation — it is the sensing front-end of a tightly integrated industrial automation system. In a typical high-efficiency plant configuration, this transducer feeds displacement signals into the Bently Nevada 3300/16-24-01-01-00-00-00 monitor module, which processes raw proximity data and generates alarm outputs that interface with the plant DCS or PLC layer. When paired with the 3300/55 Keyphasor module, the system gains phase-referenced vibration analysis capability, enabling engineers to distinguish between imbalance, misalignment, and resonance — each of which carries a distinct energy penalty if left unaddressed.

On the drive side, variable frequency drives such as the Rockwell PowerFlex 755 or ABB ACS880 series receive speed-reference corrections derived from vibration trend data, allowing the drive to modulate motor output in response to actual mechanical load rather than fixed setpoints. This closed-loop approach — transducer data informing drive behavior — is one of the most effective strategies for reducing motor load in continuous process applications, often yielding 10–20% reductions in drive energy draw during partial-load operating windows.

For power quality and energy metering at the MCC level, the 330102-02-12-10-12-CN architecture integrates naturally with power monitoring devices such as the Schneider Electric PowerLogic ION7650 or the Siemens SENTRON PAC3200, which track real-time kWh consumption per motor circuit. When vibration anomalies detected by the 3300 Series transducer correlate with rising power draw on the metering side, maintenance teams receive a dual-channel confirmation of developing mechanical inefficiency — enabling targeted intervention before unplanned downtime escalates.

At the I/O and communication layer, the 3300 Series system supports integration with Modbus RTU/TCP and FOUNDATION Fieldbus protocols, allowing proximity data to flow seamlessly into Emerson DeltaV or Honeywell Experion PKS distributed control systems. This interoperability ensures that the maintenance planning insights generated by the 330102-02-12-10-12-CN are available across the full plant SCADA and historian infrastructure — including OSIsoft PI System data archiving — without requiring proprietary gateways or signal converters.

For HMI visualization, operators monitoring rotating equipment health through GE iFIX or Wonderware InTouch screens can view real-time gap voltage trends, vibration amplitude, and alarm states derived directly from the 330102-02-12-10-12-CN signal chain. This visibility closes the loop between field-level energy measurement and operator decision-making, supporting a culture of continuous energy improvement on the production floor.

Maintenance and Replacement Notes

Consider a mid-scale petrochemical plant operating six centrifugal compressors in parallel. Without continuous proximity monitoring, each machine runs to a fixed maintenance schedule — typically 8,000 operating hours — regardless of actual mechanical condition. In practice, two of the six compressors may develop rotor imbalance within 3,000 hours due to process fluid contamination, causing them to draw 6–9% more power than their design rating while delivering reduced throughput. The remaining four machines compensate by running at higher load, compounding the energy penalty across the entire compression train.

With the Bently Nevada 330102-02-12-10-12-CN installed on each compressor’s drive-end and non-drive-end bearing housings, the 3300 Series monitoring system continuously tracks shaft centerline position and vibration amplitude. When the system detects a developing imbalance condition — typically a 15–25% increase in 1X vibration amplitude — it triggers an early warning alarm that allows maintenance to schedule a targeted balance correction during the next planned production window, rather than waiting for an unplanned trip. The result is a measurable reduction in compressor operating load, a shorter maintenance intervention, and zero unplanned downtime events attributable to rotor imbalance.

In electric motor-driven pump applications, the 330102-02-12-10-12-CN provides axial position monitoring that detects thrust bearing wear before it progresses to catastrophic failure. Early detection allows the variable frequency drive controlling the pump motor to reduce speed slightly — reducing hydraulic load and extending bearing life — while the maintenance team prepares for a planned bearing replacement. This coordinated response between the proximity transducer, the drive system, and the maintenance scheduler is the operational definition of maintenance-focused predictive maintenance: the right intervention, at the right time, with the minimum energy and labor cost.

Every unit of the 330102-02-12-10-12-CN supplied by ZYPLC undergoes full functional testing prior to shipment, including gap voltage linearity verification and output sensitivity calibration against the 3300 Series standard. Stock is maintained on-hand for shipment arranged after confirmation, supporting urgent replacement requirements in critical production environments. All units are covered by a warranty terms confirmed during quotation from the date of shipment, providing procurement teams with the confidence to specify this transducer as a direct replacement or upgrade component in existing 3300 Series installations.

Product Sourcing FAQ

Q1: How does the 330102-02-12-10-12-CN contribute to measurable operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft displacement data, this transducer enables the 3300 Series monitoring system to detect mechanical inefficiencies — such as rotor imbalance, misalignment, and bearing wear — at the earliest stage. Early detection allows corrective action before these conditions escalate into significant mechanical energy losses, which in rotating machinery can represent 3–10% of rated motor power consumption.

Q2: Is the 330102-02-12-10-12-CN compatible with existing 3300 Series monitor modules and extension cables?
Yes. The 330102-02-12-10-12-CN is fully compatible with the standard Bently Nevada 3300 Series ecosystem, including 3300/16 and 3300/20 monitor modules, 330130 series extension cables, and 3300 XL proximitor sensors. It operates on the standard -24 VDC system supply and delivers the 200 mV/mil (7.87 V/mm) output sensitivity required by all 3300 Series signal conditioning modules.

Q3: Can this transducer replace an existing proximity transducer in a running plant without system reconfiguration?
In most cases, yes. The 330102-02-12-10-12-CN is a direct form-fit-function replacement for equivalent 3300 Series proximity transducers with the same cable length and connector configuration. No monitor module reconfiguration is required provided the replacement unit matches the original gap voltage and sensitivity specifications. ZYPLC recommends verifying the installed extension cable length and target material before ordering to ensure full system compatibility.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 330102-02-12-10-12-CN unit shipped by ZYPLC is tested for gap voltage linearity, output sensitivity, and electrical continuity prior to dispatch. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units that fail within the warranty period are replaced or refunded at ZYPLC’s discretion. For critical applications, expedited replacement stock can be arranged — contact the ZYPLC sales team to discuss consignment or priority supply agreements.
