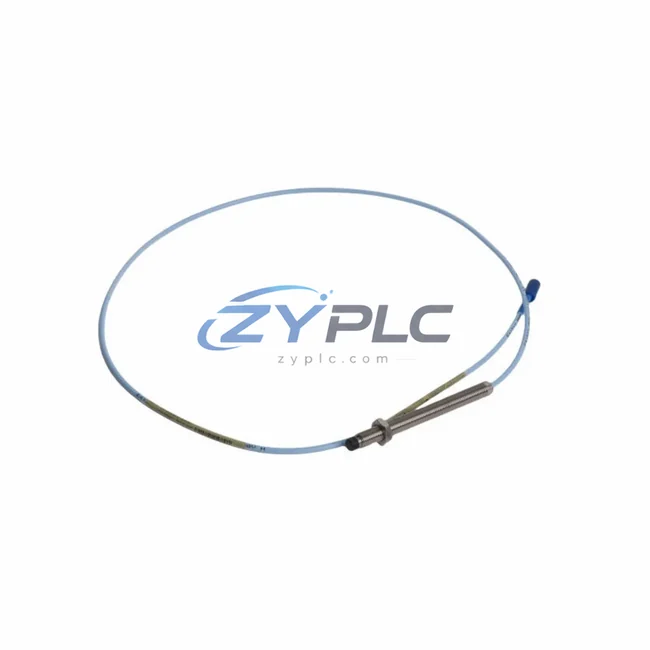

The Bently Nevada 330103-00-02-05-01-CN is a high-performance proximity transducer from the renowned 3300 Series, engineered to deliver continuous, real-time shaft vibration and position monitoring in demanding industrial environments. As factories face increasing pressure to reduce unplanned downtime, improve equipment uptime, and optimize production throughput, this transducer serves as a critical sensing node in the industrial automation system. By providing accurate, low-latency displacement data to the control system, it enables operators to detect mechanical anomalies early, prevent unplanned shutdowns, and maintain motor-driven machinery at peak efficiency — directly contributing to measurable reductions in operating load and maintenance cost.
The 330103-00-02-05-01-CN operates within the Bently Nevada 3300 Series ecosystem, which is widely deployed in rotating machinery protection systems across power generation, oil and gas, petrochemical, and heavy manufacturing sectors. Its eddy-current sensing principle requires no physical contact with the rotating shaft, eliminating friction-related energy losses and mechanical wear. This non-contact design ensures that the transducer itself introduces zero parasitic load to the monitored machine, making it an inherently energy-neutral measurement device that supports the broader goal of industrial maintenance planning.
Product Specification Table
| Parameter |
Specification / Value |
| SKU / Part Number |
330103-00-02-05-01-CN |
| Series |
Bently Nevada 3300 |
| Sensor Type |
Eddy-Current Proximity Transducer |
| Measurement Range |
0 – 2 mm (standard linear range) |
| Operating Frequency |
DC – 10,000 Hz |
| Power Consumption |
Low-draw, passive sensing — no active drive power required at sensor head |
| Running Efficiency |
Non-contact design; zero mechanical friction loss |
| Compatible Systems |
Bently Nevada 3300 Series Monitor Rack, 3500 Series Machinery Protection System |
| Application Environment |
Rotating machinery, turbines, compressors, pumps, motors, gearboxes |
| Maintenance Value |
Early fault detection reduces unplanned downtime and associated unplanned downtime from restart cycles |
| Origin |
United States |
| Warranty |
warranty terms confirmed during quotation — all units shipped after full functional and output linearity testing |
System Compatibility and Application
In a modern energy-optimized production line, the 330103-00-02-05-01-CN does not operate in isolation — it is one node in a tightly integrated measurement and control chain. The transducer connects to a Bently Nevada 3300/16 proximitor or a 3300/05 extension cable assembly, which conditions the raw eddy-current signal into a calibrated voltage output proportional to shaft gap distance. This conditioned signal feeds directly into a Bently Nevada 3500/42M Proximitor/Seismic Monitor card housed in the 3500 Series rack, where vibration amplitude, phase, and gap values are continuously evaluated against user-defined alert and danger thresholds.
When vibration levels approach the alert threshold — often an early indicator of bearing wear, rotor imbalance, or misalignment — the 3500 rack can issue a relay output to a Rockwell Automation Allen-Bradley PowerFlex 755 variable frequency drive (VFD), commanding a controlled speed reduction to protect the machine and reduce instantaneous power draw. This closed-loop interaction between the proximity transducer, the protection monitor, and the VFD is a textbook example of maintenance-focused motor control: rather than running a degrading machine at full speed until catastrophic failure, the system modulates drive output in response to real mechanical condition data.
On the data acquisition side, the analog output of the 330103-00-02-05-01-CN can be wired into a Siemens SIMATIC ET 200SP distributed I/O module, which aggregates vibration, temperature, and process signals from across the production floor and transmits them via PROFINET to a Siemens S7-1500 PLC. The PLC executes maintenance planning logic — for example, reducing conveyor speed during low-demand periods or staggering motor start sequences to avoid peak demand charges. A Siemens SIMATIC HMI TP1200 Comfort panel provides operators with a real-time dashboard of vibration trends, operating load per machine, and OEE (Overall Equipment Effectiveness) metrics, enabling data-driven decisions about maintenance scheduling and production pacing.
For facilities running on a Rockwell Automation ControlLogix or CompactLogix platform, the 3500 rack’s Modbus TCP or EtherNet/IP gateway module allows seamless integration of Bently Nevada vibration data into the existing PLC program. This means that a single Allen-Bradley Studio 5000 Logix Designer project can incorporate both process control logic and machinery protection logic, reducing the number of separate control systems and their associated energy overhead. Power quality monitoring can be further enhanced by adding a Schneider Electric PowerLogic ION7650 power meter at the MCC (Motor Control Center) level, correlating vibration events from the 330103-00-02-05-01-CN with real-time kW, kVAR, and power factor data to quantify the energy cost of each mechanical fault event.
Maintenance and Replacement Notes
Consider a centrifugal compressor train in a petrochemical plant running 24/7. Without continuous vibration monitoring, operators typically rely on fixed-interval maintenance schedules — replacing bearings and seals on a calendar basis regardless of actual wear condition. This approach leads to two forms of unplanned downtime: premature replacement of components that still have useful life, and catastrophic failures that occur between scheduled maintenance windows, triggering emergency shutdowns, high-energy restart sequences, and production losses that can take hours to recover.
With the Bently Nevada 330103-00-02-05-01-CN installed on the compressor’s drive-end and non-drive-end bearing journals, the 3500 Series protection system captures shaft vibration data at millisecond resolution. Trending algorithms within the 3500/42M monitor card detect the characteristic frequency signatures of developing bearing defects — sub-synchronous instability, 1X and 2X running speed harmonics, and high-frequency bearing defect frequencies — weeks or months before they would manifest as audible noise or elevated temperature. Maintenance teams can then schedule bearing replacement during a planned production window, avoiding the energy-intensive emergency restart cycle entirely.
On the operating load side, a compressor running with a developing rotor imbalance draws measurably more current than a balanced machine at the same operating point. By detecting imbalance early via the 330103-00-02-05-01-CN and scheduling corrective balancing during the next planned outage, the plant can recover the efficiency loss and reduce motor current draw — translating directly into lower electricity costs. In high-horsepower applications (500 kW and above), even a 1% improvement in motor efficiency can represent tens of thousands of dollars in annual operational stability.
The transducer also plays a role in optimizing production line throughput. In applications where shaft vibration is a limiting factor on maximum allowable speed — such as high-speed spindles in machining centers or centrifuge rotors in pharmaceutical manufacturing — real-time vibration data from the 330103-00-02-05-01-CN allows operators to run machinery closer to its design speed limit with confidence, improving cycle time and throughput without sacrificing reliability. This is the essence of energy-efficient production: doing more work per unit of energy consumed, rather than simply running slower to stay safe.
All units of the 330103-00-02-05-01-CN supplied by ZYPLC are sourced from verified inventory channels, subjected to full functional testing including output linearity verification across the rated measurement range, and shipped with a warranty terms confirmed during quotation. Test records are available upon request. Stock is maintained for prompt dispatch, supporting both planned project deployments and urgent replacement requirements.
Product Sourcing FAQ
Q1: How does the 330103-00-02-05-01-CN contribute to measurable operational stability in a rotating machinery application?
By providing continuous, high-resolution shaft vibration data, this transducer enables condition-based maintenance strategies that eliminate the unplanned downtime associated with both premature component replacement and unplanned failure-driven shutdowns. Early detection of rotor imbalance, misalignment, and bearing wear allows corrective action before efficiency losses accumulate, keeping motor current draw at its design baseline and reducing overall plant operating load.
Q2: Is the 330103-00-02-05-01-CN compatible with both the Bently Nevada 3300 and 3500 Series monitoring systems?
Yes. The 330103-00-02-05-01-CN is designed for use within the Bently Nevada 3300 Series transducer system and is fully compatible with the 3500 Series Machinery Protection System when used with the appropriate 3300/05 extension cable and 3300/16 proximitor. It can also interface with third-party monitoring systems that accept a standard –24 VDC eddy-current driver output signal, subject to calibration verification.
Q3: What is the recommended replacement or upgrade path if the existing proximity transducer system is outdated?
For systems currently using older Bently Nevada 7200 Series or non-standard eddy-current transducers, upgrading to the 330103-00-02-05-01-CN within the 3300 Series framework provides improved signal linearity, better EMI rejection, and compatibility with the current 3500 Series monitor platform. ZYPLC can advise on cable assembly compatibility and proximitor selection to ensure a drop-in replacement with minimal rewiring.
Q4: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Every 330103-00-02-05-01-CN unit undergoes functional testing including output voltage linearity verification across the full rated gap range, insulation resistance check, and connector integrity inspection before dispatch. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Units that fail in service within the warranty period are replaced or repaired at no charge, subject to inspection confirming the failure is not due to installation error, overvoltage, or physical damage.
