Bently Nevada 330103-00-02-10-01-00 Proximity Transducer

Bently Nevada 330103-00-02-10-01-00 Proximity Transducer: Precision Vibration Sensing for Energy-Efficient Motor Control

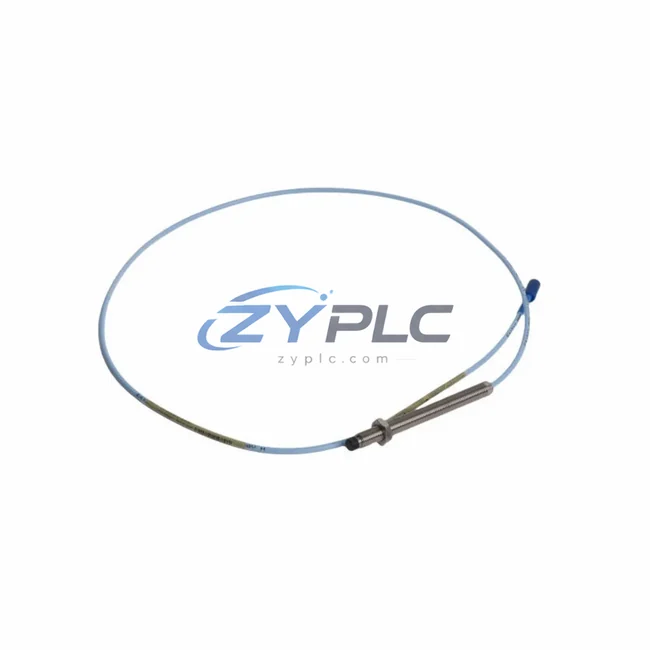

The Bently Nevada 330103-00-02-10-01-00 is a high-performance eddy-current proximity transducer engineered for the 3300 Series vibration monitoring system. Designed for continuous operation in demanding industrial environments, this transducer delivers real-time shaft displacement data that enables plant engineers to optimize motor control strategies, reduce unplanned downtime risk, and extend the operational lifespan of rotating machinery. By providing accurate, low-latency feedback on rotor dynamics, the 330103-00-02-10-01-00 becomes a critical node in any industrial automation system — from turbine halls to compressor stations and high-speed pump systems.

In modern industrial facilities where energy costs represent a significant share of operating expenditure, the ability to detect early-stage mechanical anomalies is directly tied to energy efficiency. Excessive vibration in rotating equipment is not merely a reliability concern — it is an unplanned downtime indicator. Misalignment, imbalance, and bearing degradation all cause motors and drives to consume more power than necessary. The 330103-00-02-10-01-00 continuously monitors radial shaft displacement with micron-level resolution, feeding critical data into the 3300 Series monitoring rack so that control systems can respond before inefficiency becomes failure.

Product Specification Table

System Compatibility and Application

The 330103-00-02-10-01-00 proximity transducer does not operate in isolation — it is a precision sensing element within a broader industrial control ecosystem. In a typical high-efficiency plant configuration, the transducer is paired with the Bently Nevada 3300/16-24-01-01-00-00-00 monitor module, which processes gap voltage signals and converts them into actionable vibration amplitude and phase data. This data is then transmitted via the 3300 Series rack backplane to a plant DCS or safety instrumented system.

On the drive side, variable frequency drives such as the Rockwell Automation PowerFlex 755 or Siemens SINAMICS G120 use vibration feedback — either directly or via a PLC intermediary — to modulate motor speed in real time. When the 330103-00-02-10-01-00 detects an increase in shaft displacement amplitude, the control loop can instruct the VFD to reduce rotational speed, lowering both mechanical stress and operating load simultaneously. This closed-loop interaction between proximity sensing and drive control is one of the most effective strategies for reducing specific operating load (SEC) in rotating equipment.

For data aggregation and condition monitoring, the transducer’s output integrates naturally with power monitoring modules such as the Schneider Electric PowerLogic ION7650 or the Siemens SENTRON PAC3200, which track real-time kWh consumption at the motor level. When vibration data from the 330103-00-02-10-01-00 is correlated with power consumption trends, maintenance engineers can identify the precise moment when a bearing or seal begins to degrade — long before it causes a measurable increase in energy draw visible at the utility meter.

At the PLC level, controllers such as the Allen-Bradley ControlLogix L73 or the Siemens S7-1500 series receive processed vibration data from the 3300 Series rack via Modbus TCP or EtherNet/IP, enabling automated responses such as load shedding, speed reduction, or maintenance alerts. I/O modules like the 1756-IB16 digital input card or the Bently Nevada 3500/42M proximitor monitor card serve as the interface layer between the transducer signal chain and the plant’s control network. HMI platforms such as the Rockwell FactoryTalk View SE or Siemens WinCC Advanced provide operators with real-time vibration trend displays, enabling informed decisions about production scheduling and energy load management.

Maintenance and Replacement Notes

In a petrochemical plant running centrifugal compressors at 6,000 RPM, even a 5% increase in shaft vibration amplitude can indicate the onset of rotor imbalance — a condition that forces the motor to draw 8–12% more current to maintain the same throughput. By deploying the Bently Nevada 330103-00-02-10-01-00 as part of a continuous online monitoring strategy, plant operators can detect this imbalance within minutes of onset rather than discovering it during a scheduled shutdown weeks later. The result is a measurable reduction in unplanned downtime, fewer unplanned outages, and a more predictable maintenance schedule that supports lean production planning.

In power generation applications — gas turbines, steam turbines, and hydro generators — the 330103-00-02-10-01-00 provides the shaft eccentricity and differential expansion data that turbine control systems require to optimize steam admission and fuel injection timing. Accurate proximity data allows the turbine control system to maintain tighter operating tolerances, reducing heat rate (the amount of fuel required per kWh generated) and improving overall plant thermal efficiency. Over a 12-month operating cycle, this level of precision monitoring can translate into significant reductions in fuel consumption and CO₂ emissions per unit of output.

For production lines with multiple motor-driven assets — conveyors, mixers, extruders, and packaging machines — the 330103-00-02-10-01-00 supports a predictive maintenance model that replaces time-based maintenance intervals with condition-based interventions. Rather than replacing bearings on a fixed schedule regardless of their actual condition, maintenance teams can use vibration trend data to schedule replacements only when the data indicates degradation has reached a defined threshold. This approach reduces spare parts consumption, minimizes planned downtime, and ensures that motors are never taken offline unnecessarily — all of which contribute to improved overall equipment effectiveness (OEE) and lower energy cost per unit produced.

Inventory availability is maintained to support rapid deployment. All units undergo pre-shipment functional testing including gap voltage verification, sensitivity calibration check, and cable continuity testing before dispatch. The warranty terms confirmed during quotation covers manufacturing defects and ensures that your monitoring system remains operational and accurate throughout the warranty period, with technical support available for installation and commissioning queries.

Product Sourcing FAQ

Q1: How does the 330103-00-02-10-01-00 contribute to reducing operating load in rotating equipment?
By providing continuous, high-resolution shaft displacement data, this proximity transducer enables control systems to detect mechanical inefficiencies — such as rotor imbalance, misalignment, or bearing wear — at the earliest possible stage. Early detection allows operators to correct these conditions before they cause motors and drives to consume excess power, directly reducing unplanned downtime and improving the efficiency of the entire drive train.

Q2: Is the 330103-00-02-10-01-00 compatible with existing 3300 Series monitoring racks and modern DCS platforms?
Yes. The 330103-00-02-10-01-00 is fully compatible with the Bently Nevada 3300 Series monitoring rack ecosystem, including standard proximitor extension cables and monitor modules. Its output signal (gap voltage) is a standard analog format that interfaces with virtually all major DCS and safety system platforms, including Emerson DeltaV, Honeywell Experion, and ABB System 800xA, via standard 4–20 mA or direct voltage input cards.

Q3: Can this transducer replace an older Bently Nevada proximity probe in an existing installation?
In most cases, yes. The 330103-00-02-10-01-00 follows the standard Bently Nevada 3300 Series form factor and electrical specification, making it a direct replacement for compatible legacy probes in the same series. It is recommended to verify the cable length suffix and target material compatibility before installation. Our technical team can assist with cross-referencing your existing part number to confirm compatibility.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
The warranty terms confirmed during quotation covers all manufacturing defects in materials and workmanship from the date of shipment. Prior to dispatch, each 330103-00-02-10-01-00 unit undergoes a pre-shipment test protocol that includes gap voltage output verification at standard target distances, sensitivity measurement against the 7.87 V/mm specification, and full cable and connector continuity testing. Units that do not meet specification are quarantined and not shipped. Warranty claims are processed with a target response time of 2 business days.
