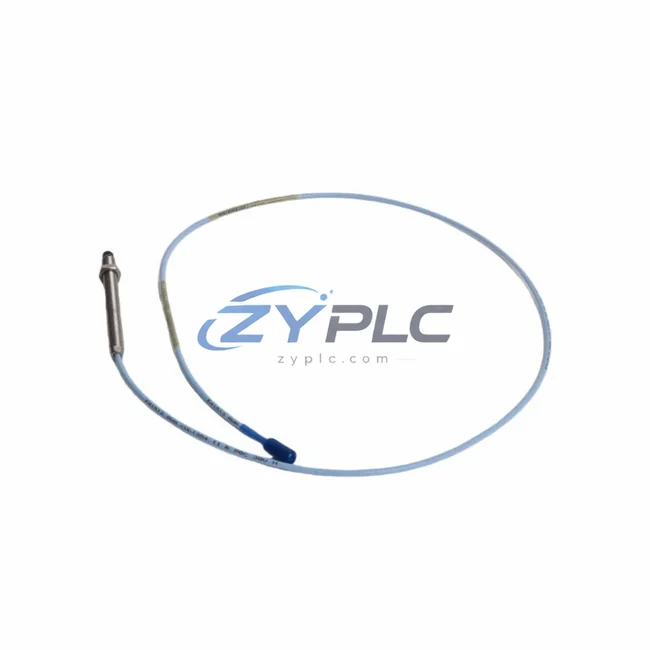

The Bently Nevada 330103-00-04-05-01-00 is a high-precision eddy-current proximity transducer belonging to the renowned 3300 Series platform — one of the most trusted vibration and position monitoring systems deployed across global industrial facilities. Designed for continuous, non-contact measurement of shaft displacement, radial vibration, and axial position on rotating machinery, this transducer plays a critical role in helping plant engineers reduce unplanned downtime, optimize operating load, and extend the operational life of critical assets such as compressors, turbines, pumps, and motors.

In modern maintenance-focused manufacturing environments, the ability to detect early-stage mechanical anomalies is directly tied to energy efficiency. When a rotating shaft begins to exhibit abnormal vibration patterns — whether due to imbalance, misalignment, bearing wear, or resonance — the machine draws more current, generates excess heat, and consumes significantly more power than its rated efficiency curve. The 330103-00-04-05-01-00 provides the real-time displacement data needed to identify these conditions before they escalate, enabling maintenance teams to intervene proactively rather than reactively.

This transducer is fully compatible with the Bently Nevada 3300 XL 8mm Extension Cable system and is typically paired with the 330130 Proximitor Sensor to form a complete signal conditioning loop. The Proximitor converts the raw oscillator signal from the transducer into a DC voltage proportional to the gap distance, which is then fed into the 3500 Series Rack Monitoring System for real-time analysis, alarm management, and data logging. Together, these components form an integrated condition monitoring architecture that supports predictive maintenance strategies and maintenance planning programs.

Product Specification Table

System Compatibility and Application

The 330103-00-04-05-01-00 does not operate in isolation — its true value is realized when integrated into a layered industrial automation and maintenance planning architecture. At the signal conditioning layer, the transducer works in tandem with the 330130-080-00-00 Proximitor Sensor, which provides the oscillator drive signal and converts gap voltage into a usable analog output for downstream monitoring systems.

At the rack monitoring level, the 3500/40M Proximitor Monitor within the Bently Nevada 3500 Series Rack receives the conditioned signal and applies configurable alarm thresholds for radial vibration, axial position, and differential expansion. When vibration levels exceed setpoints — often an early indicator of increased mechanical friction and elevated energy draw — the system triggers alerts that allow operators to reduce load, schedule maintenance, or initiate a controlled shutdown before catastrophic failure occurs.

For facilities running Siemens S7-1500 PLCs or Allen-Bradley ControlLogix platforms, the 3500 rack can be integrated via Modbus TCP or PROFIBUS DP communication modules, enabling the vibration data to feed directly into the plant’s distributed control system (DCS) or SCADA layer. This integration allows maintenance planning software to correlate vibration trends with power consumption data captured by power monitoring devices such as the Schneider Electric PowerLogic ION7650 or the ABB M2M energy meter, creating a closed-loop feedback system for continuous efficiency improvement.

On the drive side, variable frequency drives (VFDs) such as the ABB ACS880 or Siemens SINAMICS G120 can be programmed to respond to vibration alarm signals by automatically reducing motor speed — a direct operational-efficiency intervention that lowers kWh consumption during periods of mechanical stress. When the 330103-00-04-05-01-00 detects shaft displacement trending toward alarm limits, the VFD can throttle back the motor before the operator is even aware of the developing fault, reducing both unplanned downtime and mechanical wear simultaneously.

At the HMI and visualization layer, operators monitoring the Bently Nevada System 1 Condition Monitoring Software can view real-time waveform data, trend plots, and spectrum analysis for each monitored machine train. This data, combined with I/O modules from the 3500 rack such as the 3500/20 Rack Interface Module, enables seamless data export to plant historians like OSIsoft PI System, where long-term energy and vibration trends can be analyzed for continuous improvement initiatives.

Maintenance and Replacement Notes

In a typical petrochemical or power generation facility, a single undetected bearing fault on a high-speed compressor can result in weeks of unplanned downtime, tens of thousands of dollars in repair costs, and significant energy inefficiency during the degradation period — as the failing bearing increases friction load and forces the motor to draw abnormal load. The Bently Nevada 330103-00-04-05-01-00, installed as part of a complete 3300 Series monitoring loop, provides the continuous shaft displacement data needed to detect this degradation weeks or months before failure.

By enabling predictive maintenance rather than reactive repair, the 330103-00-04-05-01-00 directly contributes to improved Overall Equipment Effectiveness (OEE). Machines that are maintained in optimal mechanical condition operate closer to their design efficiency curves, consuming less energy per unit of output. For a facility running multiple large rotating machines, the cumulative operational stability from eliminating mechanical inefficiency can be substantial — often exceeding the cost of the entire monitoring system within the first year of operation.

From a production line rhythm (takt time) perspective, unplanned stoppages caused by vibration-related failures disrupt production scheduling, force overtime, and increase per-unit operating load as lines restart and ramp up. The real-time alarm capabilities of the 3500 Series Rack, fed by the 330103-00-04-05-01-00 transducer, allow maintenance to be scheduled during planned downtime windows, preserving production cadence and energy efficiency simultaneously.

All units are tested prior to shipment to verify sensitivity, linearity, and signal integrity. Stock is maintained for prompt delivery, and each unit is backed by a warranty terms confirmed during quotation covering manufacturing defects and performance deviations from published specifications.

Product Sourcing FAQ

Q1: How does the 330103-00-04-05-01-00 contribute to operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft displacement data, this transducer enables early detection of mechanical faults such as imbalance, misalignment, and bearing wear — all of which cause motors to draw abnormal load. Early intervention based on vibration data allows operators to correct faults before unplanned downtime escalates, directly reducing kWh consumption and extending motor life.

Q2: Is the 330103-00-04-05-01-00 compatible with the Bently Nevada 3500 Series Rack and System 1 software?
Yes. This transducer is designed for use within the Bently Nevada 3300 Series ecosystem and is fully compatible with the 3500 Series Rack Monitoring System, including the 3500/40M Proximitor Monitor and the System 1 Condition Monitoring Software platform. It requires a compatible Proximitor Sensor (such as the 330130 series) for signal conditioning.

Q3: Can this transducer replace an existing 3300 Series proximity transducer without system reconfiguration?
In most cases, yes. The 330103-00-04-05-01-00 is a standard 3300 Series 8mm transducer with a nominal sensitivity of 7.87 V/mm, making it a direct functional replacement for compatible transducers within the same series. However, always verify the extension cable length, connector type, and Proximitor model compatibility before installation to ensure signal chain integrity.

Q4: What is the warranty coverage and what does the pre-shipment testing process include?
Each 330103-00-04-05-01-00 unit is covered by a warranty terms confirmed during quotation from the date of shipment. Prior to dispatch, units undergo functional testing to verify sensitivity output, linearity across the measurement range, and signal conditioning compatibility. This ensures that every unit shipped meets Bently Nevada’s published performance specifications and is ready for immediate installation in your monitoring system.
