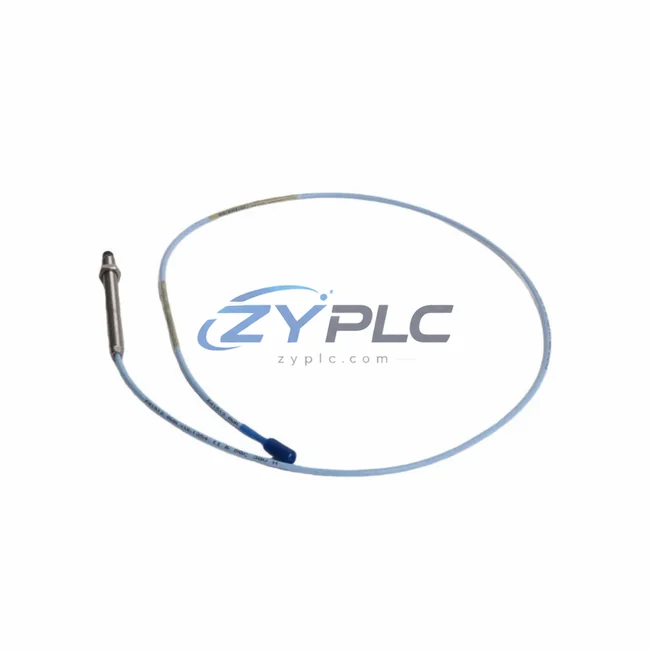

Bently Nevada 330103-00-10-05-02-CN Proximity Transducer

Bently Nevada 330103-00-10-05-02-CN Proximity Transducer: Replacement and Sourcing Information for 3300 Series Automation

In modern industrial facilities where energy efficiency and uptime are inseparable goals, the Bently Nevada 330103-00-10-05-02-CN proximity transducer stands as a critical sensing element within the 3300 Series vibration monitoring ecosystem. This eddy-current proximity transducer is engineered to deliver continuous, non-contact shaft displacement measurements with exceptional linearity, enabling plant engineers to detect mechanical anomalies before they escalate into unplanned downtime or energy-wasting equipment degradation.

Unlike passive monitoring approaches, the 330103-00-10-05-02-CN integrates directly into a closed-loop condition monitoring architecture. When paired with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor, the transducer forms a complete signal chain that feeds real-time radial vibration data into the System 1 Condition Monitoring Software. This data pipeline allows the control system to dynamically adjust motor load profiles, reducing unnecessary energy draw during low-demand production cycles.

Product Specification Table

System Compatibility and Application

The 330103-00-10-05-02-CN does not operate in isolation — its true value emerges when embedded within a layered industrial automation architecture designed for maintenance planning. At the drive layer, variable frequency drives such as the Bently Nevada TDXnet Communication Module receive vibration trend data and can signal upstream PLCs to modulate motor speed, directly reducing kWh consumption during partial-load conditions. This is particularly impactful in centrifugal pump and fan applications where affinity laws mean even a 10% speed reduction yields a 27% reduction in power draw.

At the control layer, the transducer’s analog output integrates seamlessly with Allen-Bradley ControlLogix or Siemens S7-300 series PLCs via standard 4–20 mA signal conditioning modules. The Bently Nevada 3500/42M Proximitor I/O Module serves as the signal conditioner and threshold comparator, triggering alarm states that feed into the plant DCS or SCADA layer without requiring manual intervention. This automated feedback loop eliminates the energy penalty of running machinery in degraded states for extended periods.

For facilities using Profibus DP or Modbus RTU communication backbones, the 330103-00-10-05-02-CN’s signal can be digitized and transmitted to maintenance planning systems such as the Schneider Electric PowerLogic ION series power meters, creating a unified view of both mechanical health and electrical consumption. When vibration amplitude trends upward on a motor-driven compressor, the maintenance planning system can correlate this with rising current draw, flagging the asset for maintenance before efficiency losses compound.

At the HMI layer, operators using Wonderware InTouch or Ignition SCADA platforms can visualize shaft displacement trends alongside real-time power consumption dashboards, enabling informed decisions about production scheduling and load balancing across the plant floor.

Maintenance and Replacement Notes

In a typical rotating machinery application — such as a steam turbine driving a generator or a multi-stage centrifugal compressor in a petrochemical plant — the 330103-00-10-05-02-CN provides the foundational vibration data that underpins an entire predictive maintenance strategy. When shaft displacement readings remain within the 3300 Series alarm thresholds, operators can confidently run equipment at optimized load points rather than derated safety margins, recovering production capacity and reducing specific operating load per unit of output.

Consider a scenario where a feed pump in a refinery begins exhibiting sub-synchronous vibration due to early-stage bearing wear. Without continuous proximity monitoring, the standard response is either to run the pump to failure — incurring catastrophic repair costs and days of downtime — or to schedule conservative preventive maintenance intervals that pull healthy equipment offline unnecessarily. With the 330103-00-10-05-02-CN installed and connected to the Bently Nevada 3500 Monitoring System, the vibration trend is captured in real time. The System 1 software identifies the developing fault signature weeks in advance, allowing maintenance to be scheduled during a planned production window. The pump continues operating at full efficiency until the optimal intervention point, and the plant avoids both the unplanned downtime of degraded operation and the production loss of emergency shutdown.

Beyond individual asset protection, the aggregate data from multiple 330103-00-10-05-02-CN transducers deployed across a production line feeds into plant-wide energy benchmarking. Facilities can identify which rotating assets are consuming disproportionate energy relative to their output — a classic indicator of mechanical inefficiency — and prioritize them for maintenance or replacement. This data-driven approach to asset management has been shown to reduce overall plant energy intensity by 5–15% in documented industrial case studies.

All units supplied by ZYPLC undergo pre-shipment functional testing to verify scale factor accuracy, output linearity, and signal integrity before dispatch. Each 330103-00-10-05-02-CN is backed by a warranty terms confirmed during quotation, and RFQ-confirmed sourcing ensures fast lead times to minimize your procurement cycle and keep your production lines running without interruption.

Product Sourcing FAQ

Q1: How does the 330103-00-10-05-02-CN contribute to measurable operational stability on the production line?
By providing continuous, high-resolution shaft displacement data, this transducer enables the early detection of mechanical inefficiencies — such as misalignment, imbalance, or bearing wear — that cause motors and drives to consume excess energy. Correcting these faults before they worsen allows equipment to operate at its designed efficiency point, directly reducing kWh consumption per production cycle.

Q2: Is the 330103-00-10-05-02-CN compatible with my existing 3300 Series monitoring infrastructure?
Yes. The 330103-00-10-05-02-CN is a standard 3300 Series eddy-current proximity transducer designed for direct compatibility with Bently Nevada 3300 XL Proximitor Sensors, 3500 Series monitoring racks, and System 1 software. It uses the standard 7.87 V/mm (200 mV/mil) scale factor common across the 3300 product family, ensuring plug-compatible integration without recalibration of existing system parameters.

Q3: Can this transducer be used as a direct replacement for an existing worn or failed unit?
Yes, the 330103-00-10-05-02-CN is a form-fit-function replacement for equivalent 3300 Series proximity transducers of the same probe diameter and cable length configuration. ZYPLC recommends verifying the gap voltage and scale factor after installation to confirm optimal signal calibration within your specific monitoring system setup.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 330103-00-10-05-02-CN unit supplied by ZYPLC is tested prior to shipment for output linearity, scale factor accuracy, and signal integrity. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Our technical team is available to support installation verification and troubleshooting throughout the warranty period to ensure your monitoring system delivers reliable, energy-optimized performance from day one.
