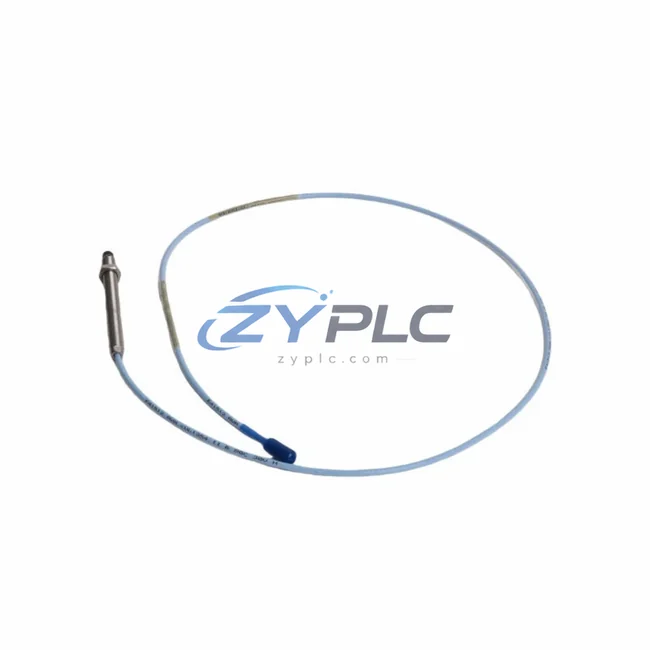

Bently Nevada 330103-00-11-10-01-00 3300 Proximity Transducer

Bently Nevada 330103-00-11-10-01-00 3300 Series Proximity Transducer: Replacement and Sourcing Information

The Bently Nevada 330103-00-11-10-01-00 is a high-performance eddy-current proximity transducer from the renowned 3300 Series, engineered to deliver continuous, non-contact shaft vibration and position measurement in rotating machinery. In modern industrial environments where energy efficiency and equipment uptime are directly tied to profitability, this transducer plays a foundational role in capturing the real-time mechanical data that drives smarter energy decisions. By providing accurate displacement signals to your control and monitoring architecture, the 330103-00-11-10-01-00 enables plant engineers to detect abnormal vibration patterns early, preventing energy-wasting mechanical faults before they escalate into costly failures.

Unlike passive sensing approaches, the 3300 Series proximity transducer system operates as an active maintenance-focusedness layer within your rotating equipment ecosystem. When paired with a Bently Nevada 3300 XL 8mm Extension Cable and a compatible 3300 Series Proximitor Sensor (such as the 330180-X1-05 or 330130-040-00-00), the complete transducer chain delivers conditioned output signals — typically at –200 mV/mil sensitivity — that feed directly into vibration monitoring systems, DCS platforms, and safety instrumented systems. This signal fidelity is critical: inaccurate vibration data leads to over-conservative maintenance schedules, unnecessary shutdowns, and wasted energy from unplanned restarts.

Product Specification Table

System Compatibility and Application

The 330103-00-11-10-01-00 does not operate in isolation — it is the sensing front-end of a broader industrial automation system. In a typical high-efficiency plant configuration, the transducer output is routed through a Bently Nevada 330180-51-00 Proximitor Sensor, which conditions the raw eddy-current signal into a clean DC voltage proportional to shaft gap. This conditioned signal is then fed into a Bently Nevada 3500/42M Proximitor/Seismic Monitor module housed within a 3500 Rack — a modular, scalable platform that supports simultaneous monitoring of multiple machine trains across the plant floor.

Within the 3500 Rack, the vibration data is processed alongside inputs from 3500/40M Proximitor Monitor channels and 3500/45 Position Monitor modules, enabling a comprehensive picture of shaft centerline position, dynamic vibration amplitude, and rotational speed — all direct indicators of mechanical energy efficiency. When shaft vibration exceeds baseline thresholds, the system triggers alerts through the rack relay outputs, which can interface with a Rockwell Automation ControlLogix PLC or a Siemens S7-400 safety controller to initiate load reduction or controlled shutdown sequences, preventing energy-intensive crash stops and protecting downstream equipment.

For plants running variable-speed drives, the proximity transducer data from the 330103-00-11-10-01-00 can be integrated with ABB ACS880 series variable frequency drives (VFDs) or Siemens SINAMICS G120 drives to enable closed-loop speed optimization. When vibration signatures indicate resonance or imbalance at a given operating speed, the VFD can automatically shift the motor operating point to a more energy-efficient RPM band, reducing both mechanical stress and power draw simultaneously. This feedback-driven drive control is one of the most impactful maintenance planning strategies available in rotating equipment management.

On the data visibility layer, the 3500 Rack communicates via Modbus TCP/IP or OPC-UA to plant historians and maintenance planning platforms, including Bently Nevada System 1 Condition Monitoring Software. System 1 aggregates vibration trends, bearing temperature data from 3500/60 Temperature Monitor modules, and process variables from the DCS to build a holistic operating load profile for each machine asset. This data-driven approach allows maintenance teams to shift from time-based to condition-based maintenance intervals, eliminating unnecessary preventive maintenance runs that consume labor, spare parts, and machine restart energy.

Maintenance and Replacement Notes

In real production environments — from petrochemical compressor trains to power generation turbines and pharmaceutical centrifuges — the Bently Nevada 330103-00-11-10-01-00 directly contributes to measurable operational stability through three primary mechanisms: early fault detection, optimized operating point control, and reduced restart operating load.

Early Fault Detection & Energy Waste Reduction: Mechanical faults such as rotor imbalance, misalignment, and bearing wear all manifest as elevated vibration amplitudes long before they cause functional failure. A misaligned shaft can increase motor load by 5–15% due to the additional mechanical load imposed on the drive train. The 330103-00-11-10-01-00, with its DC-to-10 kHz frequency response, captures both low-frequency imbalance signatures and high-frequency bearing defect frequencies, giving maintenance teams the data they need to schedule corrective action during planned downtime windows rather than reacting to emergency failures. Each avoided emergency shutdown eliminates the energy cost of an uncontrolled stop-and-restart cycle, which for large rotating equipment can represent tens of operating-hours per event.

Production Line Rhythm Optimization: In continuous process industries, machine vibration directly affects product quality and line throughput. Excessive vibration in a compressor or pump can force operators to reduce throughput to stay within safe operating limits, effectively reducing the energy efficiency of the entire production line. By maintaining tight vibration control through accurate proximity measurement, the 330103-00-11-10-01-00 enables machines to operate closer to their design point — maximizing throughput per operating-hour consumed.

Predictive Maintenance & Inventory Optimization: When vibration trend data from the 3300 Series transducer system is analyzed over time, maintenance teams can predict bearing replacement intervals with high confidence, allowing spare parts inventory to be optimized. Rather than stocking large quantities of bearings, seals, and coupling elements just in case, plants can maintain leaner inventories aligned to actual wear rates — reducing capital tied up in spare parts and the energy cost of manufacturing and shipping unnecessary components. All units supplied by ZYPLC are fully tested prior to shipment and backed by a warranty terms confirmed during quotation, ensuring replacement components perform to specification from day one.

Product Sourcing FAQ

Q1: How does the 330103-00-11-10-01-00 contribute to operational stability in a rotating machinery application?
The transducer provides continuous, high-accuracy shaft displacement data that enables early detection of mechanical inefficiencies such as imbalance, misalignment, and bearing wear. By identifying these conditions before they worsen, plant operators can schedule corrective maintenance during planned windows, avoiding the energy-intensive consequences of emergency shutdowns and uncontrolled restarts. When integrated with variable frequency drives, the vibration data can also be used to optimize motor operating speed for minimum operating load at a given load point.

Q2: Is the 330103-00-11-10-01-00 compatible with existing Bently Nevada 3500 monitoring racks and System 1 software?
Yes. The 330103-00-11-10-01-00 is a standard 3300 Series 8mm proximity transducer fully compatible with the Bently Nevada 3500 monitoring rack ecosystem, including 3500/42M and 3500/40M monitor modules. Its –200 mV/mil output is the standard sensitivity for 3300 XL system configurations, and the signal is directly readable by System 1 Condition Monitoring Software without additional signal conditioning hardware.

Q3: Can this transducer replace an existing 330103 series unit without recalibration?
In most cases, yes. The 330103-00-11-10-01-00 is a direct form-fit-function replacement for other 330103 series variants when used with the appropriate extension cable and Proximitor Sensor combination. However, it is recommended to verify the gap voltage setting (typically –10.0 VDC ±0.5 V at the nominal gap) after installation to confirm proper calibration within the existing monitoring system. ZYPLC provides pre-shipment testing documentation to support commissioning verification.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 330103-00-11-10-01-00 unit supplied by ZYPLC undergoes functional testing prior to shipment, including output sensitivity verification, linearity check across the full measurement range, and insulation resistance testing. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, ZYPLC provides rapid replacement to minimize production downtime, supporting your plant energy efficiency and uptime objectives.
