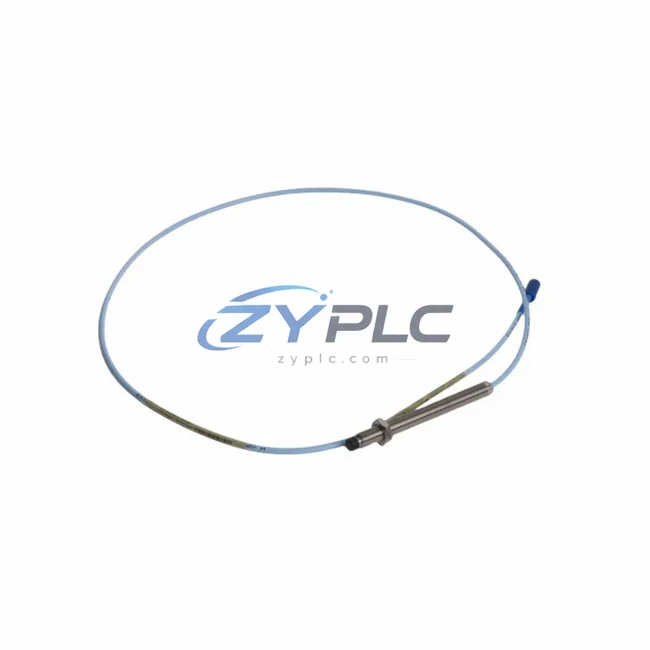

Bently Nevada 330103-11-16-10-02-CN 3300 Proximity Transducer

Bently Nevada 330103-11-16-10-02-CN 3300 Proximity Transducer: Replacement and Sourcing Information

The Bently Nevada 330103-11-16-10-02-CN is a high-performance eddy-current proximity transducer engineered for the 3300 Series vibration monitoring platform. Designed for continuous operation in demanding industrial environments, this transducer delivers accurate, real-time shaft displacement and vibration data that enables plant engineers to reduce unnecessary energy consumption, minimize unplanned downtime, and optimize rotating machinery performance across the full production cycle.

In modern manufacturing and process industries, unplanned downtime is rarely caused by a single point of failure — it accumulates through inefficient motor loading, undetected rotor imbalance, misalignment, and delayed maintenance responses. The 330103-11-16-10-02-CN addresses these challenges at the source by providing continuous, high-resolution proximity measurements that feed directly into the plant’s condition monitoring and control architecture.

Product Specification Table

System Compatibility and Application

The 330103-11-16-10-02-CN operates as a critical sensing node within a layered industrial automation architecture. When paired with the Bently Nevada 3300 XL 8-mm Extension Cable and a matched 3300 XL Proximitor Sensor, the transducer delivers gap and vibration signals with the resolution required to detect early-stage rotor anomalies — before they escalate into energy-wasting fault conditions.

At the control layer, vibration data from the 330103-11-16-10-02-CN is processed by the Bently Nevada 3500/42M Proximitor/Seismic Monitor module, which interfaces with plant DCS or PLC platforms — including Rockwell Automation ControlLogix and Siemens S7-300/400 series controllers — via standard 4–20 mA or Modbus RTU communication. This integration allows the control system to dynamically adjust drive output through connected variable frequency drives (VFDs), such as the ABB ACS880 or Siemens SINAMICS G120, reducing motor energy draw during low-load periods and preventing overcurrent conditions that shorten motor life.

For facilities running distributed I/O architectures, the proximity signal can be routed through Bently Nevada 3500 Series I/O modules or third-party remote I/O gateways supporting PROFIBUS DP or EtherNet/IP, enabling seamless data aggregation at the SCADA or MES level. HMI platforms such as the Siemens SIMATIC TP1200 Comfort Panel or Rockwell PanelView Plus 7 can display real-time vibration trends, gap values, and alarm states — giving operators immediate visibility into machine health without requiring manual inspection rounds.

Power quality monitoring systems, including the Schneider Electric PowerLogic ION7650 or similar power analyzers, can correlate vibration events captured by the 330103-11-16-10-02-CN with instantaneous power draw data, enabling energy engineers to identify which machines are consuming excess power due to mechanical degradation. This closed-loop feedback between vibration sensing, drive control, and power monitoring forms the foundation of a truly industrial automation system.

Maintenance and Replacement Notes

In a typical continuous process plant — such as a refinery, chemical facility, or power generation station — rotating equipment accounts for 60–70% of total electrical energy consumption. Inefficiencies in this equipment, whether caused by rotor imbalance, bearing wear, or misalignment, translate directly into elevated current draw, increased heat generation, and accelerated component degradation. The Bently Nevada 330103-11-16-10-02-CN provides the measurement precision needed to detect these conditions at their earliest stage.

When installed on a centrifugal pump or compressor, the transducer continuously monitors shaft radial position and vibration amplitude. A gradual increase in 1X vibration amplitude — often the first indicator of developing imbalance — can be detected weeks before it causes a process upset. By triggering a maintenance intervention at this early stage, plant operators avoid the energy penalty of running degraded equipment: a pump operating with significant rotor imbalance can consume 8–15% more electrical energy than a balanced machine delivering the same flow rate.

On motor-driven production lines, the 330103-11-16-10-02-CN supports optimized production rhythm (takt time) by ensuring that drive systems are not operating under mechanical stress that forces the VFD to compensate with excess torque output. When the monitoring system detects abnormal vibration, the connected control platform can automatically reduce line speed or trigger a controlled shutdown — preventing a catastrophic failure that would halt production for hours or days.

Predictive maintenance workflows enabled by this transducer also reduce spare parts inventory pressure. Rather than replacing bearings and seals on fixed time intervals, maintenance teams can schedule replacements based on actual condition data — reducing unnecessary parts consumption, lowering maintenance labor costs, and keeping critical components available for genuine need. All units supplied by ZYPLC are tested prior to shipment and covered by a warranty terms confirmed during quotation, ensuring reliable performance from day one of installation.

Product Sourcing FAQ

Q1: How does the 330103-11-16-10-02-CN contribute to measurable operational stability?
By providing continuous, high-resolution shaft vibration and displacement data, this transducer enables early detection of mechanical faults — such as imbalance, misalignment, and bearing wear — that cause rotating equipment to consume excess electrical energy. Facilities that implement condition-based maintenance using Bently Nevada 3300 Series transducers typically report 5–15% reductions in rotating equipment energy consumption within the first year of deployment.

Q2: Is the 330103-11-16-10-02-CN compatible with existing 3300 Series and 3500 Series monitoring systems?
Yes. The 330103-11-16-10-02-CN is designed for full compatibility with the Bently Nevada 3300 XL monitoring platform, including standard Proximitor drivers and extension cables. It also integrates with the 3500 Series rack-based monitoring system when used with appropriate interface modules. Always verify cable length and driver module compatibility with your specific installation configuration.

Q3: Can this transducer replace an existing proximity probe in a legacy monitoring system?
In most cases, yes — provided the replacement unit matches the original probe’s sensitivity (typically 200 mV/mil or 7.87 V/mm), thread size, and cable length. The 330103-11-16-10-02-CN follows Bently Nevada’s standard 3300 XL specification. We recommend verifying the full part number against your existing system documentation before ordering. Our technical team can assist with cross-referencing legacy part numbers.

Q4: What does the warranty terms confirmed during quotation cover, and how is the unit tested before shipment?
Every 330103-11-16-10-02-CN unit supplied by ZYPLC undergoes functional testing prior to shipment, including output sensitivity verification and insulation resistance checks. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units showing physical damage from improper installation or operation outside rated specifications are not covered. For warranty claims or technical support, contact our team directly.
