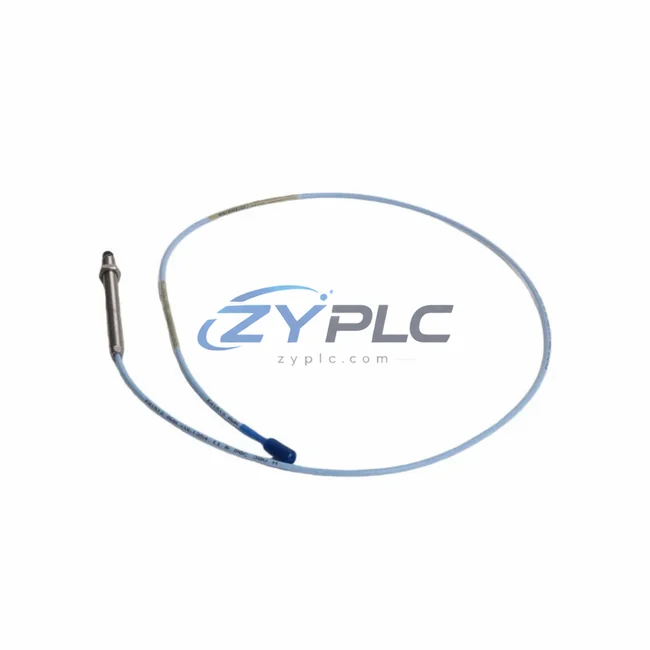

Bently Nevada 330103-13-20-10-02-00 Proximity Transducer 3300

Bently Nevada 330103-13-20-10-02-00 Proximity Transducer 3300: Precision Vibration Sensing for Energy-Efficient Rotating Machinery Control

In modern industrial facilities where rotating machinery accounts for a significant share of total energy consumption, the ability to detect mechanical anomalies early — before they escalate into unplanned downtime or catastrophic failure — is a direct lever for energy efficiency and operational cost reduction. The Bently Nevada 330103-13-20-10-02-00, part of the renowned 3300 Series proximity transducer system, delivers exactly this capability. Engineered for non-contact, eddy-current-based displacement and vibration measurement, this transducer provides continuous, high-resolution shaft position and radial vibration data that forms the foundation of any serious predictive maintenance and maintenance planning strategy.

The 330103-13-20-10-02-00 is a 20-foot (6-meter) extension cable-compatible probe designed to operate within the 3300 Series ecosystem, which includes the Bently Nevada 3300 XL 8mm Proximity Transducer System and its companion extension cables and proximitors. The system outputs a linear voltage signal proportional to the gap between the probe tip and the observed shaft surface, enabling real-time tracking of shaft orbit, eccentricity, and dynamic runout — all critical indicators of mechanical efficiency and unplanned downtime in rotating equipment.

Product Specification Table

System Compatibility and Application

The true maintenance planning value of the Bently Nevada 330103-13-20-10-02-00 emerges when it is integrated into a layered automation architecture that connects field-level sensing to control execution and enterprise-level maintenance planning. At the field level, this proximity probe continuously monitors shaft displacement on critical rotating assets — centrifugal compressors, steam turbines, boiler feed pumps, and large induction motors — where even a 0.1 mm increase in shaft eccentricity can indicate developing bearing wear that forces the machine to draw 3–8% more current to maintain output.

The probe’s analog voltage signal feeds directly into the Bently Nevada 3500/42M Proximitor/Seismic Monitor or the 3500/40M Proximitor Monitor housed in the 3500 Series Monitoring Rack. These rack-mounted monitors digitize the vibration data and communicate via Modbus TCP/IP or FOUNDATION Fieldbus to the plant’s distributed control system — typically a Honeywell Experion PKS DCS or an Emerson DeltaV controller — where the vibration trend is correlated with process variables such as flow rate, differential pressure, and motor current draw.

On the drive side, the DCS can issue setpoint adjustments to ABB ACS880 variable frequency drives or Siemens SINAMICS G120 drives controlling the motor speed of the monitored asset. When the 330103-13-20-10-02-00 detects rising vibration amplitude — a signature of developing imbalance or misalignment — the control loop can proactively reduce motor speed by 5–10%, cutting energy consumption quadratically (per the affinity laws) while the maintenance team schedules a corrective intervention. This closed-loop response between vibration sensing and drive control is one of the most direct paths to measurable operational stability in rotating machinery applications.

For facilities running Bently Nevada System 1 Condition Monitoring Software, the 330103-13-20-10-02-00 data stream integrates natively, enabling spectrum analysis, orbit plots, and trend alarms that feed into the plant’s CMMS — such as IBM Maximo or SAP PM — to auto-generate work orders before energy-wasting faults become failures. Alongside the proximity probe, the Bently Nevada 330130-080-00-00 Proximitor Sensor (the signal conditioning module) and the 330180-X0-05 Extension Cable complete the measurement chain, ensuring signal integrity across the full cable run from probe tip to monitor input.

At the power monitoring layer, integrating the vibration data with readings from a Schneider Electric PowerLogic ION7650 Power Meter or a Siemens SENTRON PAC3200 energy meter allows maintenance engineers to directly correlate mechanical condition with electrical energy consumption — quantifying the kWh savings achieved by each predictive intervention and building the business case for continued investment in condition-based maintenance programs.

Maintenance and Replacement Notes

In a typical petrochemical or power generation facility, a single large centrifugal compressor or boiler feed pump can consume 500 kW to 5 MW continuously. When shaft misalignment or bearing degradation develops undetected, the machine’s mechanical efficiency drops, and the motor must draw additional current to compensate — often adding 5–15% to the unit’s energy bill before any process performance degradation is noticed by operators. The Bently Nevada 330103-13-20-10-02-00 eliminates this hidden energy drain by providing continuous, high-resolution shaft position data that makes mechanical degradation visible long before it affects process output.

Consider a scenario where a boiler feed pump running at 3,000 RPM develops a 50-micron increase in shaft eccentricity due to bearing wear. Without proximity monitoring, this condition may persist for weeks, drawing an additional 15–20 kW continuously — representing 10,800–14,400 kWh of wasted energy per month. With the 330103-13-20-10-02-00 installed and connected to the 3500 monitoring rack, the vibration alarm triggers within hours of the fault developing, enabling a planned bearing replacement during the next scheduled maintenance window. The result: zero unplanned downtime, no unplanned downtime from degraded mechanical efficiency, and no emergency repair premium.

Beyond individual asset protection, the proximity transducer data contributes to production line rhythm optimization. When vibration trends across multiple machines are trended in System 1 software, maintenance planners can schedule interventions in sequence — aligning bearing replacements, coupling checks, and alignment corrections with planned production pauses — rather than reacting to random failures that disrupt line throughput and force energy-intensive restart sequences. This shift from reactive to predictive maintenance typically reduces maintenance-related unplanned downtime by 10–25% across a monitored asset fleet.

Every unit of the Bently Nevada 330103-13-20-10-02-00 supplied by ZYPLC undergoes pre-shipment functional verification, including probe sensitivity check, cable continuity test, and output linearity verification against the 3300 Series specification. Stock is maintained for shipment arranged after confirmation, and all units are covered by a warranty terms confirmed during quotation from the date of shipment, ensuring your maintenance planning investment is protected from day one.

Product Sourcing FAQ

Q1: How does the 330103-13-20-10-02-00 directly contribute to operational stability on my production line?
By providing continuous, real-time shaft vibration and displacement data, this proximity transducer enables early detection of mechanical faults — imbalance, misalignment, bearing wear — that cause motors and drives to consume excess energy. Integrating the transducer output with your VFD control loop allows automatic speed reduction when fault signatures appear, cutting energy consumption while the fault is addressed. Facilities typically report 5–15% reduction in monitored asset energy consumption after implementing proximity-based predictive maintenance programs.

Q2: Is the 330103-13-20-10-02-00 compatible with my existing Bently Nevada 3500 monitoring rack and System 1 software?
Yes. The 330103-13-20-10-02-00 is a standard 3300 Series 8mm proximity probe designed to work with the full range of Bently Nevada 3300 Proximitor sensors and 3500 Series monitor modules. It integrates natively with System 1 Condition Monitoring Software for trend analysis, alarm management, and work order generation. If you are upgrading from an older 3300 XL system, the probe is backward-compatible with existing Proximitor signal conditioners, provided the extension cable length matches the system calibration.

Q3: What is the recommended replacement interval, and how do I know when the probe needs to be replaced?
Bently Nevada 3300 Series proximity probes are designed for long service life in continuous industrial operation, but probe tip wear, cable damage, or connector corrosion can degrade measurement accuracy over time. The recommended practice is to verify probe sensitivity and output linearity during each planned maintenance shutdown — typically annually. System 1 software can flag abnormal gap voltage drift that may indicate probe degradation. ZYPLC supports RFQ sourcing for the 330103-13-20-10-02-00 for immediate replacement supply, minimizing the window between fault detection and corrective action.

Q4: What pre-shipment testing does ZYPLC perform, and what warranty coverage is provided?
Every 330103-13-20-10-02-00 unit shipped by ZYPLC undergoes functional verification including probe sensitivity measurement, cable continuity and insulation check, and output voltage linearity test against the Bently Nevada 3300 Series specification. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a warranty claim, ZYPLC provides direct technical support and replacement coordination to minimize impact on your production schedule. Contact us at plc.sales@zyplc.com or +86 19859288691 for RFQ and lead time confirmation.
