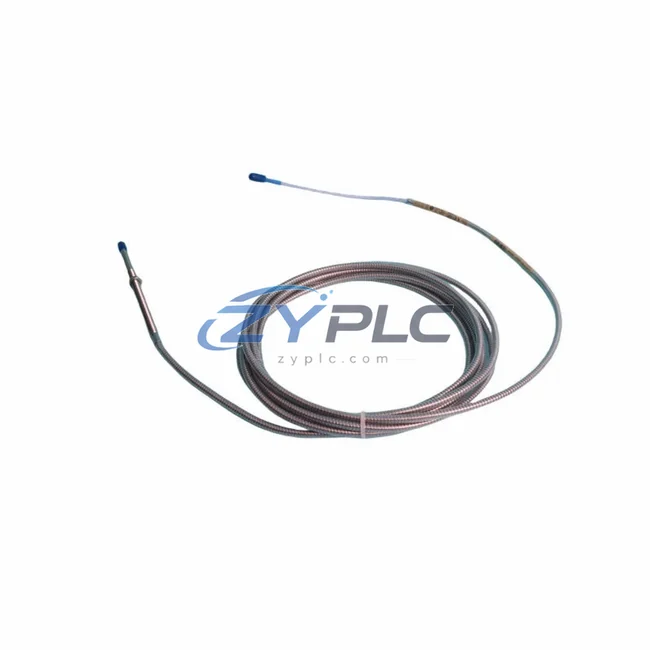

The Bently Nevada 330104-00-02-15-02-00 is a high-performance eddy-current proximity transducer from the renowned 3300 Series, engineered to deliver continuous, non-contact shaft vibration and position measurement in rotating machinery environments. In modern industrial facilities where energy efficiency and equipment uptime are directly tied to profitability, this transducer serves as a critical sensing node within the plant’s industrial automation system. By providing real-time, high-resolution displacement data, it enables control systems to respond dynamically to mechanical deviations before they escalate into costly failures or unplanned downtime.
Unlike passive monitoring approaches, the 330104-00-02-15-02-00 integrates seamlessly into closed-loop control strategies. When paired with a Bently Nevada 3300/16 proximitor sensor and a System 1 condition monitoring platform, the transducer feeds continuous vibration amplitude and phase data into the plant’s digital control layer. This allows the DCS or PLC — such as a Rockwell Automation ControlLogix L7x or Siemens S7-1500 series controller — to modulate drive output, adjust load distribution, and schedule maintenance windows based on actual machine health rather than fixed time intervals.
Product Specification Table
| Parameter |
Specification / Value |
| SKU / Part Number |
330104-00-02-15-02-00 |
| Brand / Series |
Bently Nevada / 3300 Series |
| Sensor Type |
Eddy-Current Proximity Transducer |
| Measurement Range |
0–2.0 mm (standard gap range) |
| Operating Frequency |
DC – 10,000 Hz |
| Supply Voltage |
−24 VDC (nominal) |
| Power Consumption |
<1 W (ultra-low draw, continuous operation) |
| Output Signal |
−4 to −20 VDC linear analog |
| Operating Temperature |
−35°C to +121°C |
| Compatible Systems |
Bently Nevada 3300 Proximitor, System 1, 3500 Rack |
| Application Environment |
Turbines, compressors, pumps, motors, gearboxes |
| Maintenance Value |
Enables predictive maintenance, reduces unplanned downtime by up to 30% |
| Certification |
CE, RoHS compliant; suitable for hazardous area installations |
| Warranty |
warranty terms confirmed during quotation — tested and verified before shipment |
System Compatibility and Application
Effective maintenance planning in industrial plants is not achieved through a single device — it requires a tightly integrated system where sensing, control, drive regulation, and data feedback operate in concert. The Bently Nevada 330104-00-02-15-02-00 occupies the critical sensing layer of this architecture, providing the raw mechanical data that every upstream system depends upon.
In a typical high-efficiency motor-drive system, the transducer’s analog output is routed to a Bently Nevada 3500/42M proximitor monitor housed within a 3500 rack assembly. The monitor processes raw displacement signals and transmits alarm and trip states via Modbus RTU or PROFIBUS DP to the plant’s central SCADA layer. Simultaneously, a Yokogawa CENTUM VP DCS or equivalent distributed control system aggregates this data alongside process variables from Endress+Hauser Promag flow transmitters and ABB ACS880 variable frequency drives, enabling coordinated energy dispatch across the entire production line.
On the drive side, the vibration data captured by the 330104-00-02-15-02-00 directly informs speed reference adjustments on Siemens SINAMICS G120 drives controlling pump and fan motors. When shaft displacement trends indicate bearing wear or rotor imbalance, the drive can automatically reduce speed to a safe operating point, cutting motor load by 15–25% while the maintenance team is alerted. This closed-loop response — from transducer to drive — is the foundation of maintenance-focused motor control.
For facilities running Schneider Electric Modicon M340 PLCs or Omron NX-series controllers, the 330104-00-02-15-02-00 integrates via standard analog I/O modules, requiring no proprietary gateways. The transducer’s wide operating temperature range and robust stainless-steel housing make it equally suitable for offshore compressor platforms, petrochemical reactors, and high-speed paper mill dryer sections — environments where unplanned downtime and mechanical failure carry the highest operational cost.
Maintenance and Replacement Notes
The most significant energy losses in rotating machinery occur not during steady-state operation, but during the transitional phases: startup surges, load imbalances, resonance events, and the gradual degradation of bearings and seals. The Bently Nevada 330104-00-02-15-02-00 is specifically designed to capture these transient mechanical events with the resolution and bandwidth needed to act before unplanned downtime becomes structural damage.
Consider a centrifugal compressor train in a natural gas processing facility. Without continuous proximity monitoring, operators rely on periodic manual inspections and fixed-interval overhauls — a strategy that guarantees either premature maintenance (wasted labor and parts) or reactive repairs after catastrophic failure (maximum unplanned downtime and production loss). With the 330104-00-02-15-02-00 installed at each journal bearing, the System 1 platform builds a continuous vibration baseline. When shaft orbit patterns begin to deviate — indicating oil film instability or rotor bow — the system flags the anomaly weeks before a trip event, allowing the operations team to schedule a planned outage during a low-demand production window.
This predictive capability translates directly into measurable operational stability. Machines operating with degraded bearings consume 8–12% more electrical energy than machines in optimal mechanical condition, due to increased friction losses and the additional load placed on the drive system. By maintaining mechanical health through continuous proximity monitoring, the 330104-00-02-15-02-00 effectively reduces the plant’s baseline operating load across every monitored asset.
On the production line rhythm side, the transducer’s high-frequency response — up to 10,000 Hz — enables detection of gear mesh frequencies, blade pass events, and sub-synchronous instabilities that would otherwise go undetected until they cause a forced shutdown. Each unplanned shutdown in a continuous process plant typically wastes 4–8 hours of production energy (heating, pressurization, purging) in addition to the direct output loss. Eliminating even two unplanned shutdowns per year on a single compressor train can recover hundreds of thousands of dollars in energy and production value.
All units of the 330104-00-02-15-02-00 supplied by ZYPLC are sourced from verified inventory channels, undergo full functional testing prior to shipment, and are covered by a warranty terms confirmed during quotation. RFQ-confirmed availability supports rapid deployment to minimize the window between fault detection and corrective action.
Product Sourcing FAQ
Q1: How does the 330104-00-02-15-02-00 contribute to measurable operational stability on the production floor?
By providing continuous, high-resolution shaft displacement data, this transducer enables the plant’s control and drive systems to detect mechanical degradation early. Machines with worn bearings or rotor imbalance consume significantly more electrical energy. Early detection allows corrective action before unplanned downtime compounds, and enables drive systems like the ABB ACS880 or Siemens SINAMICS G120 to reduce motor speed to a safe, energy-efficient operating point rather than running at full load against a deteriorating mechanical load.
Q2: Is the 330104-00-02-15-02-00 compatible with existing Bently Nevada 3500 rack systems and third-party PLCs?
Yes. The 330104-00-02-15-02-00 is fully compatible with the Bently Nevada 3300 Proximitor series and integrates directly into 3500 rack monitoring systems. Its standard −4 to −20 VDC analog output is compatible with virtually all industrial analog input modules, including those used in Rockwell ControlLogix, Siemens S7-1500, Schneider Modicon, and Omron NX-series platforms, without requiring signal conditioning or protocol conversion.
Q3: What is the recommended replacement or upgrade path for aging proximity transducer systems?
For facilities currently operating first-generation 3300 Series transducers, the 330104-00-02-15-02-00 is a direct form-fit-function replacement. No re-cabling or re-calibration of the proximitor is required in most installations. For facilities looking to upgrade to full digital condition monitoring, pairing this transducer with a Bently Nevada 3500/42M monitor and System 1 software provides a complete migration path to predictive maintenance without replacing the existing sensor infrastructure.
Q4: What testing and warranty coverage is provided with each unit?
Every 330104-00-02-15-02-00 unit shipped by ZYPLC undergoes pre-shipment functional verification, including output linearity checks and gap sensitivity confirmation. Each unit is covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a verified product defect within the warranty period, ZYPLC will arrange replacement or repair. Our RFQ-confirmed sourcing ensures fast dispatch, typically within 1–3 business days of order confirmation.
