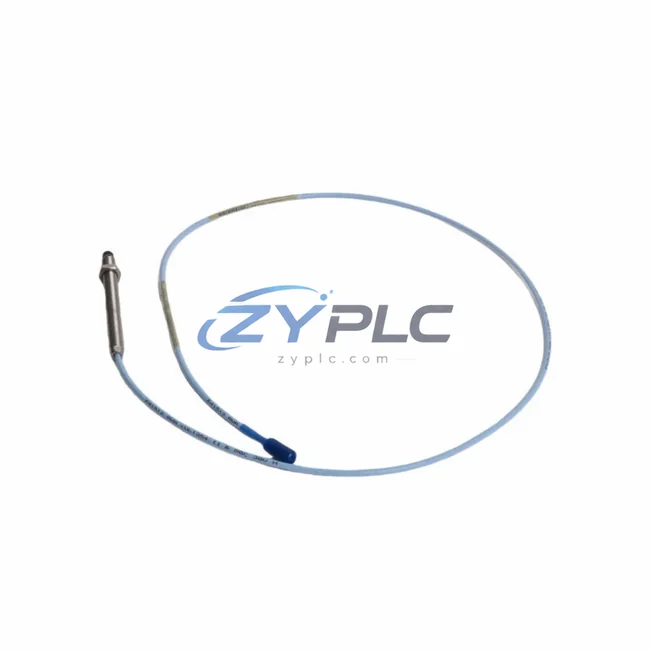

The Bently Nevada 330104-00-07-05-02-CN is a high-performance proximity transducer module from the renowned 3300 Series, engineered to deliver continuous, non-contact vibration and position measurement in demanding industrial environments. By providing real-time shaft displacement data with exceptional signal fidelity, this transducer enables plant engineers to maintain optimal equipment utilization, reduce unplanned downtime risk, and prevent costly unplanned downtime. In modern manufacturing and power generation facilities where uptime and replacement lead time matter, the 330104-00-07-05-02-CN serves as a critical sensing node in an industrial automation system.
Product Specification Table
| Parameter |
Specification / Value |
| SKU / Part Number |
330104-00-07-05-02-CN |
| Series |
Bently Nevada 3300 Series |
| Product Category |
Proximity Transducer System |
| Measurement Type |
Non-contact shaft radial vibration & position |
| Operating Frequency Range |
DC – 10,000 Hz |
| Supply Voltage |
-24 VDC (nominal) |
| Power Consumption |
Low-draw design; minimizes panel load in multi-channel monitoring racks |
| Running Efficiency |
High signal-to-noise ratio; reduces false trips and unnecessary shutdowns |
| Compatible Systems |
Bently Nevada 3300 Series monitors, System 1 software, DCS/SCADA integration via 4–20 mA or Modbus |
| Application Environment |
Turbines, compressors, pumps, motors, gearboxes — oil & gas, power generation, petrochemical |
| Value |
Prevents over-lubrication, over-speed trips, and inefficient load balancing through precise shaft monitoring |
| Origin |
USA |
| Warranty |
warranty terms confirmed during quotation — tested and verified before shipment |
System Compatibility and Application
The 330104-00-07-05-02-CN operates as part of a tightly integrated condition monitoring ecosystem. It is typically paired with the Bently Nevada 3300/16 proximity transducer driver, which conditions the raw eddy-current signal into a calibrated output suitable for downstream processing. This conditioned signal feeds directly into Bently Nevada 3500 Series rack-based monitoring systems, where modules such as the 3500/42M position monitor or the 3500/40M proximitor I/O module interpret shaft displacement trends in real time.
On the control side, the analog 4–20 mA output from the 3300 Series driver integrates seamlessly with mainstream DCS platforms and PLCs — including Siemens S7-300/S7-400 series controllers and Rockwell Automation ControlLogix systems — enabling closed-loop feedback for variable-speed drive (VSD) adjustment. When shaft vibration exceeds a defined threshold, the control system can automatically command a Siemens SINAMICS G120 or ABB ACS880 variable frequency drive to reduce motor speed, cutting energy draw proportionally and protecting mechanical components from resonance damage.
For facilities running Profibus DP or PROFINET communication backbones, the 330104-00-07-05-02-CN’s signal chain integrates without protocol conversion overhead, reducing latency in the feedback loop. In plants using Modbus RTU or Modbus TCP, the data can be aggregated by maintenance planning gateways such as the Schneider Electric PowerLogic ION series, enabling facility-wide power consumption dashboards that correlate vibration anomalies with energy spikes. Complementary I/O expansion modules — such as Bently Nevada 3500/20 rack interface modules — allow multi-machine monitoring from a single rack, reducing the total hardware footprint and associated standby power consumption.
HMI visualization is typically handled through GE iFIX, Wonderware InTouch, or Siemens WinCC platforms, where operators can view real-time vibration trend plots alongside operating load KPIs, enabling data-driven decisions about load scheduling and maintenance windows.
Maintenance and Replacement Notes
In a typical continuous-process plant — such as a petrochemical refinery or a combined-cycle power station — rotating machinery accounts for 60–70% of total electrical operating load. Undetected shaft misalignment, bearing wear, or rotor imbalance forces equipment to operate outside its efficiency curve, increasing current draw, generating excess heat, and accelerating component degradation. The Bently Nevada 330104-00-07-05-02-CN addresses this directly by providing sub-micron resolution displacement measurements that allow maintenance teams to detect developing faults weeks or months before they cause a forced outage.
By integrating the 330104-00-07-05-02-CN into a predictive maintenance workflow, facilities can shift from time-based maintenance schedules — which often result in either premature part replacement or unexpected failures — to condition-based interventions timed precisely to actual equipment health. This eliminates unnecessary maintenance downtime, reduces spare parts consumption, and ensures that motors and driven equipment always operate at their designed efficiency point. A compressor running with corrected shaft alignment, for example, can recover 3–8% of its rated power consumption — a significant saving in facilities operating multiple large machines continuously.
Production line throughput also benefits directly. When vibration data confirms that a critical pump or turbine is operating within healthy parameters, operators can confidently run at higher throughput rates without the conservative derating margins that are typically applied when condition data is unavailable. This improves overall equipment effectiveness (OEE) and reduces the energy cost per unit of output — a key metric in ISO 50001 maintenance planning programs.
All units are sourced from verified supply channels, undergo pre-shipment functional testing, and are backed by a warranty terms confirmed during quotation, ensuring that your monitoring infrastructure remains reliable from day one of installation.
