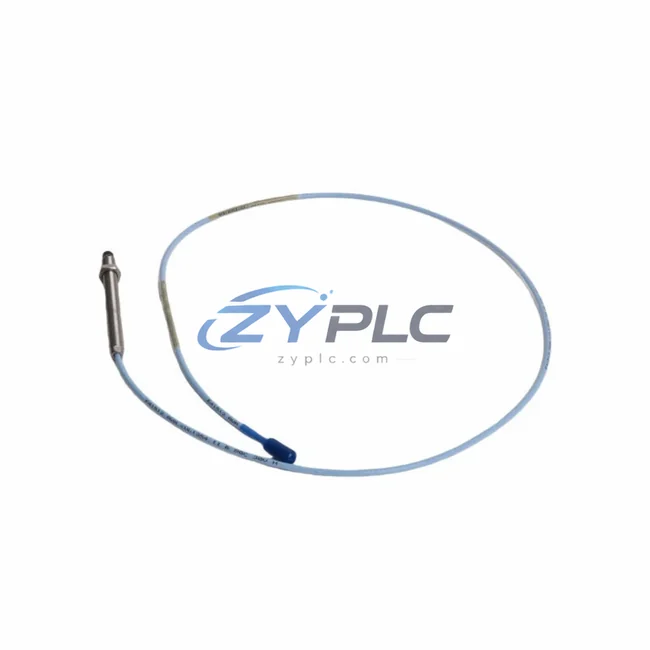

Bently Nevada 330104-00-13-05-02-CN Proximity Transducer | 3300 Series

Bently Nevada 330104-00-13-05-02-CN: Industrial Vibration Data Link for 3300 Series Condition Monitoring Systems

The Bently Nevada 330104-00-13-05-02-CN is a high-precision proximity transducer engineered for the 3300 Series machinery protection and condition monitoring platform. Designed to deliver continuous, real-time vibration and displacement data from rotating machinery to plant-level SCADA and DCS systems, this transducer forms a critical node in the industrial data chain — bridging field-level mechanical signals with digital monitoring infrastructure across compressors, turbines, pumps, and motors in oil & gas, power generation, and heavy manufacturing environments.

In modern smart factory deployments, the integrity of the data link between rotating equipment and the control room is non-negotiable. The 330104-00-13-05-02-CN operates as the sensing front-end within a complete Bently Nevada 3300 Series signal chain, converting shaft proximity and radial vibration into analog voltage outputs that feed directly into the 3300/16 Proximitor® sensor housing and onward to the 3500 Series rack-based monitoring system. This seamless signal path enables operators to detect imbalance, misalignment, rubs, and bearing wear before they escalate into unplanned shutdowns.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330104-00-13-05-02-CN sits at the origin of a multi-layer industrial data architecture. At the field level, the transducer tip monitors shaft displacement in real time, generating a continuous analog signal that travels through the matched extension cable to the Bently Nevada 3300/16 Proximitor® Sensor — the signal conditioning module that powers the probe and converts raw eddy-current response into a calibrated voltage output. This conditioned signal then enters the Bently Nevada 3500/22M Transient Data Interface or the 3500/42M Proximitor®/Seismic Monitor module housed within the 3500 Series protection rack, where it is processed against alarm and danger setpoints.

From the 3500 rack, digitized machinery health data is transmitted via Modbus TCP or FOUNDATION Fieldbus to the plant DCS — commonly a Honeywell Experion PKS, Emerson DeltaV, or ABB System 800xA — enabling seamless integration of vibration data into the broader process control loop. Simultaneously, the Bently Nevada System 1 Evolution software platform aggregates transducer data from multiple 3500 racks across the plant, providing a unified SCADA-level view of rotating equipment health, trend analysis, and predictive maintenance scheduling.

For remote monitoring and edge analytics, the data stream from the 330104-00-13-05-02-CN can be routed through an industrial edge gateway — such as the GE Digital APM Connect or a Moxa MGate MB3000 Series Modbus gateway — enabling cloud-based condition monitoring and integration with enterprise asset management (EAM) platforms. In facilities running OSIsoft PI System, the transducer’s vibration data is historized at high resolution, supporting long-term trend analysis and alarm correlation across compressor trains, turbine strings, and pump arrays. HMI operators using Wonderware InTouch or GE Proficy iFIX receive real-time vibration amplitude and phase data on process graphics, enabling immediate response to developing faults without leaving the control room.

This end-to-end data flow — from the 330104-00-13-05-02-CN probe tip through signal conditioning, rack-level protection, DCS integration, SCADA visualization, and edge/cloud analytics — exemplifies the connected automation architecture that underpins predictive maintenance programs in LNG terminals, petrochemical complexes, power plants, and large-scale manufacturing facilities.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machinery health data across incompatible systems. Legacy vibration monitoring installations often rely on proprietary analog signals that cannot be natively consumed by modern DCS or SCADA platforms, creating data silos that prevent plant-wide visibility. The Bently Nevada 330104-00-13-05-02-CN, as part of the 3300 Series ecosystem, addresses this directly: its standardized analog output integrates with the 3500 Series rack’s built-in communication modules, which support Modbus RTU/TCP, FOUNDATION Fieldbus, and OPC-UA — the three most widely adopted industrial communication protocols for cross-platform data exchange.

For sites where protocol unification is a priority, the 3500 rack’s gateway functionality eliminates the need for third-party protocol converters, reducing network complexity and latency. Real-time vibration data from the 330104-00-13-05-02-CN is available to the DCS within milliseconds of acquisition, supporting closed-loop protection logic and enabling automatic machine trip functions when vibration exceeds danger thresholds. This eliminates the response delay inherent in manual monitoring workflows and ensures that machinery protection is always active, even during network disruptions.

Remote diagnostics capability is another key advantage of deploying the 330104-00-13-05-02-CN within a fully networked 3300/3500 architecture. Maintenance engineers can access transducer gap voltage, signal quality indicators, and historical vibration trends from any networked workstation running Bently Nevada System 1, enabling remote fault diagnosis without requiring physical access to the machine train. This is particularly valuable in hazardous area installations — offshore platforms, chemical reactors, and high-temperature turbine halls — where minimizing personnel exposure is a safety imperative. Production line transparency is further enhanced through integration with MES and ERP systems, where vibration KPIs from the 330104-00-13-05-02-CN feed into OEE calculations and maintenance work order generation, closing the loop between field-level sensor data and enterprise decision-making.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330104-00-13-05-02-CN support for SCADA integration?
The 330104-00-13-05-02-CN outputs a standard analog voltage signal that is processed by the 3300/16 Proximitor® Sensor and fed into the Bently Nevada 3500 Series monitoring rack. The 3500 rack supports Modbus RTU/TCP, FOUNDATION Fieldbus, and OPC-UA communication, enabling direct integration with all major SCADA, DCS, and HMI platforms including Bently Nevada System 1, OSIsoft PI, Honeywell Experion, and Emerson DeltaV.

Q2: How does the 330104-00-13-05-02-CN ensure network stability and data continuity in harsh industrial environments?
The 3300 Series transducer system is designed for continuous operation in high-vibration, high-temperature, and electrically noisy industrial environments. The eddy-current sensing principle is immune to contamination from oil, water, and process gases, ensuring uninterrupted signal output. The matched cable and connector assembly (CN standard) maintains signal integrity over the full 5-meter extension length, and the 3500 rack’s redundant communication architecture prevents data loss during network switchovers.

Q3: Can the 330104-00-13-05-02-CN be integrated into an existing 3300 Series installation without system reconfiguration?
Yes. The 330104-00-13-05-02-CN is a direct replacement-compatible component within the Bently Nevada 3300 Series ecosystem. It is designed to interface with existing 3300/16 Proximitor® Sensor housings and 3500 Series rack modules without requiring changes to system configuration, alarm setpoints, or communication settings, minimizing installation downtime and commissioning effort.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every 330104-00-13-05-02-CN unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing including gap voltage output check, sensitivity calibration confirmation, and connector integrity inspection. A test report is available upon request. Availability confirmed by RFQ units are ready for same-week dispatch to support urgent maintenance and shutdown requirements.
