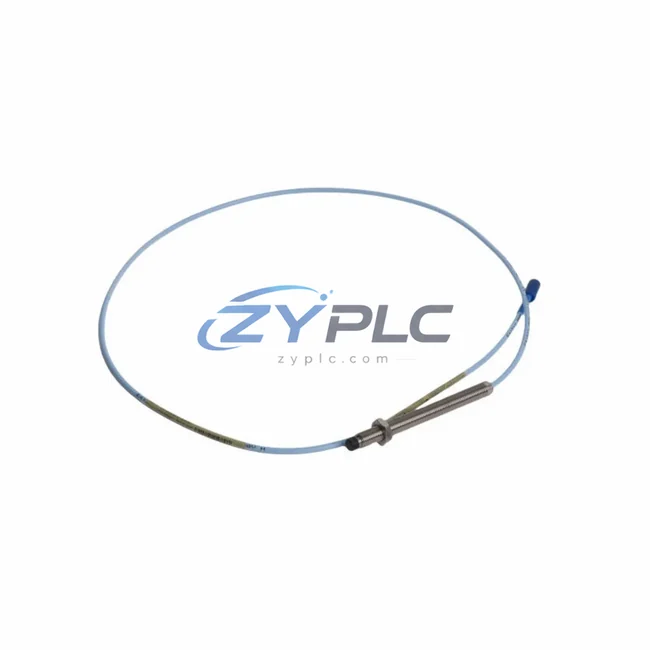

The Bently Nevada 330104-00-15-05-01-00 is a high-performance eddy-current proximity transducer engineered for the 3300 Series machinery protection system. Designed for continuous, non-contact measurement of shaft vibration, axial position, and differential expansion in rotating equipment, this transducer plays a critical role in reducing unplanned downtime, optimizing operating load, and extending the operational lifespan of turbines, compressors, pumps, and motors across heavy industrial environments.

In modern energy-conscious manufacturing, every watt of unnecessary consumption represents a cost. The 330104-00-15-05-01-00 addresses this directly by enabling real-time shaft displacement monitoring with micron-level accuracy, allowing control systems to respond dynamically to mechanical deviations before they escalate into energy-wasting imbalances or catastrophic failures. When integrated with the 3300 Series monitoring rack, this transducer feeds continuous positional data into the plant’s protection and control loop, enabling predictive maintenance strategies that reduce both unplanned downtime and maintenance overhead.

Product Specification Table

System Compatibility and Application

The 330104-00-15-05-01-00 transducer does not operate in isolation — it is the sensing front-end of a tightly integrated industrial automation system. In a typical turbomachinery protection loop, this probe is paired with a Bently Nevada 3300 XL 8mm Extension Cable and a 3300 XL Proximitor Sensor (such as the 330180-91-00) to form a complete eddy-current measurement chain. The Proximitor converts the raw impedance signal into a calibrated DC voltage that the 3300/16 Dual Voting Logic Module uses to trigger protective relay outputs when vibration thresholds are exceeded.

At the rack level, the 3300 Series monitoring chassis — including modules like the 3300/20 Radial Vibration Monitor and the 3300/55 Keyphasor Module — aggregates data from multiple transducer channels. This multi-channel architecture allows plant engineers to correlate shaft vibration, speed, and phase angle simultaneously, enabling precise identification of imbalance, misalignment, and bearing wear conditions that silently inflate operating load. When a rotor runs even slightly out of balance, the motor driving it draws abnormal load; the 330104-00-15-05-01-00 provides the measurement resolution needed to detect and correct this condition before it compounds.

For facilities running Bently Nevada System 1 Condition Monitoring Software, the data stream from this transducer feeds directly into trend analysis dashboards, where engineers can monitor shaft centerline plots, orbit diagrams, and spectrum waterfalls in real time. Integration with TDXnet communication modules further enables Modbus or OPC-UA data export to plant-level SCADA and DCS platforms — including systems built on GE Mark VIe turbine control or third-party DCS architectures — closing the loop between vibration data and maintenance planning decisions at the enterprise level.

In drive-intensive applications, the transducer’s output is also used to inform variable frequency drive (VFD) setpoint adjustments. When shaft displacement data indicates that a compressor or pump is operating away from its best efficiency point (BEP), the control system can command the VFD to trim rotational speed, directly reducing kWh consumption. This closed-loop maintenance planning — from sensor to drive — is one of the most impactful efficiency strategies available in rotating equipment management, and the 330104-00-15-05-01-00 is the measurement foundation that makes it possible.

Maintenance and Replacement Notes

In a petrochemical plant running multiple centrifugal compressor trains, undetected shaft vibration can cause a machine to consume 8–15% more energy than its design point while simultaneously accelerating bearing and seal wear. The 330104-00-15-05-01-00, installed at the compressor’s radial bearing journal, provides the continuous displacement signal that allows the 3300 Series protection system to alert operators before vibration amplitude crosses the alarm threshold — enabling corrective action during a planned maintenance window rather than an emergency shutdown.

In power generation applications, steam turbine operators use this transducer to monitor rotor eccentricity during startup and coast-down sequences. By tracking shaft position through the critical speed range, operators can optimize acceleration rates to minimize thermal stress and reduce auxiliary power consumption during the startup transient. A turbine that passes through its critical speed too slowly wastes steam energy; one that passes through too quickly risks mechanical damage. The 330104-00-15-05-01-00 provides the real-time positional feedback that allows operators to thread this needle precisely.

For pump stations in water treatment or pipeline operations, the transducer enables continuous monitoring of impeller shaft deflection, which is a leading indicator of cavitation and hydraulic imbalance. Early detection of these conditions allows operators to adjust flow control valve positions or VFD speeds before cavitation damage occurs, avoiding both the unplanned downtime of cavitating operation and the cost of impeller replacement. Across all these applications, the 330104-00-15-05-01-00 contributes to measurable reductions in mean time to repair (MTTR), improved overall equipment effectiveness (OEE), and lower energy cost per unit of production output.

Every unit shipped from ZYPLC undergoes pre-shipment functional testing to verify signal output linearity and sensitivity factor compliance with Bently Nevada factory specifications. Stock is maintained for fast dispatch, and all orders are supported by a warranty terms confirmed during quotation covering manufacturing defects and signal performance.

Product Sourcing FAQ

Q1: How does the 330104-00-15-05-01-00 contribute to operational stability in rotating equipment?
By providing continuous, high-resolution shaft displacement data, this transducer enables control systems to detect mechanical inefficiencies — such as imbalance, misalignment, and bearing wear — that cause motors and drives to consume excess energy. Early detection allows corrective action before unplanned downtime compounds, and integration with VFD control loops enables active speed optimization based on real shaft behavior.

Q2: Is the 330104-00-15-05-01-00 compatible with my existing 3300 Series monitoring rack?
Yes. This transducer is designed specifically for the Bently Nevada 3300 Series architecture and is compatible with standard 3300 XL Proximitor drivers, 3300/20 Radial Vibration Monitors, and 3300/55 Keyphasor Modules. It also integrates with System 1 software via TDXnet communication modules for SCADA and DCS connectivity.

Q3: Can this transducer replace an older or damaged Bently Nevada proximity probe in my existing installation?
In most cases, yes. The 330104-00-15-05-01-00 follows standard Bently Nevada 3300 Series probe specifications, including tip diameter, thread size, and sensitivity factor. However, we recommend verifying the gap voltage and sensitivity calibration against your existing driver module after installation. Our technical team can assist with replacement guidance prior to purchase.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
All units sold by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and signal performance deviations from published specifications. Prior to shipment, each unit is tested for output linearity, sensitivity factor accuracy, and cable continuity. Test records are available upon request. Warranty claims are processed directly through ZYPLC with replacement or refund options depending on the nature of the defect.
