Bently Nevada 330104-00-17-05-02-CN 3300 Proximity Transducer

Bently Nevada 330104-00-17-05-02-CN 3300 Proximity Transducer: Replacement and Sourcing Information

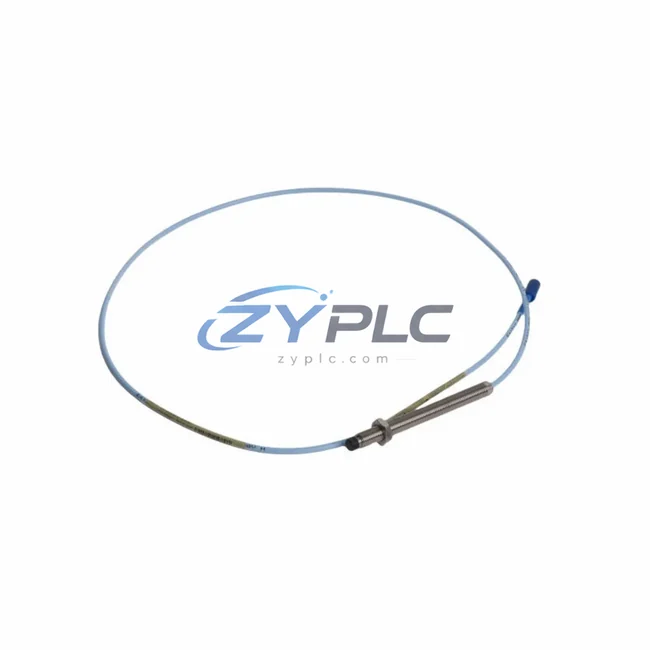

The Bently Nevada 330104-00-17-05-02-CN is a high-performance eddy-current proximity transducer from the renowned 3300 Series, engineered to deliver continuous, non-contact shaft vibration and position measurement in rotating machinery environments. Designed for integration into industrial automation systems, this transducer enables plant engineers to capture real-time mechanical data that directly informs drive efficiency decisions, reduces unplanned downtime, and optimizes overall equipment effectiveness (OEE). Whether deployed in turbine monitoring systems, compressor trains, or high-speed pump applications, the 330104-00-17-05-02-CN provides the measurement accuracy and signal stability required to sustain lean, energy-optimized production lines.

At ZYPLC, every unit of the 330104-00-17-05-02-CN is sourced from verified supply channels, subjected to full functional testing prior to shipment, and backed by a warranty terms confirmed during quotation. Stock is maintained on-hand to support urgent industrial procurement needs, with fast dispatch and traceable logistics.

Product Specification Table

System Compatibility and Application

The 330104-00-17-05-02-CN operates as a critical sensing node within a broader industrial automation system. In a typical industrial deployment, the transducer is paired with a Bently Nevada 3300 XL 8-mm Extension Cable and a 3300 XL Proximitor Sensor to form a complete proximity measurement chain. The conditioned signal is then fed into a Bently Nevada 3500/42M Proximitor Seismic Monitor, which processes vibration amplitude and phase data in real time.

This vibration data is consumed by Bently Nevada System 1 Condition Monitoring Software, which correlates mechanical signatures with energy consumption trends logged by the plant’s power monitoring infrastructure — such as a Schneider Electric PowerLogic ION7650 Power Meter or equivalent energy metering device. When shaft imbalance or misalignment is detected early, operators can schedule corrective maintenance before the fault escalates into an unplanned shutdown, avoiding the energy spikes and production losses associated with emergency restarts.

On the drive side, the vibration feedback loop integrates with variable frequency drives (VFDs) — for example, an ABB ACS880 Series Drive or a Siemens SINAMICS G120 Drive — to enable speed-adaptive motor control. When the 330104-00-17-05-02-CN detects elevated vibration at a specific RPM band, the control system can instruct the VFD to shift the operating speed away from the resonance zone, reducing mechanical stress and lowering energy draw simultaneously. This closed-loop interaction between proximity sensing and drive regulation is one of the most effective strategies for improving motor system efficiency in continuous-process industries.

For facilities running on a Rockwell Automation ControlLogix PLC or a Siemens S7-1500 PLC, the 3300 Series monitor outputs can be mapped via Modbus RTU or PROFIBUS DP communication modules into the main control program, enabling automated alarm management and energy setpoint adjustments without manual operator intervention. Integration with an HMI panel — such as a Siemens SIMATIC TP1200 Comfort Panel — provides operators with a real-time dashboard of vibration trends, energy consumption, and equipment health scores, supporting data-driven decisions on production scheduling and load balancing.

Maintenance and Replacement Notes

In real production environments, undetected shaft vibration is one of the leading causes of hidden unplanned downtime. A rotor running with even minor imbalance draws measurably more current from its drive system, generates excess heat in bearings and windings, and accelerates wear on mechanical seals and couplings — all of which translate into higher energy bills and shorter asset lifecycles. The Bently Nevada 330104-00-17-05-02-CN addresses this problem at the source by providing continuous, high-resolution displacement measurements that expose developing faults before they manifest as performance degradation.

In a petrochemical compressor train, for example, deploying the 330104-00-17-05-02-CN on both the drive-end and non-drive-end bearing housings allows the condition monitoring system to track orbit plots and trend vibration velocity over time. When the system identifies a gradual increase in 1X vibration amplitude — a classic indicator of rotor unbalance — maintenance teams can schedule a balance correction during the next planned outage rather than reacting to an emergency trip. The result is a measurable reduction in mean time between failures (MTBF), lower energy consumption per unit of output, and improved production line throughput.

For motor-driven pump systems, the transducer’s axial position measurement capability is equally valuable. Axial thrust changes caused by impeller wear or process fluid density shifts can be detected early, allowing operators to adjust operating parameters — such as flow rate setpoints controlled via the VFD — before the pump moves into an inefficient operating region on its performance curve. This proactive approach to pump management can reduce energy consumption by 5–15% compared to reactive maintenance strategies, based on industry benchmarks for centrifugal pump optimization.

From a production line rhythm (takt time) perspective, the 330104-00-17-05-02-CN contributes to cycle time stability by eliminating the variability introduced by unexpected equipment trips. When every critical rotating asset is continuously monitored, production planners can commit to tighter delivery schedules with greater confidence, reducing the need for buffer inventory and the energy costs associated with overtime production runs.

All units supplied by ZYPLC are tested for signal output accuracy, insulation resistance, and connector integrity before dispatch. Each 330104-00-17-05-02-CN ships with a warranty terms confirmed during quotation covering manufacturing defects and functional performance, supported by our technical team available at +86 19859288691 or plc.sales@zyplc.com.

Product Sourcing FAQ

Q1: How does the 330104-00-17-05-02-CN contribute to operational stability in rotating machinery?
By providing continuous, non-contact shaft vibration and position data, the 330104-00-17-05-02-CN enables condition monitoring systems to detect mechanical inefficiencies — such as rotor imbalance, misalignment, and bearing wear — at an early stage. Correcting these faults before they worsen prevents the excess current draw and thermal losses that accompany degraded mechanical conditions, directly reducing energy consumption per unit of production output.

Q2: Is the 330104-00-17-05-02-CN compatible with existing Bently Nevada 3300 Series monitor racks?
Yes. The 330104-00-17-05-02-CN is fully compatible with the Bently Nevada 3300 XL monitor platform, including the 3500 Series rack-based monitoring system when used with appropriate interface modules. It follows the standard Bently Nevada proximity transducer signal convention (-18 VDC gap voltage), ensuring drop-in compatibility with existing cabling and monitor configurations without requiring system reconfiguration.

Q3: What is the recommended replacement or upgrade path for aging 3300 Series transducers?
For facilities currently operating older 330104 variants without the -CN suffix (China-market designation), the 330104-00-17-05-02-CN is a direct functional replacement. ZYPLC recommends verifying cable length requirements (17-inch probe, 5-meter extension) and gap voltage calibration settings in the associated Proximitor before installation. Our technical team can assist with compatibility verification and provide a test report for the replacement unit upon request.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 330104-00-17-05-02-CN supplied by ZYPLC undergoes a pre-shipment test protocol that includes output voltage verification at standard gap distances, insulation resistance measurement, and connector pin integrity checks. The warranty terms confirmed during quotation covers functional failure under normal operating conditions, including signal output drift beyond specification and connector or cable assembly defects. Warranty claims are processed through our direct support channel at plc.sales@zyplc.com, with replacement or repair turnaround coordinated to minimize production impact.
